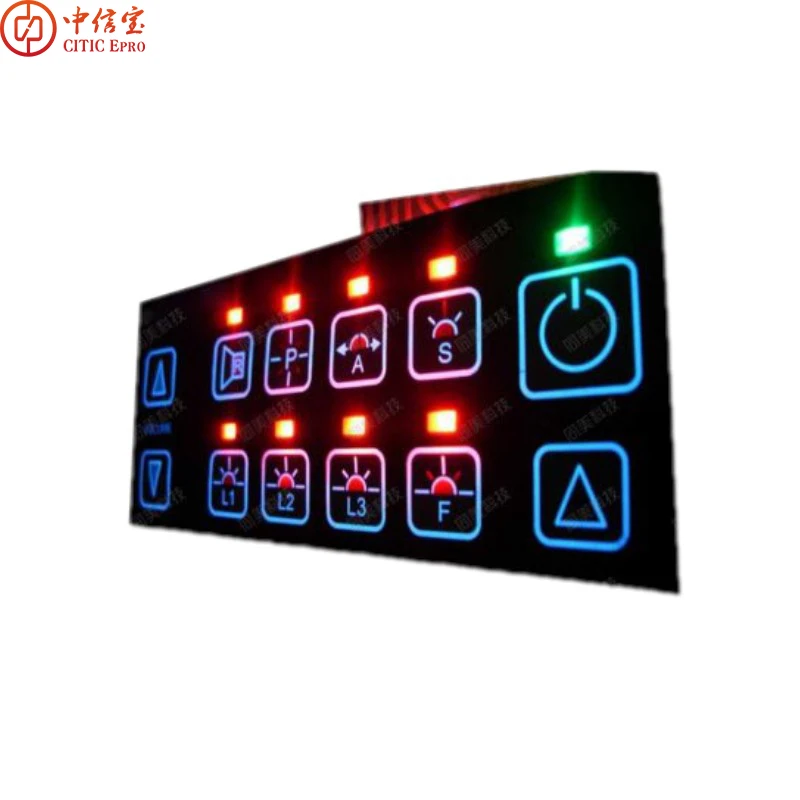

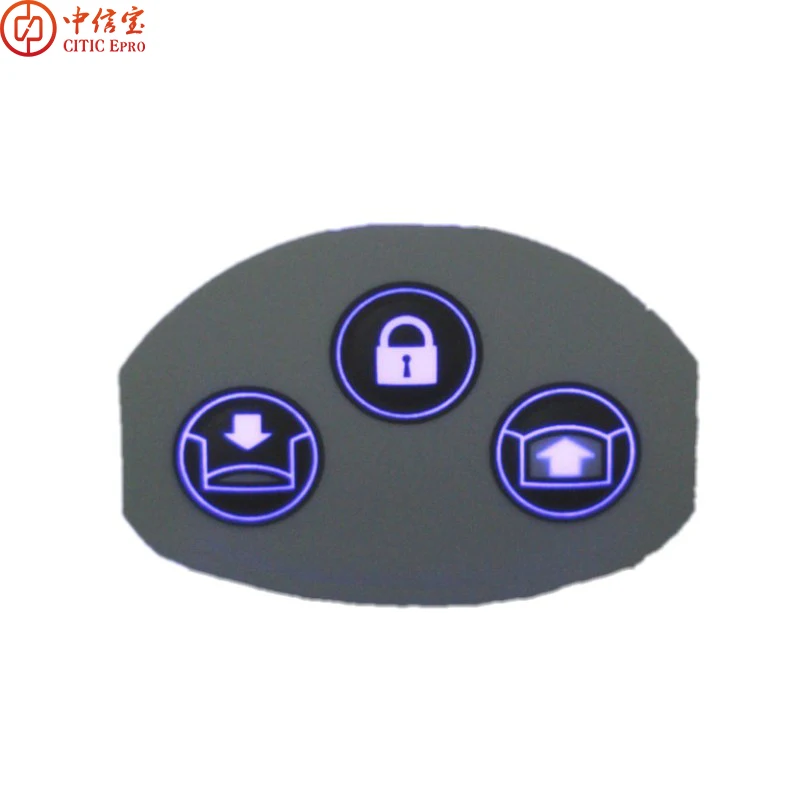

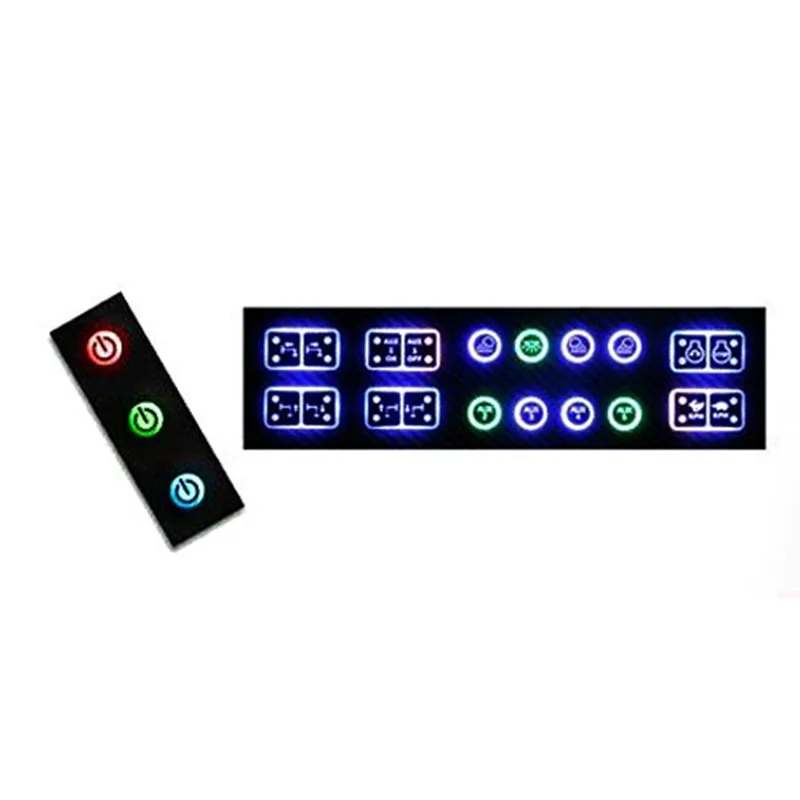

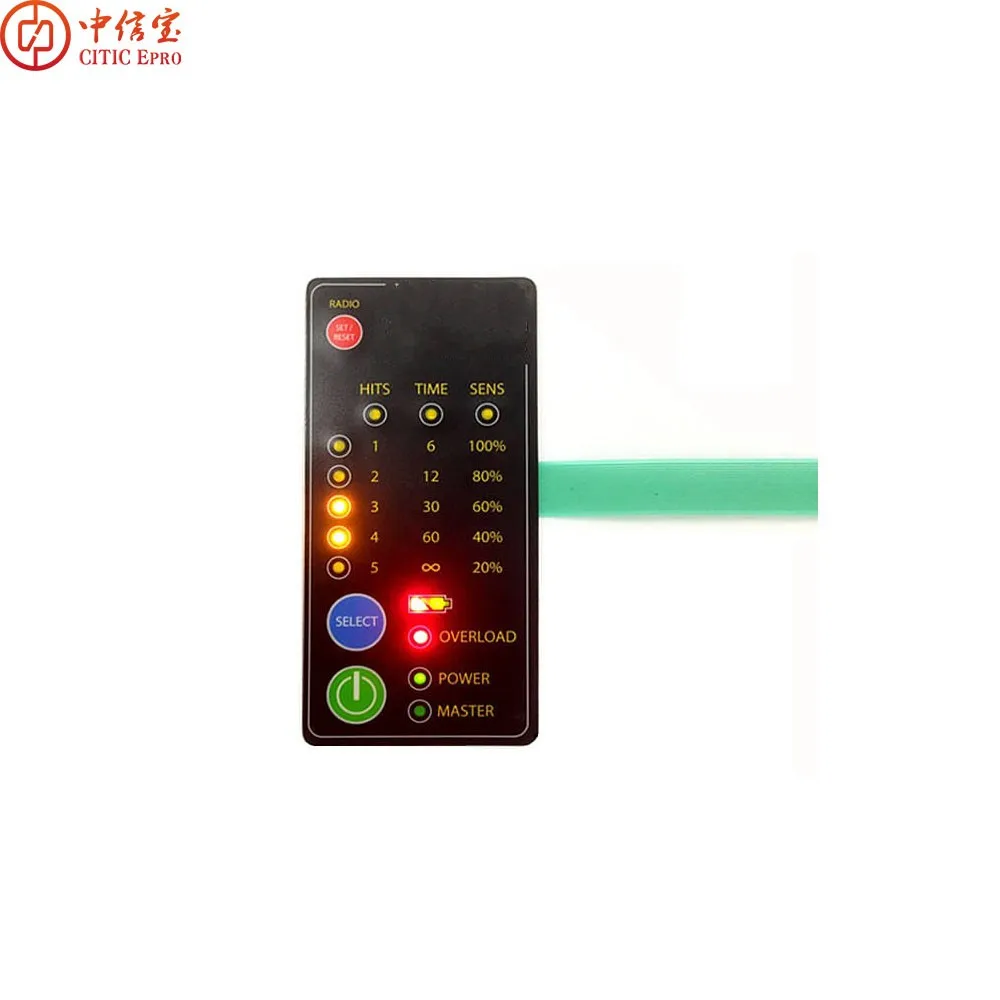

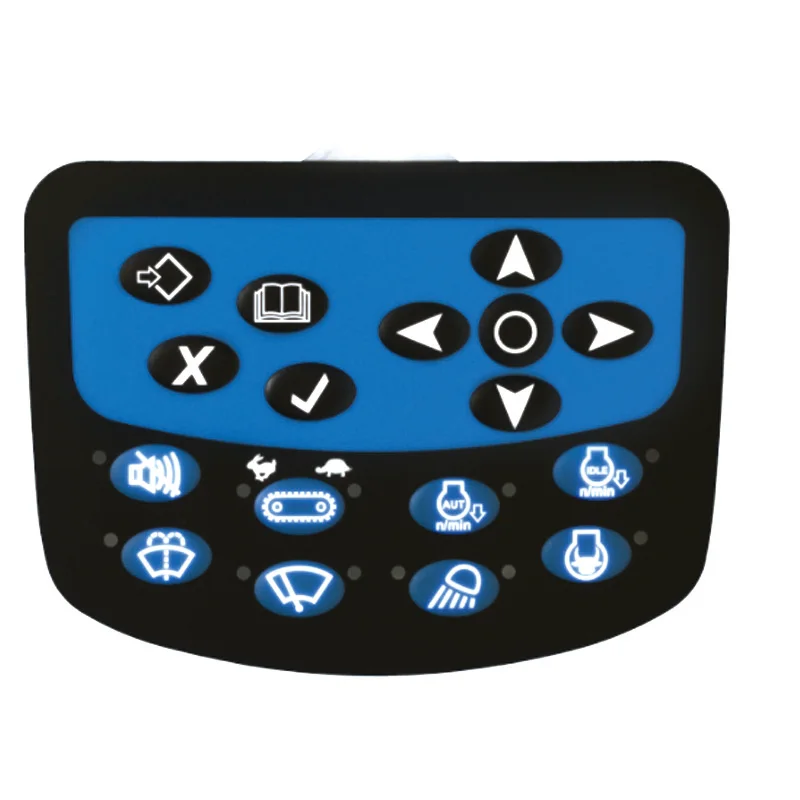

С подсветкой мембранный переключатель клавиатуры
- Категория: Keypads & Keyboards >>>
- Поставщик: Shenzhen,Citic,Treasure,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.39 $* | 0.42 $* |
| Aug-16-2025 | 0.1 $* | 0.0 $* |
| Jul-16-2025 | 0.91 $* | 0.25 $* |
| Jun-16-2025 | 0.80 $* | 0.66 $* |
| May-16-2025 | 0.76 $* | 0.28 $* |
| Apr-16-2025 | 0.18 $* | 0.46 $* |
| Mar-16-2025 | 0.71 $* | 0.50 $* |
| Feb-16-2025 | 0.20 $* | 0.46 $* |
| Jan-16-2025 | 0.14 $* | 0.6 $* |
Характеристики
Product Description
What is a Membrane Switch?
A membrane switch is a momentary electrical contact on/off switch that activates or deactivates an electric circuit. These are sometimes called single pole, single throw, normally open (SPSTNO) switches. Custom membrane switches are manufactured by screenprinting the circuit directly onto a plastic substrate with silver or carbon conductive ink. The simple, versatile, durable, and economical design of a custom membrane switch makes it a superior alternative to the mechanical switch.
A membrane switch is a momentary electrical contact on/off switch that activates or deactivates an electric circuit. These are sometimes called single pole, single throw, normally open (SPSTNO) switches. Custom membrane switches are manufactured by screenprinting the circuit directly onto a plastic substrate with silver or carbon conductive ink. The simple, versatile, durable, and economical design of a custom membrane switch makes it a superior alternative to the mechanical switch.
Technical Specifications
Electronic Characteristic | <35V ( DC ) <100mA 1W | Operation Force | flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz | |
Contact Resistance | 10Ω--500Ω (According the trace length and materials to confirm) | Life Expectancy | flat type ≥ 500 milliontimes, tactile type: ≥ 100 million times | |
Insulating Impedance | >100MΩ 250V DC | Operation Temperature | -40 °c ~ + 80 °c | |
Resistance of the wire | <1 Ω/cm width 1.27mm | Stock Temperature | -40 °c ~ + 85 °c |
Optional Features
* Custom printing, logos, and graphics
* Surface texture materials
* Custom shapes
* Backlighting (fiber optic or electroluminescent)
* Multiple tactile dome options for tactile feedback or non-tactile option
* EMI/ESD/RFI shielding options (for electro-magnetic interference, electro-static discharge and radio frequency interference
shielding)
* Embossing
* Embedded LEDs and/or resistors
* Multiple connector styles
* Sealed to keep out incidental dust and moisture
* Window lens coating
* Many more options are available
* Surface texture materials
* Custom shapes
* Backlighting (fiber optic or electroluminescent)
* Multiple tactile dome options for tactile feedback or non-tactile option
* EMI/ESD/RFI shielding options (for electro-magnetic interference, electro-static discharge and radio frequency interference
shielding)
* Embossing
* Embedded LEDs and/or resistors
* Multiple connector styles
* Sealed to keep out incidental dust and moisture
* Window lens coating
* Many more options are available
Embossed and tactile features membrane switches are widely used on consumer products, like hot tubs.
Strong adhesives ensure your switch is durable enough to hold up to your product’s natural environment.
membrane switch construction
Application
measuring instrument
medical equipment
i industrial controls
health&fitness equipment
Related Products
Packing & Delivery
Company Introduction
Certificate
Business cooperation
Why Choose Us
1. Precise user-interface technologies– Specializing in a variety of engineering-based solutions including membrane switches, graphic overlays, rubber keypads, functional die cuts, control panel assemblies, and custom plastic labels.
2. Rapid prototyping – Our skilled in-house engineering team provides fully functioning prototypes for significant flexibility inyour product design and development.
3. Advanced digital printing – Digital is the future. Our digital printing solutions offer surprising design flexibility, quick
turnaround, and the exciting link technology, which supports variable data printing.
4. ISO 9001-2015 certified – Thanks to our innovative technologies and continuous improvement in our processes, you get efficiency and accuracy.
2. Rapid prototyping – Our skilled in-house engineering team provides fully functioning prototypes for significant flexibility inyour product design and development.
3. Advanced digital printing – Digital is the future. Our digital printing solutions offer surprising design flexibility, quick
turnaround, and the exciting link technology, which supports variable data printing.
4. ISO 9001-2015 certified – Thanks to our innovative technologies and continuous improvement in our processes, you get efficiency and accuracy.
