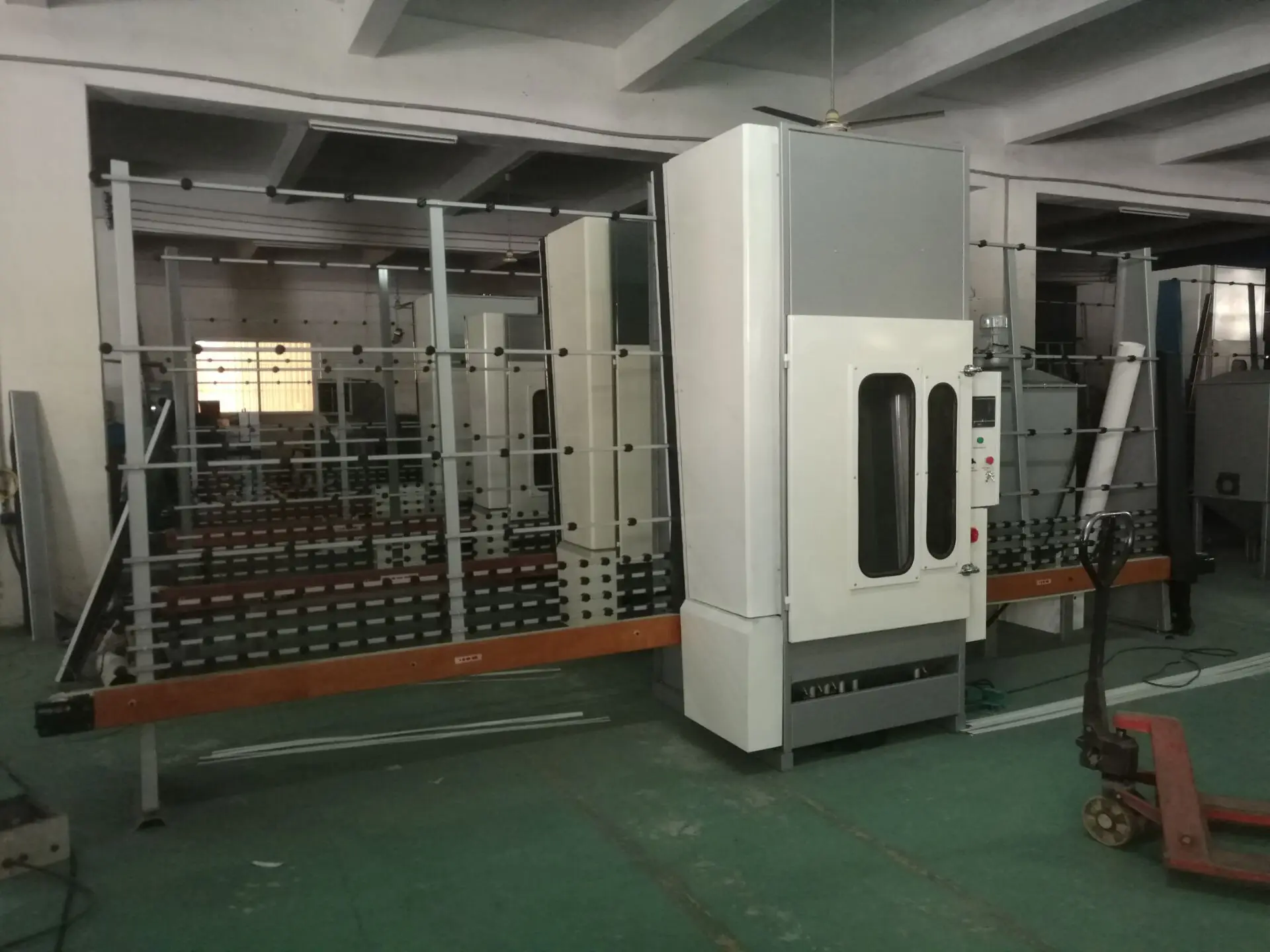

Shade vertical glass sandblasting machine





 1. The sandblasting machine is an automatic running machine. Spray space, height, guning stopover time, remain space are set on the touch screen.



2. With multi-gun and automatic dust remover system, it has excellent working performance and high efficiency. it can installed with 3-4 guns as required. The guns position adjustable.



3. The machine can be used for flat stone, wood, with the changing of conveyor belt to conveyor rollers.









Model Number	YD-SB-1500	YD-SB-2000	YD-SB-2500
Glass height(mm)	1500	2000	2500
Max. glass size(mm)	1500×3000	2000×3000	2500×3000
Min. processing size: (mm)	200x500	200x500	200x500
Nozzle moving speed (m/min)	5-25	5-25	5-25
Suitable working pressure,continues	0.6MPa~0.8MPa	0.6MPa~0.8MPa	0.6MPa~0.8MPa
Suitable air pressure power	2.4 m2/min 15kw	2.4 m2/min 15kw	2.4 m2/min 15kw
Power(kw)	3.5KW	3.5KW	3.5KW
Outer dimension(m)	4.5 x 1.5 x 2.5	7.0 x1.5 x 2.8	8x1.5 x 3.3
Weight(kg)	800	1000	1200

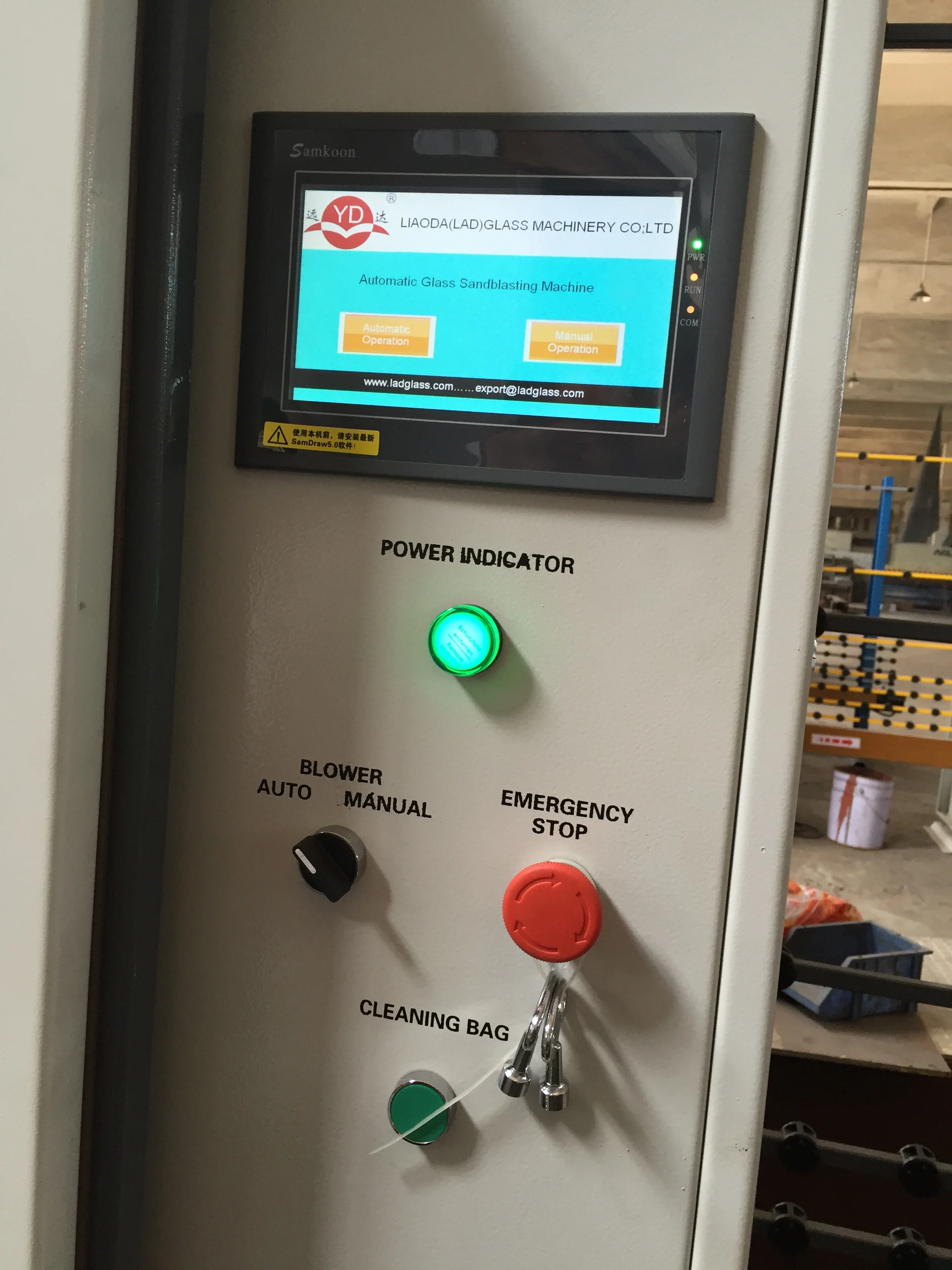

1. Touch screen control, PLC, able to set sandblasting width, height here





2. Use 3 or 4 automatic sandblasting guns





3. With the use of dust collection device









4. Clear and easy operation pages

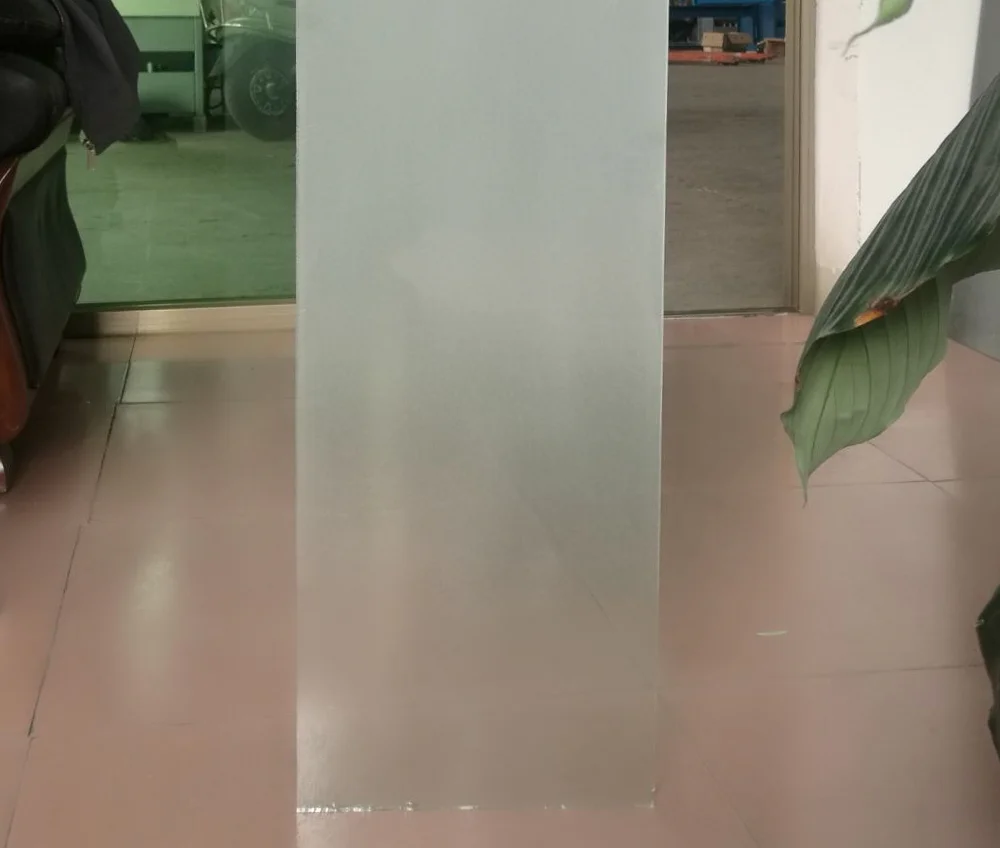

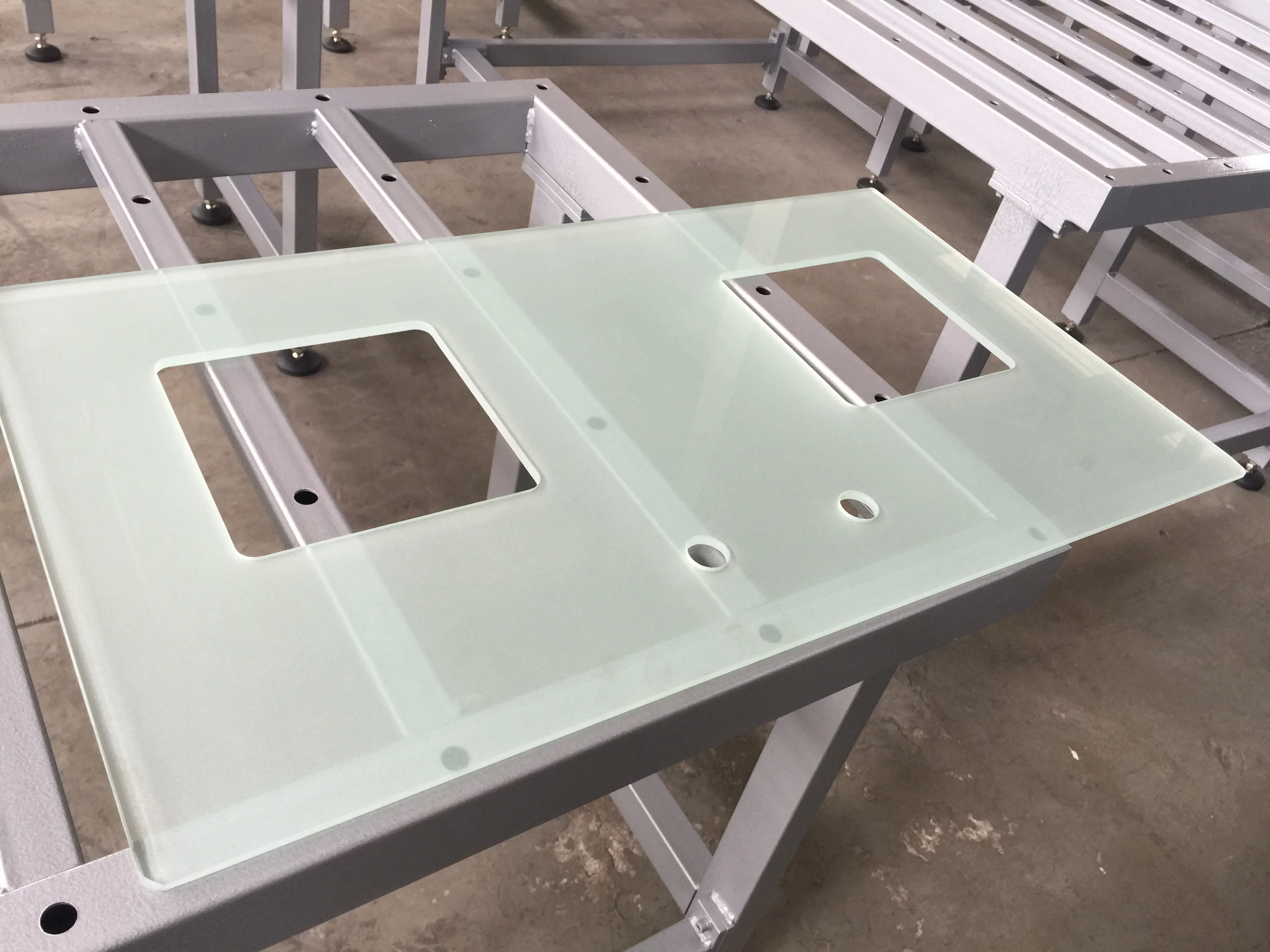

5. High quality sand blasting result



• Can be shipped by LCL(Less Than Container Loading) and FCL(Full container loading)


• For one machine, it can be packed by one steel palate and shipped by LCL.





•  YD-SB-2500: 3.5*1.8*2.25m, 1 package


•  YD-SB-2000: 3*1.8*2.25m, 1 package


•  YD-SB-1500: 2.4*1.8*2.2m, 1 package

 Payment terms:



30% of total as down payment

Balance paid before delivery





We are a factory specialized in manufacturing of glass cold & hot processing machines.

The main products include glass cutting machine, glass double edging machine, glass vertical edging machine, vertical beveling machine, glass drilling machine, glass shape edging machine, glass sandblasting machine and glass flat/bent tempering furnace.

The factory started production of glass processing machines since year 2000.

All of our machines have CE certifications and thousands of our machines are working well all in customer’s factories over the world .

We have our own export team and service team. We are glad to support our high quality glass processing machines and give our instant, sufficient service to you!
