Система механической парковки умный вертикальный парковочный подъемник вращающаяся система
- Категория: Парковочное оборудование >>>
- Поставщик: Jiaxing,Aoyama,Elevator,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2380.78 $* | 2499.11 $* |
| Aug-19-2025 | 2360.90 $* | 2478.30 $* |
| Jul-19-2025 | 1980.6 $* | 2079.72 $* |
| Jun-19-2025 | 2320.21 $* | 2436.16 $* |
| May-19-2025 | 2020.45 $* | 2121.59 $* |
| Apr-19-2025 | 2280.53 $* | 2394.44 $* |
| Mar-19-2025 | 2260.10 $* | 2373.19 $* |
| Feb-19-2025 | 2240.10 $* | 2352.56 $* |
| Jan-19-2025 | 2220.20 $* | 2331.69 $* |
Характеристики

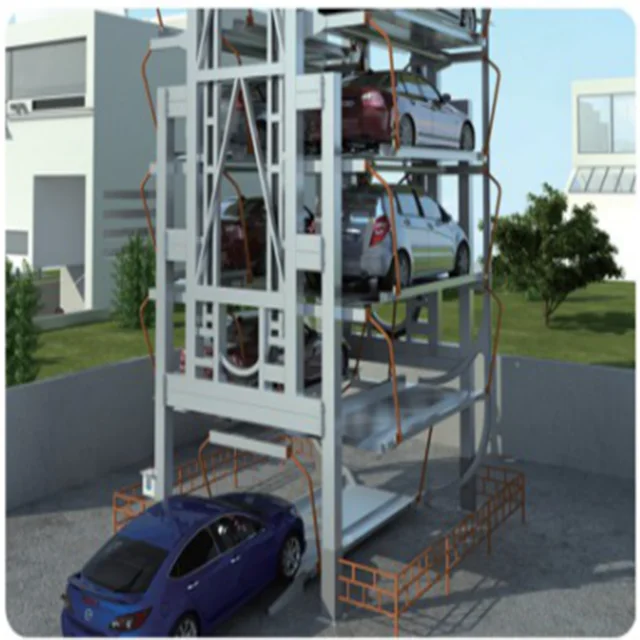

Rotary Parking System
Description
AOYAMA Rotary Parking System adopt mechanical motion vertical circulation parking spaces make each group according to master smart card automatically rotate to the set position. It is doing circular motion in vertical direction of the ground. Its working principle to activate the driving mechanism by gear motor, the car brackets are installed at regular intervals on the traction chain, through the cycle movement to access vehicle.
Highlights
Save parking spaces
Independent parking
Low maintenance costs
High level of operating and functional safety according to EN norms
Carrying capacity per platform / per car available with 2000kg and 2600kg.
Features:
- It adopts advanced technology
- It is convenient and quick to store the car, and it takes 20 seconds for each vehicle to store and deposit the vehicle.
- It has the configuration frequency converter, the whole machine runs more smoothly, saves more energy and the noise is lower.
- It has the parking anti-swing device to effectively prevent the wobble of the load plate.
- Easy to assemble and move, using PLC automatic shunting, intelligent access vehicle can be completed with one swipe card.
Technical specification
Rotary Parking System | |
Safety Device | Emergency brake, over length detection, mechanism detect people or car entering |
Operation Mode | Button/IC card |
Car Dimension | ≤5300mm*2000mm*1550mm |
Car Quantity | ≤150s |
Enter Method | Forward entry, backward exit |
Brake System | AC normally closed brake system |
The advantages:
1.Simple and compact structure; economical and practical.
2.Smart vertical parking lift intelligent control; simple and convenient.
3.Equipped with multiple safety protection devices.
4.Equipped with abrupt stop button to ensure safe working conditions.
5.The upper parking space is used the same as the general ground parking spaces.
