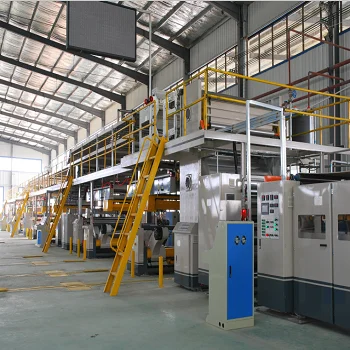

Линия из гофрированного картона 1600-5
- Категория: Carton Printing Slotting Die-Cutting Machine >>>
- Поставщик: Dongguang,Ruichang,Carton,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 273700.97 $* | 287385.52 $* |
| Aug-18-2025 | 271400.95 $* | 284970.25 $* |
| Jul-18-2025 | 227700.17 $* | 239085.76 $* |
| Jun-18-2025 | 266800.61 $* | 280140.4 $* |
| May-18-2025 | 232300.7 $* | 243915.46 $* |
| Apr-18-2025 | 262200.38 $* | 275310.67 $* |
| Mar-18-2025 | 259900.14 $* | 272895.12 $* |
| Feb-18-2025 | 257600.74 $* | 270480.4 $* |
| Jan-18-2025 | 255300.38 $* | 268065.67 $* |
Характеристики
FAQ
1.Are you manufacturer ?
Yes, we are a manufacturer with 20 year manufacturing experience and we have our own export company.
workshop
License and certificates
2. What is your product?
We are professional carton making machinery manufacturer .
3.Do you have experience in packing for sea shipping?
Yes, we will wrap the machine with plastic film ,packed with steel shelf and wooden plate,then fixed in the container.
4. What we should do after we placed the order?
Seller will send a articles list and floor drawing which buyer should prepared in advance .
5.Who will install the machine when machines reached our factory?
We will send professional installer to install the machine and teach the operator how to operate and maintain the machine in customer factory ,it is free within 7 days. Buyer only need to offer return tickets and visa expenses .
6.Do you have local service ?
Yes, we have. If customer come across the problem with the machine ,he can contact our local staff first.
Seller will go to check the machine situation once-twice in one year.
7 .what we should do if we need spare parts for replacement ?
We will delivery some frequent spare parts along with order for emergency replacement.
We have comprehensive inventory of spare parts in our factory to ensure quick availability for the infrequent replacement of parts required, we will delivery the spare parts by DHL when we get the spare parts information from customer side within 24 hours .
Company Information
Established in 1996, DongGuang RuiChang Carton Machinery Manufacture Co.,LTD is a professional manufacturer of flexo print slot die cut machine. We are located in DongGuang County which is famous for packing hometown with convenient transportation to TianJin sea port. Our print slot die cut machine comply with international quality standards and are greatly accepted by customer from domestic and aboard market.
We have over 50 employees, 2 engineers for technical upgrade,1 engineer for machine design ,70% of them worked for RuiChang Machine over 10 years.
If you are interested in any of our machine, please feel free to contact us for further information, we are looking forward to forming successful business relations with clients around the world in the near future.
Looking forward to your reply!
http://www.rczxjx.com.cn
Lucas
Mobile/Whats app:+8615100759783 Wechat: w229381567
1. Design Speed:100m/min,
2. Economic Speed:80m/min
3. Working Width:1600mm
4.Production Line Length:About 70 meters (Exact length basis on groundwork drawing)
5. Flute profiles:A,C,B,E Flute(Or according to the customers` requirement)
6. Steam requirement:quantity2500-3200Kg/Hr Max pressure 1.2Mpa
Common pressure 0.8-1.1MPa
7. Power supply:380V 50Hz Three phase four wire system
8,Total power:About 120kw
9,Equipment size:70m×10m×4.5m(L×W×H)
10,Equipment flowing direction:According to the user` factory to fix right or left.
Design Speed:100m/min | Economic speed:70-80m/min | ||||
No | Name | Qty | Unit USD | Total USD | Remarks |
1 | Electrical Mill Roll Stand | 5 | 3400 | 17000 | Tooth type clamp, disc plate pneumatic brake, lifting and moving by electrical |
2 | Railing for reels | 10 | 300 | 3000 | 1.Including 5 m railing and pulley 2.10mm steel plate welded |

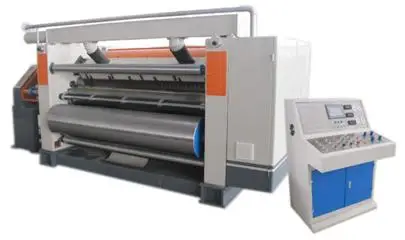

3 | Single Facer | 2 | 30000 | 60000 | 1.Adsorption,Dia320mm 2.Corrugated Rolls material 48CrMo high quality alloy steel 3.Digital show glue quantity. 4.glue part can remove 5. Electric adjusts glue area. |
4 | Bridge conveyor | 1 | 20000 | 20000 | 1.Adsorption, frequency leading paper 2.Double suction |
5 | Pre-heater | 2 | 2300 | 4600 | 1.Dia600mm, electric adjust wrapping angle |
6 | Pre-condition | 2 | 2300 | 4600 | 2.Dia600mm, electric adjust wrapping angle |
7 | Triplex pre-heater | 1 | 7000 | 7000 | 3.Dia600mm, electric adjust wrapping angle |
8 | Glue Machine | 1 | 12000 | 12000 | 1.Frequency control and figure show, PLC control 2.main bearing adopts imported product. 3.Diameter 288 4.Press roller suit for high temperature |
9 | Double Facer | 1 | 61000 | 61000 | 1.Hot plate:600mm×16pcs 2.Air cylinder correct big belt error 3.cooling section 4.hydraulic lift-down the press roll and belt |
10 | Scorer Slitter | 1 | 12000 | 12000 | 1.5 blades 8 scorer, lifting type 2. Electric adjust move 3. Precision:±1mm |
11 | NC cut off | 1 | 34000 | 34000 | 1.Computer control 2.Dia.188,helical knives 3.Precision:±1mm 4.Double layer cutting knives |
12 | Stacker | 1 | 8800 | 8800 | 1.Auto counter ,double layers 2.Electric horizontal output |
13 | Main Transmission | 1 | 0 | 0 | 1.Diameter 745mm 2.Rubber roller |
14 | Glue Making System | 1 | 0 | 0 | 1.main pot 1 set, carrier pot 1 set, and storage pot 2set, 2.glue station pump, single facer glue pump and gluing machine glue pump. 3.Circle supply glue, pipeline provided by customer |
15 | Pneumatic System | 1 | 0 | 0 | 1.Separator and 1 set air storage Jar and air pump. 2.Pipes provided by customer. |
16 | Electric Device System | 1 | 0 | 0 | 1.Adopt local famous brand 2.including wires from switch board to main motor. |
17 | Steam System | 1 | 0 | 0 | 1.pipes above valves provided by customers. |
Total Price: USD229000.00 FOB TIANJIN | |||||
