Ультразвуковой счетчик воды
- Категория: Water Meters >>>
- Поставщик: Hangzhou,Zhongpei,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.79 $* | 0.18 $* |
| Aug-18-2025 | 0.97 $* | 0.2 $* |
| Jul-18-2025 | 0.59 $* | 0.35 $* |
| Jun-18-2025 | 0.93 $* | 0.17 $* |
| May-18-2025 | 0.78 $* | 0.69 $* |
| Apr-18-2025 | 0.10 $* | 0.34 $* |
| Mar-18-2025 | 0.51 $* | 0.9 $* |
| Feb-18-2025 | 0.81 $* | 0.15 $* |
| Jan-18-2025 | 0.18 $* | 0.20 $* |
Характеристики
Product Description
213C smart ultrasonic water meter measurement of water consumption in households, apartment buildings and small commercial properties
1. DN15 and DN20
2. Communication: MBUS, Pulse, RS485, Lora, Lorawan GPRS/GSM, NB-IoT
3. Standard: ISO4064 class B
4. Certification: ISO9001
Item | Parameter |
Meter Type | Ultrasonic Water Meter |
Nominal Diameter (mm) | DN15~DN20 |
Q3/Q1 | R250 |
Measured medium | Water, homogeneous liquid, and filled with measured pipes. |
Accuracy class | ISO4064 Class 2 |
Water pressure class | 1.6MAP ( 16 bar) |
Pressure-loss class | Δp40 |
Temperature class | T30/T50 |
Installation position | H/V |
The installation sensitivity class | U10/D5 |
Electromagnetic class | E1 |
Environmental class | C |
Key-press | Magnetic induction key |
Types of Indicating device | LCD:9-digits, 0~199999.9999m³ |
Menu Contents | Instantaneous flow (m3/h), cumulative flow (m3), screen detection, table address, cumulative working time (h), date (year/month/day), caliber, software version |
Communication Interface | Photoelectric |
TTL | |
Power Source | Lithium battery ER26500(replaceable) |
Battery Voltage &Capacity | 3.6V , 8500mAh |
Life span | 8 years@0~35℃ |
IP code | IP67 |
Storage Temperature | -25℃~+55℃ |
Cable length | 1.0 m |

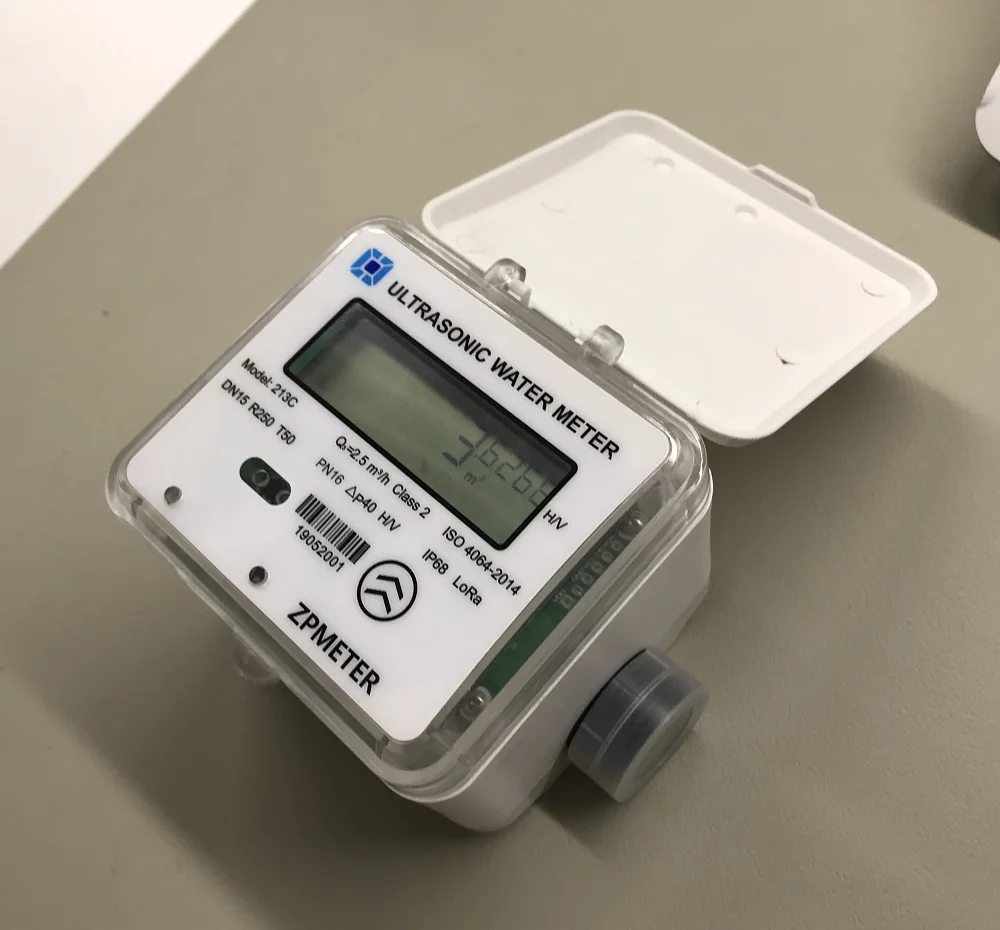

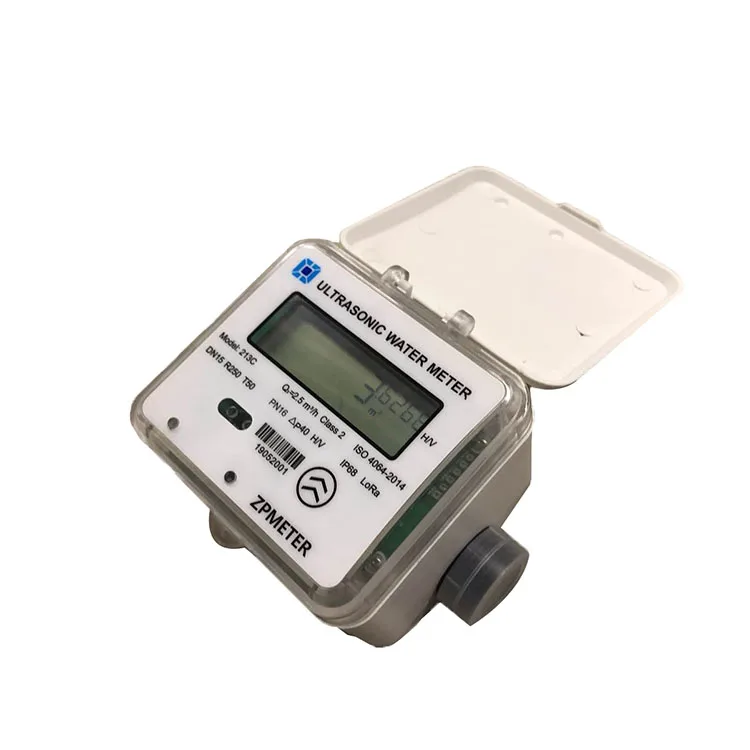

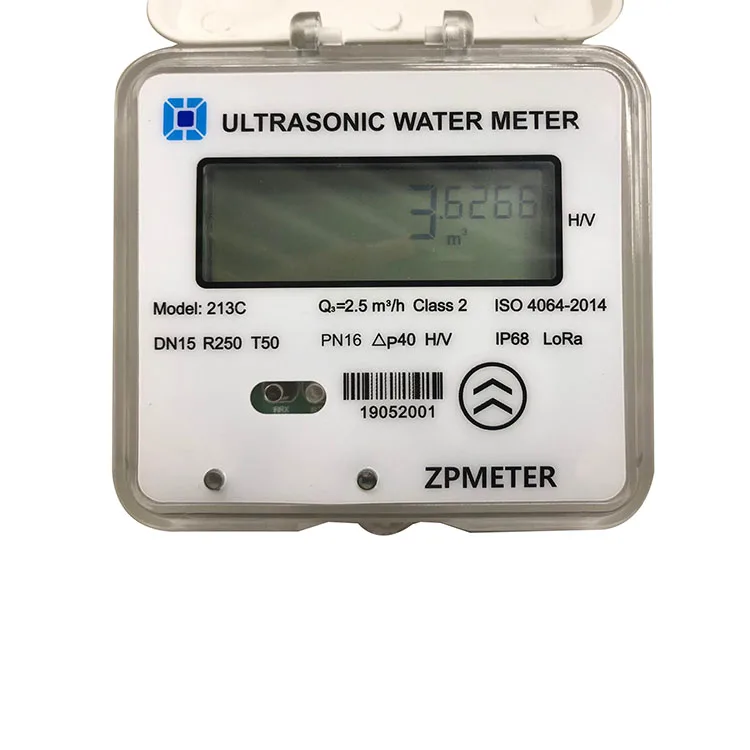

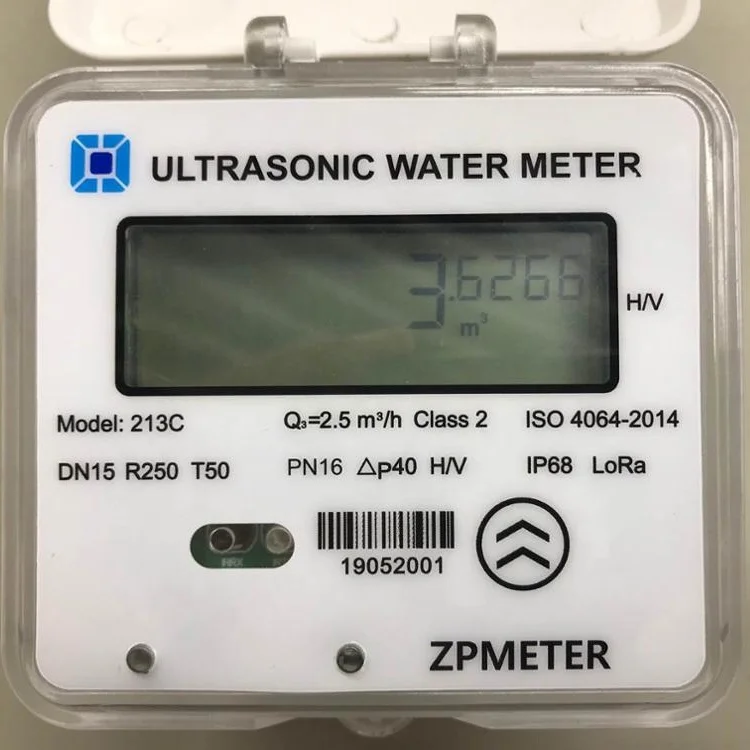

Products Show
213C Smart ultrasonic water meter is developed based on the principle of ultrasonic measurement by velocity difference method. The instrument integrates measurement, calculation and display. It uses micro-power technology. A battery can be used for more than 8 years. It can measure the minimum flow rate of 0.01 m³/h accurately. At the same time, the meter has the characteristics of small size, good stability and strong anti-interference ability.
Flow Parameter Table
Meter Size
Meun display
The menu will display Instantaneous flow (m3/h), cumulative flow (m3), screen detection, table address, cumulative working time (h), date (year/month/day), caliber, software version
Our Company
Payment & Shipment
FAQ
1. Does your company have valid business license (the company name, address, products/business scope complied with actual or not)?
Yes, all the details are actual situation.
2. Is the annual review done by local authority?
Yes, we have passed annual review.
3. What are your main products?
Our main products are the ultrasonice water meter , ultrasonic heat meter
4. Is it confirmed that your company is a real manufacture, foreign trader or combined?
Yes, we are a combined operation company, both processing manufacturing and trading.
Has your company obtained the valid certificate for their quality management system, such as ISO9001, qc08000 and etc?
We obtained ISO9001..
5. Do you support the third party inspection?
Of course.
6. Will you timely inform me the production situation of my order and send me some production pictures?
Of course, we will.
