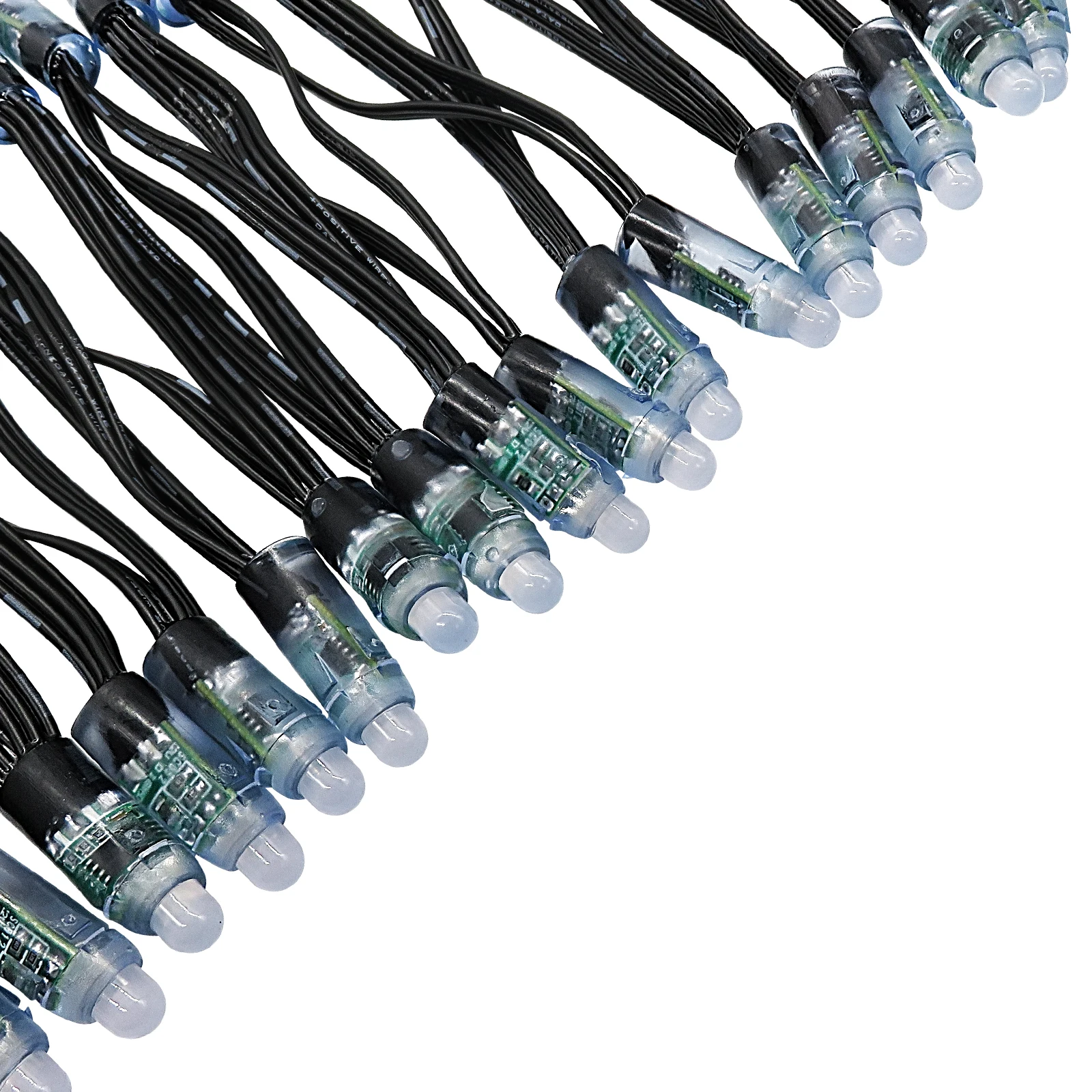

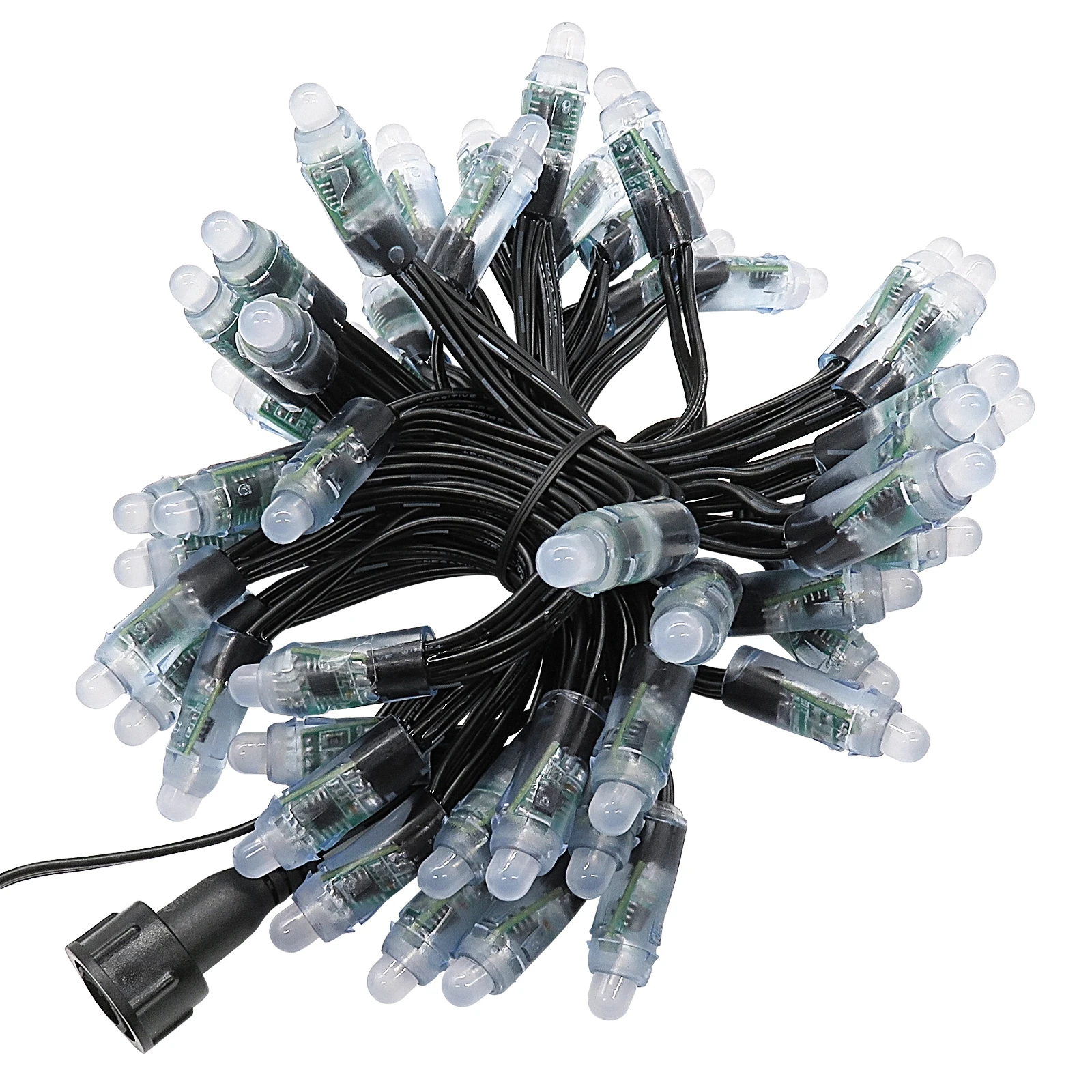

WS2811 Smart 12v 100ct Bullet Nodes Black 18AWG Wire with xconnect Connector



Features:

1. Adpots high quality 8mm 0.24w round hat RGB LED as lighting source.

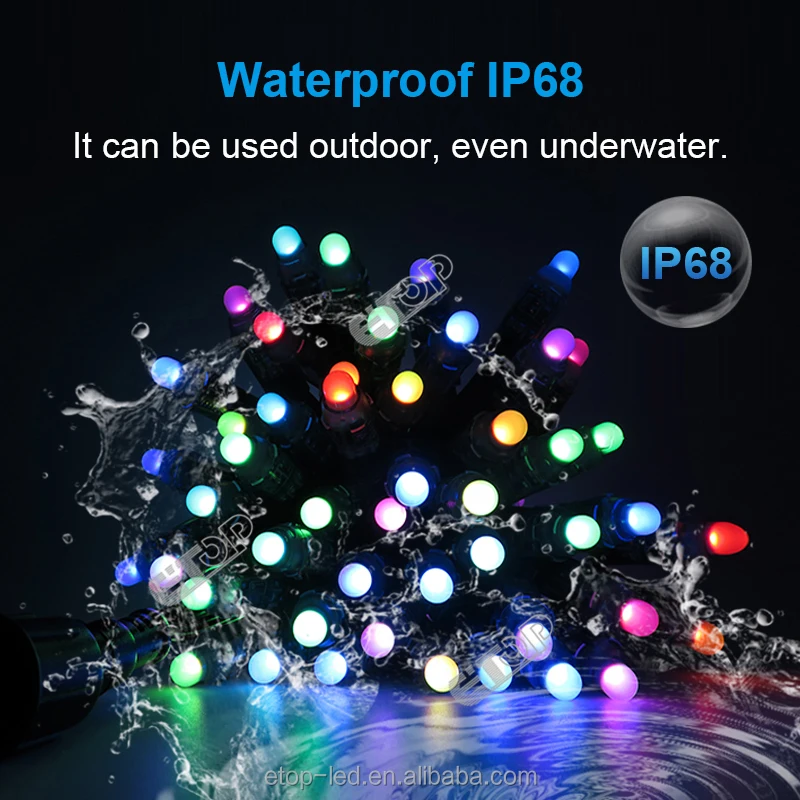

2. With good proection level. can achieve IP68.

3. each module as one pixel, takes 3 dmx channels,white strobe color,can be controlled individually,

4. It is easy installation, open hole.

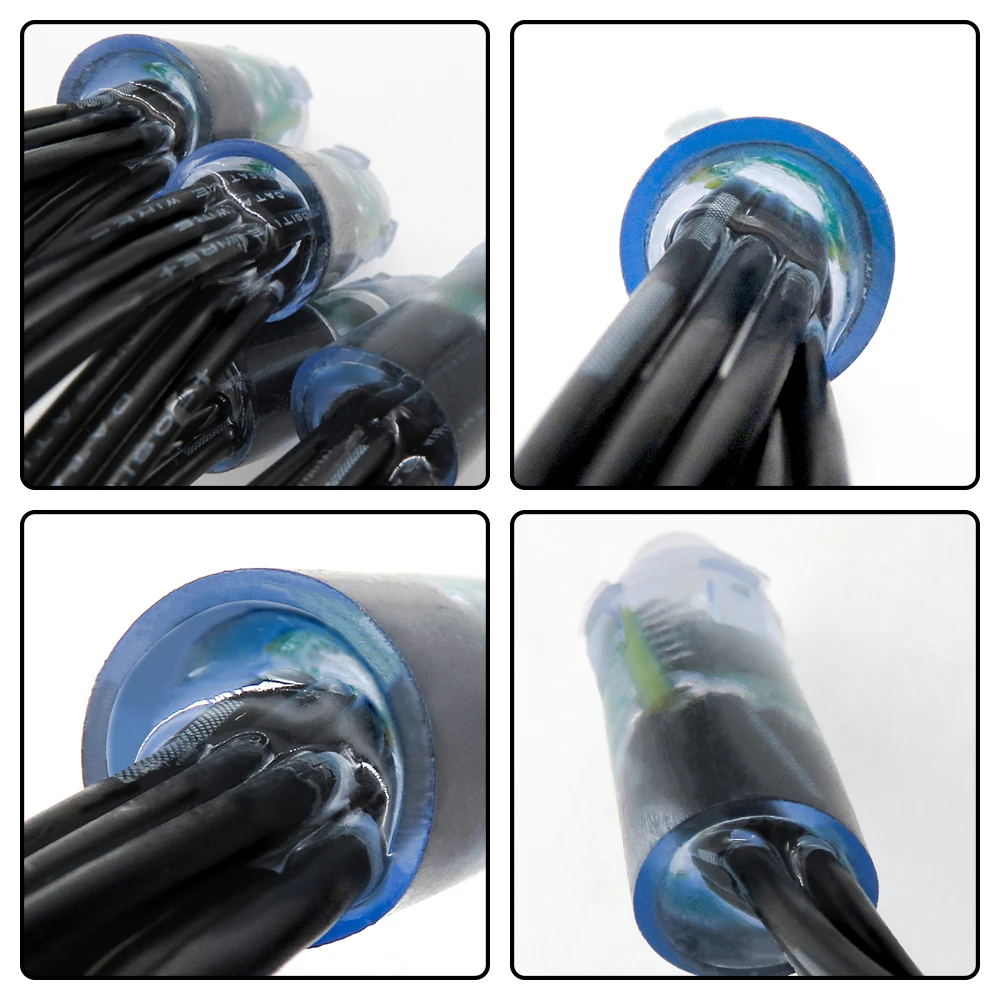

5;good waterproof type,IP68 rated,epoxy resin filled

6;using the strong cabe,with good cold resistance ability

7:works with dmx matrix controller,or SPI pixel controll,on-line controller.etc

Specification:

Part No	ET-2811-12V-IP68-18AWG-100-R

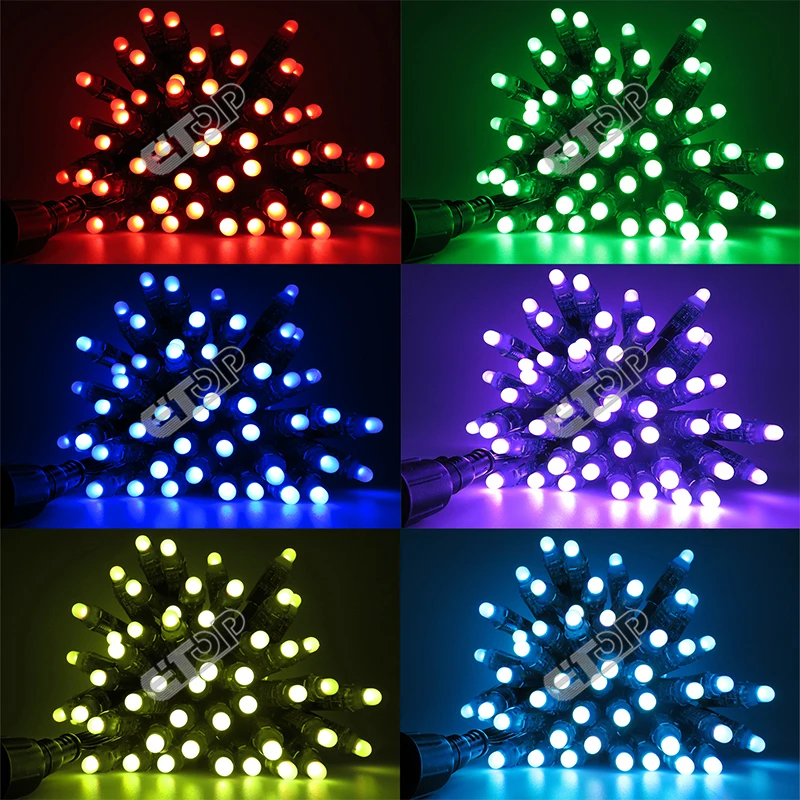

Color	full rgb color,24bit,256 gray scale
LED Qty	1pcs 8mm round hat 0.24w rgb led with 4pin common anode
Input Volt	DC12V
Max current	50MA
Max Power	0.6W
Driver method	Constant current circuit
Dimension	12mm diameter(open hole)
Viewing angle	100-120degree
Protection Level	IP68
Certification	CE and RoHS

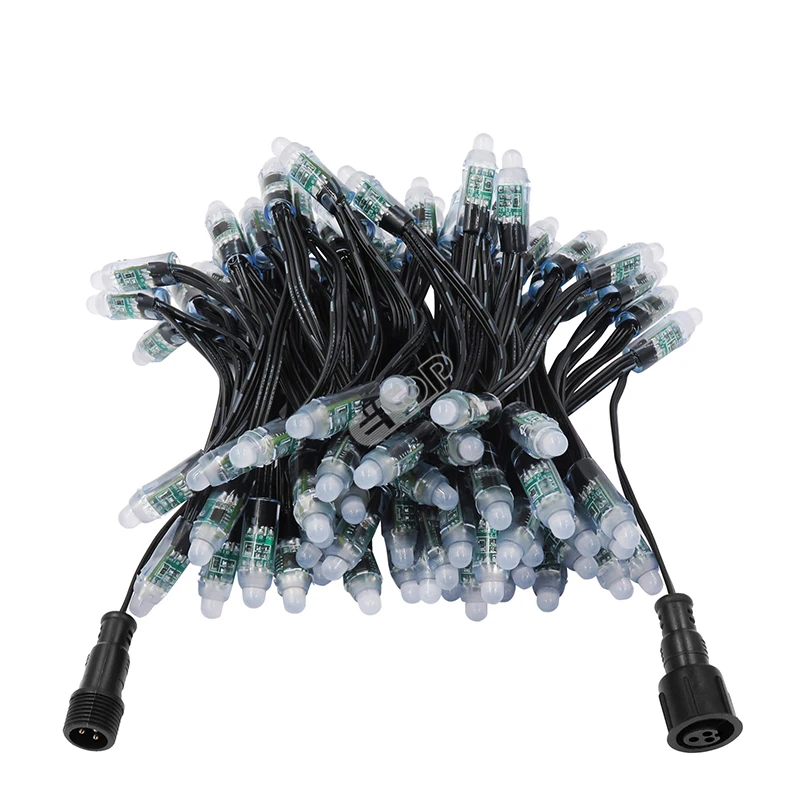

Standard connection	100pcs nodes per string
Standard wire length	120mm long,4inches center spacing;all BLACK wire 18awg 13.5mm series black waterproof male and female connectors at ends:
Housing	transparent PVC
Fixed way	12mm diameter open hole
Lifespan	50000 hours
Warranty	3years
Operation temperature	-40-50
Store temperature	-50-60



Applications:

lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc



WS2811 Smart 12v 100ct Bullet Nodes Black 18AWG Wire with Ray Wu Style Connector
