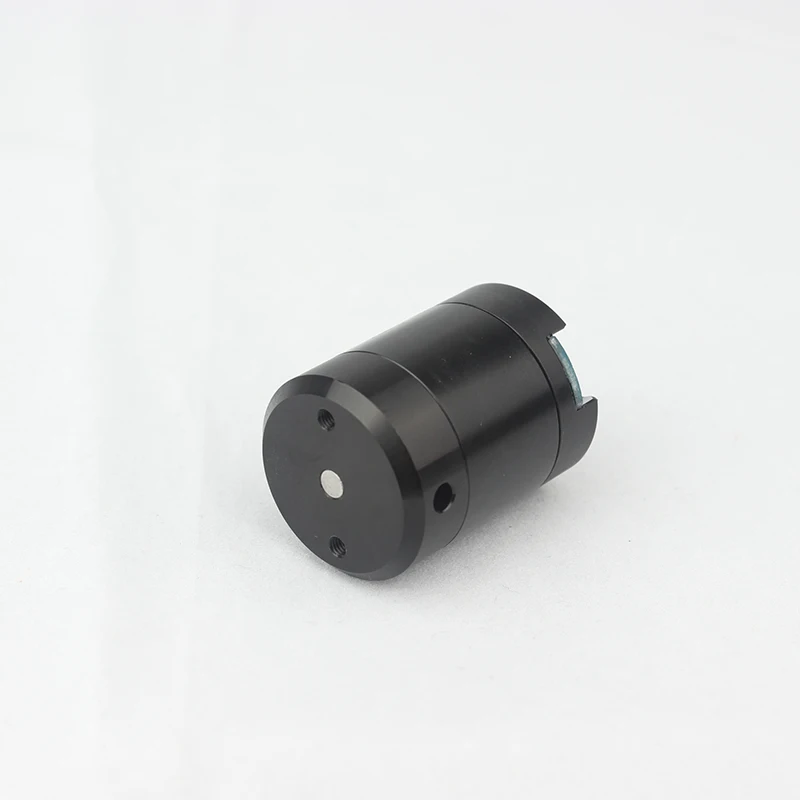

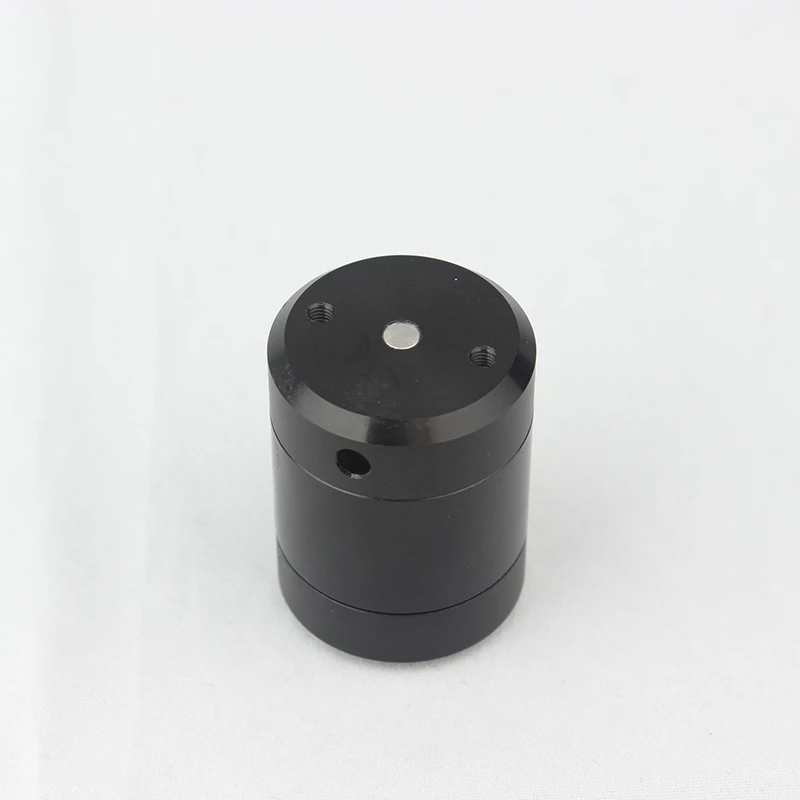

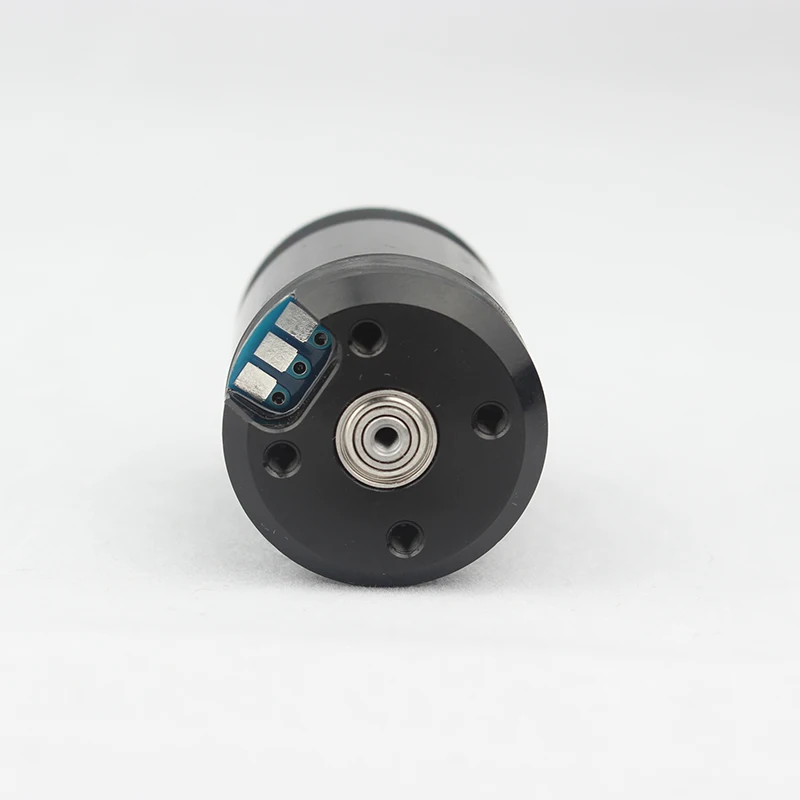

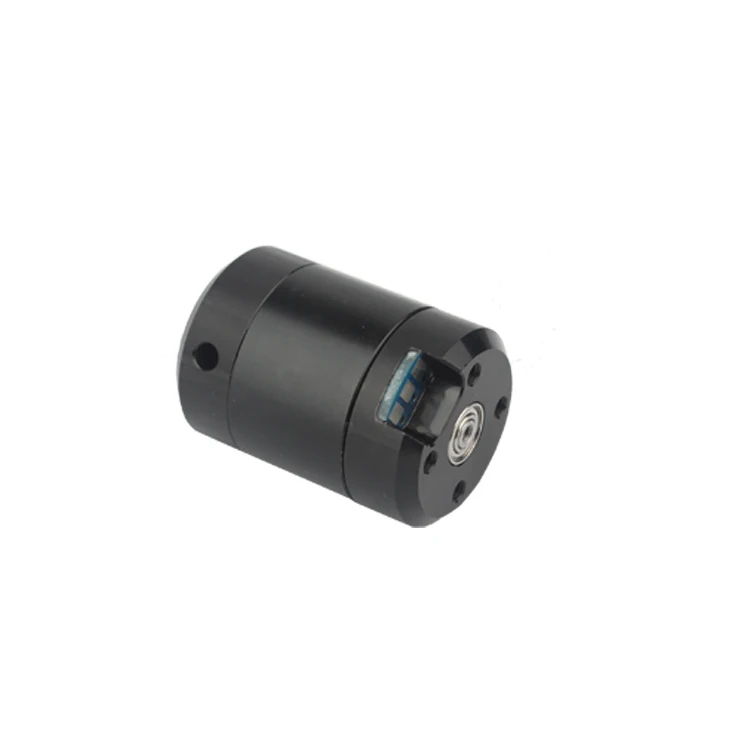

Underwater robot drone SW2216 ROV thruster brushless motor with propeller

SW2216 ROV thruster diving equipment model submarine brushless motor



1. Imported stainless steel bearing, anti-rust, anti-corrosion and salt spray test can reach more than 192 hours, far higher than IP68 waterproof level.
2. Independent PCB patent design, PCB and lead wire extraction are built into the motor, which can be used to package and solidify the lead wire of the welding point for customers and directly adjust the wire.
3. The shaft is made of special stainless steel, heat treatment and other special anti-rust treatment.
4. The magnetic disk is made of ndfeb high temperature resistant material, and the surface is specially treated with waterproof and anti-corrosion.
5. The stator is made of imported materials from kawasaki, Japan, and its surface has been specially treated with waterproof and anti-corrosion.
6. Balance test is carried out before each motor leaves the factory, and the balance is less than 10mg.

7.In order to facilitate the customer research and development and testing of aquatic and underwater equipment products, our r&d personnel specially designed and printed this type of paddle according to the independent patent design of fluid mechanics, so as to provide customers with this need to carry out the supporting test of SW2216 underwater motor.



PRODUCT NAME	Underwater brushless motor
MODEL	SW2216
VOLTAGE	24V
NO-LOAD CURRENT	0.62A
NO-LOAD SPEED	13000rpm
RATED LOAD CURRENT	15.43A
STALL TORQUE	658.1mNm



Performance parameter table of the same product

Model	Voltage(V)		No Load		Rated Load				Stall
	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
2216	3S,4S	12	6300	0.34	170.3	3150	8	56.2	340.5	15.64
2216	3S,4S	14.8	8120	0.38	208	4070	10.54	89	416.8	20.8
2216	3S,4S	16	8951	0.41	226.7	4476	11	106.3	453.4	21.6
2216	3S,4S	24	13000	0.62	329	6500	15.43	224	658.1	30.25

Note: the above rated load is mainly used in underwater



SW2216 ROV thruster diving equipment model submarine brushless motor

Changzhou Vic-Tech Motor Techology Ltd. is a professional  manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.
