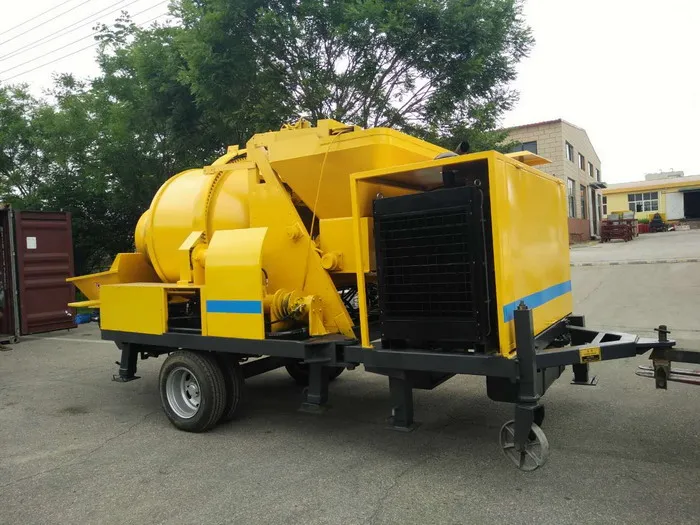

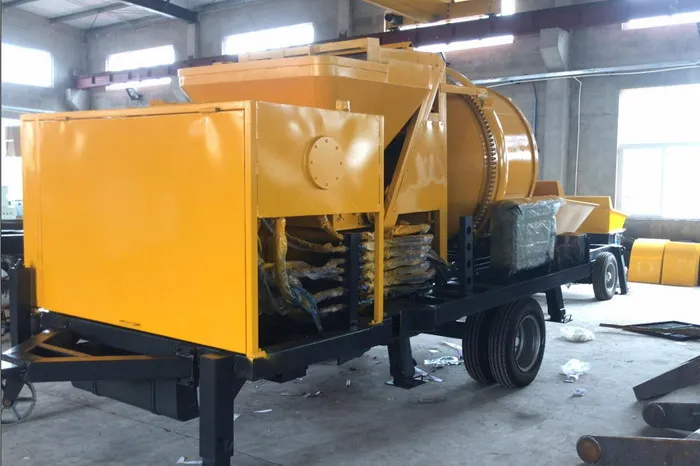

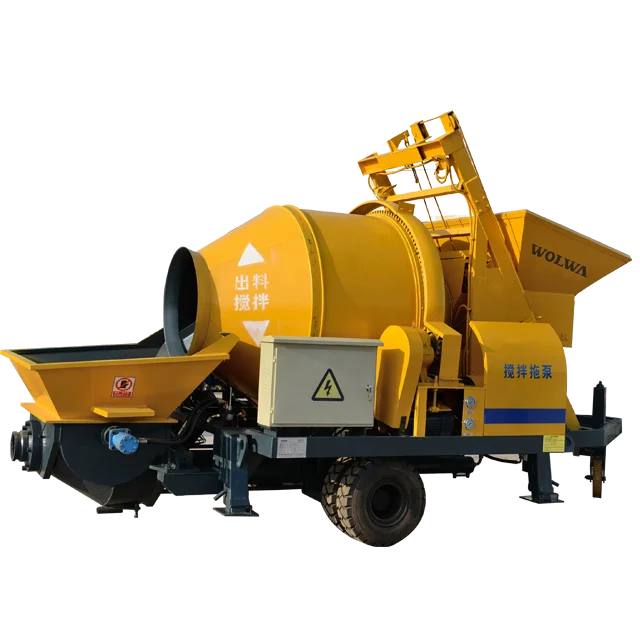

diesel concrete mixer pump with famous engine output 40CBM/H



Main technical feature:



1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.



2. Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.



3. Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.



4. Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.



5. Cone sealing of all pipes make the pipe joints seal reliably.







Max. theo. concrete output	40CBM/h
Max.concrete pumping pressure	10MPa
Concrete cylinder diameter	180mm
Concrete cylinder stroke	100mm
Hopper capacity	550L
Outlet diameter	150mm
engine power	82kw
Rotate speed	1800r/min
Circuit type	Open circuit
Pumping system pressure	31.5Mpa
Mixing system pressure	6Mpa
hydraulic oil tank	350L
biggest transportation distance(vertical)	150mm
biggest transportation distance(level)	600mm
Max. aggregate diameter	Scree: 40 50
Inside diameter of delivering pipe	125mm
Dimension	6000x2200x2600mm
Total weight	4500kg







WOLWA GROUP was established in 2005,which is a advanced technology equipment manufacturer.Its products include construction machinery,hydraylic component,mine equipment,pipe etc.We have 5 subsidiaries , include Wolwa construction machinery company,Dorson hydraulic component company,Guoneng structure part company,Wolwa pipe company,Jinsheng coal company.The capital of WOLWA GROUP exceeds RMB 2.5 billion.More than 800000 square meters international advanced workshop and more than 8000 square meters technology research center, produce more than 10000 complete machines and 20000 hydraulic components per year.Wolwa group has a provincial technology center and was the awarded of "Top 100 private enterprises in Shandong province",distinctive enterprise of Shandong ,National advanced technology enterprise,which is also a mainly supported enterprise by Jining government.
