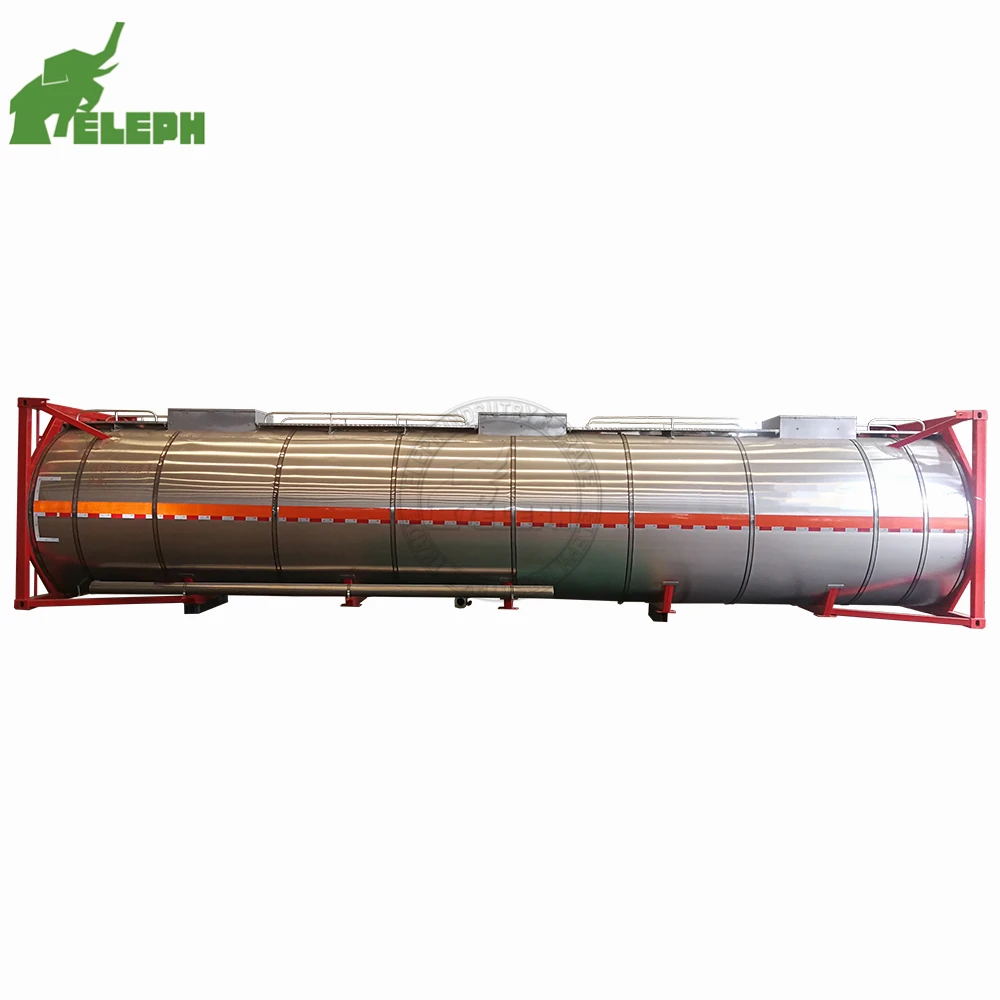

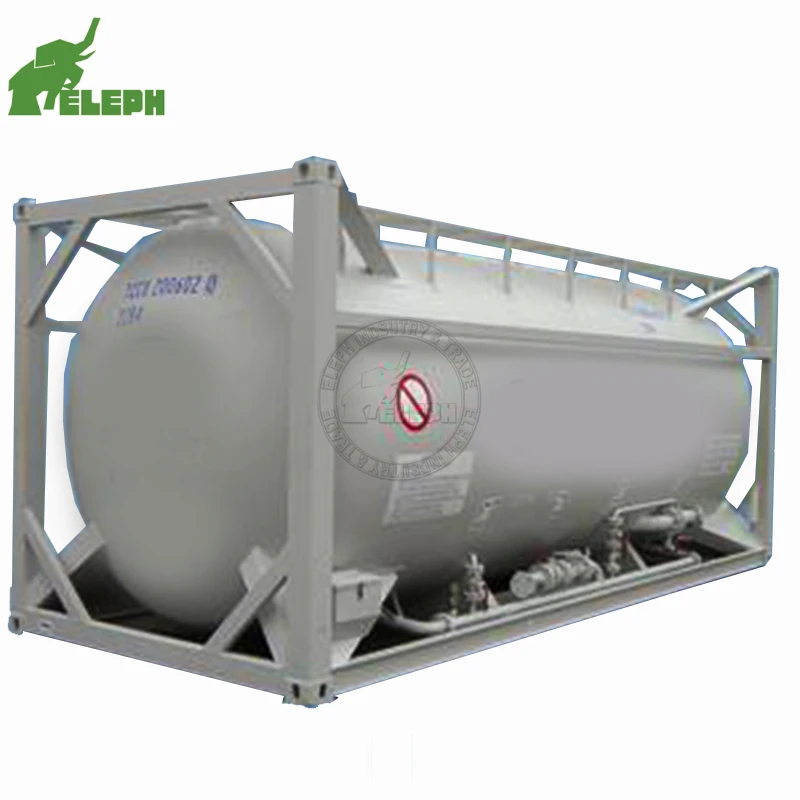

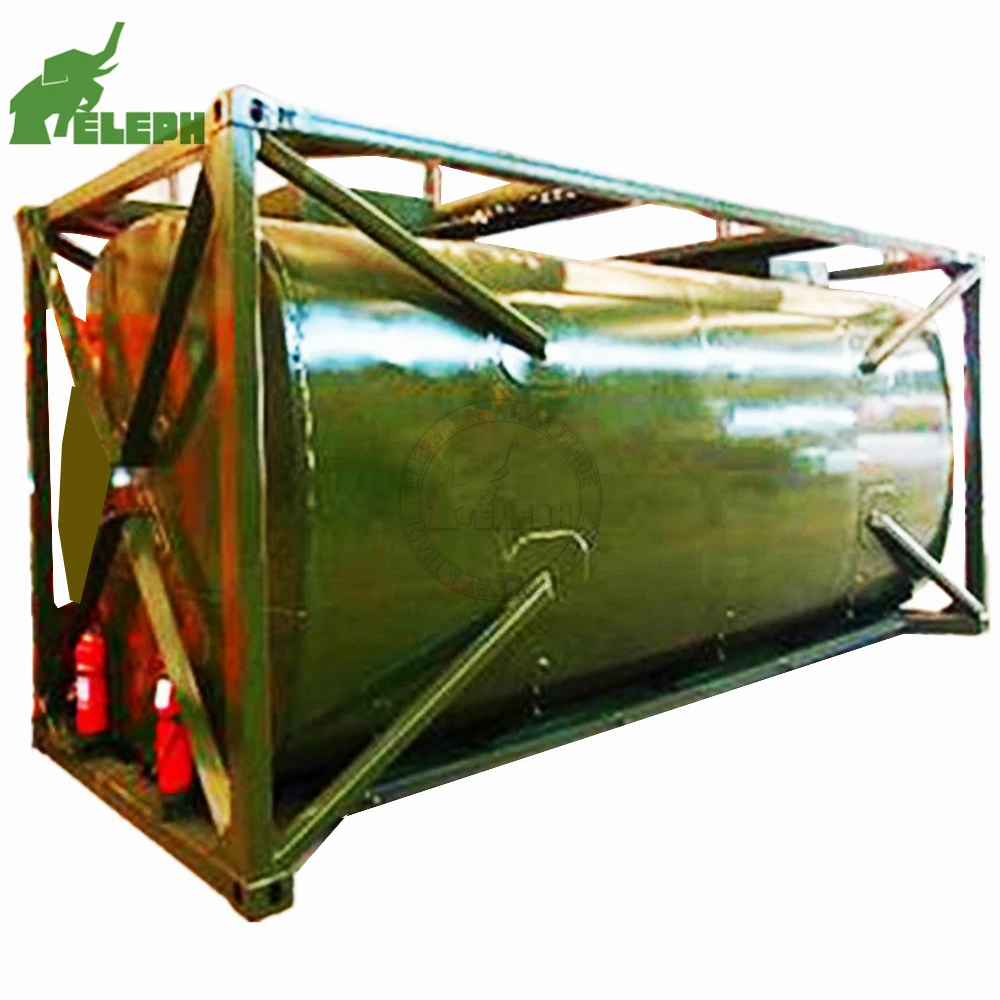

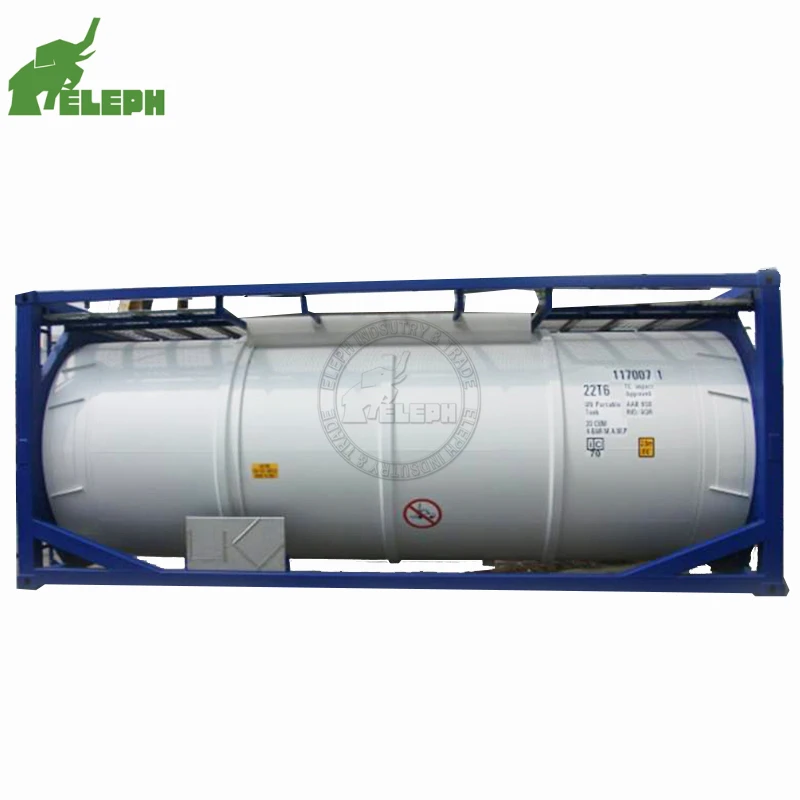

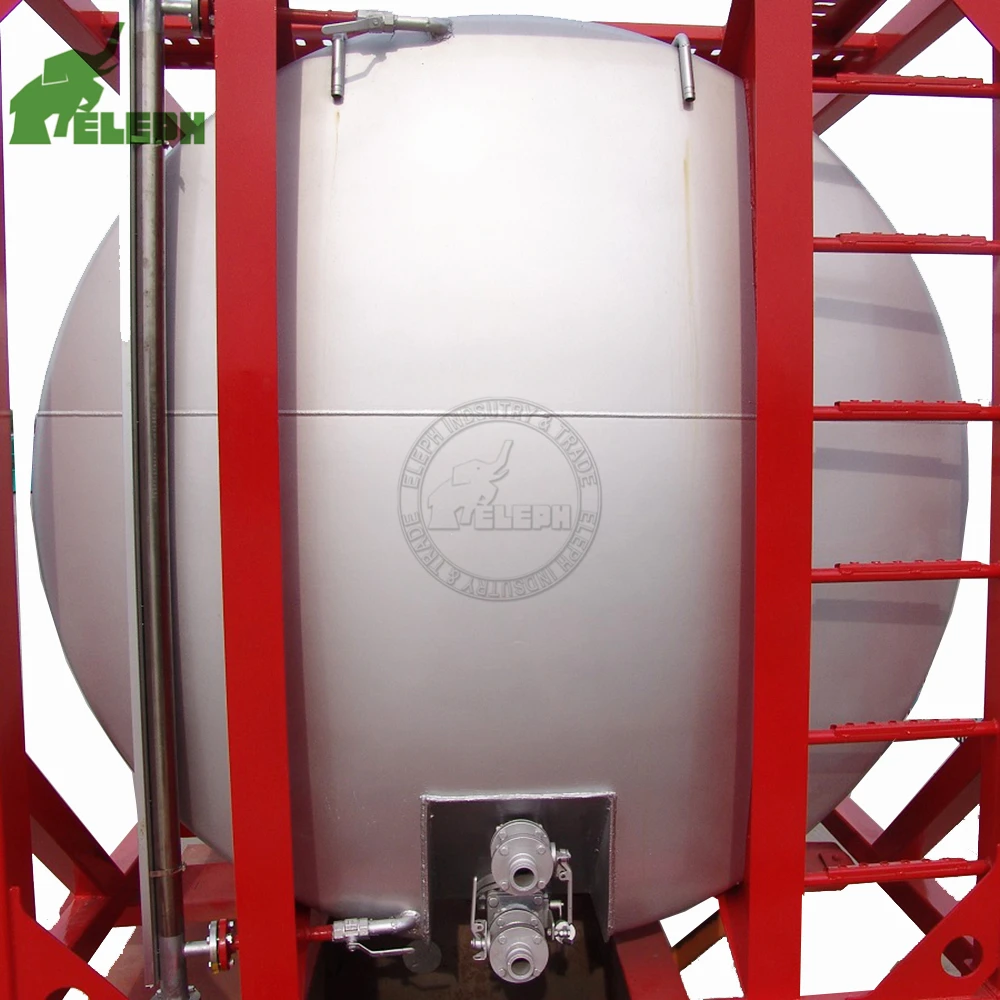

Криогенное хранение 20 футов 40 ISO контейнер для резервуара СПГ (LPG LC02 N2 топливное масло

20FT 40FT ISO TANK CONTAINER

Manufacture

Eeleph Industry

Model No

ELEPH3231/20/40

Loading Medium

Fuel & Water

(Loading LPG/LNG/BITUMEN/CNG contact supplier for more information )

Size

20ft/40ft (Other size can be made by need)

Compartment

1

Loading& Discharging

Manhole Loading, bottom valve discharging

Working Temperature ℃

-20℃-80℃

Water Testing Pressure Mpa

0.6/0.9

Capacity

40m³

Tank Body Material

Q235B carbon steel (Stainless Steel/Aluminum)

Thickness of Tank Body

5mm

Sealing End

5mm

Conner Post Material

16Mn

Manhole

500mm φ, Domestic brand

Tank Size

12192*2438*2591mm (40ft)

Overall Size

12200*2450*2200mm

Tare Weight

≤7000kgs

Painting

Anti-corrosion process

Color

By need

Ladder

1set

Discharging Valve

3’φ

Container Lock

Can be locked on ISO standard sized Container Trailers for transportation
