water tester online Resistivity salinity TDS EC controller digital electrical conductivity meter
BOQU Industrial Online Conductivity TDSMeter is equipped with a microprocessor and complete English menu. It has display and menu operation pattern; it is characterized by its intelligent operation, multi-function and high measuring performance and its strong environmental adaptability. It can be widely used for continuous monitoring of the conductivities of solutions used in the following fields: thermal power plant, chemical fertilizer, chemical industry, metallurgy, environmental protection, pharmacy manufacturing, biochemistry, foodstuff and running water.
Product Description
Introduction of water tester online Resistivity salinity TDS EC controller digital electrical conductivity meter
1)Instrument for industrial Conductivity,resistivity,salinity,TDS and temperature measurement, such as Waste water, drinking water environmental monitoring, fermentation, food production process etc.
2)Instrument for panel mounted,wall mounted,pipe mounted.
3)Instrument provide 2 ways of 4-20mA ,max load 500Ω.
4)Instrument provide 3 ways of relays ,max 5A/250VAC or 5A/30VDC.
5)Instruments provide RS485 Modbus RTU communication.

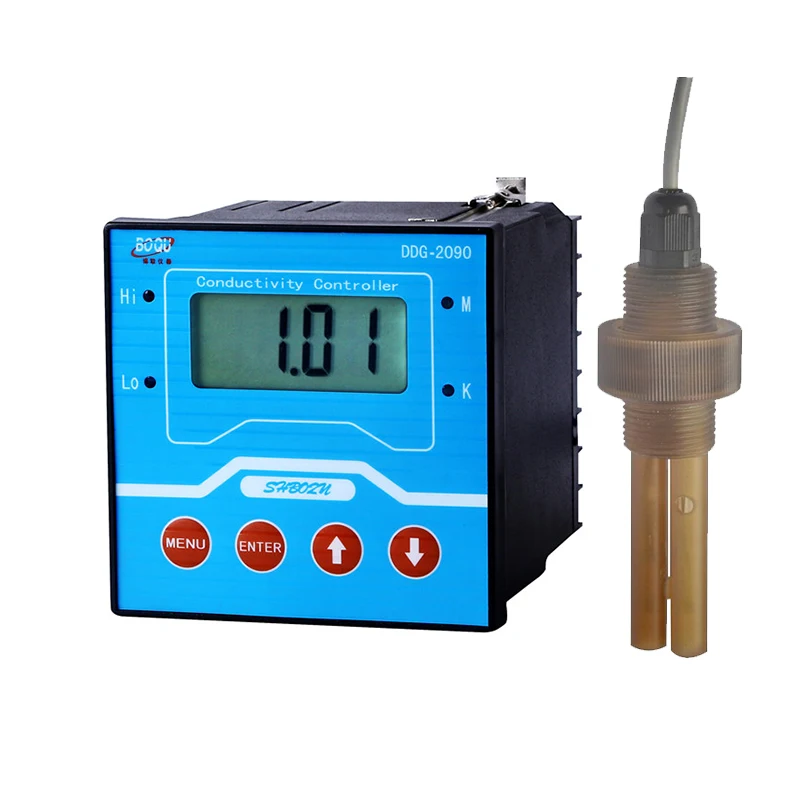

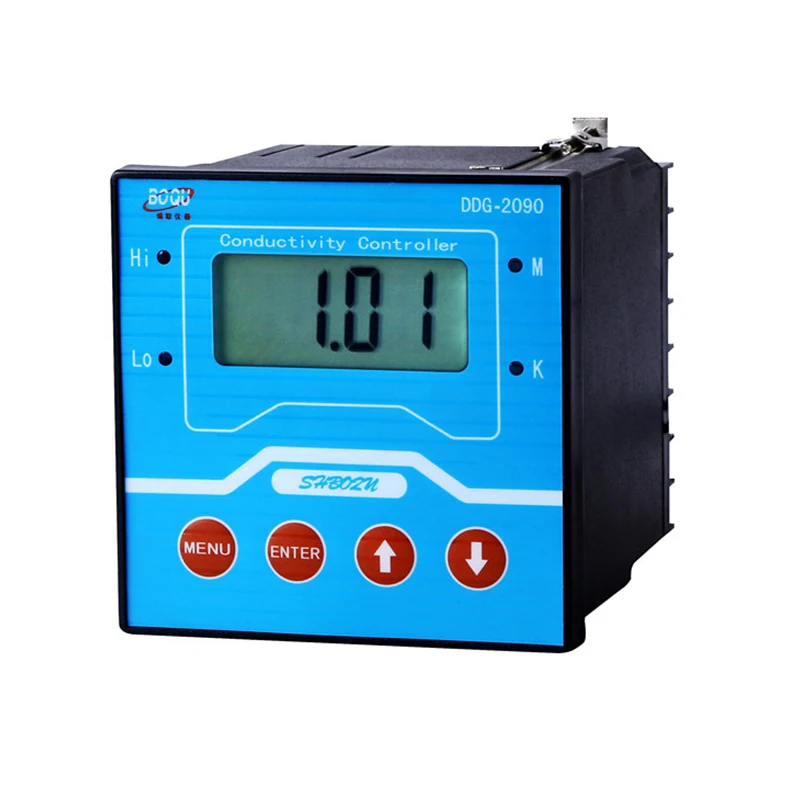

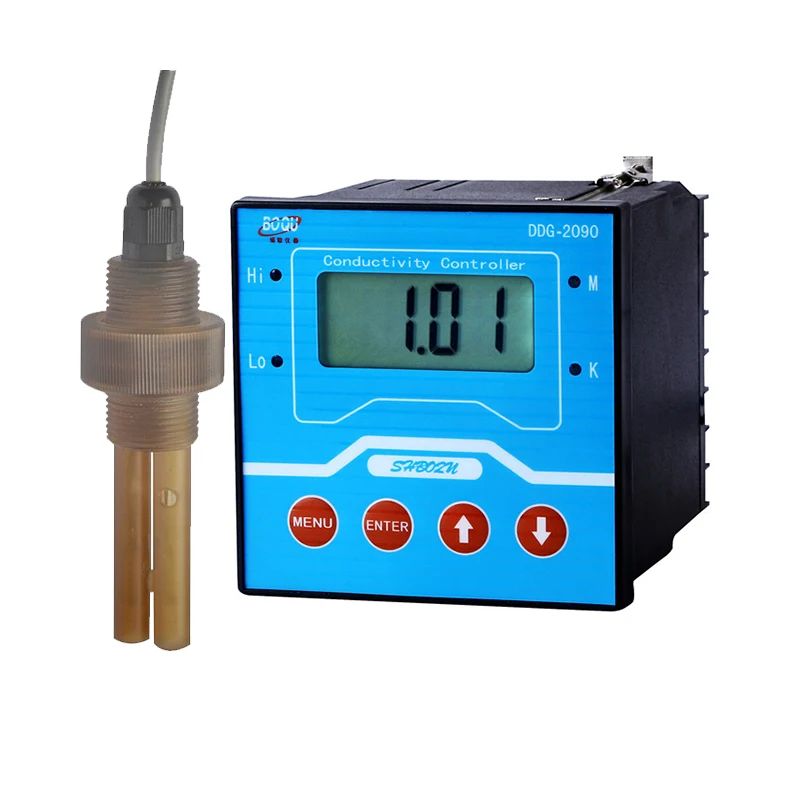

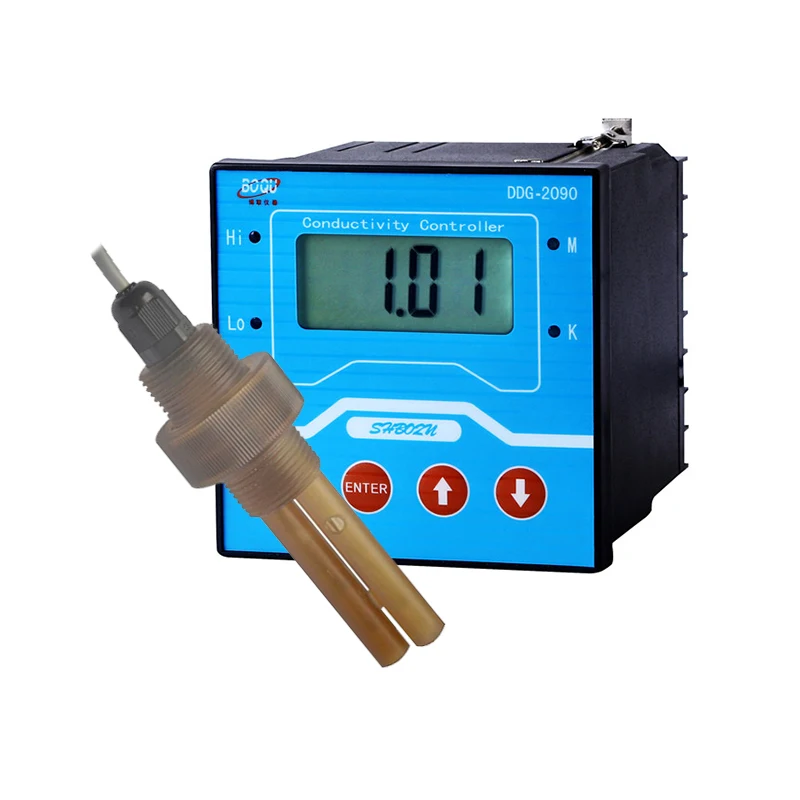

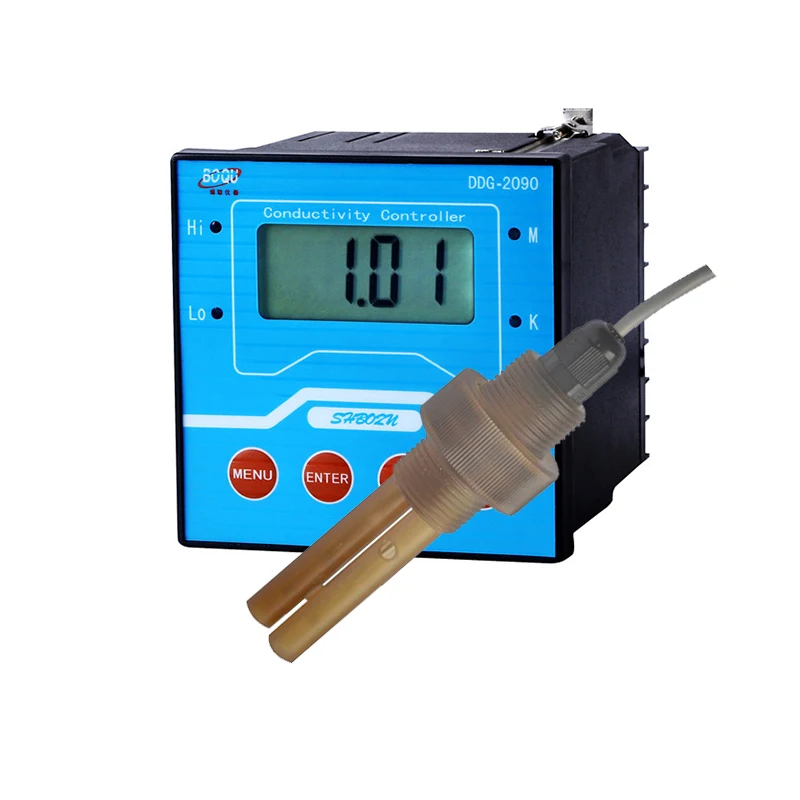

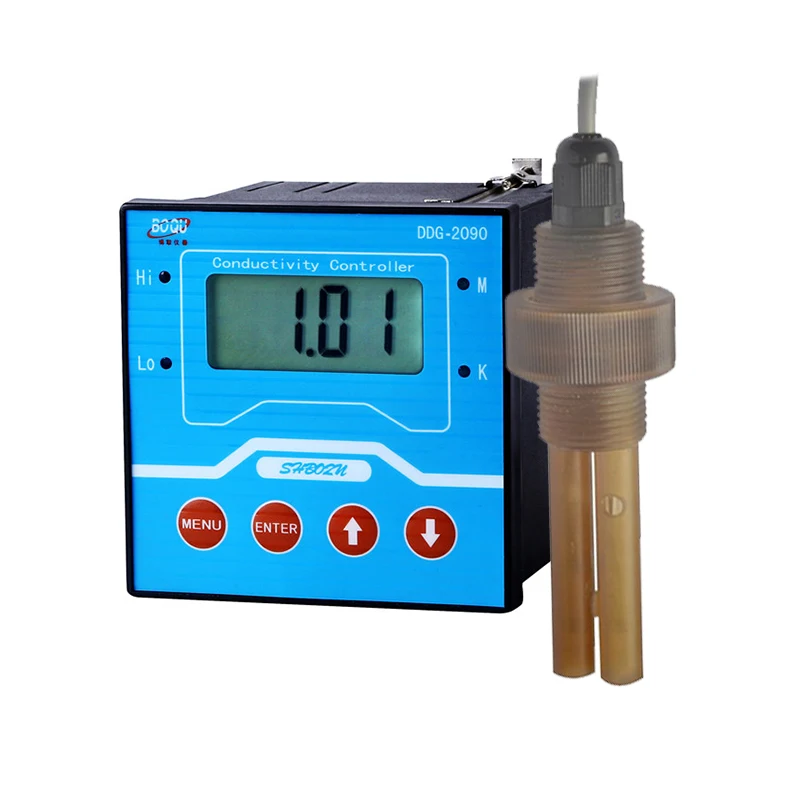

Controller of Conductivity Meter
Model:DDG-2080X
Model: DDG-2090
Conductivity:0.00~2000ms/cm TDS:0-133000ppm Resistivity:0.00-20.00 MΩ-CM Salinity:0.00-78.00g/Kg Accuracy 1% Temp. Comp.Pt 1000/NTC10K Temp. range -10.0 ~ +130.0℃ 2 ways of 4-20mA
RS485 Modbus RTU 3 Relays Protection IP65 Power 220VAC or 24VDC
Data recording:500 000times
Conductivity:0.00~20000us/cm Accuracy 1% Temp. range:0~99C one ways of 4-20mA RS485 Modbus RTU 2 Relays Protection IP54 Power 220VAC No Data recording function
Electrode of Conductivity Meter
Pressure
Range
Connection
Material
Application
K=0.01
0.6Mpa
0~20us/cm
pipe/hose/flange etc
dia:6,8,14mm etc
SS316L
Titanium alloy
Power plant
k=0.1
0.6Mpa
0~200us/cm
pipe/hose/flange etc
dia:6,8,14mm etc
SS316L
Titanium alloy
Power plant
k=1.0
0.6Mpa
0~2000us/cm
1/2,3/4 thread
SS316L
Titanium alloy
Platinum
Water treatment
k=10.0
0.2Mpa
0~20000us/cm
1/2,3/4 thread
Polysulfone
Platinum
Water treatment
k=30.0
0.2Mpa
30~600ms/cm
3/4 thread
Polysulfone
Acid cleaning
Inductive Conductivity Sensor of Conductivity Meter
Measuring range
0-2ms/cm,0-20ms/cm,0-200ms/cm,0-2000ms/cm
0-10%HCL/NaOH,0-10%NHO3;
0-10%H2SO4(92-99%H2SO4, 25-40%NaOH)
Accuracy
+/- 0.5%
Sensor material
PP,PFA(Optional)
Max pressure
1.6Mpa
Connection
1 1/2 or 3/4NPT
Installation
Flow cell,pipe line ,submerged
DDS-1702
Portable Conductivity Meter
DDS-1706
Laboratory Conductivity Meter
Conductivity:0.00 μS/cm…2000us/cm(customized for other range) mS/cm Conductivity,TDS,Salinity,Resistivity ,4 in 1 Electronic unit error Conductivity:±0.5 % FS Calibration :1 point Data storage :Calibration data,99 measurement data Monitor:LCD monitor Shell:ABS
Power requirements 4xAA/LR6
Power:220VAX
Installation
Applicaiton of water tester online Resistivity salinity TDS EC controller digital electrical conductivity meter, Power Plant water treatment; water plant and sewage treatment plant ;wastewater treatment; paper making production process, paper slurry, chemical refining; metallurgy and mining;Food and beverage;pharmaceutical industry biological reaction and fermentation;Semiconductor production process;high purity water production.Conductivity meter
Why to choose BOQU?
Why choose BOQU water tester online Resistivity salinity TDS EC controller digital electrical conductivity meter ?
1.National High-tech Enterprises Certificates
2.Instruments has been exported to over 70 countries.
3.BOQU has more 50+ Softwares property
4.100% QC inspection Before Shippment.
5. ISO,CE,SGS standard and factory price.
6.All instruments has been 100% recognized by Bureau of National Metrology
Factory Show
BOQU Instrument was found since 2007, now BOQU has more 70 staff and engineers and has core technology of electrodes and develope more 50+ software for various controllers by self.
Certifications
BOQU was found since 2007, now has more 70 staff and engineers, instruments has be exported to over 75 countires.,Now BOQU has been named as High-Tech Enterprice by goverment,ISO,CE, SGS is our common certicates. the core technology of electrode ,controller and 50+ software property is our based. all instruments has been recognized by National Metrology Bureau.there is many small factories in China, you should be carefully if they provide you very low price. this is tips for you in free.
Exhibitions
BOQU has a strong Develope Department and can develope many new instruments or technology, so we will hold 5~8 exhibitions in China or Foreign to show our results.
