Shanghai Linsky изолированный многокабельный соединительный блок вход для проводов с одной стороны 4-14 AWG провода
- Категория: Terminal Blocks >>>
- Поставщик: Shanghai,Linsky,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.19 $* | 0.78 $* |
| Aug-17-2025 | 0.5 $* | 0.42 $* |
| Jul-17-2025 | 0.99 $* | 0.20 $* |
| Jun-17-2025 | 0.30 $* | 0.40 $* |
| May-17-2025 | 0.33 $* | 0.21 $* |
| Apr-17-2025 | 0.8 $* | 0.96 $* |
| Mar-17-2025 | 0.36 $* | 0.26 $* |
| Feb-17-2025 | 0.95 $* | 0.50 $* |
| Jan-17-2025 | 0.81 $* | 0.6 $* |
Характеристики
Company Information
SHANGHAI LINSKY ELECTRICAL CO.,LTD
Shanghai Linsky Electrical Co.,Ltd is a Hii-Tech company, we specialized in researching, manufacturing and marketing of the UL standard Electrical Devices and Fittings. Such as the Ground Fault Circuit Interrupters-GFCI, USB receptacle, Interlligent switches and sockets, LED dimmers and wire connectors, we produce different devices of household and industrial electrical devices. We are located in Shanghai City, Fengxian District, which is close to Hongqiao and Pudong international Airport with convenient transportation. All of our products comply with UL/CUL, ETL/CETL and CSA certifications. Our products have been well received by our USA and Canada customers.
Shanghai Linsky has passed the ISO9001 certification and has more than 30 patents. There are perfect product design team, including structure engineer, electronic circuit engineer, product appearance design engineer, mold design engineer, there are punching workshop, injection workshop, seiko CNC workshop, electronic assembly line in different area. So we can design metal parts, plastic products and PWB/PCB according to customers' requirements. Shanghai factory covers an area of 5000 square meters.

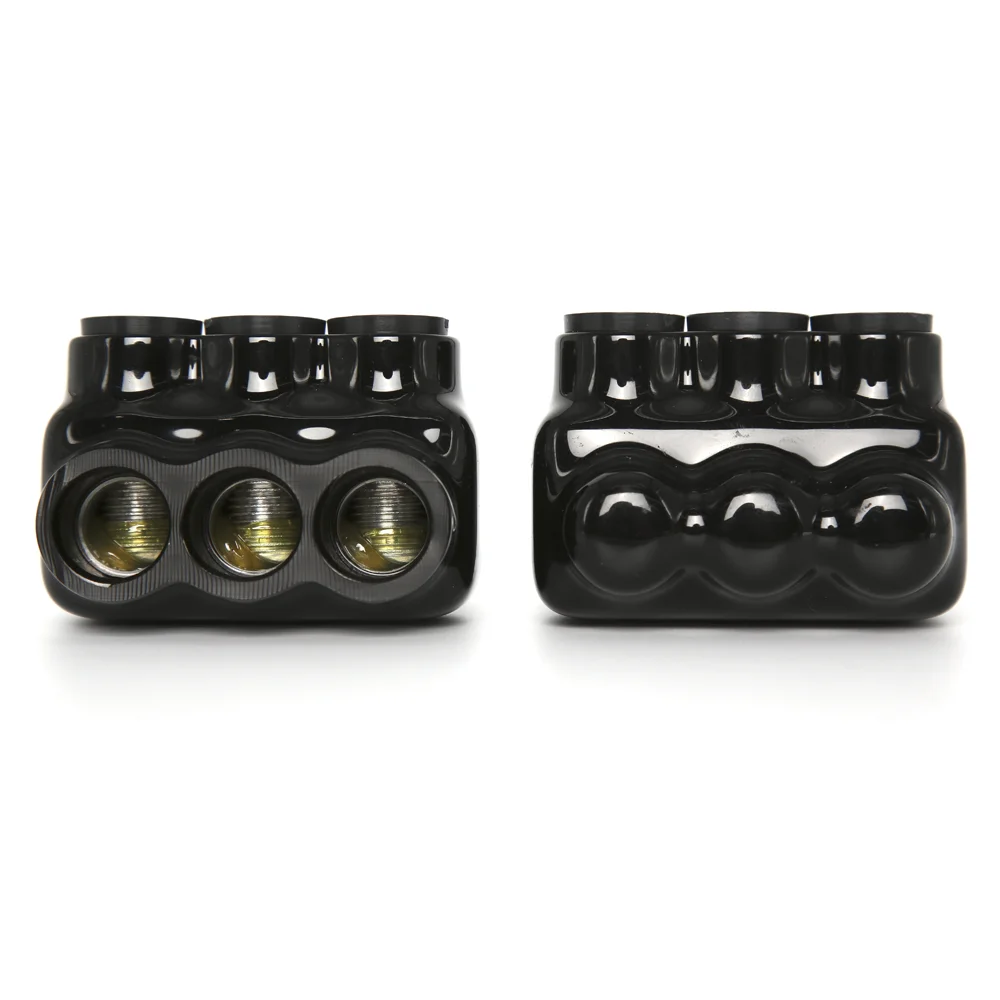

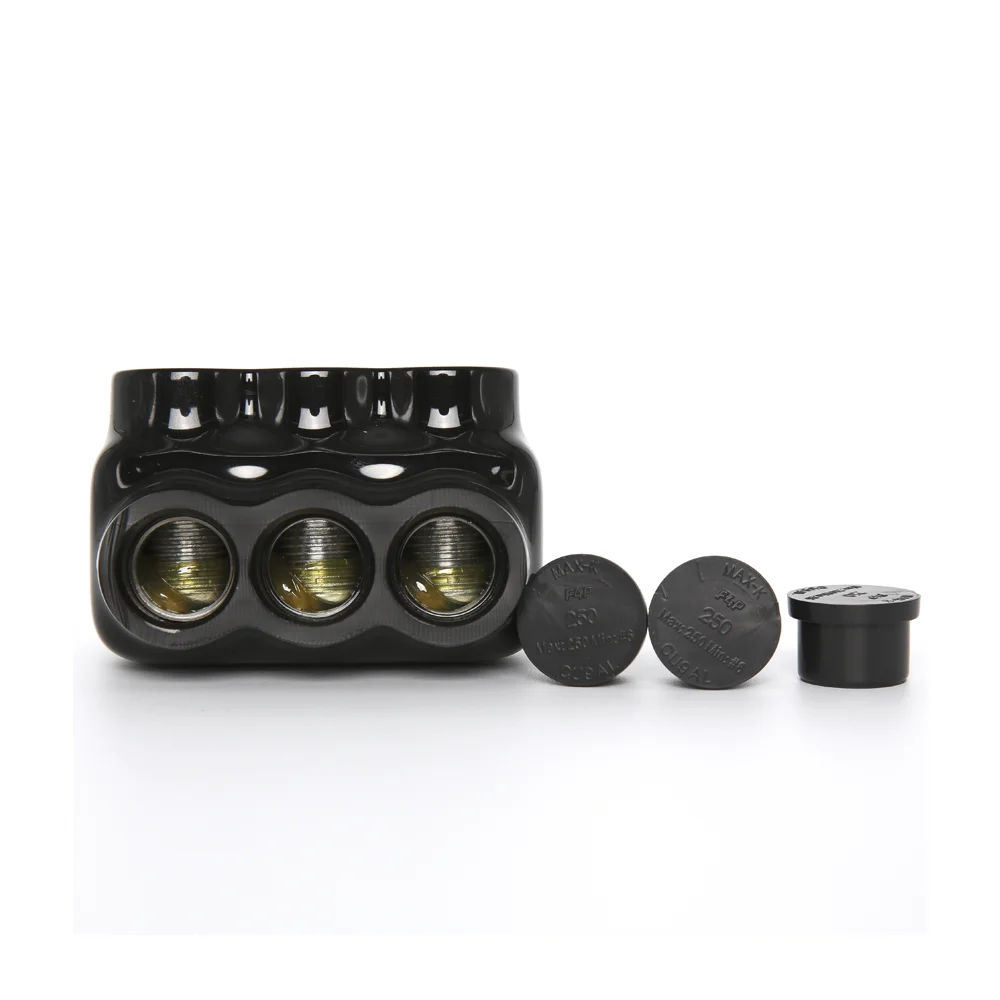

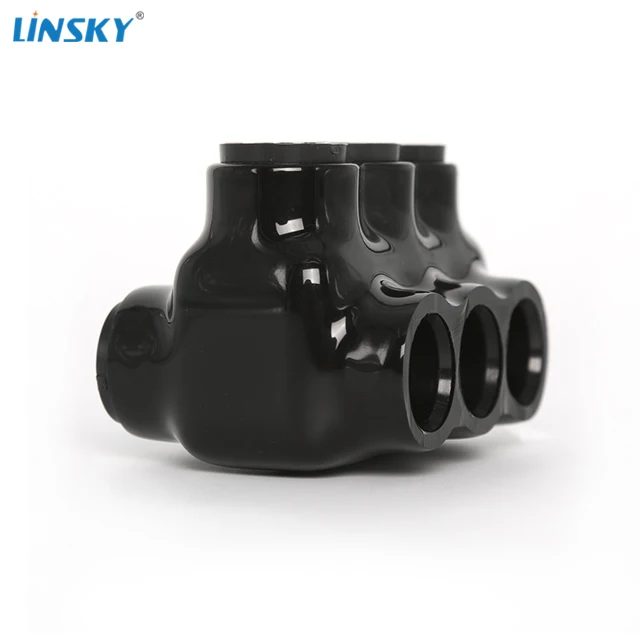

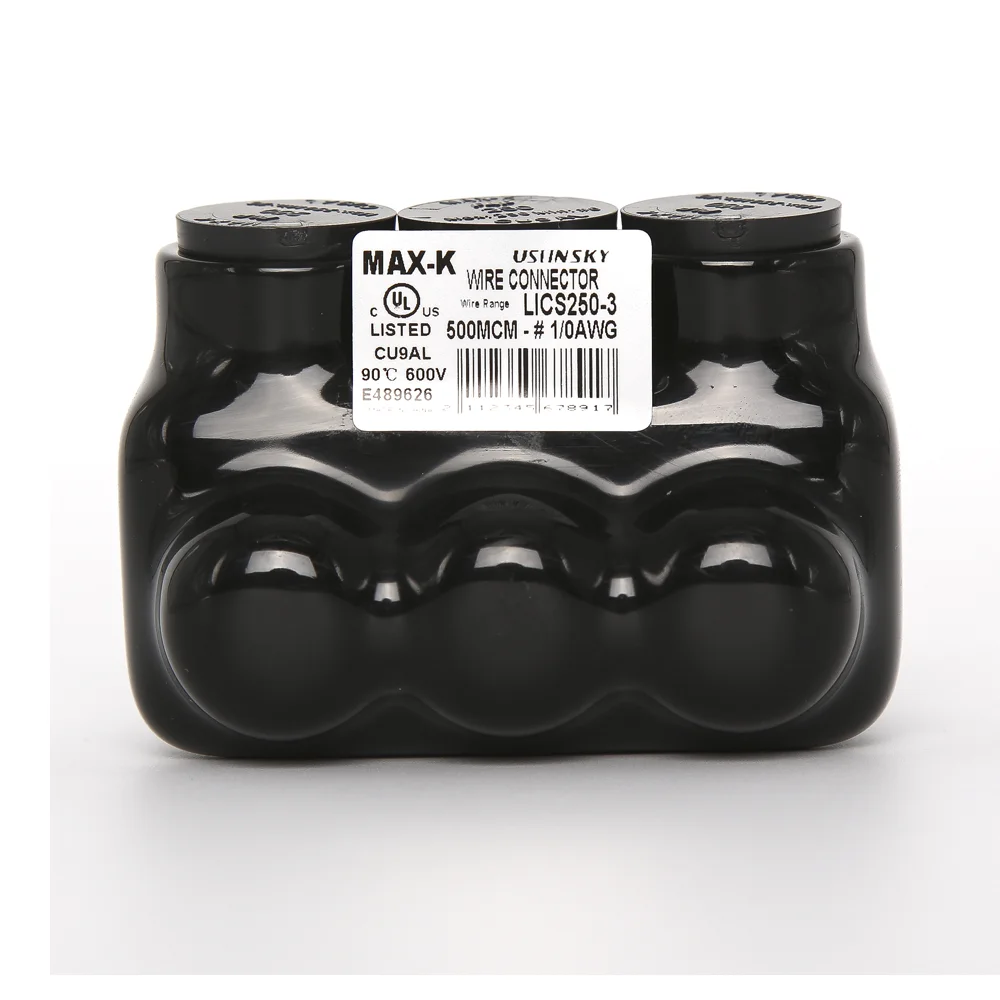

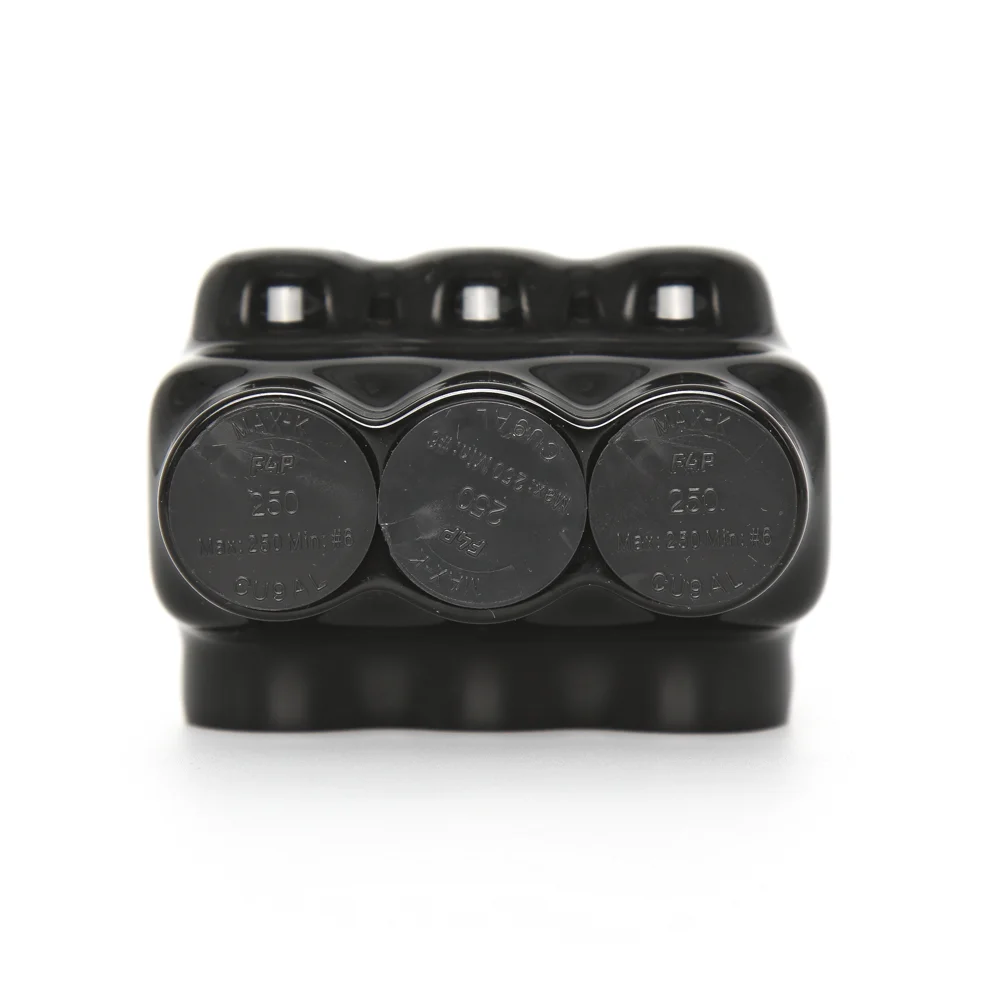

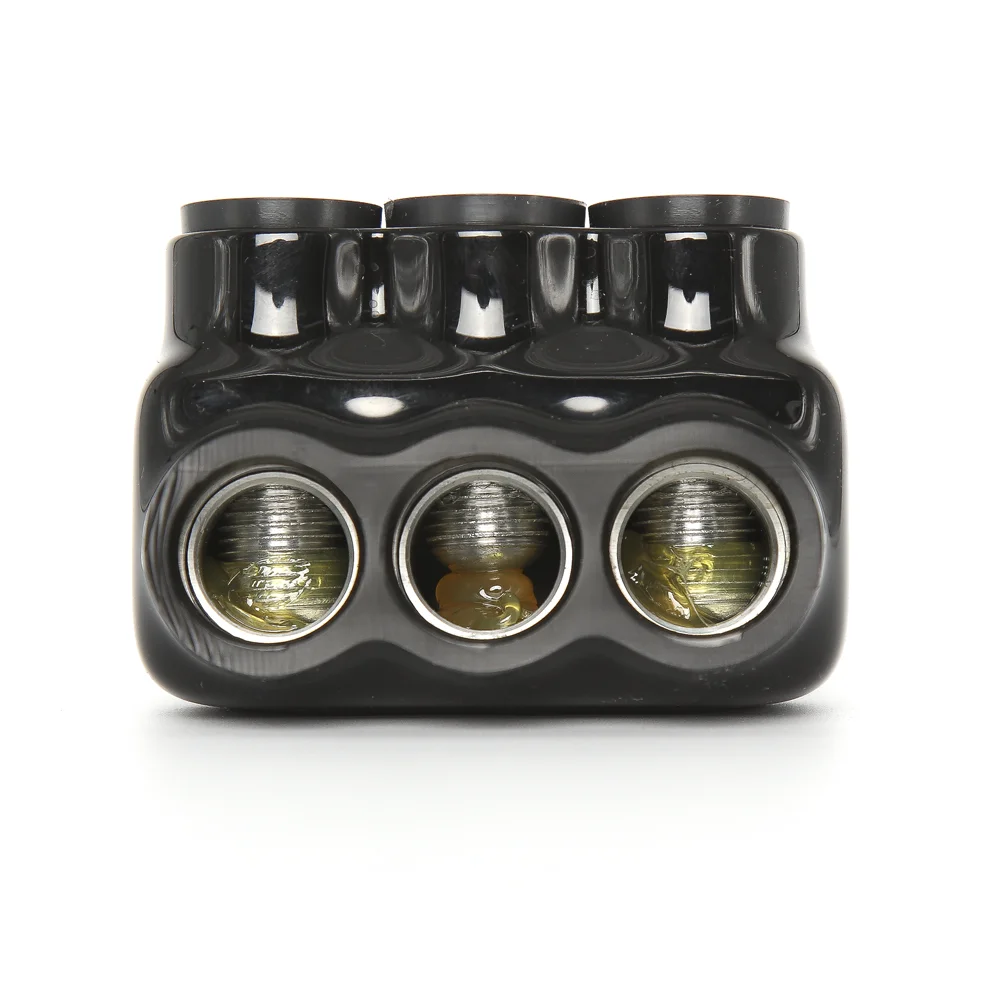

Product Description
Product Details
◎Clear/Black or Any color Insulation
◎6061-T6 Aluminum
◎Insulated With Rugged High-Dielectric Plastisol Dipped Coating
◎Pre-filled With Oxide Inhibitor
◎Easy Re-Entry For Changes, Inspection Or Troubleshooting
◎Plugs Marked With Connector Max &Min Wire Size For Easy ID
◎CU9AL Dual Rated For Use With Copper And/or Aluminum Wire
◎One Wire Per Terminal
◎Temperature Range Of -49℉ To194℉(-45℃ To 90℃)
◎600 Volt
◎Rated For Use With 90℃ Cables
◎ANSI C119.4& UL 486B Listed
◎6061-T6 Aluminum
◎Insulated With Rugged High-Dielectric Plastisol Dipped Coating
◎Pre-filled With Oxide Inhibitor
◎Easy Re-Entry For Changes, Inspection Or Troubleshooting
◎Plugs Marked With Connector Max &Min Wire Size For Easy ID
◎CU9AL Dual Rated For Use With Copper And/or Aluminum Wire
◎One Wire Per Terminal
◎Temperature Range Of -49℉ To194℉(-45℃ To 90℃)
◎600 Volt
◎Rated For Use With 90℃ Cables
◎ANSI C119.4& UL 486B Listed
Item# | Wire Range | Allen Hex | Length | Width | Height | Box Qty | Ctn Qty |
LICD2-1 | 2-14 | Slotted or 5/32 | 2.44 | 0.83 | 1.4 | 16 | 256 |
LICD1/0-1 | 1/0-14 | 3/16 | 2.99 | 0.94 | 1.59 | 15 | 120 |
LICD2/0-1 | 2/0-6 | 7/32 | 3.23 | 0.98 | 1.63 | 15 | 120 |
LICD3/0-1 | 3/0-6 | 7/32 | 3.43 | 1.05 | 1.77 | 12 | 96 |
LICD250-1 | 250-6 | 5/16 | 4.13 | 1.3 | 2.14 | 7 | 56 |
LICD350-1 | 350-6 | 3/8 | 4.8 | 1.46 | 2.5 | 4 | 32 |
LICD500-1 | 500-4 | 3/8 | 5.62 | 1.61 | 2.79 | 6 | 24 |
LICD600-1 | 600-4 | 3/8 | 5.79 | 1.77 | 3.11 | 5 | 20 |
LICD750-1 | 750-1/0 | 3/8 | 7.64 | 1.97 | 3.46 | 2 | 8 |
Related Products
\t\t\t\t\t\t\t\t\tOur Certifications \t\t\t\t\t\t\t
UL File No. -----Product Name
E497601------USB Receptacle
E491779------GFCI Receptacle
E489626------Insulation Connector
E495590------Multiple Funcation Socket
E501003------Metal Boxes
ETL 5010519 ------Wall Plate USB Charger
\t\t\t\t\t\t\t\t\tOur Customer \t\t\t\t\t\t\t
Our R&D
R&D Staff: 10 person
Machinery/Equipment for R&D:
Auto-CAD, sample machine ,HP 360 printer,Laser marking machine
Profile:
With a well-trained and experienced engineering team and advanced equipment, our R&D capabilities can meet customers' demands. Working out satisfying designs and cost-efficient solutions is our pursuit. From creating new ideas to sampling, from design to mass production, our R&D staff devote themselves to every stage.
\t\t\t\t\t\t\t\t\tWhy Choose Us \t\t\t\t\t\t\t
Our advantages:
1. ALL of our products have the UL & Cul or Etl&Cetl aproval, quality assurance
2. There are more than 2000 square meters warehouse in Shanghai, we can deliver the goods in time
3. We have design, research and development and production capacity, all of the PCB, plastic parts, hardware, made by ourselves
4. We have office in Shanghai and Shenzhen , Convenient for customers to visit
5. we will have a warehouse in NY USA, Solve the problem that some customers need urgent goods
