25 мм L угла стены коробка профилегибочной машины потолочный уголок делая

Main Feature

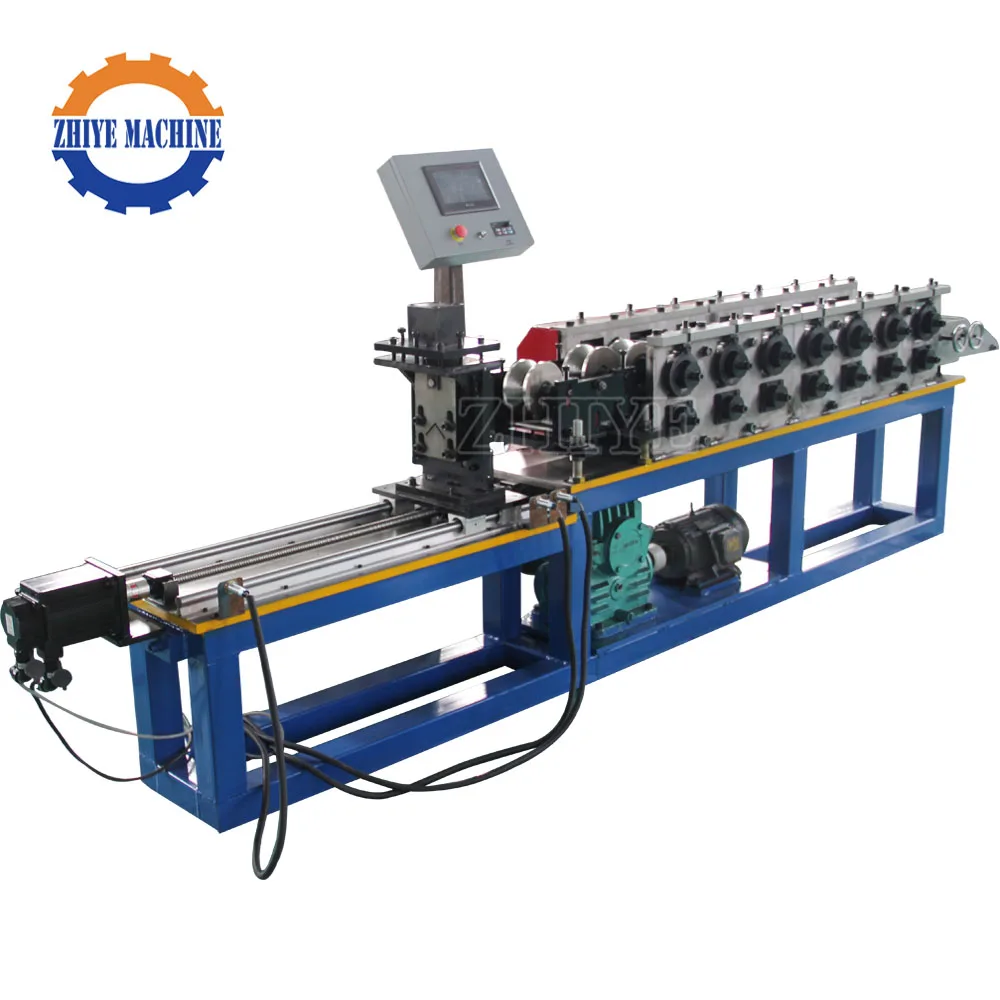

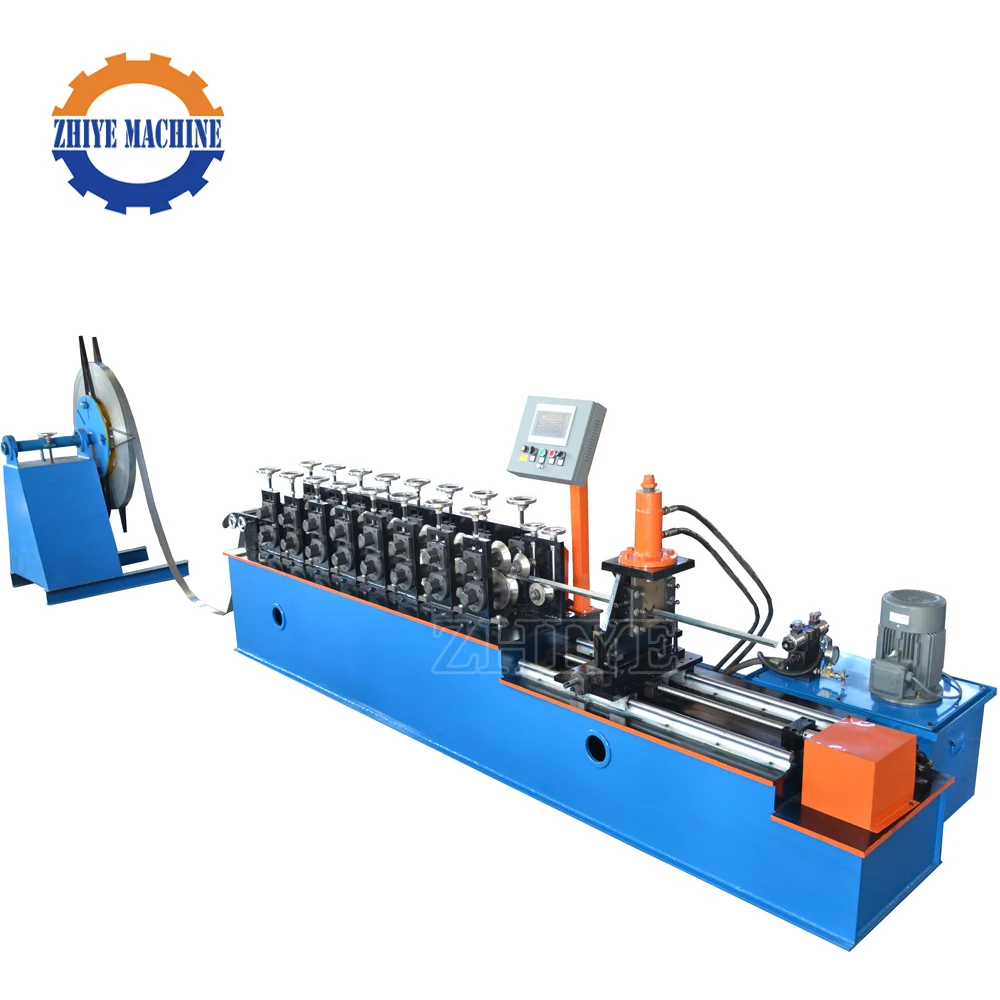

This  25mm L Wall Angle Frame Roll Forming Machine Ceiling Corner Making Line is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of Stud and Runner just by simply and easily changing the spacers, this enables the production of different sizes products on the same rollers.

Manual Uncoiler

1. It is used to support the steel coil and uncoil it , the steel coil is expansion by hand.

2. Loading capacity:3tons

3. Inner diameter: 450-508mm

Entry Beach

1. Put the raw material ( steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is formity. Please refer to the equipment regulation to know the function of locate angle iron.

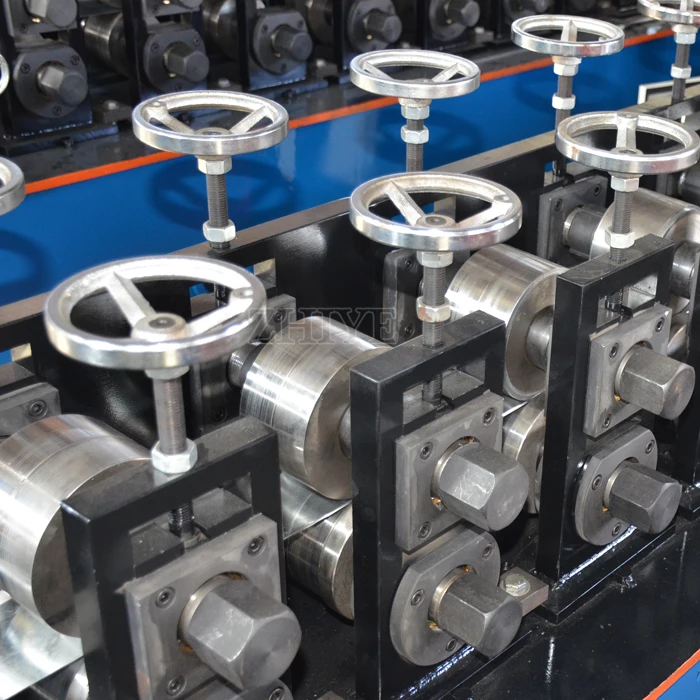

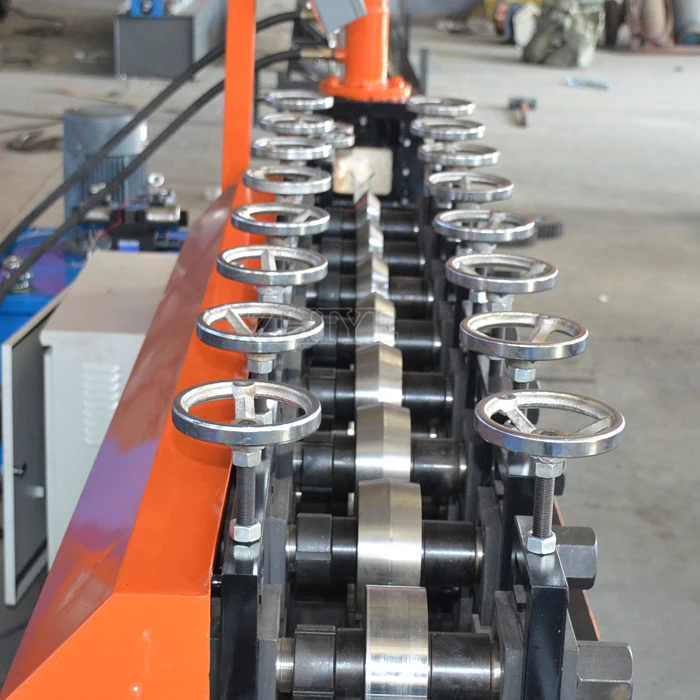

Main Roll Forming Machine

1. It is designed according to the customers's profile drawing. It adopts motor reducer drive, chain transmission, roller surface polishing, hard plating, heat treatment and galvanization treatment. The polished surface and heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

2. Material of roller: Cr12, surface hard chromium

3. Main power: 4kw ( cycloidal planetary gear speed reducer)

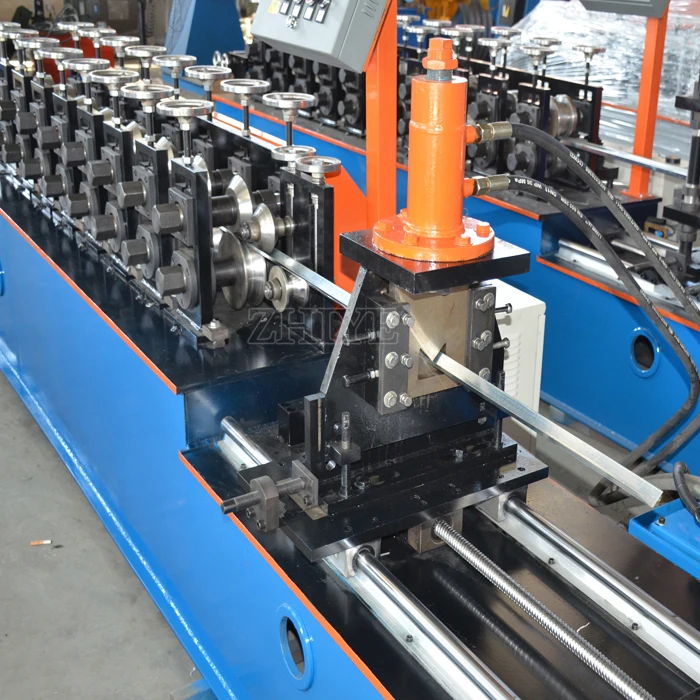

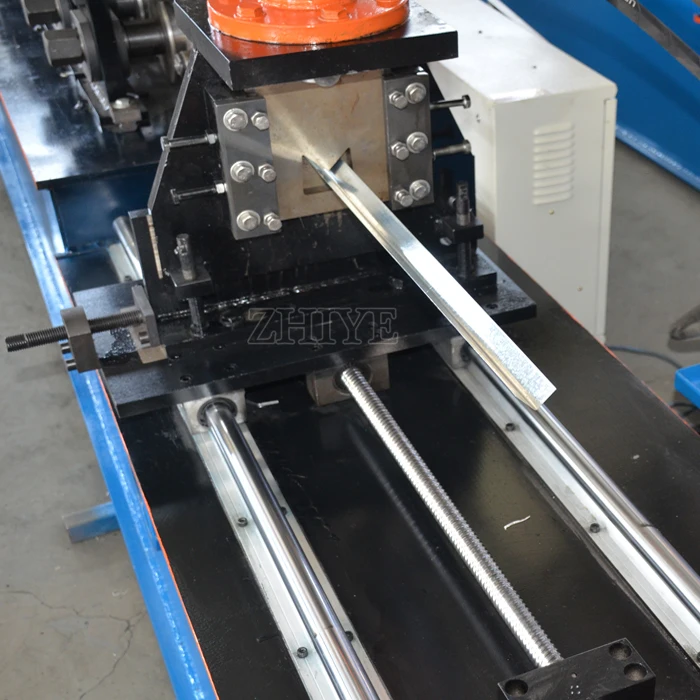

Cutting Mechanism

1. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products

2. Material of blades: Cr12

3. Componenets: it contains one set of cutting tools, one hydraulic tank and one cutter machine
