Машина для прокатки листового металла
US $10000
Машина для производства бетонного терраццо цена машина
- Категория: Машины для производства плитки >>>
- Поставщик: Zhengzhou,Yuxi,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 24990.81 $* | 26240.77 $* |
| Aug-15-2025 | 24780.76 $* | 26019.26 $* |
| Jul-15-2025 | 20790.2 $* | 21830.27 $* |
| Jun-15-2025 | 24360.50 $* | 25578.8 $* |
| May-15-2025 | 21210.26 $* | 22271.93 $* |
| Apr-15-2025 | 23940.75 $* | 25137.11 $* |
| Mar-15-2025 | 23730.92 $* | 24917.68 $* |
| Feb-15-2025 | 23520.13 $* | 24696.14 $* |
| Jan-15-2025 | 23310.29 $* | 24476.53 $* |
Характеристики
Product Description

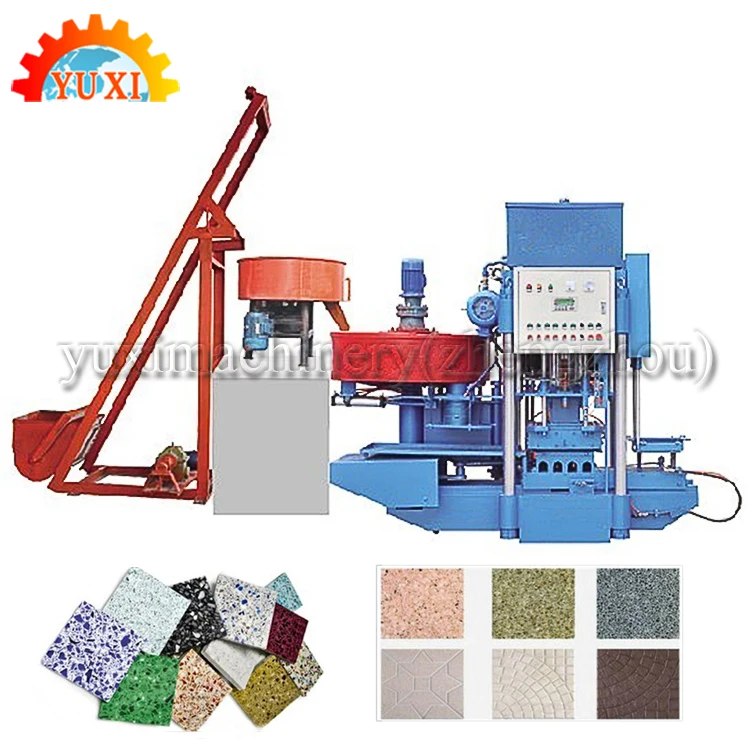

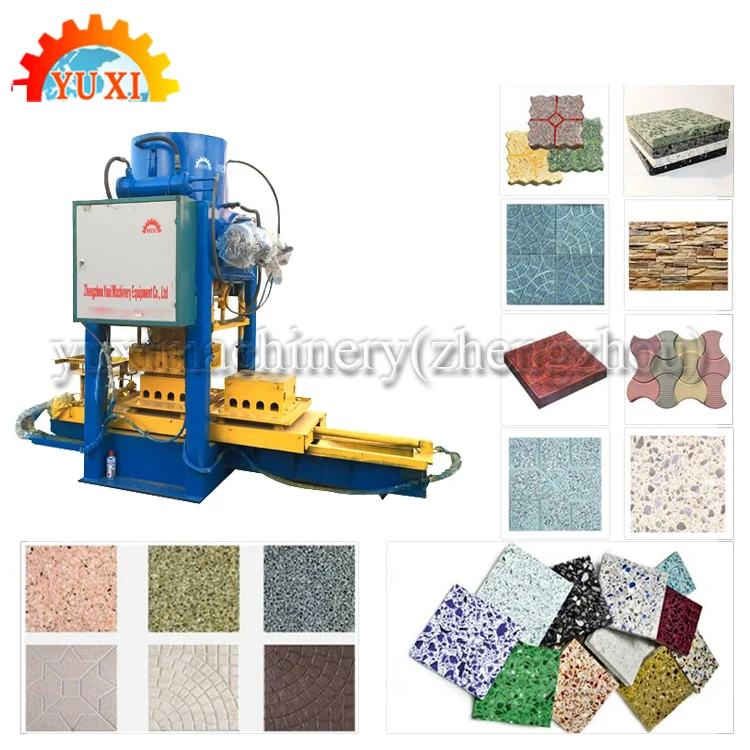

Cement Roof Tile Machine

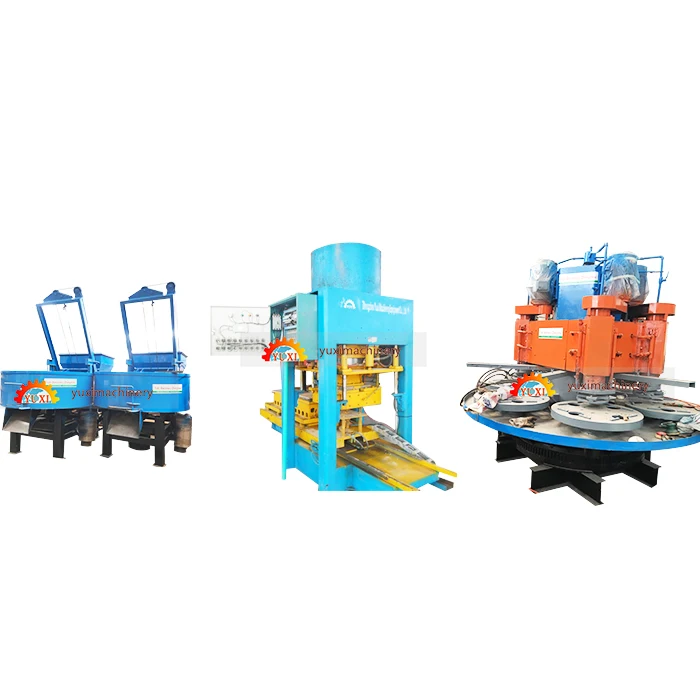

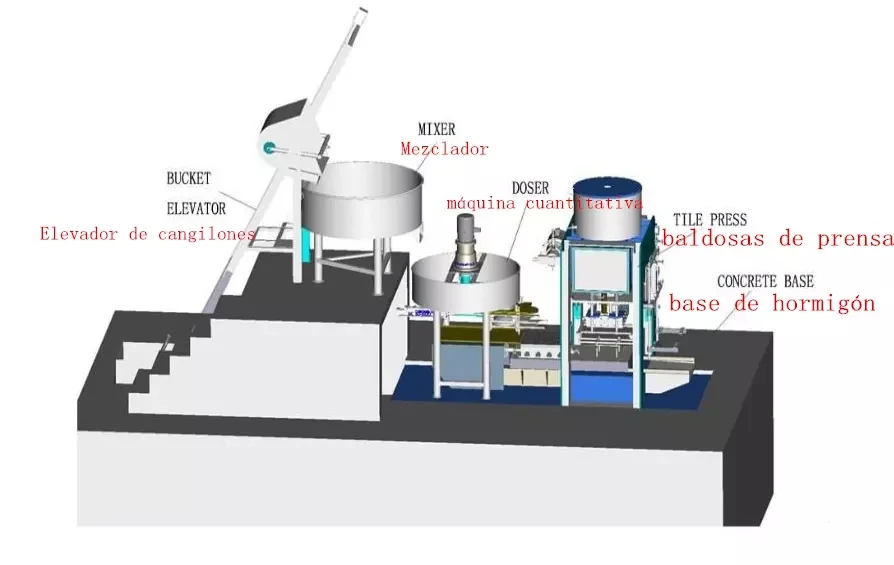

Our yuxi company has successfully developed a fully automatic terrazzo production line by digesting and absorbing foreign advanced technology and technology, combined with domestic specific conditions. The production line is composed of a quantitative machine, a mixer, a main machine and a polishing machine.
Control each attached machine and host through PLC programming. There is no need to manually operate the stand-alone unit. With the advantages of high degree of automation, high productivity, low labor intensity, etc., it is the first product in the building materials industry.
Control each attached machine and host through PLC programming. There is no need to manually operate the stand-alone unit. With the advantages of high degree of automation, high productivity, low labor intensity, etc., it is the first product in the building materials industry.
Application
This process standard of roof tile machine is applicable to both ordinary and advanced terrazzo ground engineering for industrial and civil construction.
Raw materials
Raw materials include cement, rice stone, stone powder, fly ash and so on.
Color can be added to the material through the spreader.
About Terrazzo
(1), gloss: 60 ~ 95;
(2), compression resistance (N / cm2): > 2744;
(3), bending resistance (N/cm2): >490;
(4), strength: greater than 75 ~ 100#;
(5), wear resistance: more than 8000 rpm at 500g without obvious wear;
(6), dusting property: <1mg/cm2.
(2), compression resistance (N / cm2): > 2744;
(3), bending resistance (N/cm2): >490;
(4), strength: greater than 75 ~ 100#;
(5), wear resistance: more than 8000 rpm at 500g without obvious wear;
(6), dusting property: <1mg/cm2.

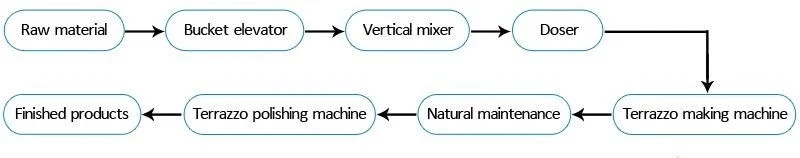

Working process

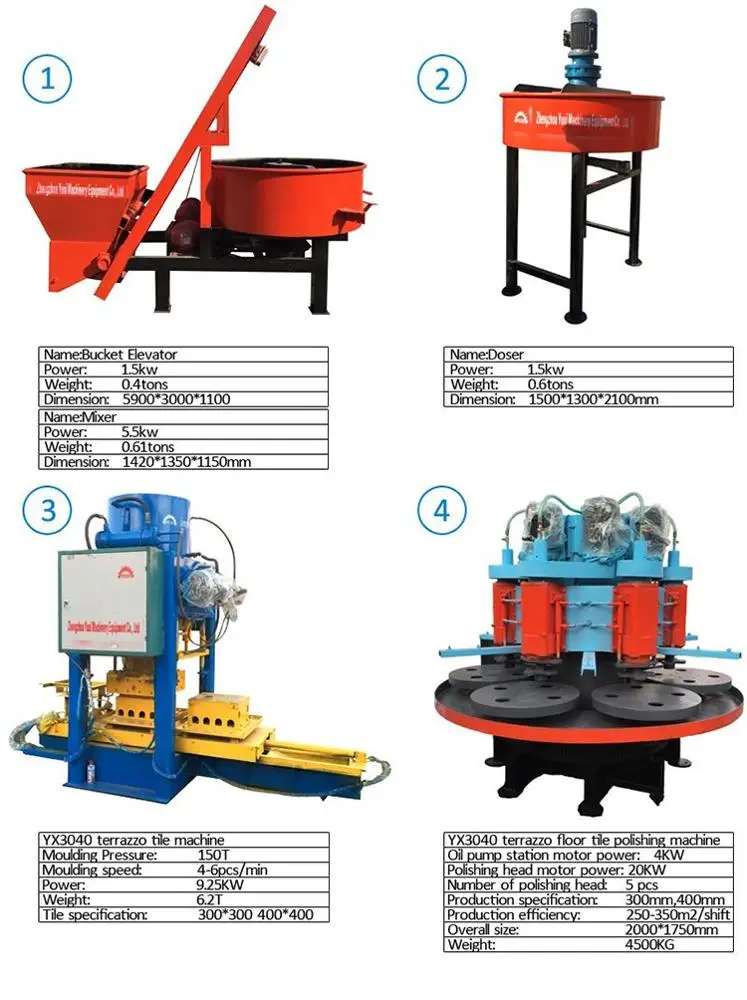

Doser
Use agitator to make the material more uniform
Mixer&Bucket Elevator
Mix cement, sand, gravel, stone powder. Delivered to the mixer via a bucket elevator
automatic polishing machine is used to fix thickness, grind and polish for terrazzo tile
Details Images
Hydraulic Pump
The hydraulic pump is characterized by small size,
high efficiency, long life, advanced design, compact structure and easy maintenance
high efficiency, long life, advanced design, compact structure and easy maintenance
Hydraulic Cyclinder
Hydraulic cyclinder is clevis mounted, and exceeds the highest standards. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance.
Control System
Computer control & human-machine interface, integrate mechanical and electrical, hydraulic pressure and pneumatic, make the whole system high automation degree and easy operation.
Advantage
1. High-pressure forming by die, accurate size and high strength.
2, the source of raw materials is simple: cement, stone powder, gravel.
3. Wide market demand: squares, sidewalks, communities, hospitals, schools, power plants, etc.
4. High degree of automation, saving labor and reducing labor intensity.
5. The products produced can be processed by the matching linear sander or shot blasting machine. Whether it is surface polishing or throwing into the lychee surface, it can achieve the same effect as natural stone.
2, the source of raw materials is simple: cement, stone powder, gravel.
3. Wide market demand: squares, sidewalks, communities, hospitals, schools, power plants, etc.
4. High degree of automation, saving labor and reducing labor intensity.
5. The products produced can be processed by the matching linear sander or shot blasting machine. Whether it is surface polishing or throwing into the lychee surface, it can achieve the same effect as natural stone.
Technical Parameter
Specification | YX-400 | YX-500 | YX-600 | YX1000 |
Rated pressure | 128 Tons | 200 Tons | 500 Tons | 1000 Tons |
Production capacity | 6-8 pcs/min | 5-7 pcs/min | 4-6 pcs/min | 2-3 pcs/min |
Power | 7.5KW | 7.5KW | 15KW | 33 KW |
Weight | 4.8 Tons | 5.2 Tons | 5.8 Tons | 28 Tons |
Dimension(mm) | 2900*1450*2550 | 2900*1530*2550 | 3300*3150*3200 | 6700*2900*2600 |
Product specification(mm) | Max 400*400 | Max 500*500 | Max 600*600 | Max 1500*1000 |
Why Choose Us
Strong customization
The terrazzo grinding tool has an upper die and a lower die, the upper die determines the pattern, and the lower die determines the thickness. Send us pictures, we can customize the abrasive tools for you.
High Quality
Its raw material is special mold steel. It is made of special mold steel materials such as chrome 12 molybdenum vanadium, etc. It is made by forging, milling, cutting, grinding, engraving and quenching. The precision of the mold is high, the strength is good, the wear resistance is good, the durability is durable, and it is not deformed.
