Панель управления светодиодным освещением на

Категория: LED-светильники с датчиком >>>
Поставщик: Shenzhen,Liyan,Modern,Technology,Co.,Ltd.

Цена:2,20 $ - 3,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	2.85 $*	2.78 $*
Aug-15-2025	2.4 $*	2.48 $*
Jul-15-2025	2.67 $*	2.84 $*
Jun-15-2025	2.29 $*	2.82 $*
May-15-2025	2.57 $*	2.7 $*
Apr-15-2025	2.74 $*	2.88 $*
Mar-15-2025	2.55 $*	2.28 $*
Feb-15-2025	2.54 $*	2.61 $*
Jan-15-2025	2.44 $*	2.52 $*

Характеристики

Quick Details

Place of Origin	Guangdong,China(Mainland)	Brand Name	kenshap
Model Number	LYXD-BSK001	Usage	Solar LED lighting
Input Voltage	3.7V lithium battery	Work Voltage	DC 5V
Color	Brown	Line Lenhth
Quiescent Current	≤1mA	Scan cycle	500ms(Custmizable)

Supply Ability

Supply Ability: 5000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details 500PCS/ctn

Port ShenZhen

Lead Time With 5 working days

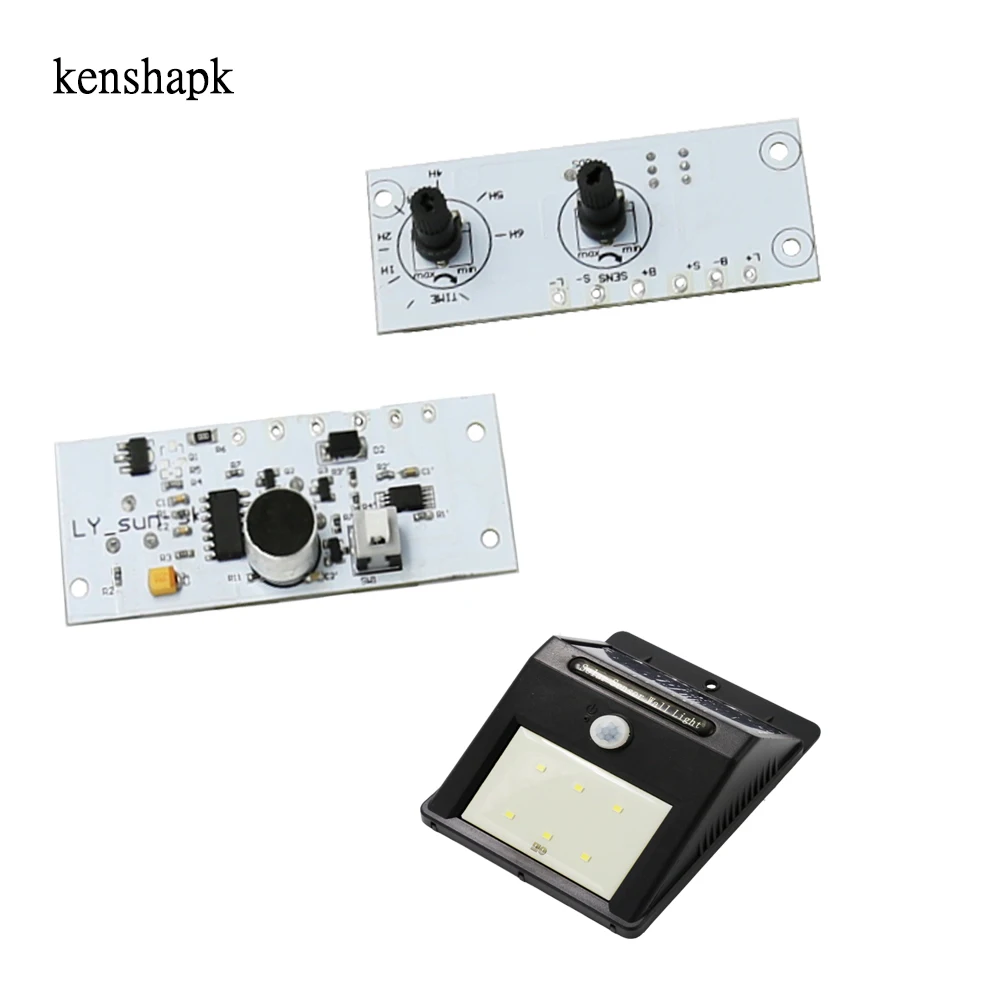

LYXD-BSK001 is a voice-activated solar LED lighting control board. It is charged during the day. When the sound is sensed at night, the LED is turned on. After the delay, the light is turned off, and the sensing distance is up to 5-8 meters.

Features:

1 sound induction;

2 360° induction;

3 sensing distance of 5-8 meters;

4 After induction, the LED is lit, and the delay time is about 30 seconds;

5 The sensitivity of the induction is adjustable, and the delay time can be adjusted;

6 PCB board structure shape and module scheme can be customized;

7 applications: solar LED lighting.

Specifications:

1 \\Lithium battery: 3.7V;

2 \\ sensing distance: 5-8 meters;

3 \\Induction angle: 360°

4 \\ sensor type: voice control;

5 \\Power consumption: <1mA;

6 \\Output mode: high and low level output;

7 \\ working temperature: -10-60 ° C

PCBLAYOUT:
