Генератор высокого напряжения/трансформатор для EP
- Категория: Other Power Supplies >>>
- Поставщик: FU,FONG,ENTERPRISES,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 95.94 $* | 100.44 $* |
| Aug-18-2025 | 94.85 $* | 99.14 $* |
| Jul-18-2025 | 79.96 $* | 83.50 $* |
| Jun-18-2025 | 93.13 $* | 98.70 $* |
| May-18-2025 | 81.10 $* | 85.41 $* |
| Apr-18-2025 | 91.24 $* | 96.16 $* |
| Mar-18-2025 | 90.27 $* | 95.35 $* |
| Feb-18-2025 | 90.97 $* | 95.19 $* |
| Jan-18-2025 | 89.67 $* | 93.73 $* |
Характеристики
Product Description
Features
Adjustable dual HV outputs (10~100%) for Model 200~600 ESP application
Slow start and Stop-Restart HV arcing protection
Builtin spark gap tube for empty load protection
On board HV output OK / NG indicators / interfaces and dry contacts for BMS
Modularized design, Easy maintenance
Model name | FPS(A/B)-150W-2(P/N) |
Input voltage | 100~120 VAC for FPSA 200~240 VAC for FPSB |
Power consumption | max 150 W |
Output voltage | max +16K VDC for 2P max -16K VDC for 2N |
Output current | max 8 mA |
Empty load protection | Yes |
Arcing protection | Adjustable |
Arcing protection indicators | Low Norm Hi LED indicators |
Output OK/NG | LED indicators and Dry contact |
Dimension | 230 x 132 x 53 mm |
Weight | 1.1 kgw |

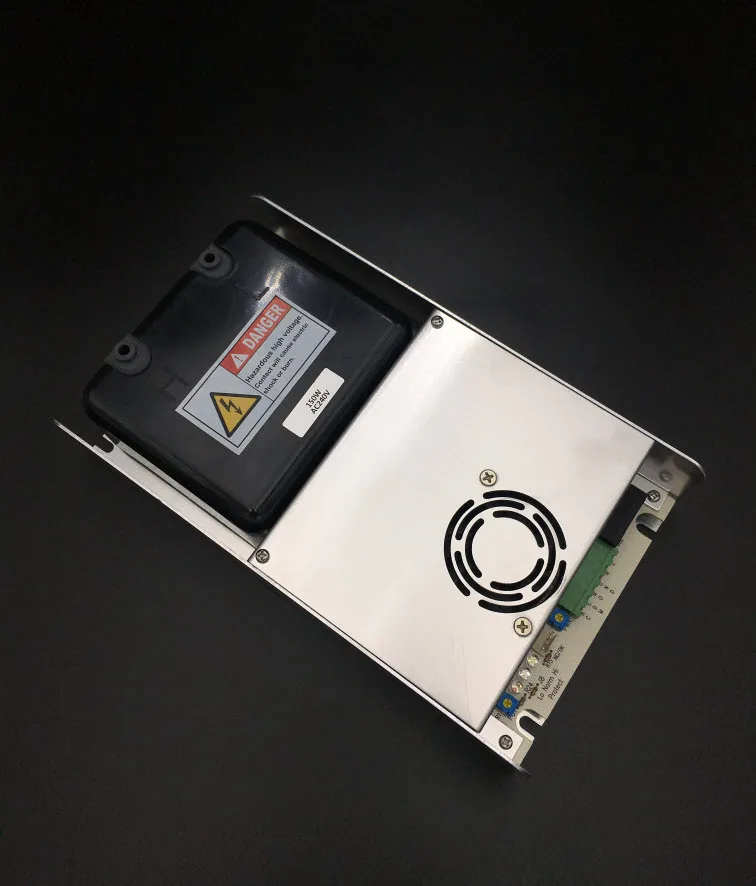

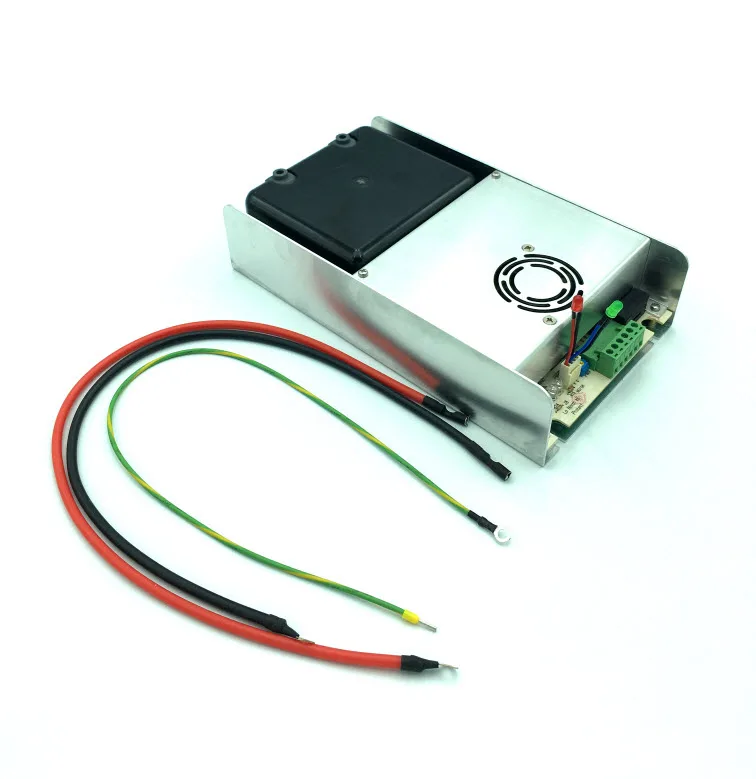

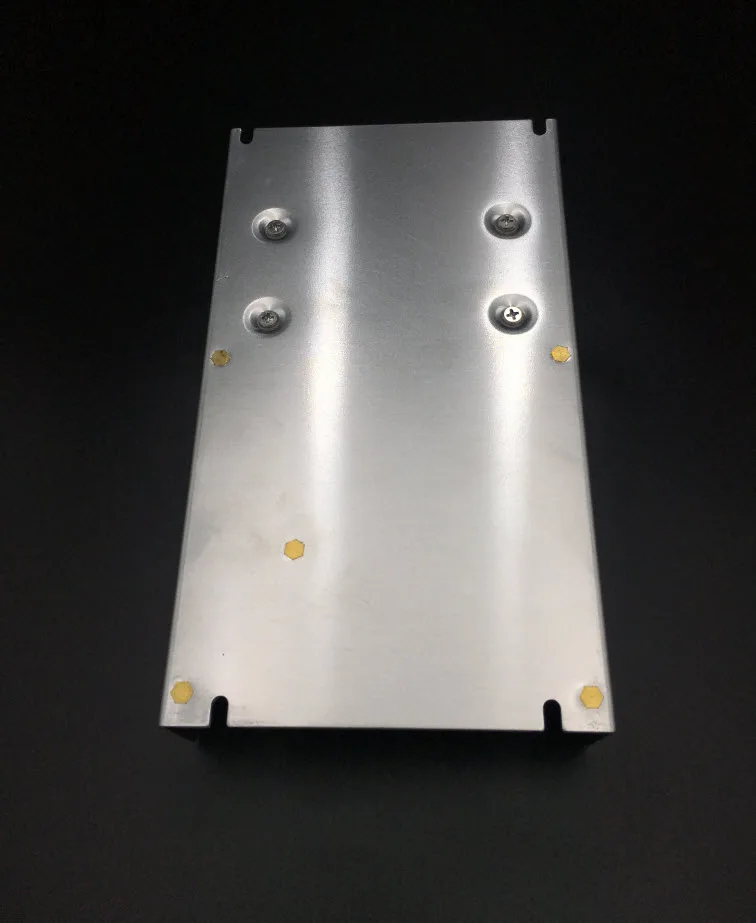

Detailed Images

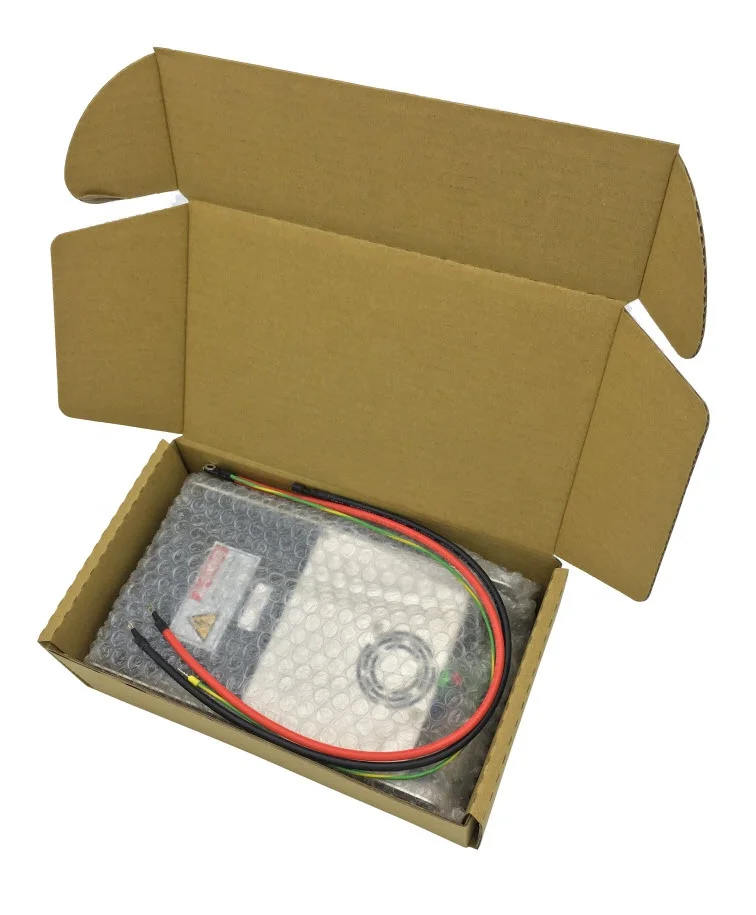

Packing & Delivery
