 Major Features

Integrated with SpO2 probe and processing display module
Small in volume,light in weight and convenient in carrying
Operation of the product is simple, low power consumption
SpO2 value display
Pulse rate value display, bar graph display
Pulse waveform display
The display mode can be changed
Screen brightness can be changed
Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe
Display format can be saved after power off



Main performance

SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: ±2% ,Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption: less than30mA
Voltage: DC 2.6V~3.6V
Power Supply: 1.5V (AAA size) alkaline batteries × 2
Battery working hour:The minimum continually work time is 20 hours, theoretical number is 36 hours.
Safety Type: Interior Battery, BF Type

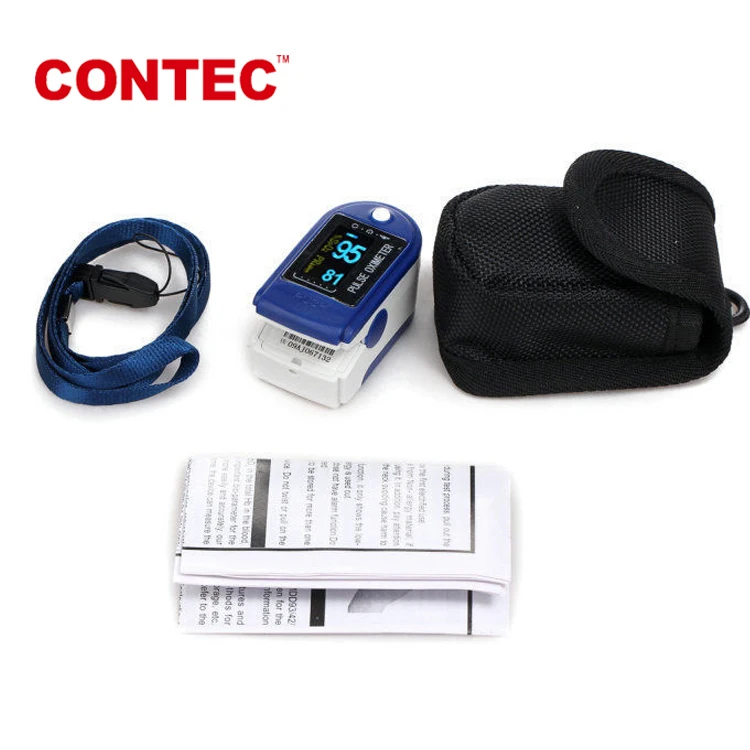

Accessories

Sell in standard:
A hanging rope
A user manual











Performance	CMS50DL1	CMS50DL2	CMS50D1	CMS50D2
Display Mode	LED display		Color  display
Power Supply	1.5V (AAA size) alkaline batteries * 2
Power Consumption	less than 25mA		less than 30mA	less than 80 mA
Dimension	61(L) mm * 36(W) mm * 32(H) mm	60(L) * 30.5(W) * 32.5 (H) mm	61(L) * 36(W) * 32(H) mm	60(L) * 30.5(W) * 32.5 (H) mm
Weight	About 60g (with the batteries)	About 50g (with the batteries))	About 60g (with the batteries)	About 50g (with the batteries)
