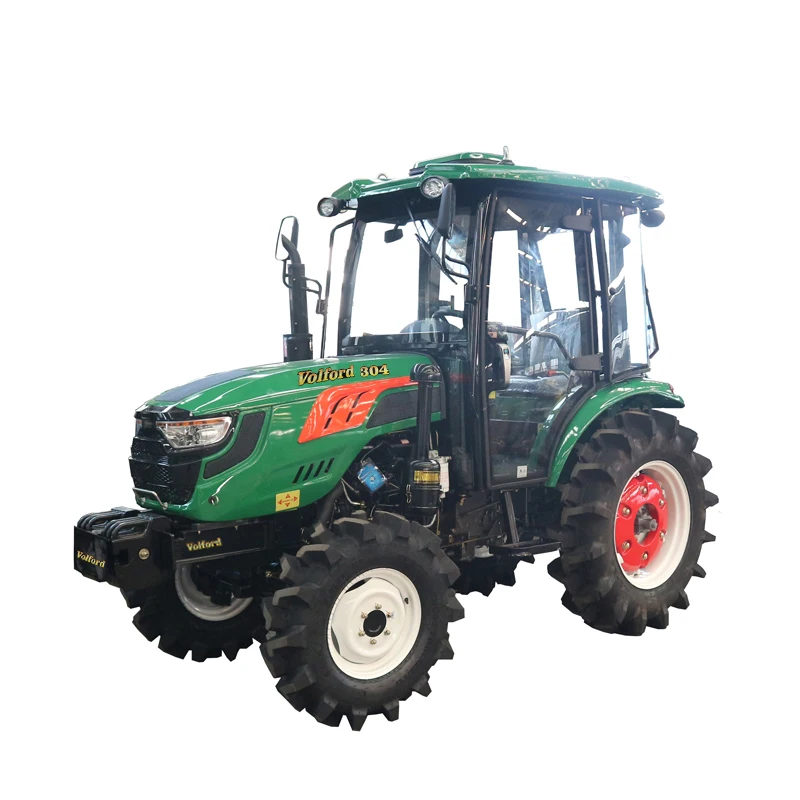

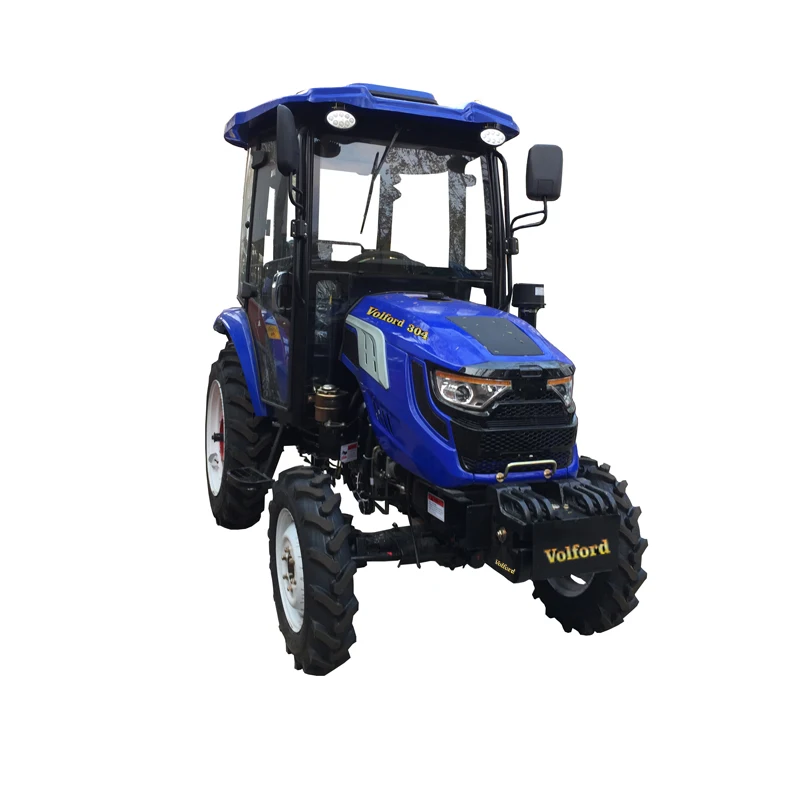

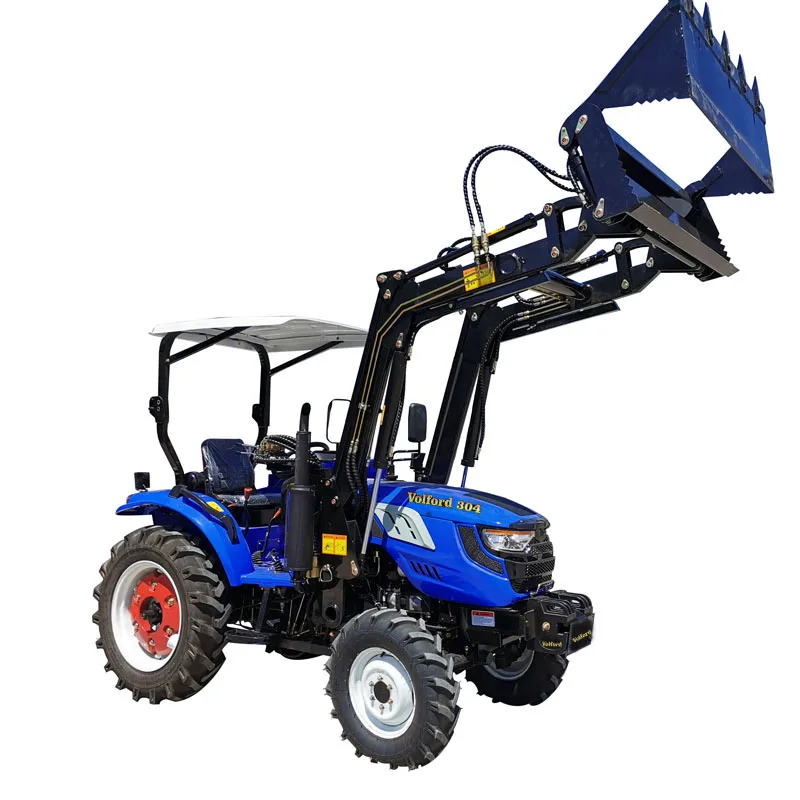

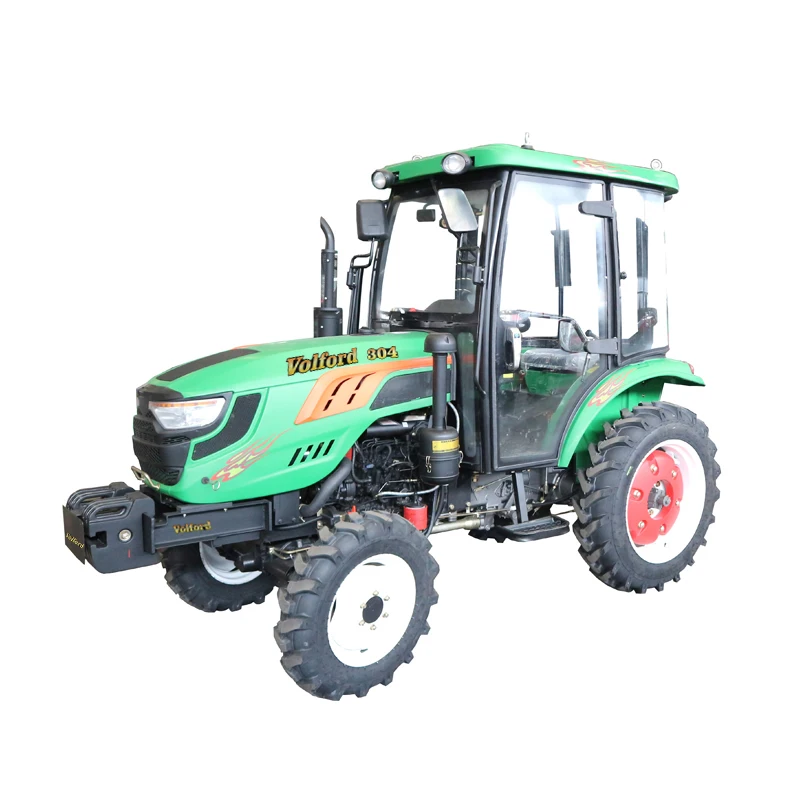

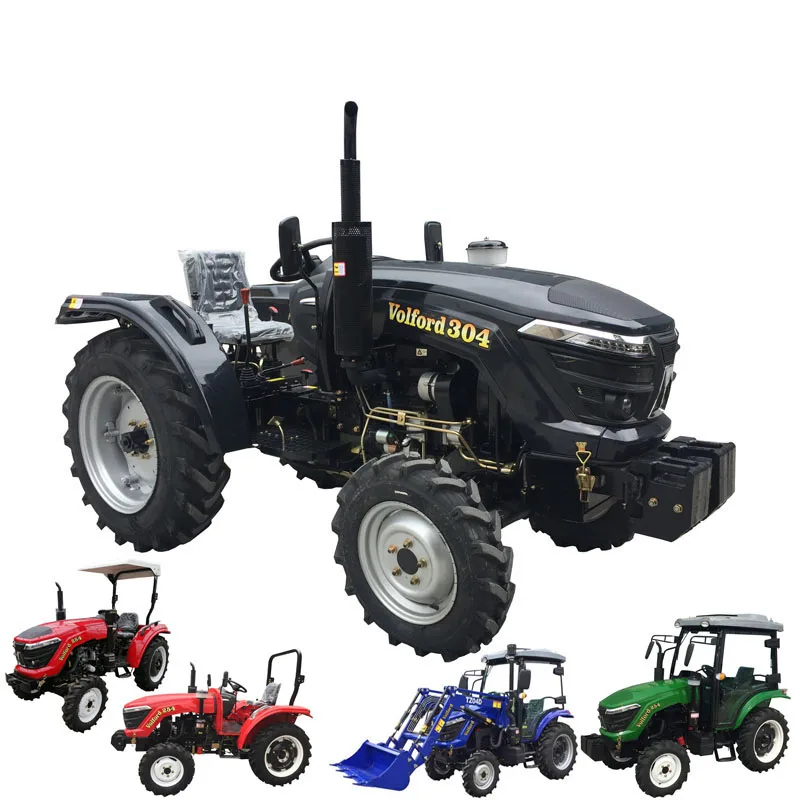

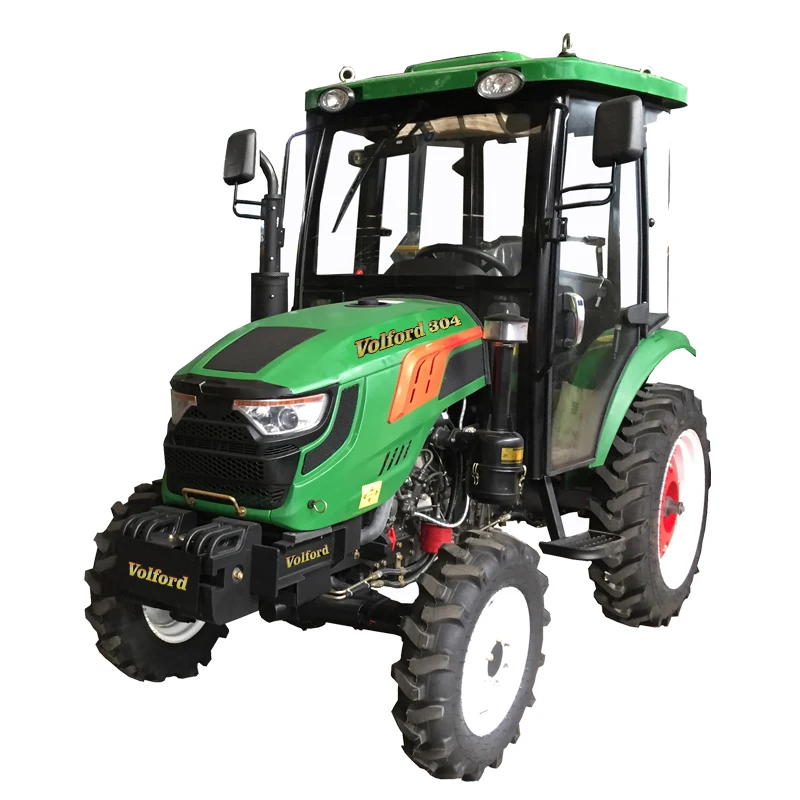

4x4 wheels driving model 30hp wheel tractors with nice cabin for front end loader use

Tractor Parts Description-

Tractor Function Introduction-

Other Choice-

Volford Tractor Features-

    This series tractor is a middle and small horsepower wheel tractor(2wd and 4wd) with directly connected engine. It has the characteristics of high transmission efficiency, low tremble, high traction, high adapability and easy start. At present, this series tractor mainly install 25hp, 30h, 35hp, 40hp, 45hp and 50hp engine. It is the upgraded generation shift product. Jaw type differential lock can improve the pass-ability. Hydraulic output interface can make direct connection with the dump trailer. All tractor parts are made in China. This series tractor can have many different configurations according to customers’ demands. Basic model, roll bar, sun-shade and cabin model. Single-stage clutch and dual-stage clutch both available. It’s named small tractor, compact tractor, mini tractor and multi-purcase or multi function farm wheel tractors. (3+1) x2 and (4+1) x2 gear shift for customers choose. (4+1) x2 shift could adjust (4+1) x2 x2 creeper shift. Single speed PTO and double speed PTO, for example 540, 720, 760, 1000 speed. Fixed and adjustable front and rear tread. “0” or “I” type suspensions.

Volford Tractor Advantages-

A.      Chinese highly cost-efficient in-line diesel engines with high fuel efficiency, low maintenance cost, standard preheat and excellent cold start.

B.      Center console with simple structure, high cost efficiency and easy maintenance, side console for driving and riding comfort.

C.      8F+2R gearbox with easy operation and convenient maintenance, optional 8F+8R/16F+4R gears for multi-function demand.

D.      Optional single/double-acting clutches for different needs and operation, special ceramic material for friction plates with high reliability as well as low use and maintenance cost.

E.       Farmland tires, turf tires, construction tires and many other tires to met needs of different working conditions.

Cooperating Engine Brands-

Volford Tractor Key Structure-

Daily Check Tips-

    To prevent any issues, it’s important to know the condition of your equipment well. Always check your equipment before starting and operating.

    To avoid personal injury:Be sure to check and service the equipment on a level surface with the engine shut off, the parking brake “ON” and implement lowered to the ground.

    The Daily Checks listed below are generic for most Volford tractors. We recommend that you consult your operator’s manual for information on your specific model.

Specs Data-

Item	Data	Item	Data
Model	VF300/VF304	Drive type	2wd/4wd
Starting	electric	Clutch	single/dual stage
Engine brand	LD/YD/SD	Engine cylinders	3 cylinders
Rated power/speed	22.1/2350kw/rpm	Engine air	Natural
Shift	8F+2R/16F+4R	Front speed	1.73-26.40km/h
Rear speed	2.28-10.54km/h	Brake	drum type
Fuel tank	25L	Steering	mechanical or hydraulic steering
Linkage	three point	Suspension type	categoryI
PTO	540/1000 or 540/760	PTO spline size	6 or 8
Front tyre	5.0-16/6.5-16/7.5-16	Rear tyre	95-24/11.2-24
Front ballast	Yes	Rear ballast	Yes
Swing draw bar	selectable	PTO cover	selectable
Air pump	selectable	Roll bar	selectable
Sun-shade	selectable	Cabin	Yes
Heater	selectable	AC	no
Min turning radius	3.3m	Hydraulic output	1 or 2 groups
Cover hood	metal	Overall dimensions	3250*1550*2020/2250mm
Front wheel track	1000-1300mm	Rear wheel track	1000-1300mm
Wheel base	1750mm	Ground clearance	320mm
Rated traction force	5.8/6.7kn	Construction weight	1650/1750kgs

Other Series 25HP-240HP-

Logistics and Shipment-

Volford Tractor After-Sale Serivice Parts-

Volford Tractor Parts Warehouse-

Volford Tractor Working On Land-

Farm Implements-

About Us-

  Beijing Taishan Guotai Import Export Co., Ltd. is devoting to developing and produce farm wheel tractors from 25hp to 240hp. We are devoted to provide the most suitable tractors and farm equipment according to customers demand. Our company has invested in the construction of Taian Volt Machinery Co., Ltd. and Shandong Volford Tractor Manufacturer Co.,Ltd. They are all the leading famous tractor manufacturers in China. It was set up in 2005, the history tracking back to 60’s. Now we cover about 150,000m2, 18 producing plants, 12 producing lines; the total employee is around 1000 people. We have the perfect quality control system to ensure the top quality productions: Professional laboratory, complete test equipment, excellent technical team, including senior engineer 10, engineer 26, and technician 60, strict quality control process.

    At present, we mainly make TY series, TE series, TN series, TB series, TD series, TF series, TC series chassis and gearshift wheel tractors. Full series have entered into mass production stage. Market and agents feedback very nice.

    We have exported to the countries all over the world, such as Europe, Oceania, East Asia, Southeast Asia, and Africa and so on. We warmly welcome you to visit our factory, and all your comment and advice is highly appreciated.
