Электростатический осадитель генератор высокого
- Категория: Другие источники питания >>>
- Поставщик: FU,FONG,ENTERPRISES,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 95.85 $* | 100.2 $* |
| Aug-19-2025 | 94.45 $* | 99.22 $* |
| Jul-19-2025 | 79.46 $* | 83.1 $* |
| Jun-19-2025 | 93.64 $* | 98.43 $* |
| May-19-2025 | 81.51 $* | 85.37 $* |
| Apr-19-2025 | 91.19 $* | 96.4 $* |
| Mar-19-2025 | 90.85 $* | 95.64 $* |
| Feb-19-2025 | 90.72 $* | 95.61 $* |
| Jan-19-2025 | 89.16 $* | 93.21 $* |
Характеристики
Product Description
Model name | FPS(A/B)-150W-2(P/N) |
Input voltage | 200~240 VAC for FPSB 100~120 VAC for FPSA |
Power consumption | max 150 W (adjustable) |
Output voltage (HV) | +16K VDC for 2P -16K VDC for 2N |
Output voltage (LV) | +8K VDC for 2P -8K VDC for 2N |
Output current | max 8 mA |
Empty load protection | Yes |
Arcing protection | Yes |
Arcing protection level | Adjustable |
Output OK/NG | LED indicators & dry contacts |
Dimension | 230 x 132 x 53 mm |
Weight | 1.1 kgw |
Features
Adjustable dual HV outputs (10~100%) for Model 200~600 ESP application
Slow start and Stop-Restart HV arcing protection
Builtin spark gap tube for empty load protection
On board HV output OK / NG indicators / interfaces and dry contacts for BMS
Modularized design, Easy maintenance

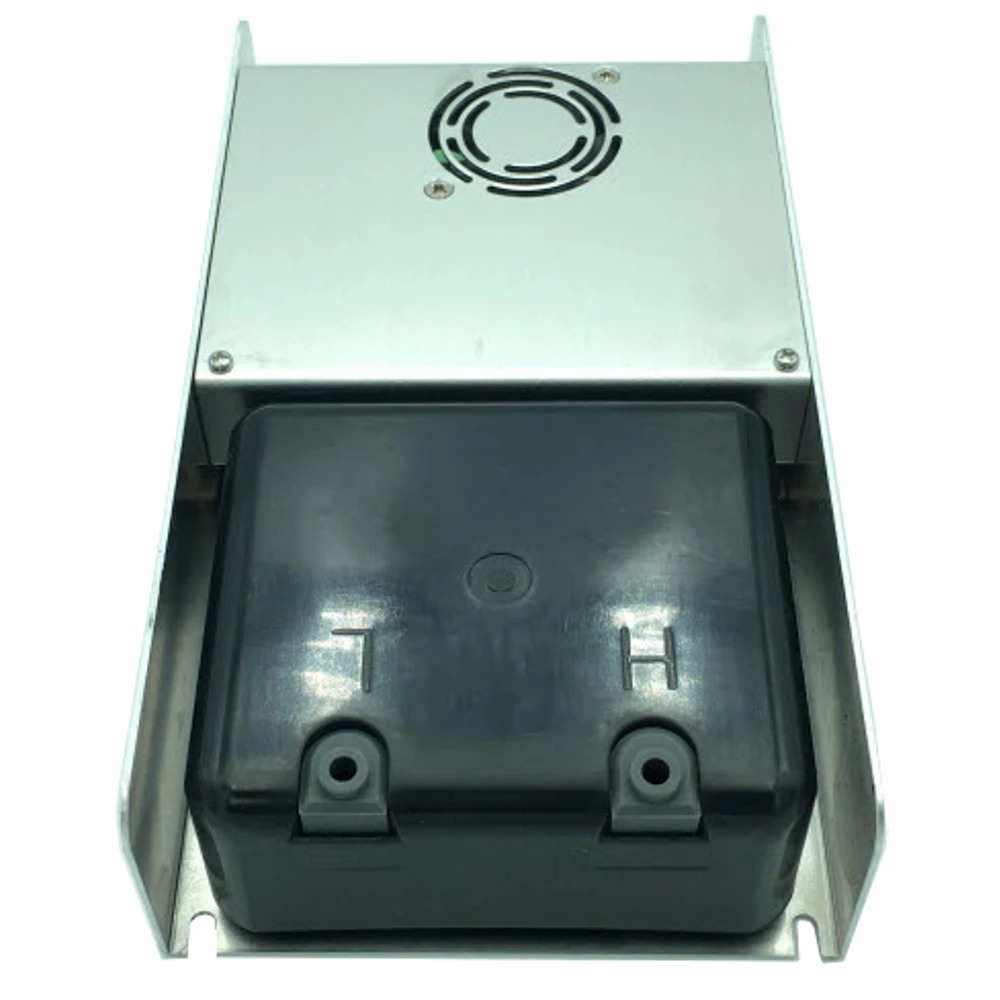

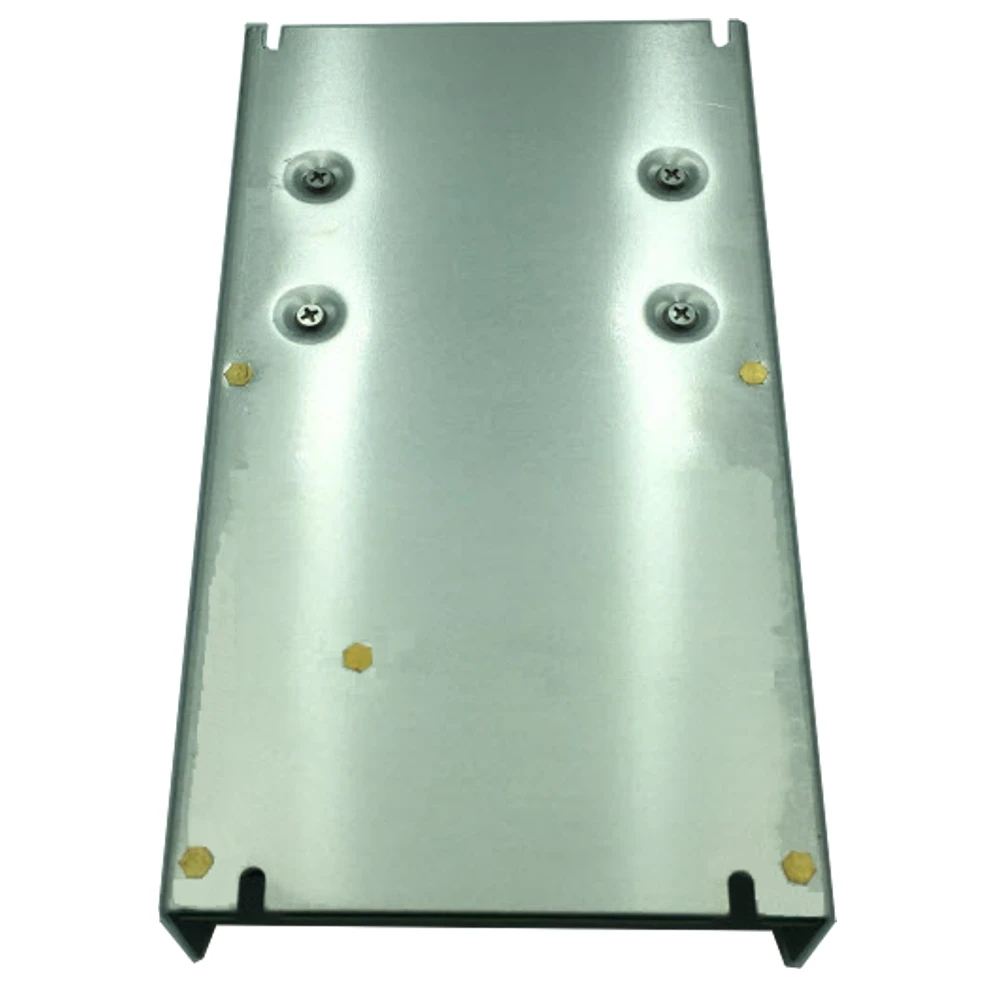

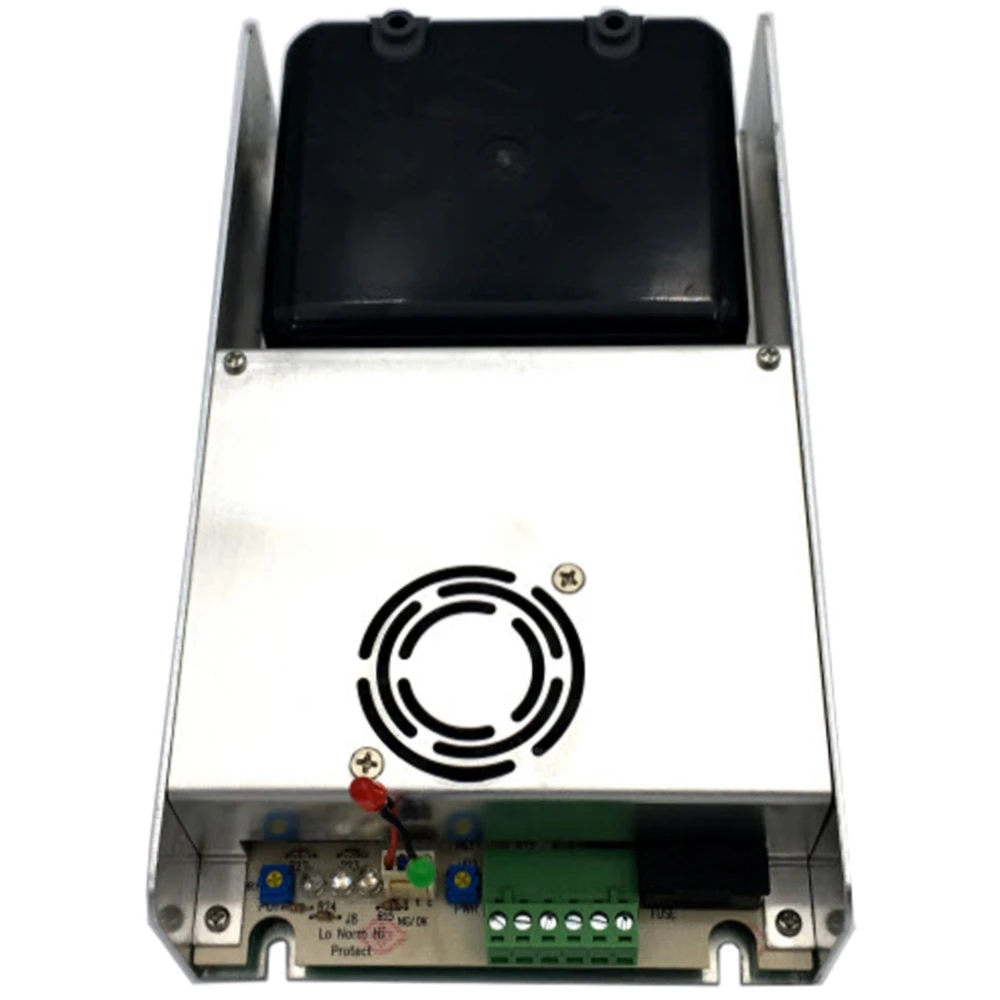

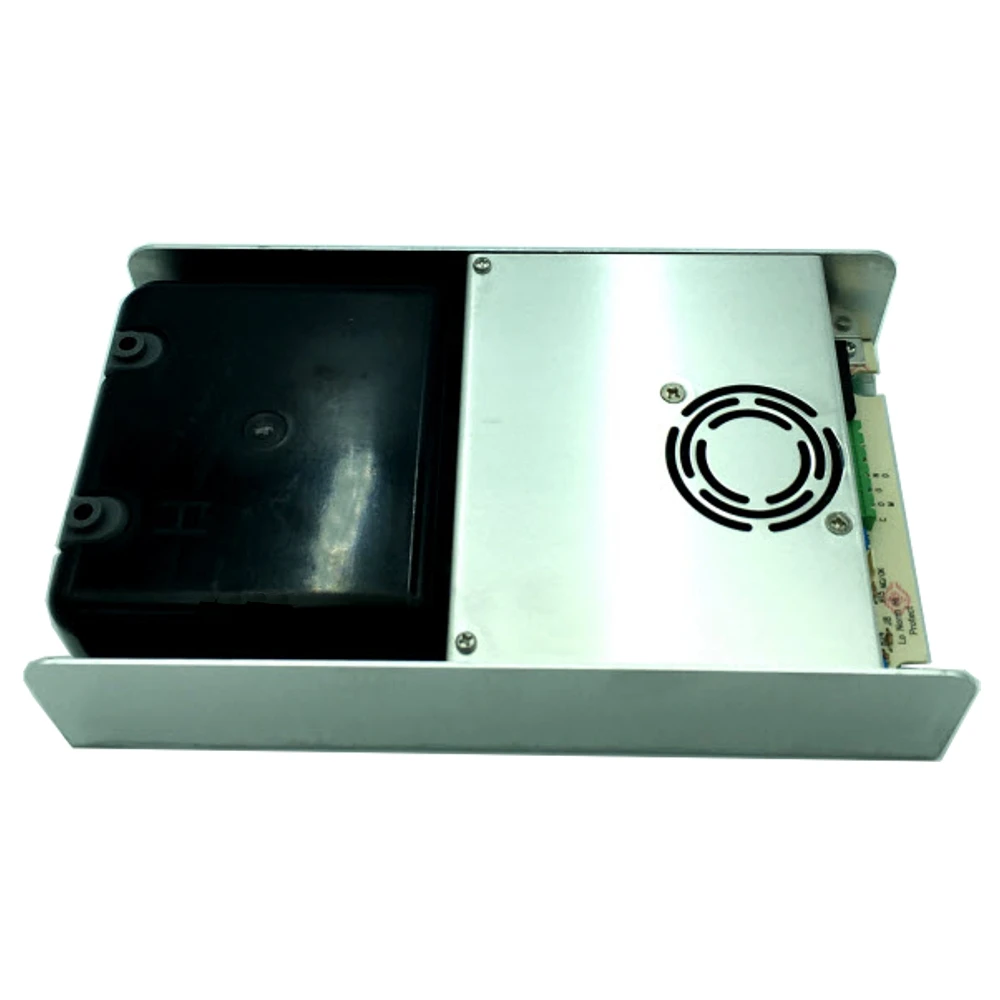

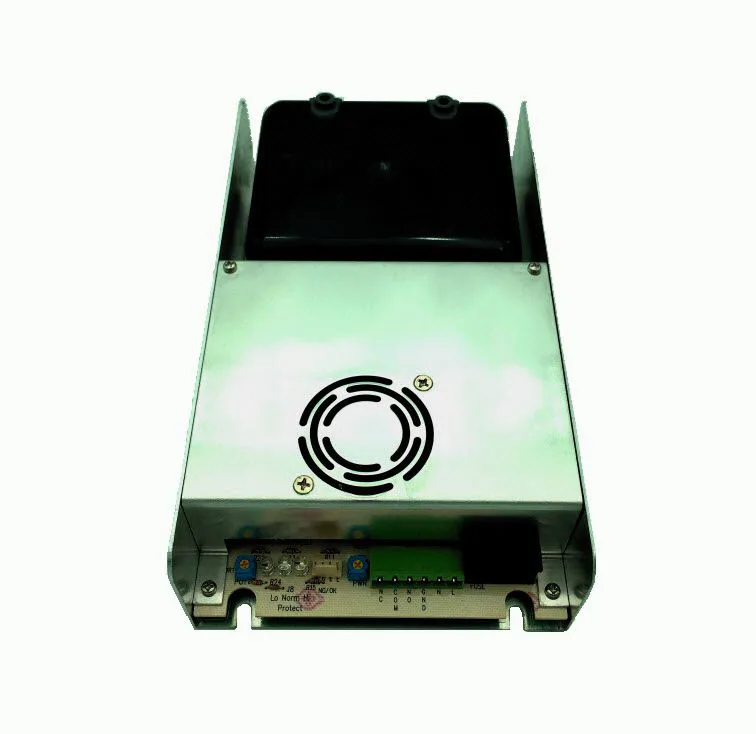

Detailed Images
Installation
Connect the HV output to the ionizing wires or blades insulation terminal.
Connect the LV output to the collecting plates insulation terminal.
Connect the GND terminal to the earth or the metal case of ESP.
Connect the Live and Neutral terminals to the mains.
Connect the NC COM NO dry contacts to the light indicators to BMS system.
Modularized design, Easy maintenance
Modularized HV transformer and voltage multiplier design, easy maintenance without any soldering tools.

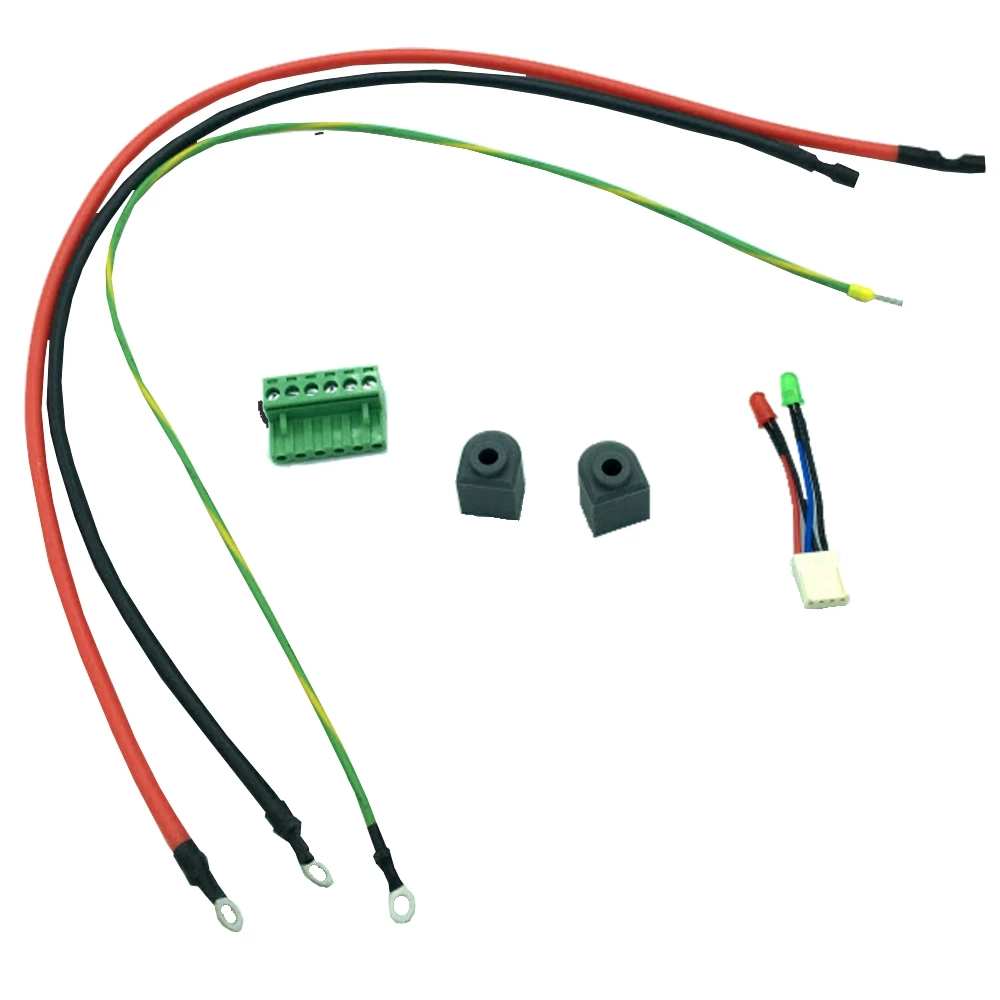

Accessories
UL 3239 AWG22 40KV silicone red lead 350 mm * 1 piece
UL 3239 AWG22 40KV silicone black lead 350mm * 1 piece
Euro type terminal block 5.08*6P * 1 piece
HV insulation cap * 2 piece
HV output OK/NG LED indicator * 1 piece
Packing & Delivery
1 piece in a brown paper box
15 boxes in a brown carton
20 cartons on a palet
Quantity | 1 - 299 pieces | >= 300 pieces |
Delivery | EMS / FedEx / UPS / TNT | Ocean freight / FOB Taiwan |
