Характеристики
CAK Series Flat Bed Horizontal CNC Lathe Machine
Feature:
1. CAK series CNC Lathe machine is and economical, practical type machine tools with good quality.
2. The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement.
Specifications:
Specifications | CAK6140 | |||||
Max .Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm | |
Max.Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm | |
Max. Work piece Length | 750/1000/1500/2000/3000mm | |||||
Spindle taper | MT6; (Φ90 1:20) [Φ113 1:20] | |||||
Bed width | 400mm | |||||
Spindle bore | 52mm, (B:80mm), [C:105mm] | |||||
Chuck size | C6; [D8 (B&C Type)] | |||||
Spindle speeds | Independence Spindle: 100-1500rpm 3-steps speed change: 21-1500rpm (I 162-1500; II 66-500; III 21-150) | |||||
X axis traverse | 320mm | |||||
Z axis traverse | 600/850/1350/1850/2850mm | |||||
Tailstock center sleeve travel | 150mm | |||||
Tailstock center sleeve taper | MT5 | |||||
Positioning accuracy | ±0.015mm | |||||
Repositioning accuracy | ±0.006mm | |||||
X/Z rapid traverse | 4/6m/min | |||||
Spindle motor | 7.5kw | 11kw | ||||
Packing dimensions | 255/275/325/370/470×165×190cm | |||||
N.W. / G.W. (kg) | 750mm | 2100/2800 | 2120/2900 | 2250/2850 | 2300/2900 | 2400/3000 |
1000mm | 2200/2900 | 2240/3000 | 2400/3000 | 2450/3050 | 2550/3150 | |
1500mm | 2300/3150 | 2350/3200 | 2600/3200 | 2650/3250 | 2750/3350 | |
2000mm | 2700/3350 | 2740/3400 | 2830/3400 | 2880/3450 | 2980/3550 | |
3000mm | 3500/4100 | 3600/4250 | 3650/4250 | 3700/4300 | 3800/4400 | |

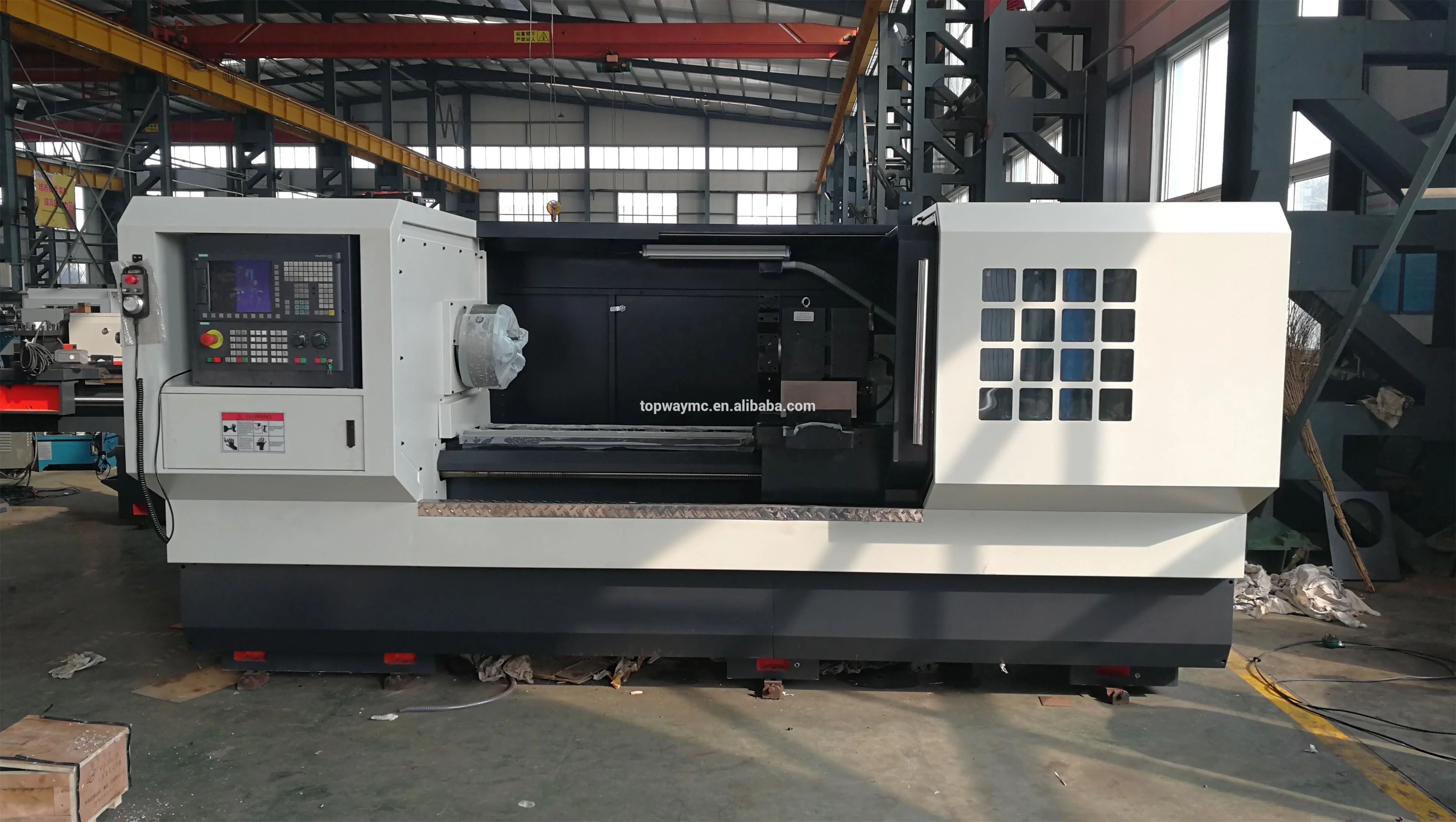

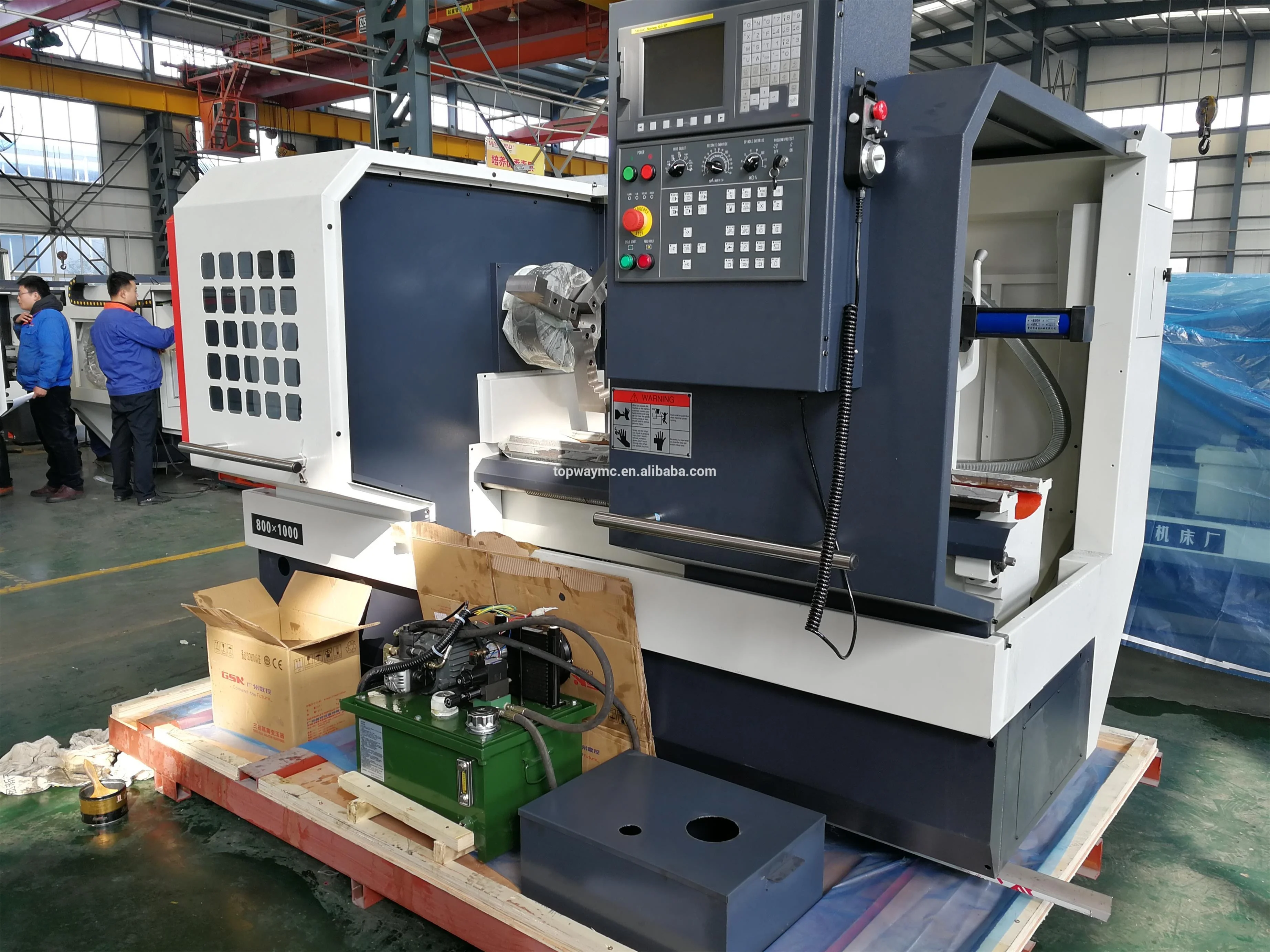

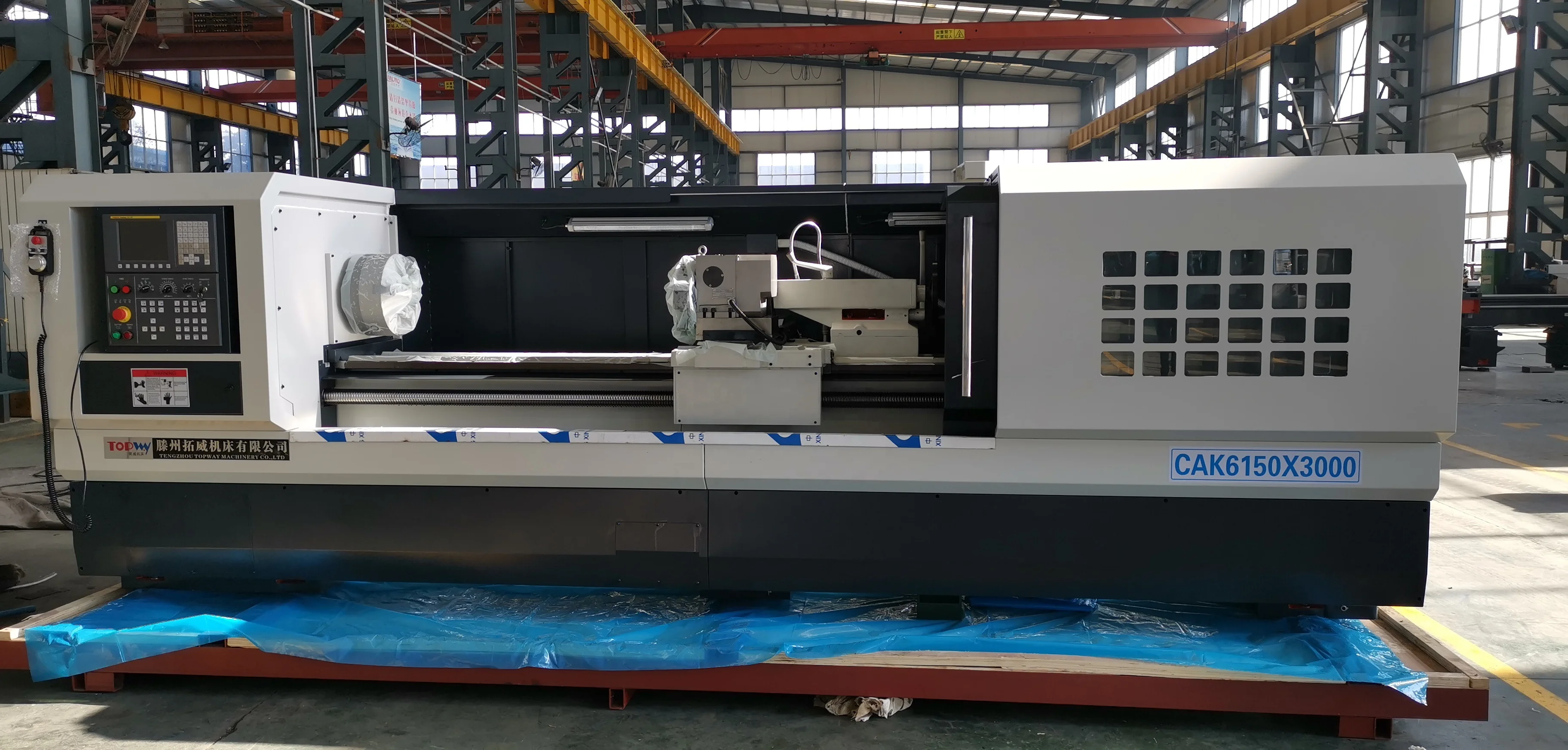

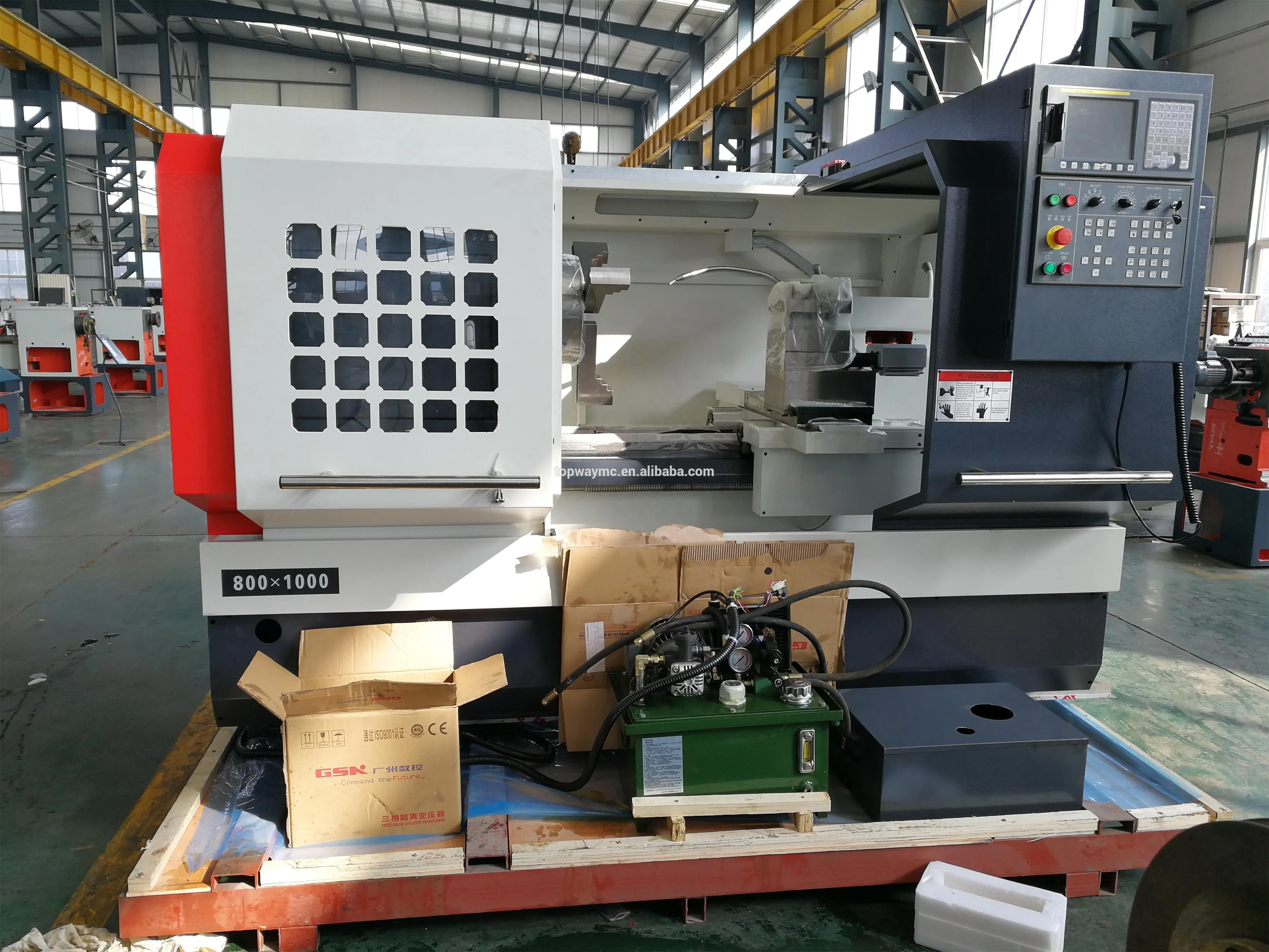

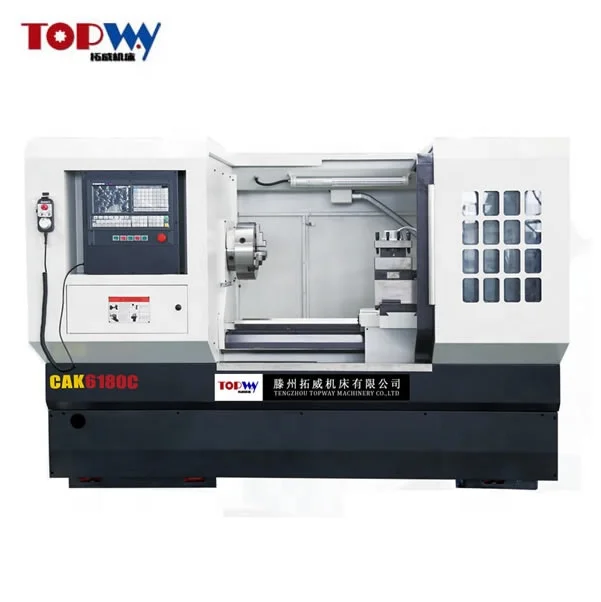

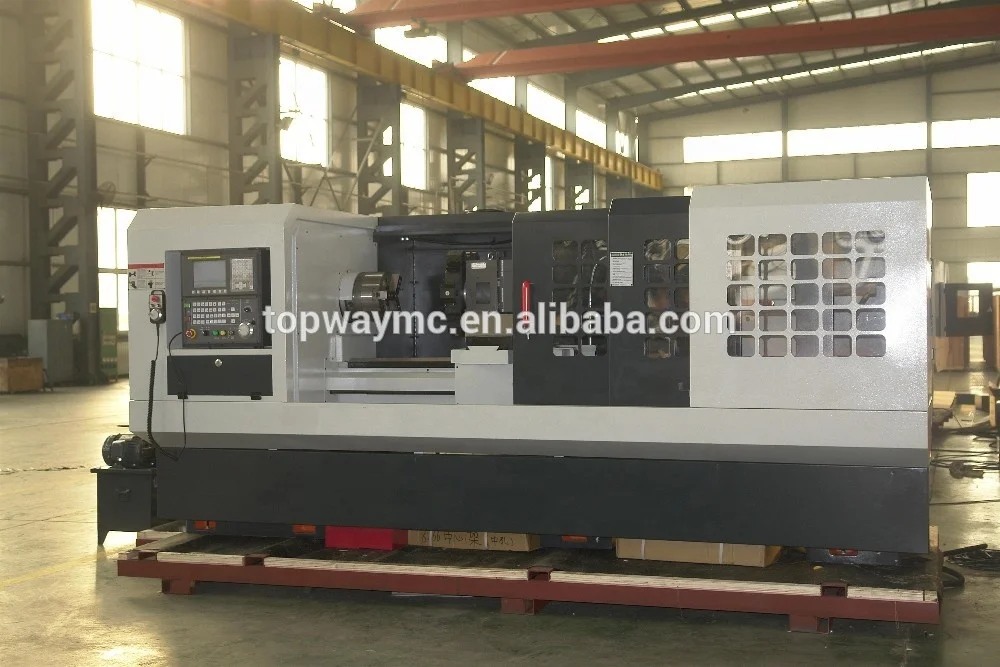

Photos:
CNC Lathe Body:
