24032 Size 160*240*80 mm Spherical Roller

 24032 Size 160*240*80 mm Spherical Roller Bearing

INSIDE DIAMETER (MM):160MM

OUTSIDE DIAMETER (MM):240MM

WIDTH (MM):80MM

CAGE TYPE:STEEL

SEALS OR SHIELDS:OPEN TYPE

CLEARANCE:STANDARD

DYNAMIC LOAD RATING (KN):750

STATIC LOAD RATING (KN):1200

FATIGUE LOAD RATING (KN):114

REFERENCE SPEED RATING (R/MIN):1700

LIMITING SPEED RATING (R/MIN):2400

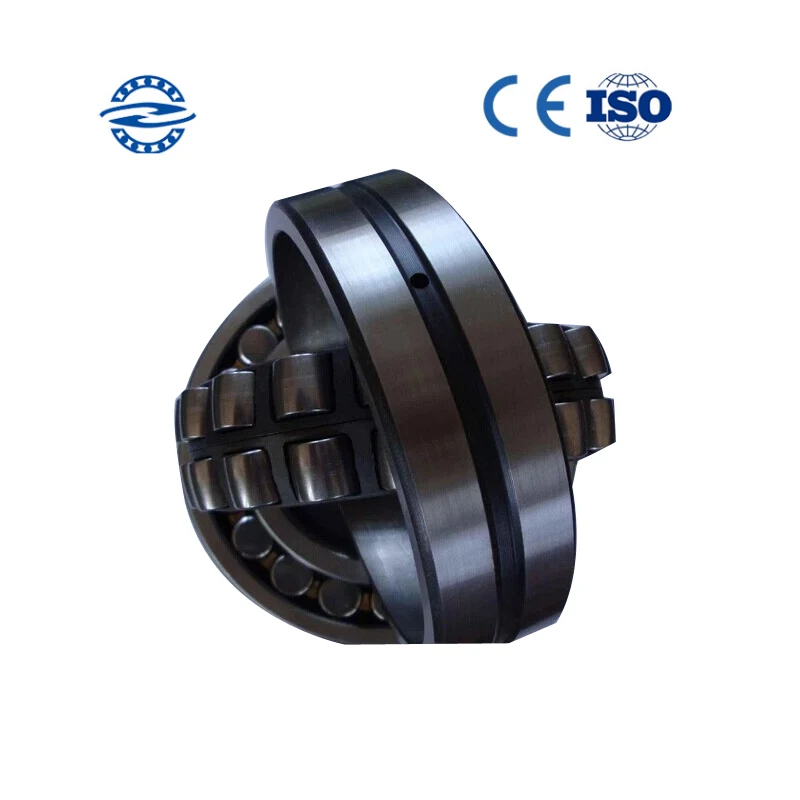

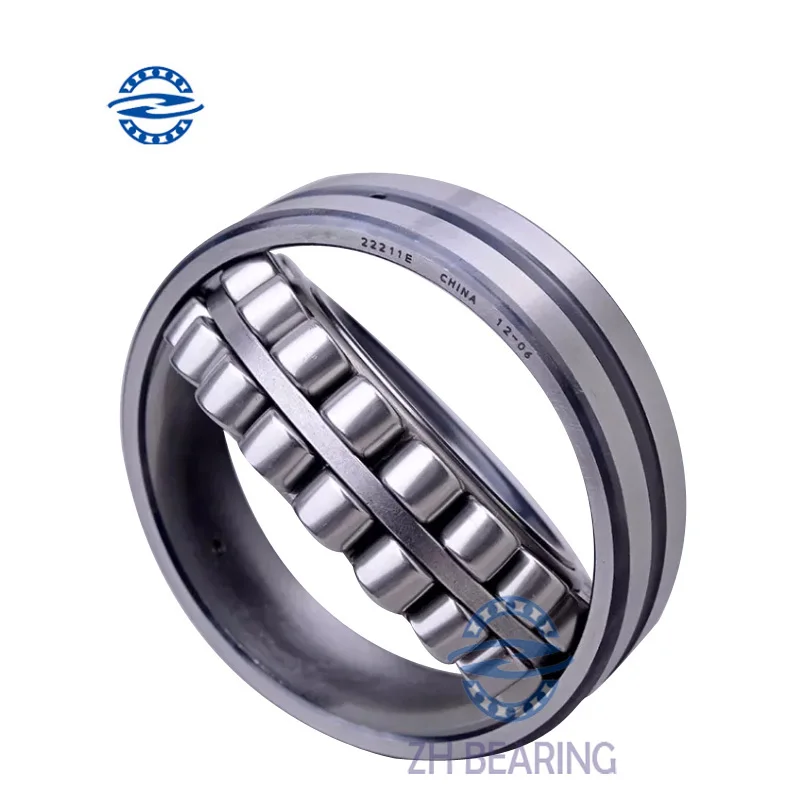

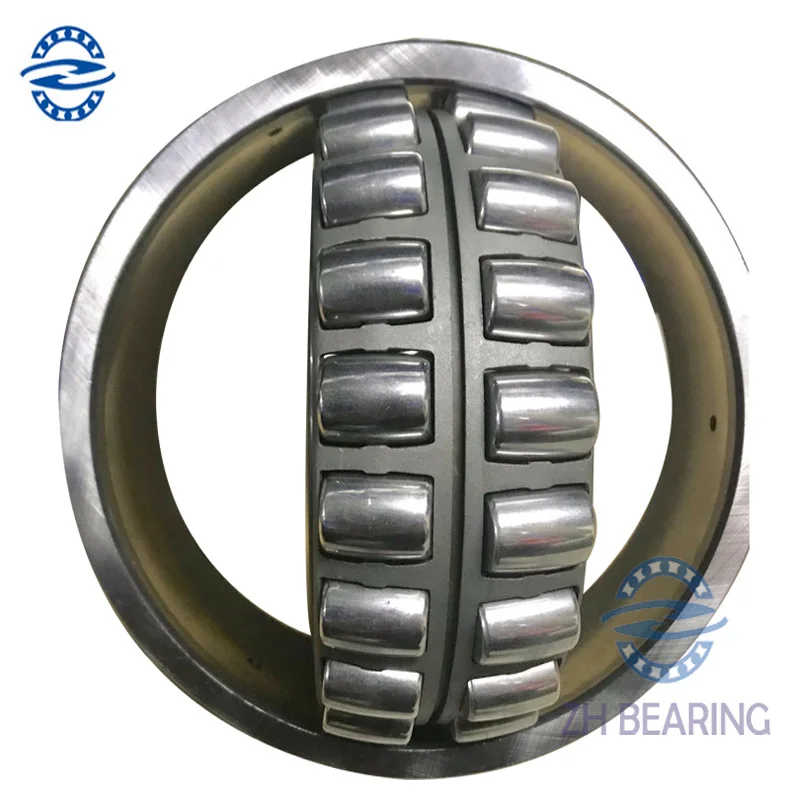

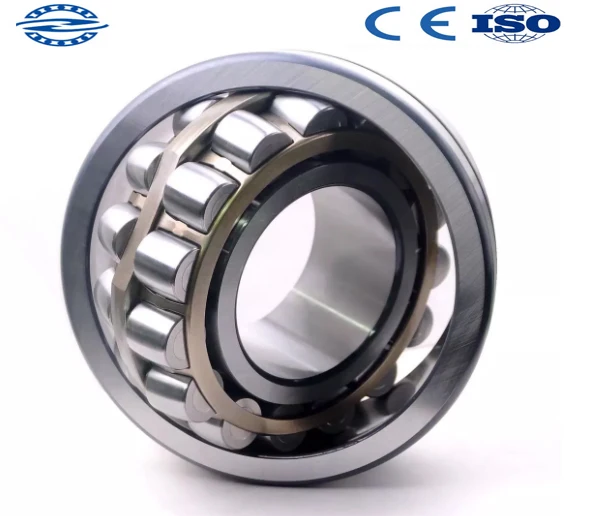

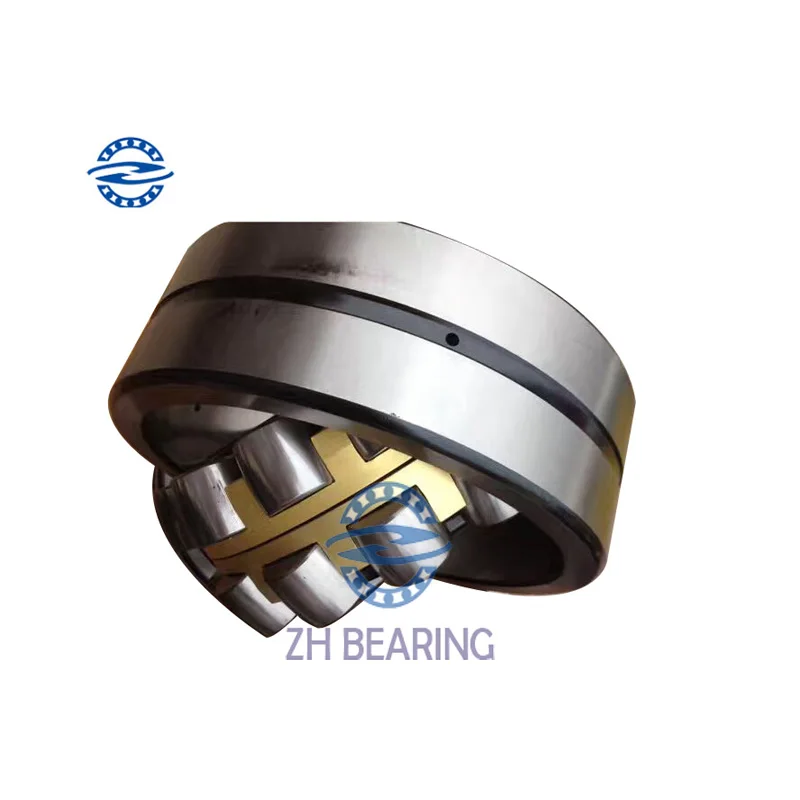

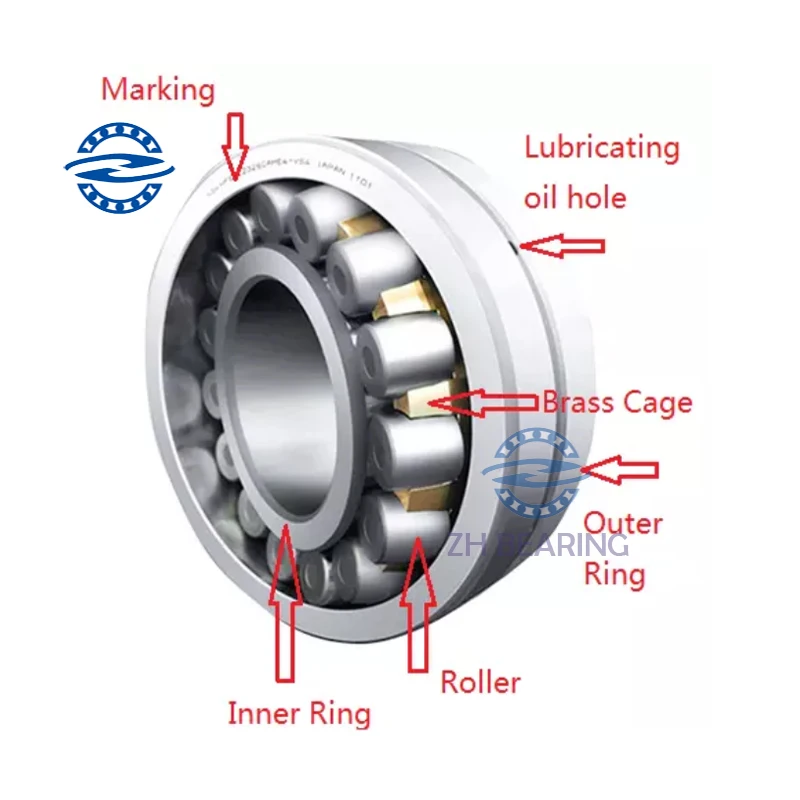

Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.

 The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensated
