Product Description

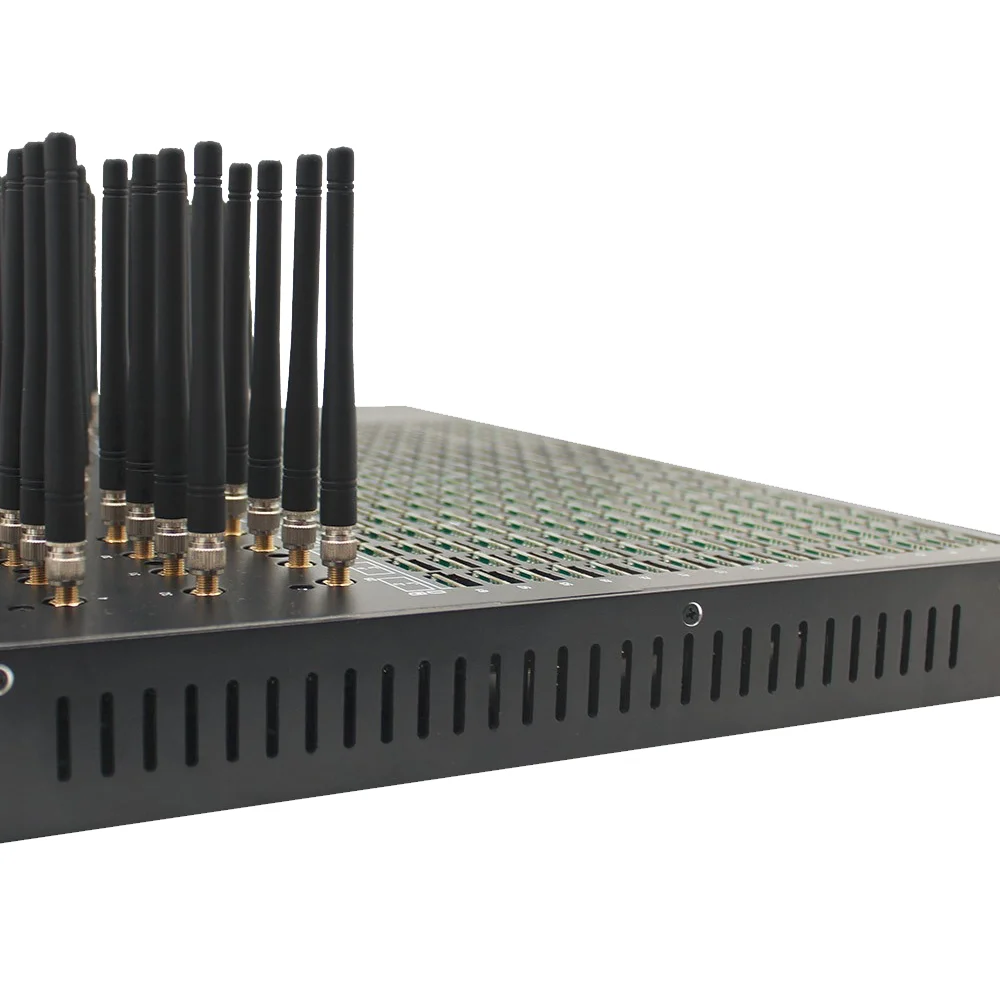

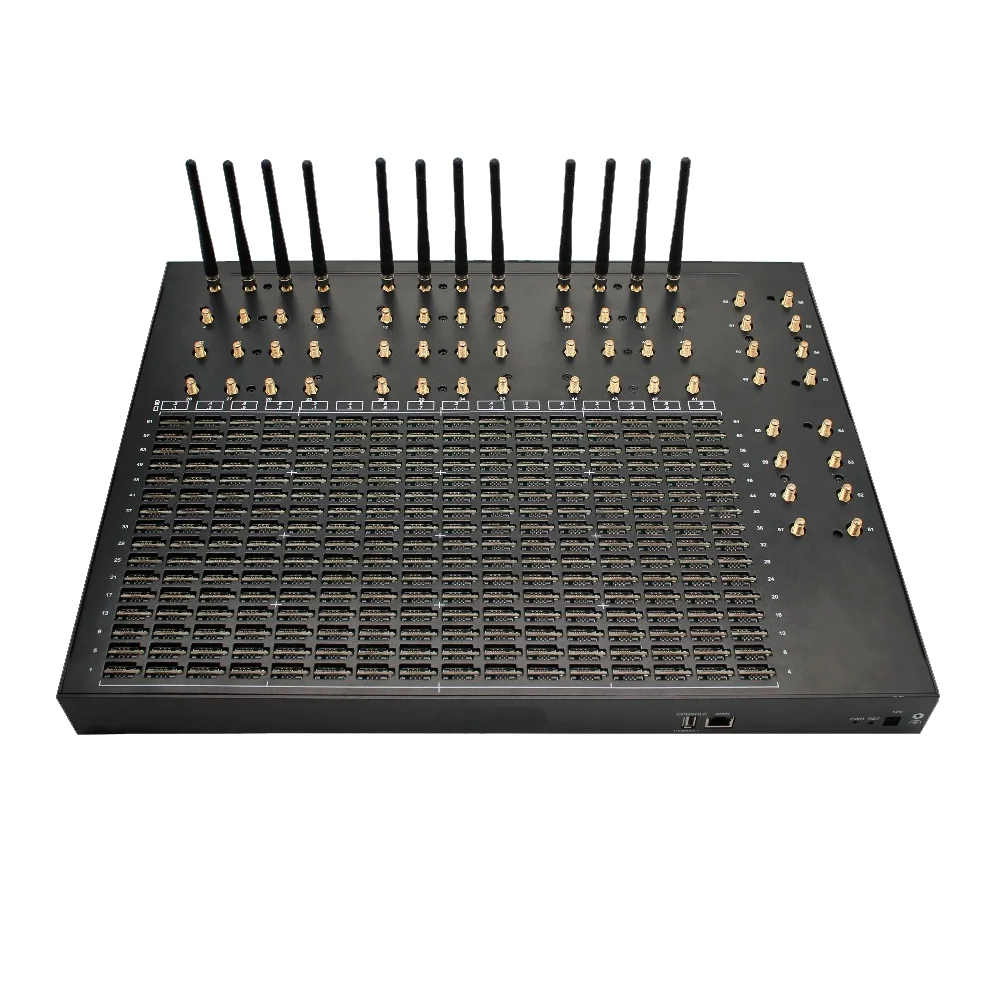

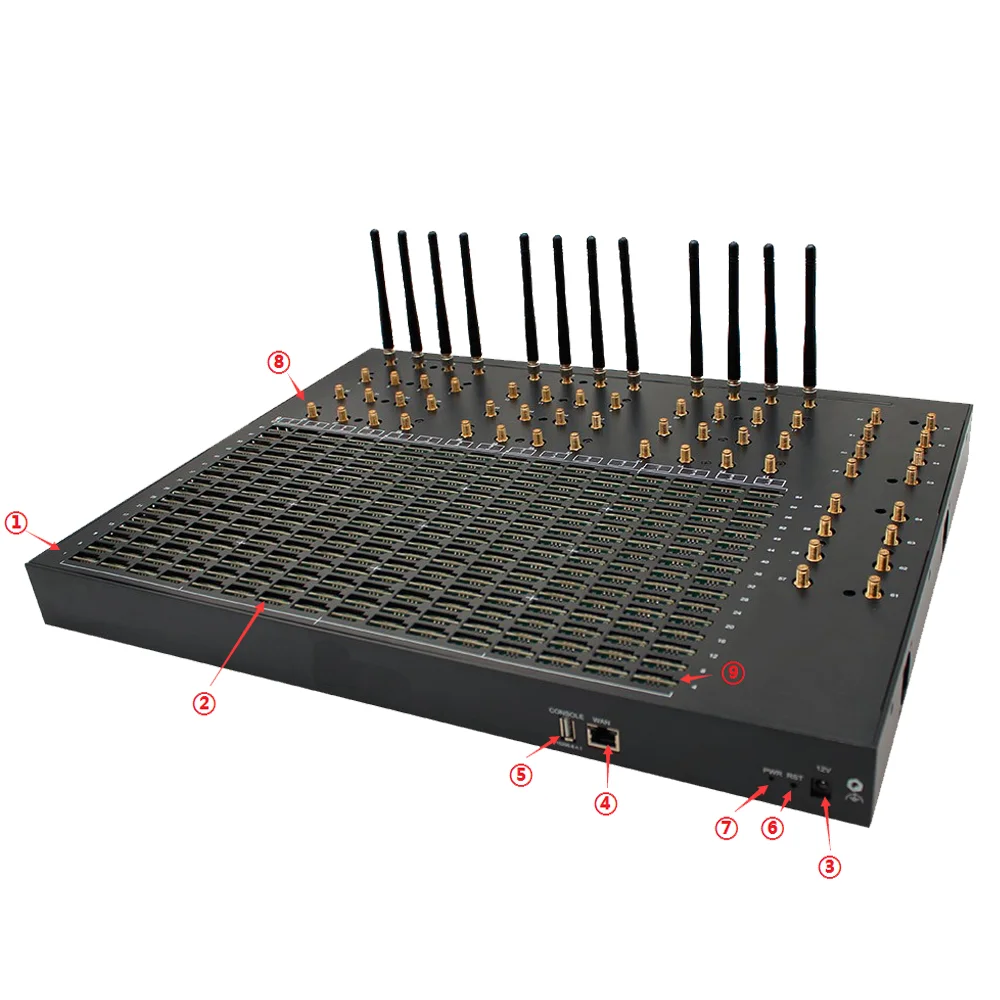

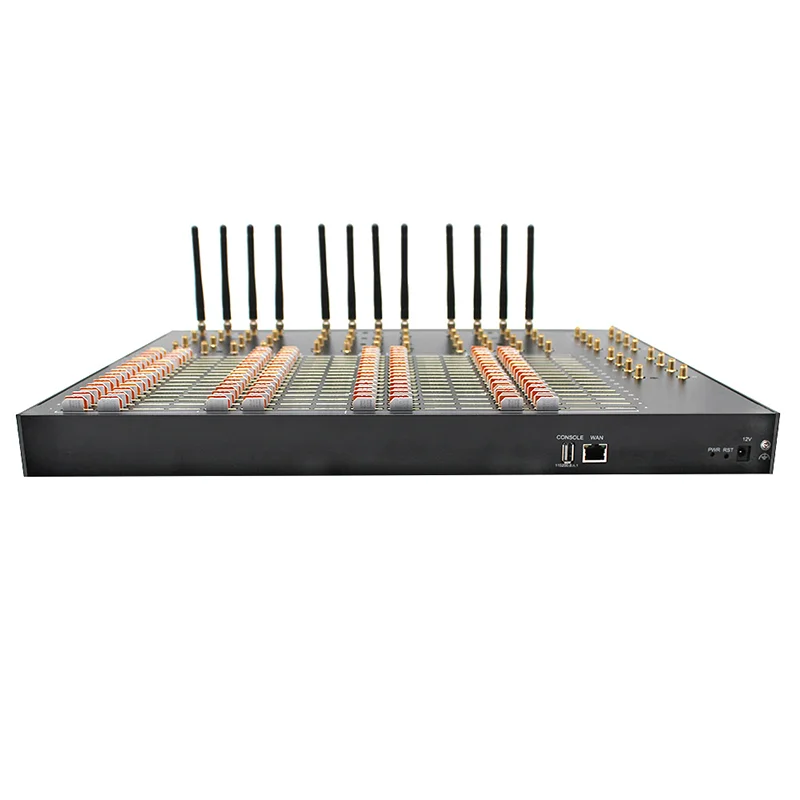

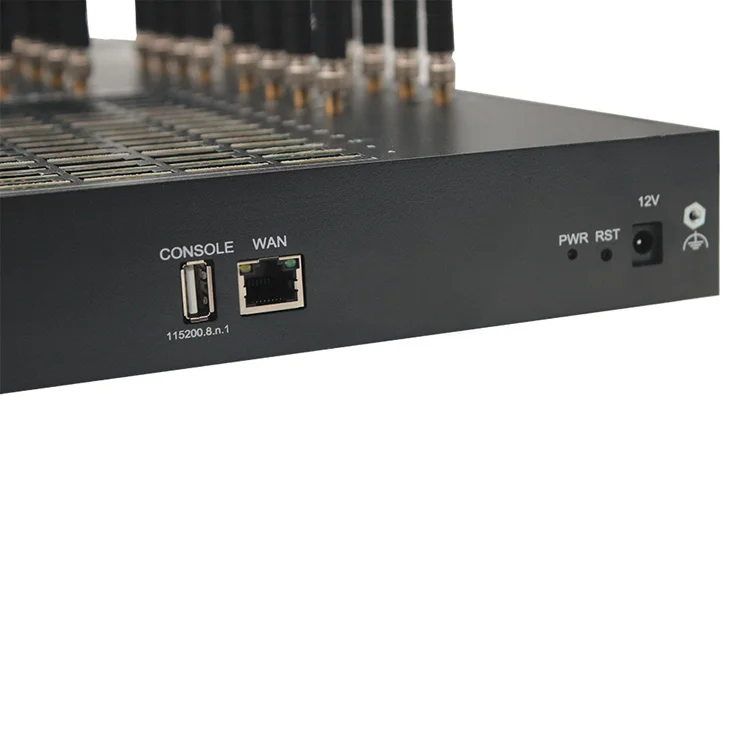

SK 4G Modem 4G LTE Gateway 512 Sim Mobile Phone SMS Gateway 64 Port Support SMPP HTTP 64-512 SMS Modem Sim Box

We suggest USA, Australia, Canada, Japan, Korea use 4G model because 2G is no longer working.
Pls note:different country use different 4G module,pls contact me for more device details!
skype:williamskyline2/WhatsApp: +86 13698469033

Why choose SK gateway ?
A lot of clients now are complaining about the blocking issues. First, you may know why the Operator blocks you frequently?
Second, what are the rules for the blocking? Third, how can we reduce it, even avoid it? There are some rules I have found out for
you.

#1 Carrier detects the calls of its continuous minute. Once the SIM cards reach a certain continuous minute, SIM cards block.
Solution: Our SK smart gateways can be inserted 4 SIM cards each port and support the SIM cards making calls circularly itself.
For this advantage, you can set when 1 SIM card reaches a certain continuous minute, then goes to next SIM card to make calls.
Also, we can set it sending SMS more frequently to reduce the blocking.

#2 Carrier detects the IMEI No. of SIM cards and blocks it.
Solution: Our SK gateways can be set to change IMEI No. Automatically to avoid blocking issues.

#3 Carrier detects you SIM cards are abnormal. The explain is because the Operator affirms your SIM cards are not being used by a
human, instead some certain devices.
Solution: On one hand, the SK gateways are designed with a function which copies a human’s behavior of using a SIM card and makes
it look like a human is using it. On the other hand, the SK gateways also can copy a human’s behavior of sending SMS and making
calls among the ports. All the functions can be set by the setting page of the SK gateways.

#4 Carrier detects if your SIM cards are making call according to the same base stations.
Solution: Normally, when people are making calls, our phones are searching for the best signal from the base stations and they
will not always use the same base stations; they will move and change different base stations. According to this Operator’s
blocking rules, our SK gateways can change different base stations to make calls, even if you’re making calls.


SK 64-512 SMS Modem
The SK 64-512 is a modem pool for bulk SMS and MMS, based on the Internet Protocol technique. The feature of the remote management and control makes modem pools in different areas and countries conveniently to send bulk SMS by a same device with controlling software.


1.SK series model:
SK4-4/SK8-8/SK8-32/SK16-16/SK16-64/SK16-128/SK16-256/SK16-512/SK32-32/SK32-128/SK32-256/SK32-512/SK64-64/SK64-256/SK64-512.
SK32-128,device can read 128 SIMs in total. That means the device can support 32 SIMs working at one time (32 channels), and each
channel can read 4 SIMs named A,B,C,D .





2.Our gateway function:

Special Features:
•Support 64 Channels GSM/WCDMA/LTE.
•SMS receiving/bulk sending, AT command compatible
•Support Skyline EIMS registration and peer-to-peer
•Support encryption: RC4, VOS and etc.
•Support Phone book, 9600 SMS and 4800MMS per hour
•Update firmware by local or Internet
•Field proven compatible with Asterisk-based soft switches

Mobile Features:
•LCR automatically route
•sim rotation working
•Remote Management and Control via Internet
•Receiving and sending bulk SMS freely
•AT command directly
•Support USSD balance enquiry, billing
•Automatically lock/switch SIM card according to its balance, balance alarm
•Master and slave EPSIP server
•SIM card hot plug
•IMEI modified
•support VPN


3.Frequency
GSM: 850/900/1800/1900MHz
CDMA:800/1900MHz
WCDMA:850/900/1800/1900/2100MHz
4G :
EC20-E
FDD LTE: B1/B3/B5/B7/B8/B20
UMTS: B1/B5/B8
GSM: 850/900/1800/1900MHz
EC20-A
FDD LTE: B2/B4/B5/B12/B17
UMTS: B2/B4/B5
GSM: 850/1900MHz
EC20-C
FDD LTE: B1/B3/B8
TDD LTE: B38/B39/B40/B41
TDSCDMA: B34/B39
UMTS: B1/B8
GSM: 900/1800MHz
EC25-A
B2/B4/B12@FDD LTE;
B2/B4/B5@WCDMA

EC25-AU
B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE;
B40@TDD LTE;
B1/B2/B5/B8@WCDMA;
B2/B3/B5/B8@GSM

EC25-E
B1/B3/B5/B7/B8/B20@FDD LTE;
B38/B40/B41@TDD LTE;
B1/B5/B8@WCDMA;
B3/B8@GSM

EC25-V
B4/B13@FDD LTE


4.SK GATEWAY SMS FUNCTION PICTURE
A.SIM Rotation




B.Port Setting
you can disable some port even disable some SIM




C.SMS Setting
You can send sms here




D.SMS Control
you can set the sms quantity of your SIM here




E.MMS Setting
you can send mms here




5.How VOIP/SMS works:






Specification


item
value
Model Number
SK64-512 4G SMS Gateway
Type
SMS Gateway
Place of Origin
China
Guangdong
Brand Name
Skyline
Protocol
SMPP
Network Protocols
HTTP,FTP,TFTP,ARP,NTP
Warranty
1 Year
Power supply
100-240VAC
Function
IMEI change, base station change
Support
AT, SMS,USSD,call
Color
Black
Weight
10
Channel
64
Interfaces
RJ45,USB
