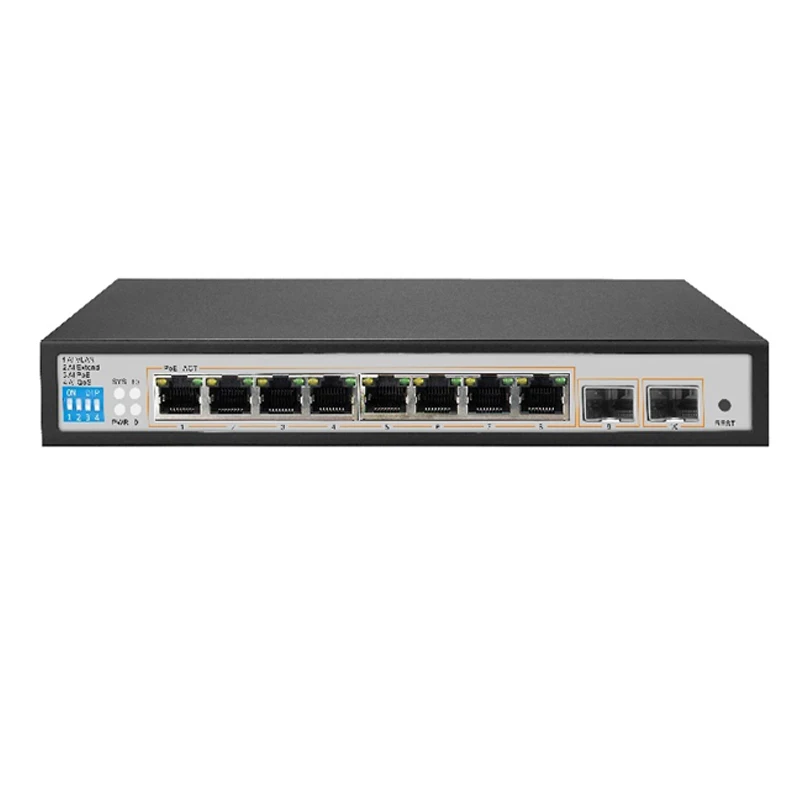

Управляемый коммутатор с 8 портами gigabit poe и оптоволоконным

Network standard

IEEE 802.3:Ethernet Media Access Control (MAC) protocol

IEEE 802.3i:10BASE-T Ethernet

IEEE 802.3u:100BASE-TX fast Ethernet

IEEE 802.3ab:1000BASE-T gigabit Ethernet

IEEE 802.3z:1000BASE-X gigabit Ethernet(fiber)

IEEE 802.3ad: comply link aggregation standard

IEEE 802.3x:flow control

IEEE 802.1p: About the traffic priority of the second layer of Qos / Cos protocol (multicast filtering)

IEEE 802.1q:VLAN Bridge operation

IEEE 802.1d:STP spanning tree

IEEE 802.1s:MSTP spanning tree

IEEE 802.1w:RSTP spanning tree

IEEE 802.3af/at

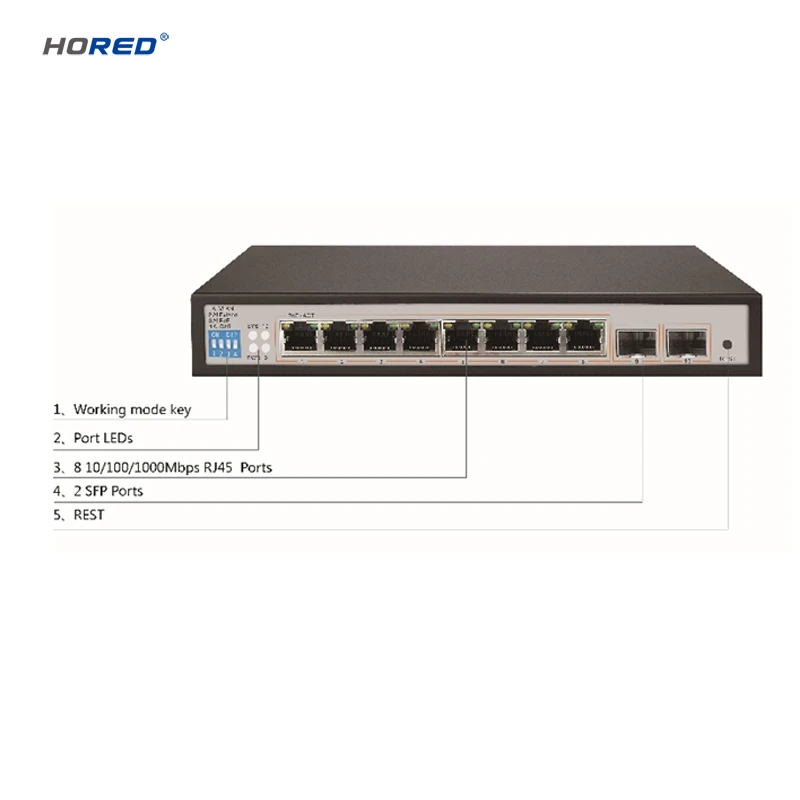

Port

8 10/100/1000Mbps RJ45 port

2 gigabit SFP fiber port

PoE

8 10/100/1000Mbps RJ45 port support PoE

Max 96W

Single port max 30W

LEDs

10 Link/Act LEDs

8 POE LEDs

1 Power LEDs  1 SYS LED

Performance

Forwarding mode: store and forward

Switch Volume (Full-duplex)  : 20Gbps

Packet forwarding rate: 14.88Mpps

8K MAC address table

Input

100-240V/50-60Hz

Shortcut function

One key VLAN

One key Extend(1-8 port 250meters PoE distance)

One key QoS (Video priority)

One key AI power supply

VLAN

Support 4K VLAN

Support 802.1Q VLAN, Port VLAN, Voice VLAN

PoE

Support setting the PoE port priority

Support setting PoE power supply period

Support setting port power

MAC address table

Comply the IEEE 802.1d standard

Support MAC address learning and aging automatically

Support static, dynamic, filter address table

Safety

Based on user rating management and password protection

Support based on the port number, IP address, MAC address restrictions on user access

Icmp-echo, DoS protection

Support DHCP Snooping, DHCP attack protection

Support port security, port isolation

Access control (ACL)

Support L2(Layer 2)~L4(Layer 4) packet filtering function

Support port mirroring, port redirection, flow rate limit, QoS re-marking

Multicast

Support IGMP v1/v2 Snooping

Support static multicast

Support multicast VLAN

QoS

Support 8 port queue

Support port priority, 802.1p priority, DSCP priority

Support SP, RR, WRR, WFQ Priority scheduling algorithm

Spanning Tree

Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP (IEEE 802.1s) protocol

Support loop protection, BPDU protection

Management and maintenance

Support WEB management(HTTP)

Support CLI(Telnet, local  serial port)

Support SNMP V1/V2/V3, Compatible with public MIBS

Support LLDP, RMON

Support IP Source protection, DoS protection

Support CPU monitor, memory monitoring

Support system log

Support cable testing

Multicast

Support IGMP v1/v2 Snooping

Support static multicast

Support Multicast VLAN
