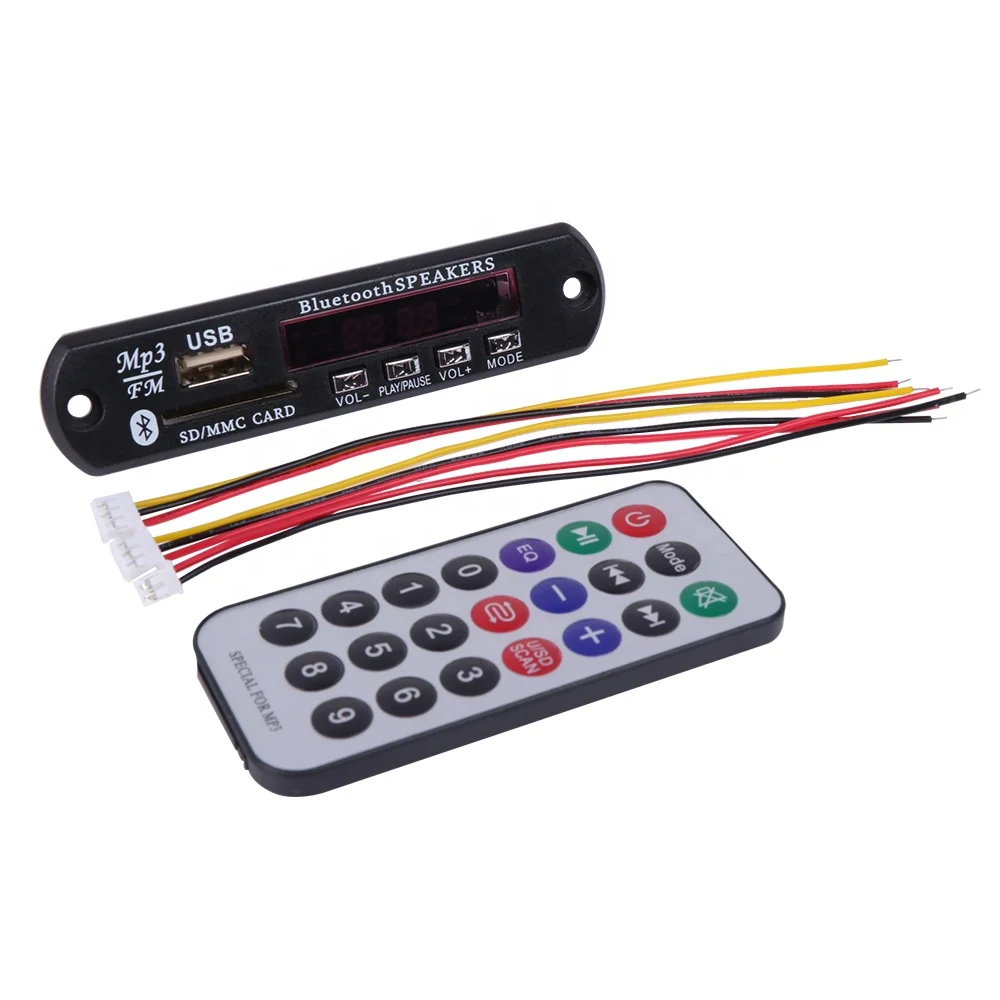

JQ-D015BT MP3 Decoder Module with Wireless BT SD/MMC

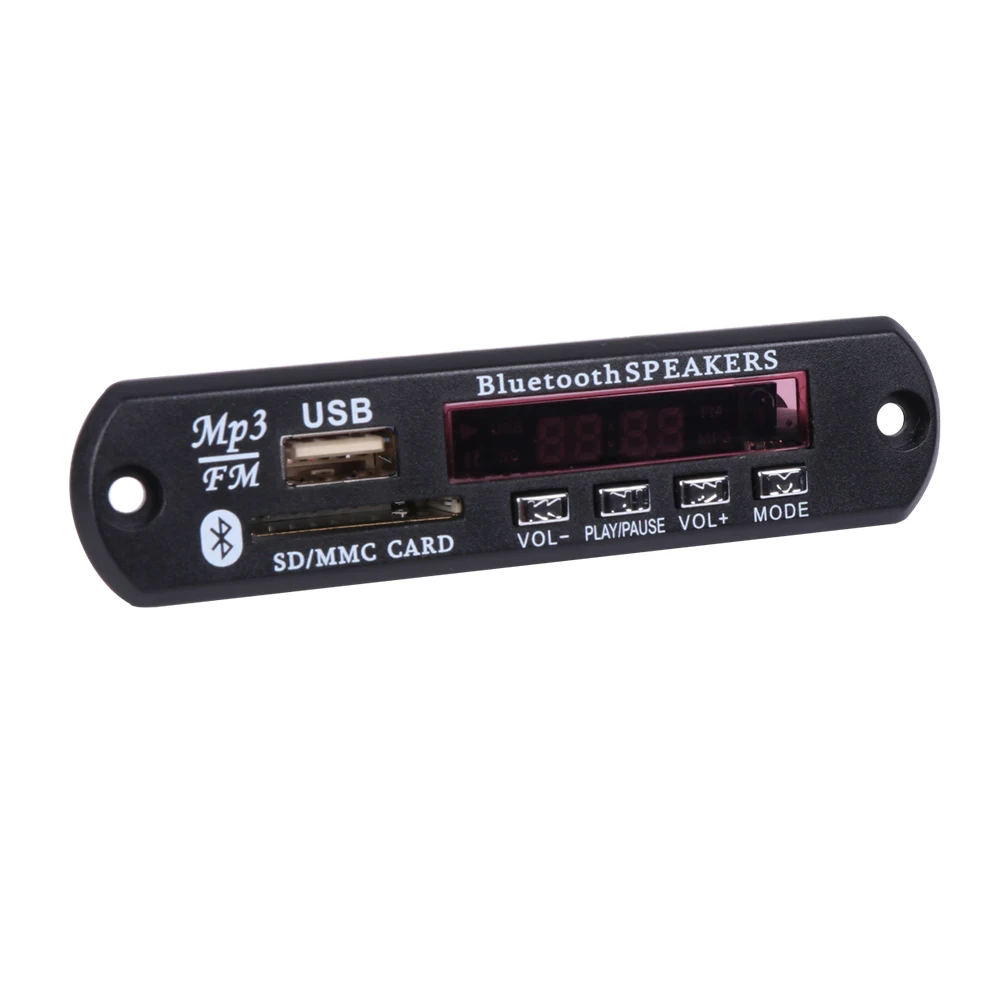

Front Panel Size:108*25.6mm;92*25.6mm

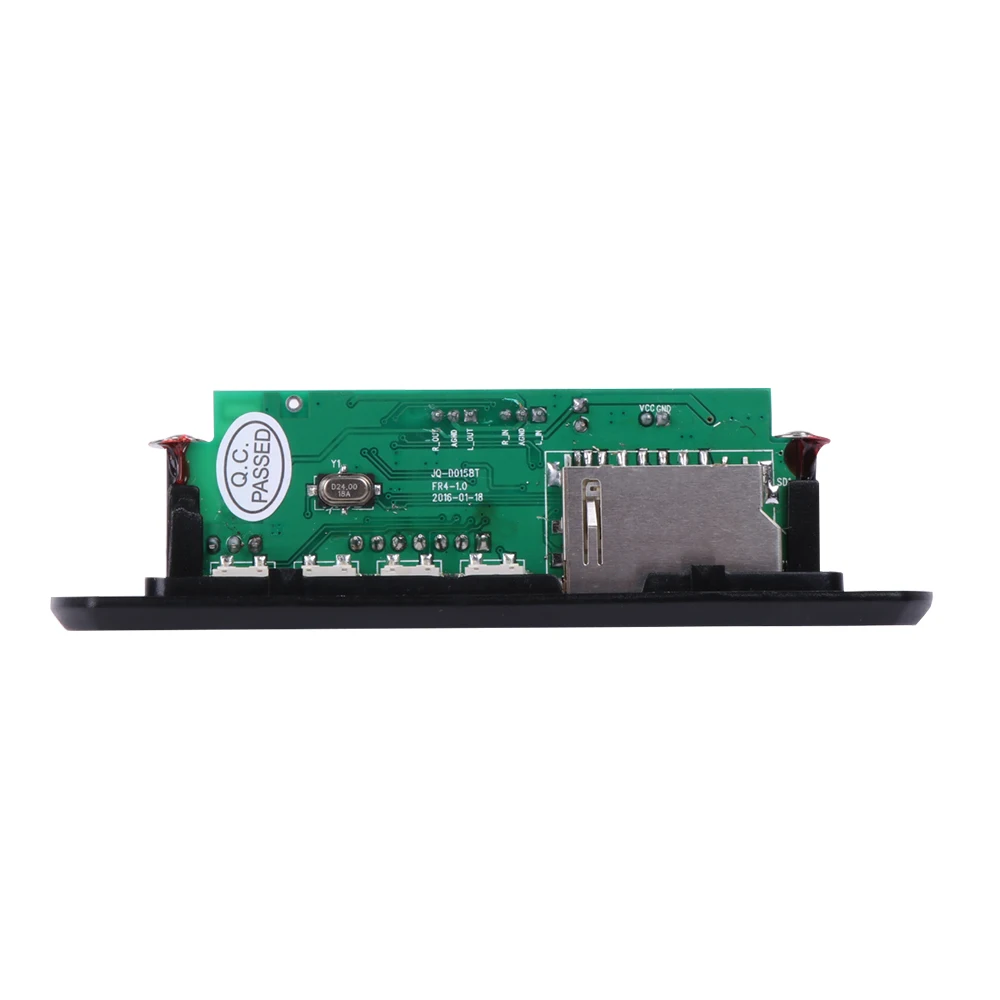

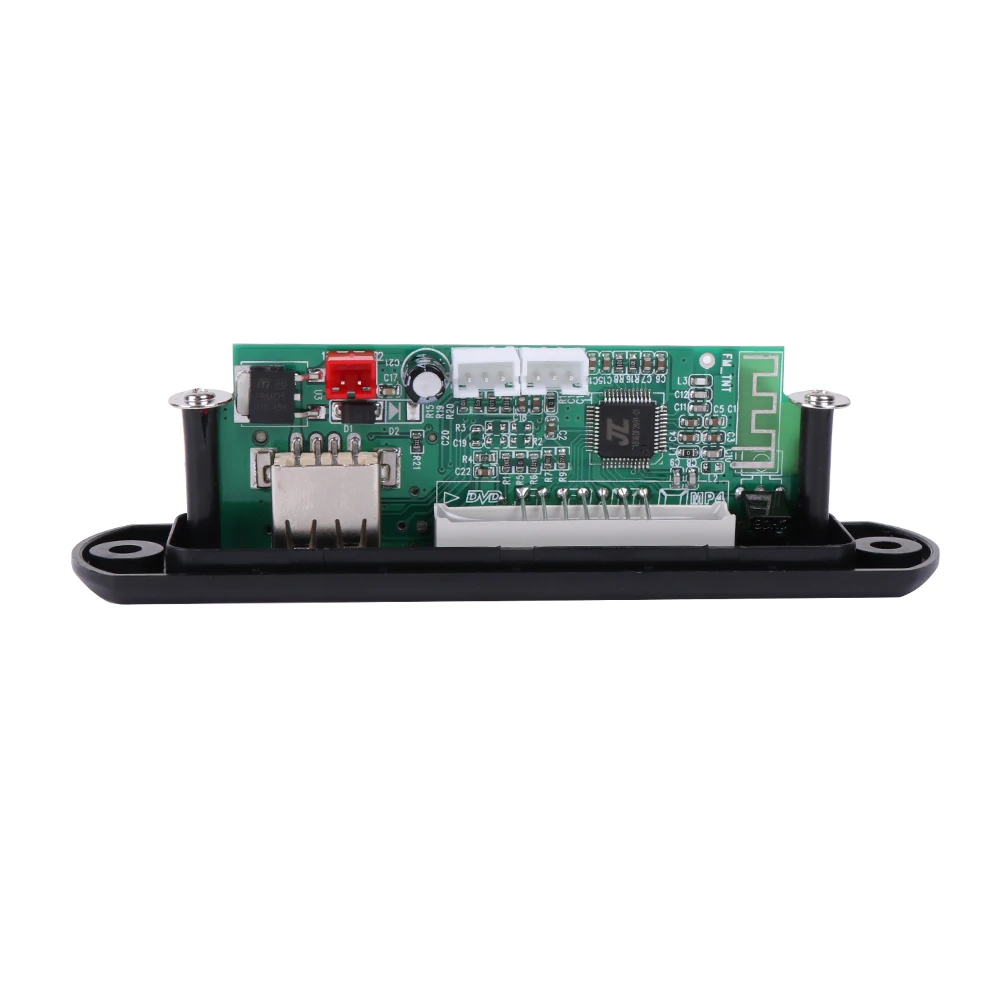

PCB Size:75*27*1.0mm

Key Size:7*3.5mm

Screw spacing:80mm



 Specifications:



Function Introduction:

Support Blue tooth call function,double decoding MP3/WMA/WAV format music,read USB disk, read SD and MMC card,radio FM,infrared remote control,power off memory,power supply 5V or 12V optional.



Major Function:

1,Double decoding,support MP3/WMA/WAV format music;

2,Support Blue tooth music function;

3,Display with digital tube;

4,Support USB/MMC/SD/MMA card;

5,Power off memory function 24C02;

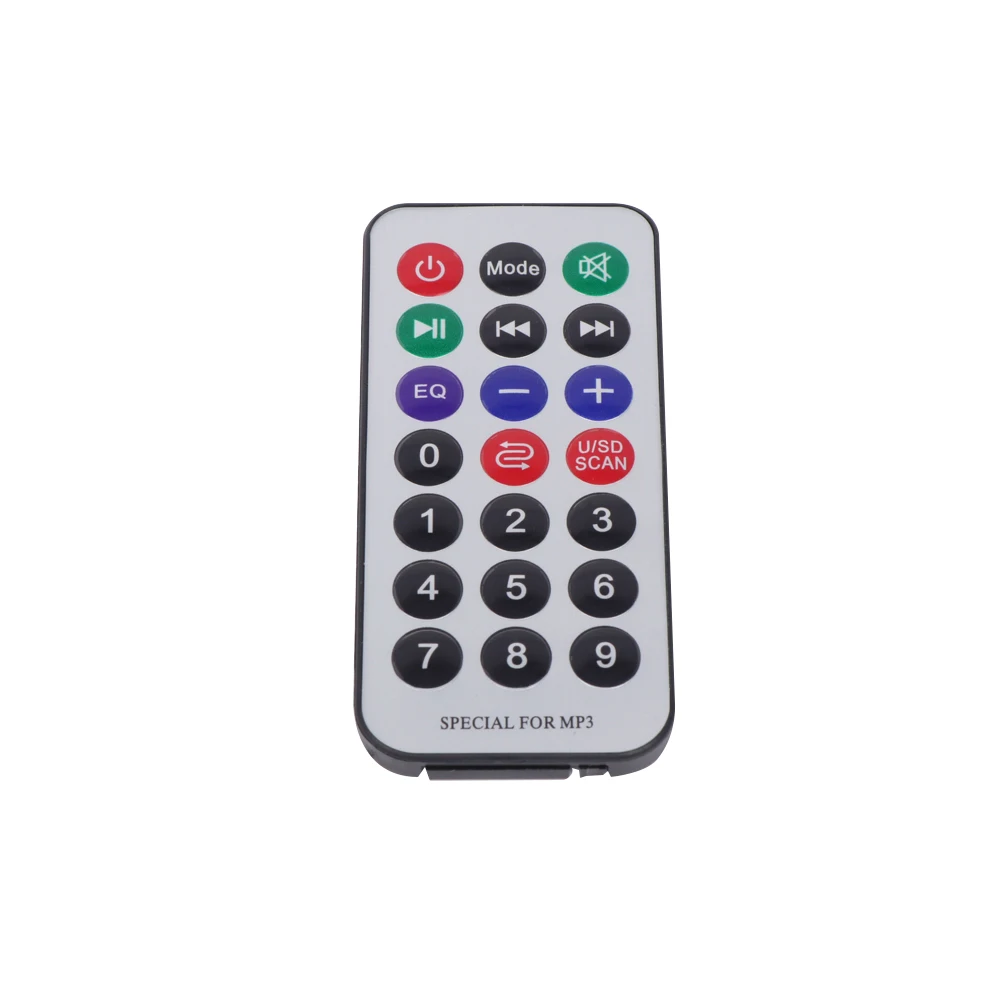

6,Support 5-10 meters distance infrared remote control operation;

7,Support FM(87.5MHZ-108.0MHZ);

8,Buttons:VOL-/ AUTO / VOL+ / MODE;

9,Support LINE-IN/ LINE-OUT;

10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working);

11,The highest volume level is 30;

12,Support for pause / single loop play / replay all the repertoire.



Button Operation Instructions:

1,Vol- button (last song / volume reduction): in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under Blue tooth function, short press is Blue tooth one, long press is volume reduction;

2,Auto button (play / pause): in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station; in Blue tooth function, short press is playing / pause;

3,Vol+ button (next song / volume increase): in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number; under Blue tooth function, short press is Blue tooth next song, long press is volume reduction;

4,MODE button:switch between USB/SD/FM/AUX/BT functions in turn.
