Вакуумный насос с углеродным лезвием высокотемпературная графитовая пластина Графитовая
- Категория: >>>
- Поставщик: Henan,Huaxu,Graphite,Mould,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.40 $* | 0.19 $* |
| Aug-16-2025 | 0.18 $* | 0.99 $* |
| Jul-16-2025 | 0.34 $* | 0.20 $* |
| Jun-16-2025 | 0.92 $* | 0.23 $* |
| May-16-2025 | 0.55 $* | 0.43 $* |
| Apr-16-2025 | 0.61 $* | 0.93 $* |
| Mar-16-2025 | 0.26 $* | 0.71 $* |
| Feb-16-2025 | 0.58 $* | 0.48 $* |
| Jan-16-2025 | 0.67 $* | 0.88 $* |
Характеристики
Product Details Show

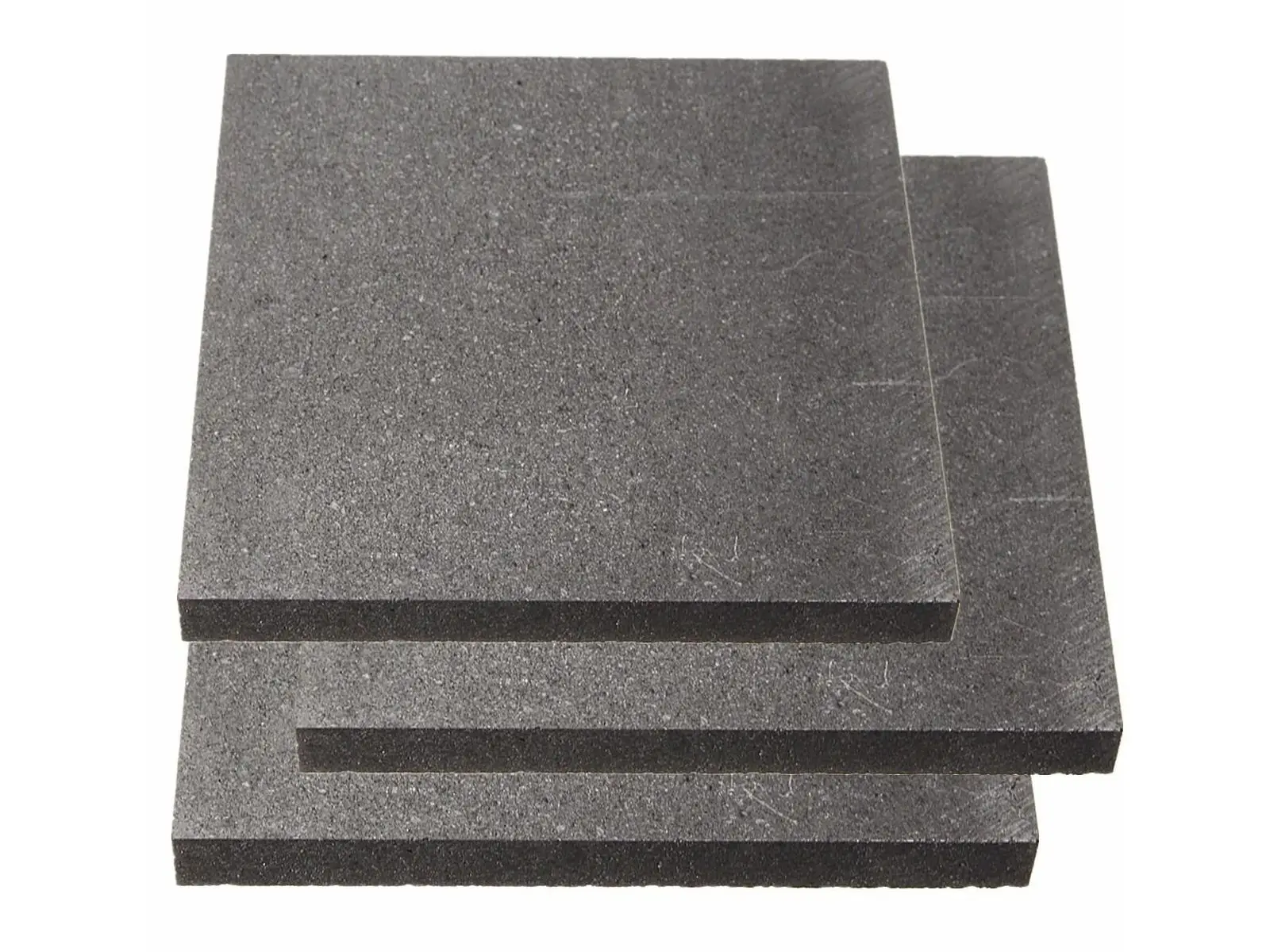

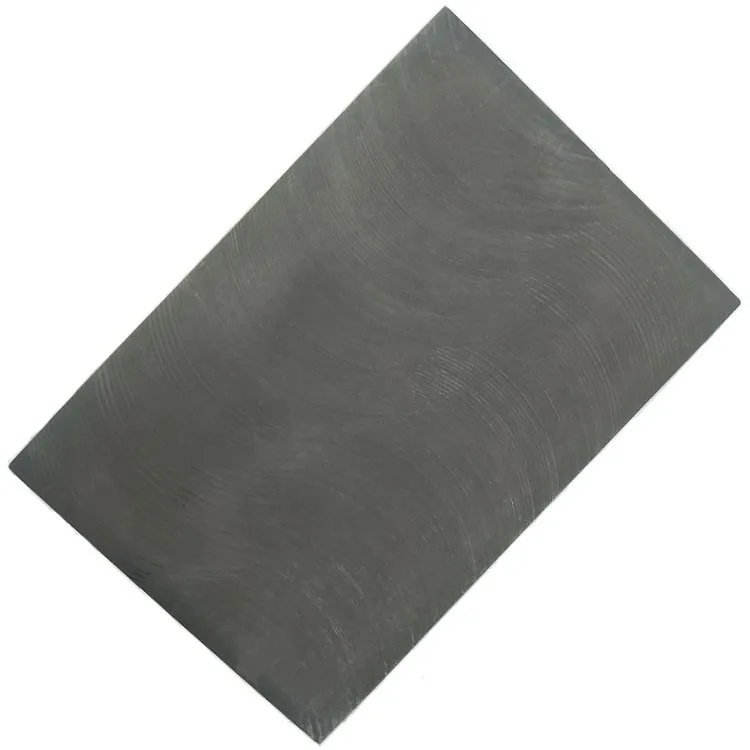

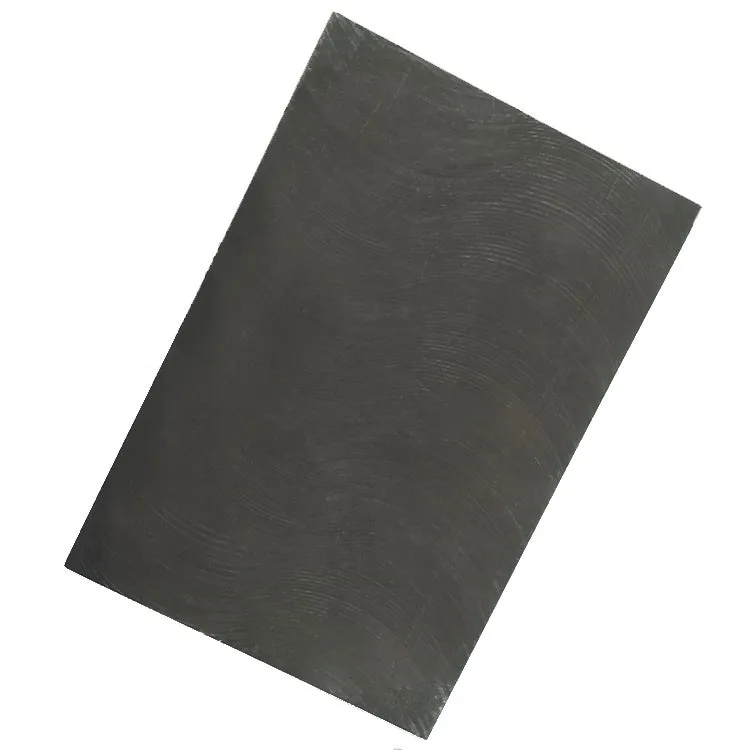

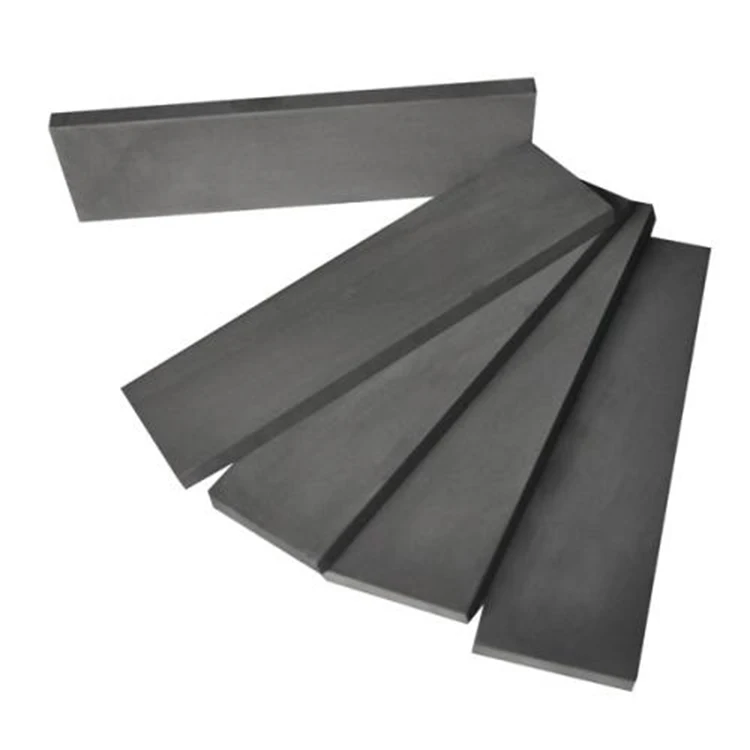

Graphite Plate
1. Refractory materials: in the smelting industry, graphite crucible is made of graphite, ingot protective agent and magnesium carbon bricks for smelting furnace lining. The products are smooth, delicate, wear-resistant, corrosion resistant, high brightness, not easy to change color and other advantages
2 conductive material: graphite is widely used in the electrical industry electrode, brush, rod, carbon tube and TELEVISION
picture tube coating.
3 wear-resistant materials and lubricants: many mechanical equipment are using graphite as wear-resistant lubricating materials, in -200-2000(?) Graphite can slide at 100 m/s over a temperature range. C With little or no lubricating oil.
4. Sealing material: piston ring gaskets and sealing rings for centrifugal pumps, water turbines, steam turbines and equipment for conveying corrosive media with flexible graphite.
5. Corrosion resistant material: graphite used as utensils, pipes and equipment, can resist the corrosion of various corrosive gases and liquids. Widely used in petroleum, chemical, hydrometallurgy and other industries.
6. Heat insulation, high temperature resistance, radiation resistant materials: graphite can be used as nuclear reactor neutron moderator, rocket nozzle, missile nose cone, aerospace equipment parts, heat insulation materials, radiation resistant materials, etc.
Model No. | Bulk Density | Granularity/partical size | Electrical Resistance | Thermal Conductivity | Thermal Expansion Coefficient(indoor-600oC) |
g/cm3 | μm | μΩm | W/m.k | 10-6/oC | |
WX-4 | 1.78-1.82 | 12-15 | 8.5 | 121.1 | 5.46 |
WX-5 | 1.85 | 12-15 | 8.5 | 139.2 | 4.75 |
H-5 | 1.68 | 12-15 | 13 | 139.5 | 4.9 |
F-5 | 1.75 | 12-15 | 9-10 | 140 | 4.9 |
WXH-6 | 1.90 | 10-12 | 8-9 | 140 | 5.1 |
WXW-6 | 1.91 | 8-10 | 8-9 | 140 | 5.1 |
WX-7 | 1.81 | 8-10 | 11-13 | 85 | 5.6 |
WX-8 | 1.91 | 8-10 | 11-13 | 85 | 5.85 |
GSK | 1.72 | 800 | 8.5 | 120 | <2.4 |
1.75 | 800 | 8 | 140 | 2.4 |
Model No. | Shore Hardness | Flexural Strength | Compressive Strength | Elasticity Modulus | Gas Porosity | Ash | Purified Ash | Technology |
HSD | Mpa | Mpa | Gpa | % | PPM | PPM | ||
WX-4 | 42 | 38 | 65 | 9 | 16 | 500 | 50 | 2*3 |
WX-5 | 48 | 46 | 85 | 11.8 | 13 | 500 | 50 | 3*4 |
H-5 | 49 | 38 | 86 | 18 | 16 | 500 | 50 | |
F-5 | 56 | 43 | 86 | 11 | 12 | 500 | 50 | |
WXH-6 | 53 | 55 | 95 | 10 | 11 | / | 50 | |
WXW-6 | 53 | 55 | 95 | 11 | 11 | / | 50 | |
WX-7 | 65 | 51 | 115 | 11 | 12 | / | 50 | |
WX-8 | 70 | 60 | 135 | 12 | 11 | / | 50 | |
GSK | >10 | 24 | ||||||
17.5 | 38 |
Details of Graphite Plate
1.The size and material of the graphite plate are customized, you need to tell us the length, width, thickness, and the graphite material you need.
2.Can add any design on the surface.If need, please provide us drawings.
3.Can polishing the graphite plate if you need a smooth surface.
4.Can provide any ishape to meet different client's need.
2.Can add any design on the surface.If need, please provide us drawings.
3.Can polishing the graphite plate if you need a smooth surface.
4.Can provide any ishape to meet different client's need.
How to choose the suitable graphite plate?
1. Please provide us detailed drawings.
2.You can also give us size with tolerance.
3. Please let us know the density of the graphite material.
4. Please tell us the processing technic, whether you need polishing.
5. Please let us know any special design you want.
6. After we make sure what design you need, we can calculate the price for you.
7. Can provide sample for testing, large size is not for free.
2.You can also give us size with tolerance.
3. Please let us know the density of the graphite material.
4. Please tell us the processing technic, whether you need polishing.
5. Please let us know any special design you want.
6. After we make sure what design you need, we can calculate the price for you.
7. Can provide sample for testing, large size is not for free.
Main Products

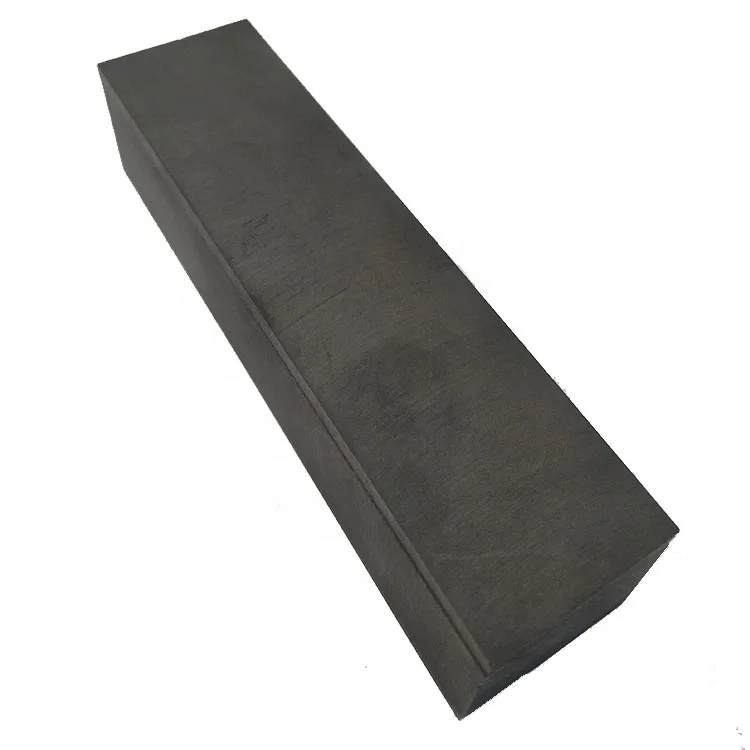

Graphite block
Graphite rod
Graphite plate
Graphite boat
Graphite rod
Graphite crucible
Graphite screw
Graphite ring
Graphite mould
Product Application
About Huaxu
Henan Huaxu graphite mould Co., Ltd. is a professional manufacturer with more than 20 years of production experience and continuous growth. We have two production plants, more than 50 employees, covering an area of 1500 acres. The main production of graphite crucible, graphite rod, graphite boat, graphite ring, graphite groove plate and other more than 20 products. We can provide customized services according to your needs, complete specifications, rich materials.All products have passed quality standard testing and are sold to many countries.Our products are widely used in mining, chemical, metallurgical ，machinery and aerospace industries. And it has been widely recognized and trusted by users, and can meet the ever-changing economic and social needs.The main products are diamond product mould, saw blade mould, drill mould, roller mould, grinding wheel, crucible, graphite ring,graphite plate, graphite rod, chemical mechanical seal ring, graphite heating element, aluminum plug rod, bottom bowl seat,pouring pipe, launder sleeve, graphite ring, roller, belt material, etc., graphite seal ring, graphite expansion ring, blade,graphite bearing, Bush, gasket, etc Products. We also support the customization and processing of graphite shaped parts. Our products are sold all over the world.
