Грузовик с воздушной платформой Marilyn DONGFENG DKL
US $12000-$29900
Подъемная платформа 16 м 20 24 мобильный мужской
- Категория: High-altitude Operation Trucks >>>
- Поставщик: Chengli,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.20 $* | 0.2 $* |
| Aug-17-2025 | 0.38 $* | 0.9 $* |
| Jul-17-2025 | 0.62 $* | 0.61 $* |
| Jun-17-2025 | 0.74 $* | 0.19 $* |
| May-17-2025 | 0.78 $* | 0.66 $* |
| Apr-17-2025 | 0.51 $* | 0.7 $* |
| Mar-17-2025 | 0.95 $* | 0.15 $* |
| Feb-17-2025 | 0.48 $* | 0.81 $* |
| Jan-17-2025 | 0.54 $* | 0.67 $* |
Характеристики
Features of Chengli company aerial truck :
As professional aerial working truck manufacturer,we provide different kinds of aerial truck to meet different customers requirements.
1. Aerial working height : 10m - 24m.
2. Different emission standard : Euro 1,Euro 2,Euro 3,Euro 4,Euro 5
3. Drive form has 4X2,4X4.
4. Chassis option ISUZU,Dongfeng, JMC,JAC, FORLAND, etc.
5. Cabin option double-row ( 6 passengers ) and single row(3 passengers).
6. Steering wheel has left hand drive and right hand drive.
7. Aerial bucket can choose insulated bucket.
General structure of aerial working platform truck
Product Description

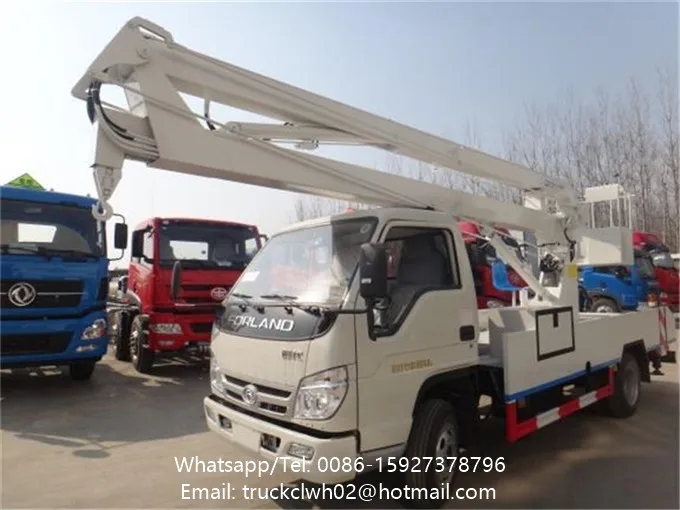

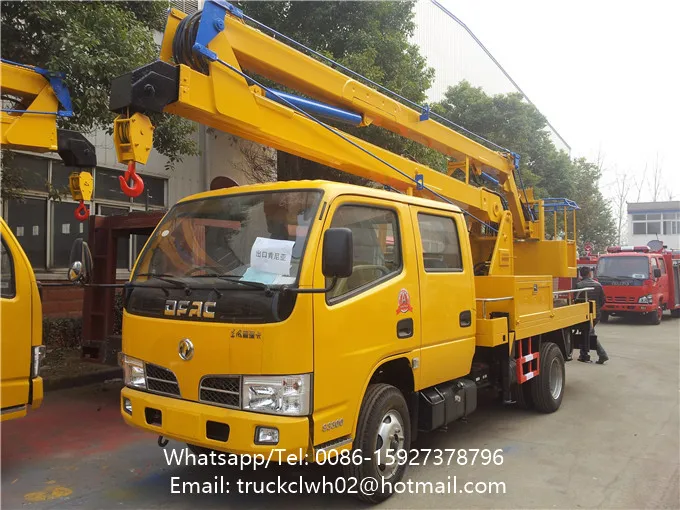

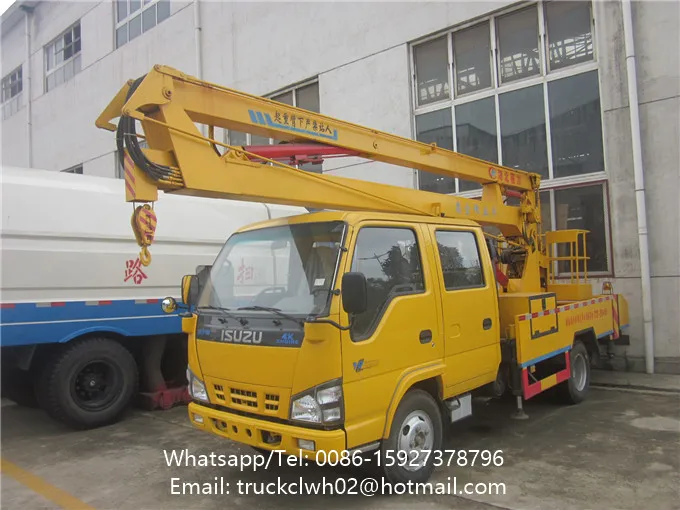

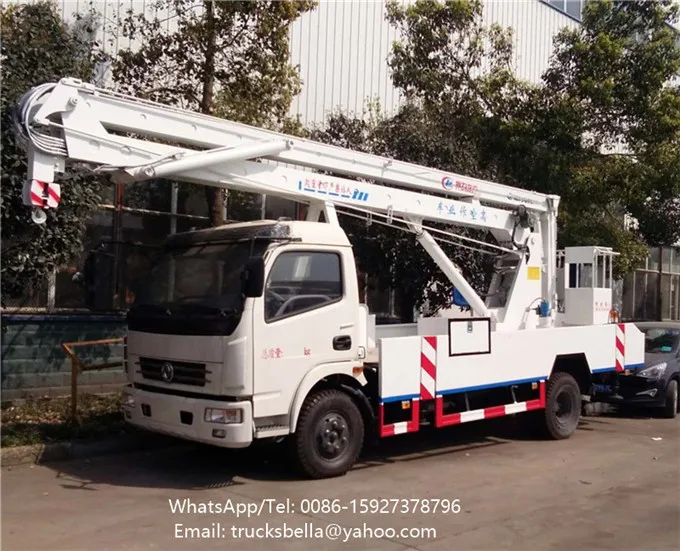

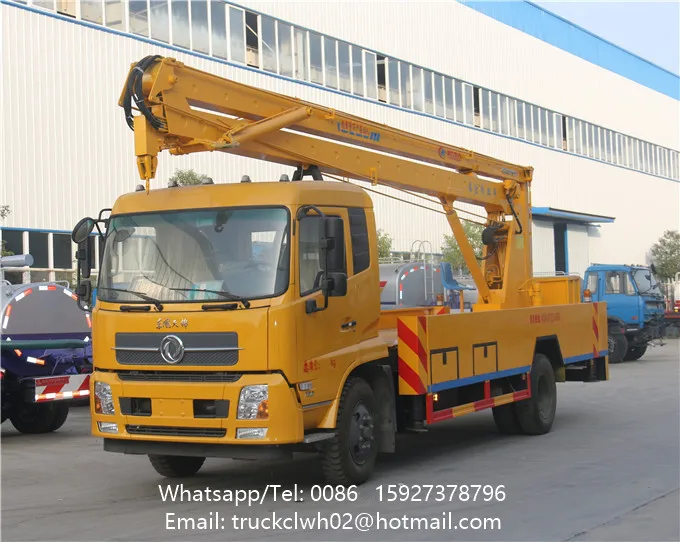

High lifting platform 18m mobile man lift truck.
Complete Vehicle Parameter | |
Vehicle | DONGFENG aerial platform truck |
Overall dimension (mm) | 8300×2200×3300 |
Curb weight (kg) | Appro×5000 |
Platform payload (kg) | Appro×200 |
Wheel base (mm) | 3800 |
Front/Rear overhang (mm) | 1180/2110 |
Approach/departure angle (°) | 19/11 |
Max speed (km/h) | 95 |
Platform (bucket) | - Max operating(working) height 18m - Max operating(working) radius 7.5m - 360 degree rotation - Bucket size 1080×610×1100mm |
Hook | - Max lifting weight of hook is 1000kg - Max lifting height 8.3m |
Support Leg | 4 pcs hydraulic support legs, and with hydraulic lock |
Main Operation | Up and down operation, hydraulic control, two-way balance valve. |
Chassis Parameter | |
Cabin | single cabin,power steering,no air conditioner, 3+3 passangers,left hand drive |
Traction system | 4×2 |
Engine | Brand : DONFGENG CHAOCHAI Model :CY4102-E3C, 120hp Type : diesel, 4 cylinder, turbocharged, intercooled. Displacement : 3856ml Emission standard : Euro III |
Transmission | 5 forward,1 rear, manual operated |
Tire model | 8.25-16 |

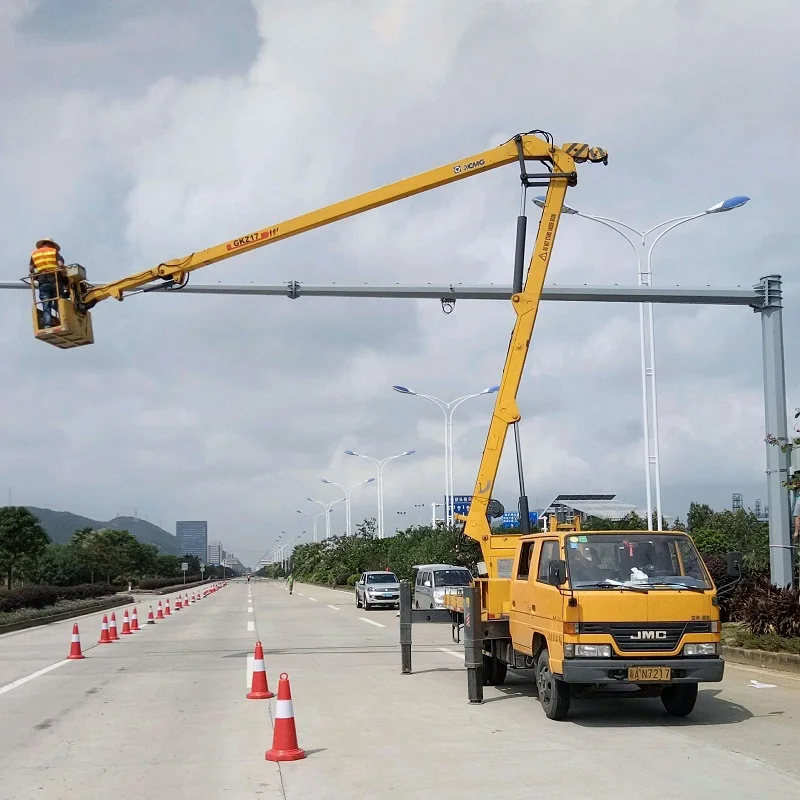

Application of aerial platform truck :
10-24m DFAC,FOTON,HOWO,ISUZU aerial work platform truck for sale.
Packaging & Shipping
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
Company Information
Cheng Li Special Automobile Co., Ltd is an important part of Hubei Chengli Group, we are large scale special truck modification plant for DONGFENG, FOTON, SINOTRUK, JAC, JMC, ISUZU, and we are domestic well-known special trucks manufacturer for landscaping vehicles, petrochemical vehicles, municipal sanitation vehicles, pressure vessels. National product code: "CLW", government and enterprise procurement designated special vehicle supplier.
Company is located in Cheng Li Automobile Industrial Park,Zengdu District,Suizhou City, Hubei Province, China, near Wuhan Tianhe International Airport.
Company covers an area of more than 1,000 acres, more than 8,000 employees, among them, the technical staff is more than 500, more than 2,000 skilled workers, the annual production capacity is 100,000 vehicles.
Our factory has more than 2000 sets large production equipment,detection equipment more than 200 sets , 16pcs assembly production lines, strong technical force and the detection means complete. Now already through a comprehensive ISO9001-2008 international quality system certification, all products through the 3C international compulsory product certification, and through the export of the product certification.
Our company is China top 500 private manufacturing enterprise.
