ЧПУ автоматический инструмент для замены atc маршрутизатор с высокой мощностью 7.5KW сервопривод

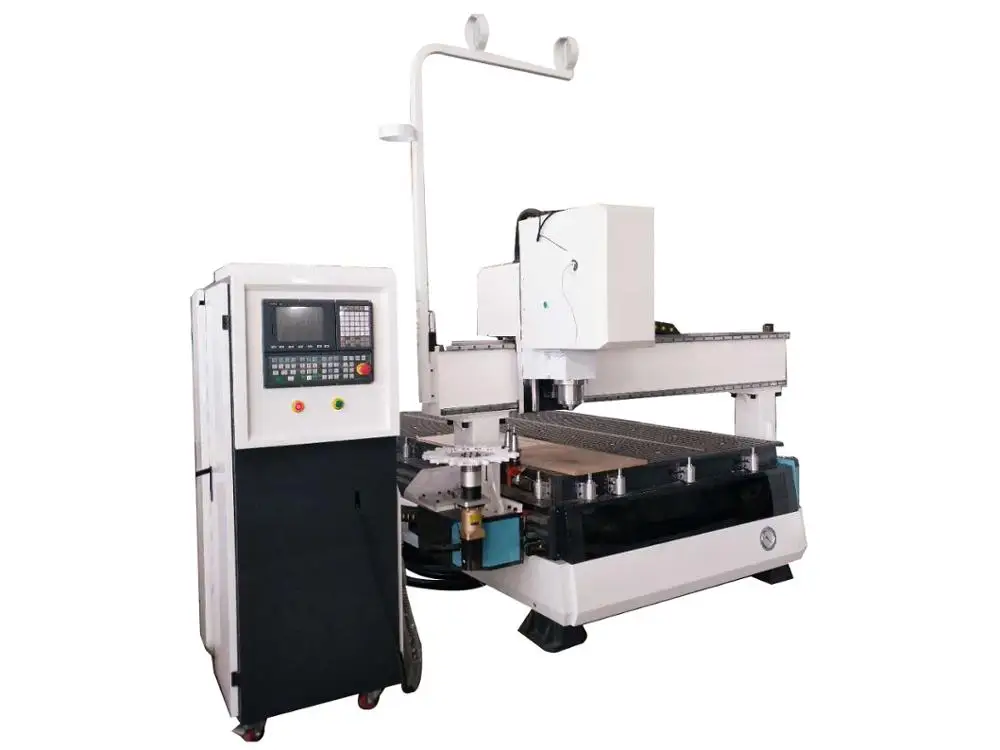

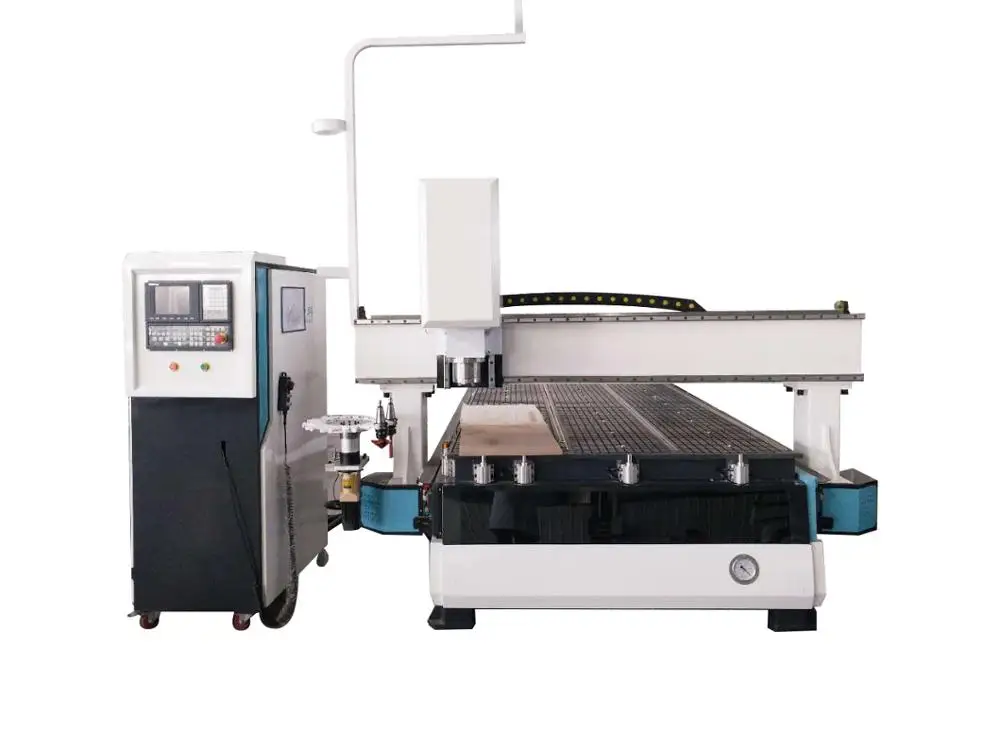

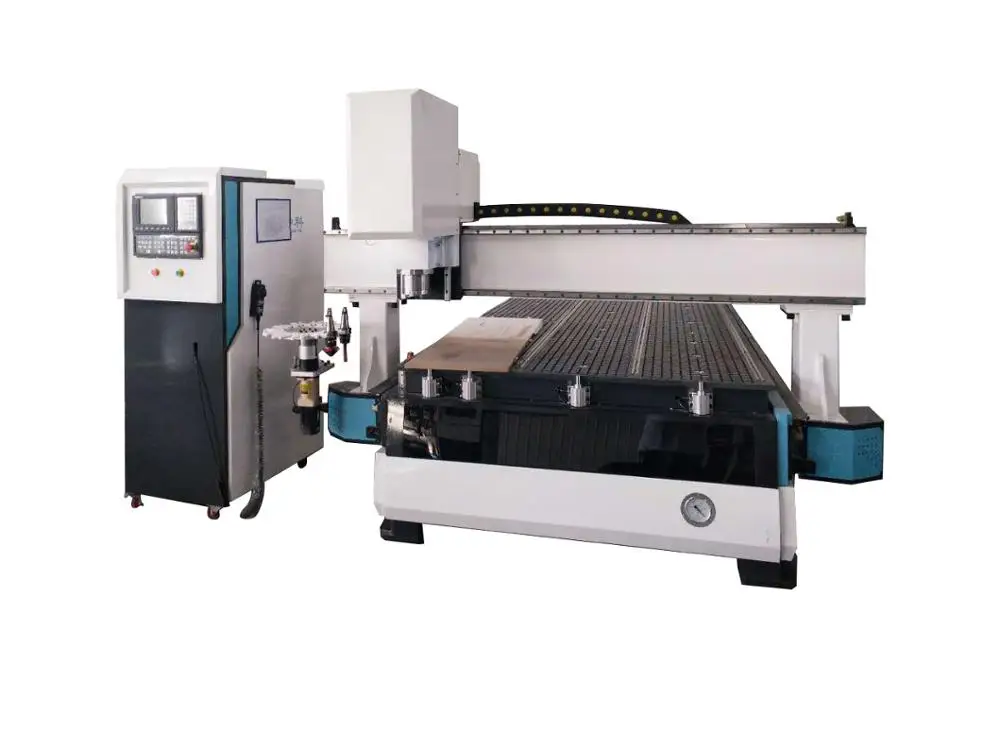

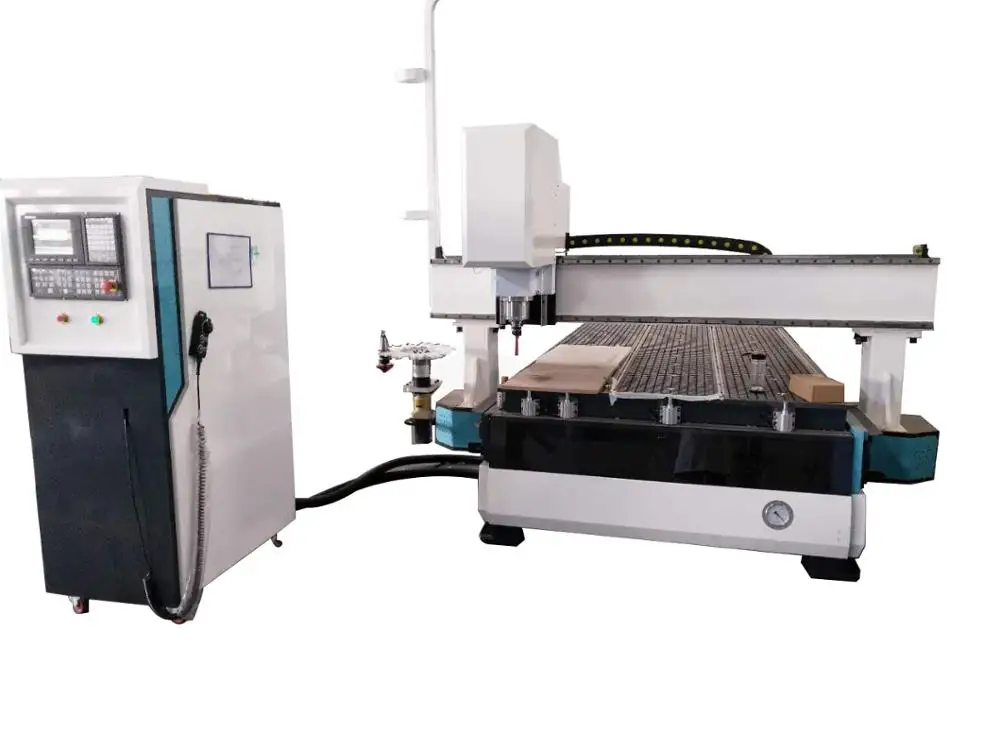

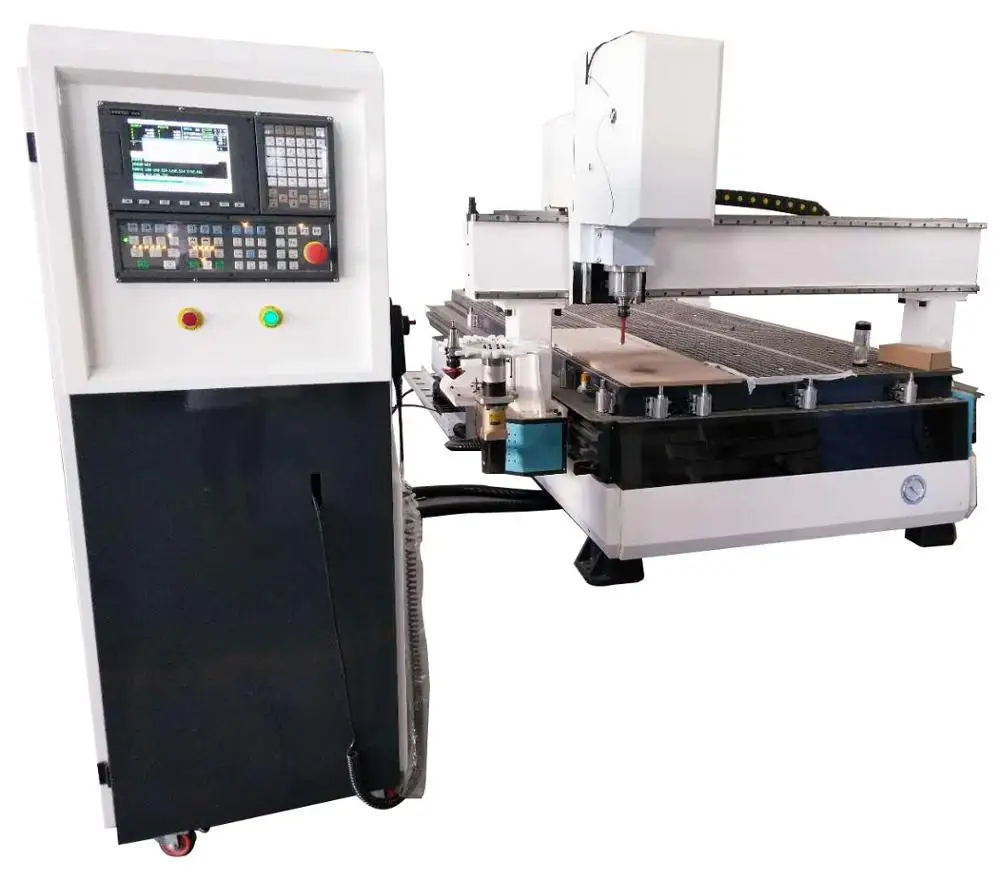

Now ATC CNC router is very popular in China .It has a circular tool magazing with 12 different types of tools . It is widely usded in furniture production industry and furniture customization industry to meet the individual needs of consumers for home decoration. When carving patterns on the door or panels ,the control system will automatically drive the spindle return to the tool holder to replace the required type of tool without manual tool change.

All the performances are far superior to those of ordinary engraving machines , such as speed ,accuracy ,stability ,etc.

Woodworking industry: three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft windows processing, shoe polishers, game cabinets and panels, mahjong tables, computer tables and panel furniture products assistant processing.

Advertising industry: advertising signs, logo production, acrylic cutting and suction moulding, a variety of advertising materials and decorative products production.

Mold industry: can engrave copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic board, PVC pipe, wood and other non-metallic molds.

Other industries: can be carved a variety of shadow carving, relief, widely used in the arts and crafts gift industry.

SYNTEC 6MB control system

The system can simultaneously control four-axis linkage.It is a closed-loop control system. It can receive terminal feedback data at any time and adjust the step at any time. It has fast operation speed and high precision.

YASKAWA 1.3KW servo motor

The YAKKAWA servo motor from Japan is also a closed-loop motor. It can adjust the operating parameters at any time according to the feedback data of the terminal and in cooperation with the control system.

YASKAWA driver

Accept the control system data, and control the motor through position, speed and moment to achieve high-precision positioning of the transmission system. The brand is a high-end product of transmission technology.

CTB 7.5KW servo machinery spindle

The spindle adopts high-speed, precise matching bearing and rigid pre-tightening structure, so that it can obtain high speed and make the cutting tool play the best cutting effect. It can change the speed in a continuous fine-tuning way, control the cutting speed instantly and improve the processing efficiency.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Leadshine servo motor for rotary circular tool holder

Motor and driver of the rotary tool holder can make the circular tool library rotate to a predetermined position in advance, so that the spindle can be easily retrieved back to pick tool up.

Double-layer multi-point vacuum adsorption & T-slot table

When processing wood-based panels, the table can automatically absorb the panels. When processing solid wood, clamps can be used to fix the processing materials.

7.5KW water cooling vacuum pump

High-power water-cooled vacuum pump, with strong vacuum capacity, can ensure that the plate placed on the processing table does not shift.

Taiwan HIWIN square guide rails 30 size

Taiwan T-WIN helical rack for transmission of X,Y axis

Automatic lubricating system

Welded thick steel gantry bar

Auto tool sensor

Taiwan TBI high precision ball screw

High flexible magnetic field shielded cable

Schneider electrical components

On ehxibition

Company Advantages

1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences

2, Own most advanced domestic cnc machining production equipments

3, 5-9 days machine production time, one year warranty and lifetime free maintenance

4, OEM and ODM services available

5, Same quality, our price and service are better; Same price, our quality and service are better

6, with CE, FDA, SGS, ISO9000 certifications

1325 vacuum table 3d wood cnc router,quartz processing center,Polyolon foam carving machine,Carving Machine with Rotary Shaft,laser cutting machine, plasma cutting machine,four heads automatic switching CNC woodeworking equipment, double spindles with a CNC drilling unit , rotary round tool library with 16 tools ATC woodworking center, linear tool library ATC processing centers, ATC processing centers with a CNC drilling unit.

We can also customize many kinds of CNC machines as customer's special requirements,such as large-size CNC machines,multi-axis CNC machines, multi-gantry CNC machines,high Z clearance CNC machines, automatic feeding functions, etc.
