Широко экспортируемый высококачественный IP68 водонепроницаемый GPRS терминал дистанционной передачи Ультразвуковой счетчик воды раздельного

Описание и отзывы

Трекер стоимости

Характеристики











Ultrasonic water meter

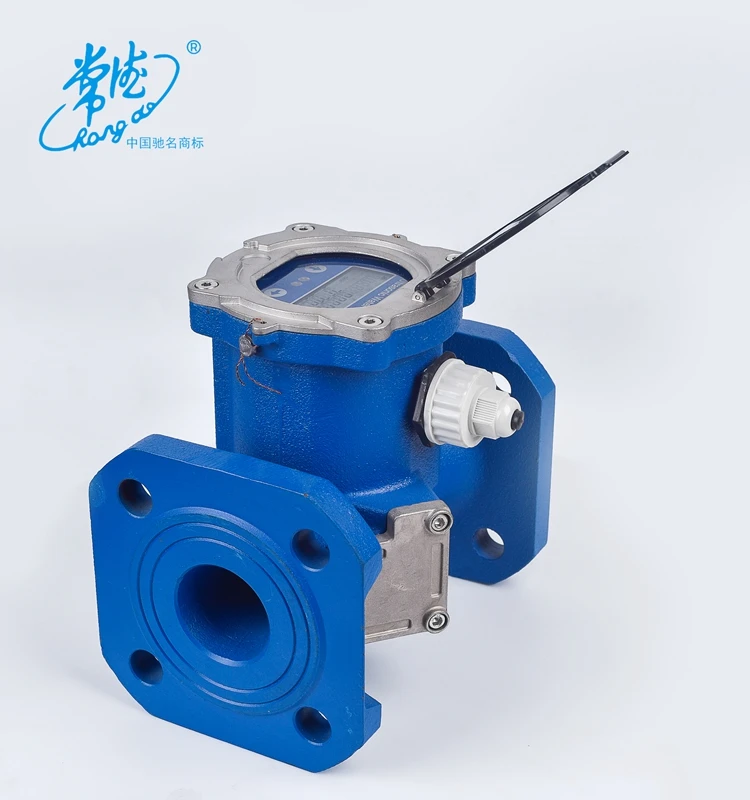

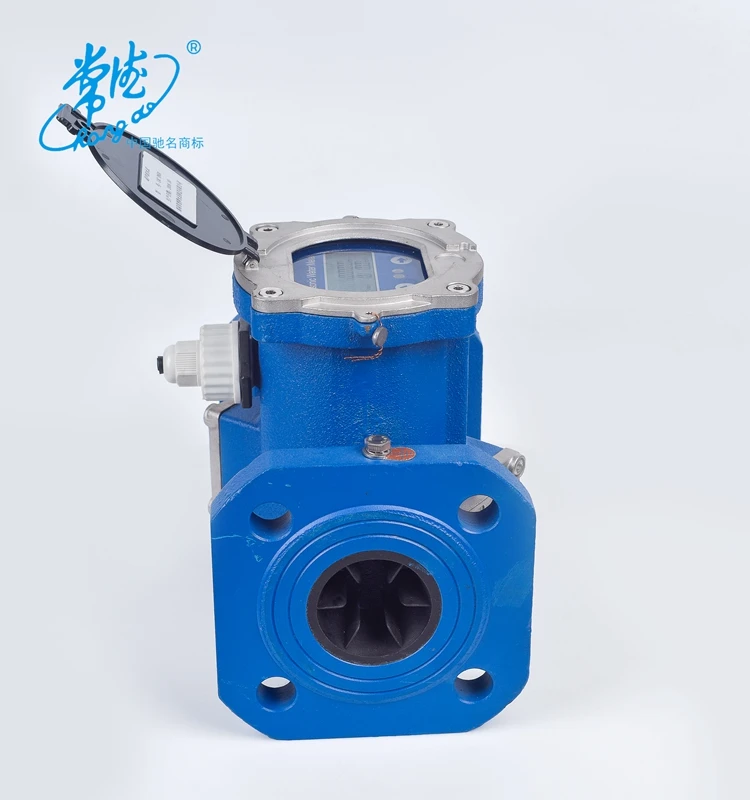

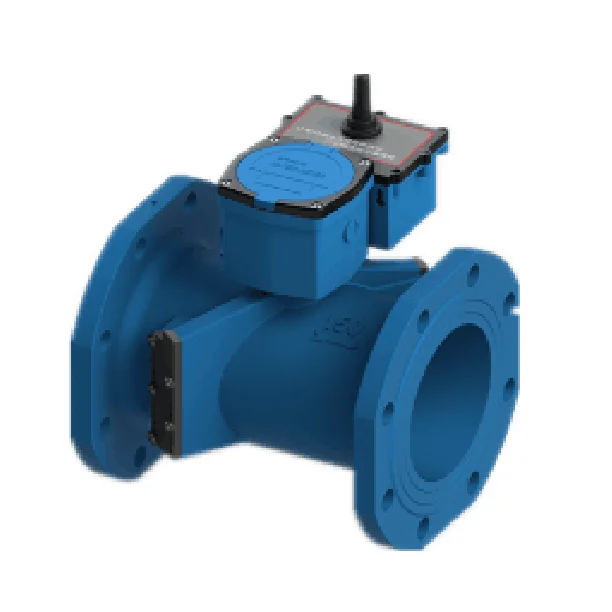

Changde brand large caliber ultrasonic water meter adopts advanced ultrasonic measuring technology, accurate measurement, display, storage of water flowing through the pipeline. By subsection calibration, automatic tracking, automatic scale cleaning and other advanced technology, with high measurement precision, wide measurement range, high reliability, long life advantages, and achieve IP68 waterproof .





Product Features:

Local display: Double lines display including 9 bits cumulative, 4 bit instantaneous flow display, as well as status prompt and unit.

Power supply: Built-in lithium battery (3.6V, 19Ah) / External 5V DC /4-20mA 2-wire power supply

Power consumption: < 2.7 Ah / yr, 1 battery can be used continuously for more than 6 years

Waterproof Level: IP68 Waterproof Level, working normally in humid conditions.

Communication interface: RS485 / USARTIR

Data storage: using EEPROM/FLASH to storage parameters, automatically record the cumulative traffic of 512 days before the first 128 months.

Measuring period: 1 t/s (or 2~4times/s); calibrated state: 4 times / s.

Low power design: air tube or long-term fluid static state into automatic power saving function, more extended service life.

The pipe is designed for fluid stratified dual-channel measurement, accurate metering.

The measure range is wide and less than 0.01 m / s initiating flow.

Flow profile sensitivity grade is U3, D0, meter doesn’t need the straight pipe section, and spot installation is convenient

GPRS remote transmission function: Upload data to background server regularly every day to allow users to monitor water information in real time.
