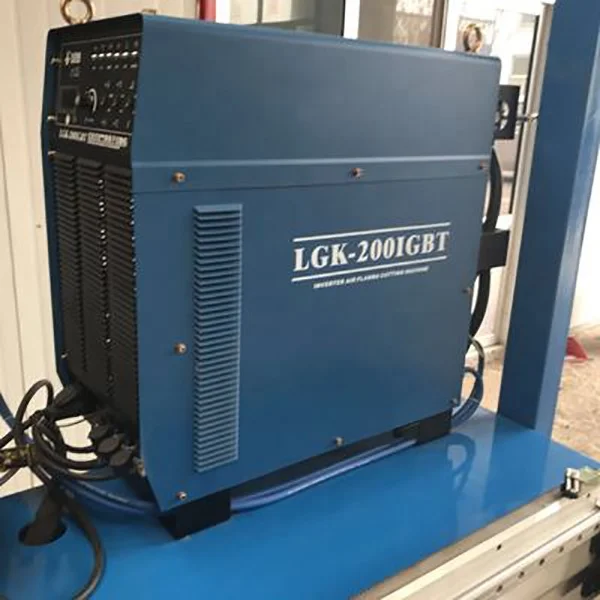

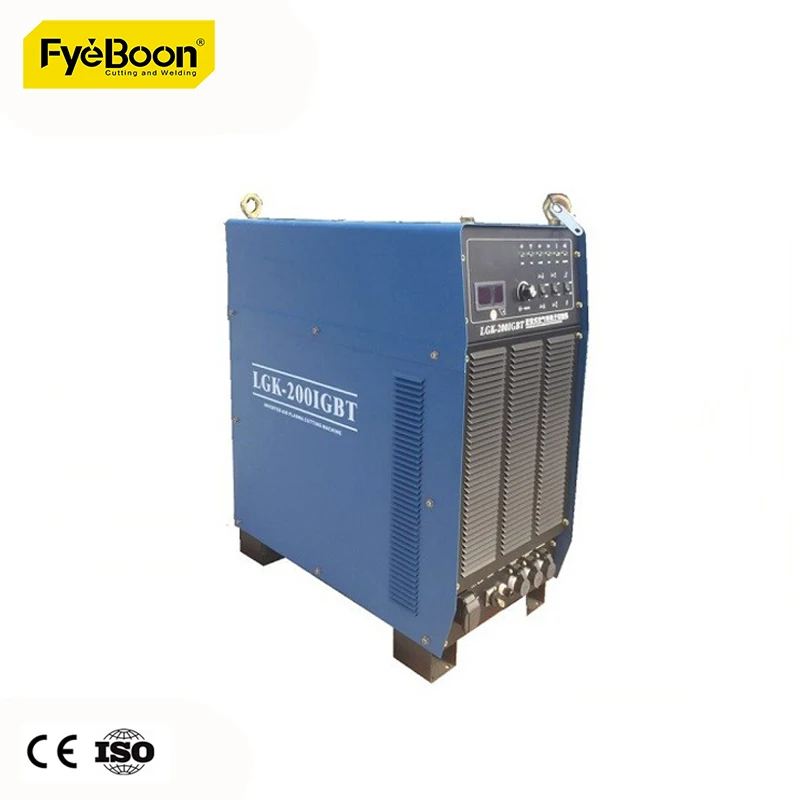

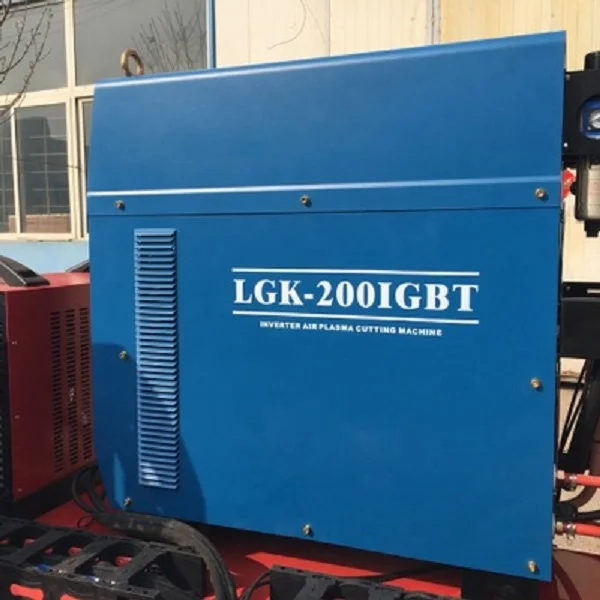

Плазменный резак LGK 200 высшего качества для резки металлического листа
- Категория: Источник питания для плазмы >>>
- Поставщик: Dalian,Fyeboon,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2499.99 $* | 2624.35 $* |
| Aug-16-2025 | 2478.52 $* | 2602.43 $* |
| Jul-16-2025 | 2079.58 $* | 2183.94 $* |
| Jun-16-2025 | 2436.3 $* | 2558.86 $* |
| May-16-2025 | 2121.19 $* | 2227.0 $* |
| Apr-16-2025 | 2394.21 $* | 2514.71 $* |
| Mar-16-2025 | 2373.6 $* | 2492.86 $* |
| Feb-16-2025 | 2352.28 $* | 2470.18 $* |
| Jan-16-2025 | 2331.6 $* | 2448.87 $* |
Характеристики
Product Info
Main Feature | ||
1 | 100% (40° C) duty cycle, suitable for long time, heavy load, high temperature and bad circumstances | |
2 | Current up-slope function: Reduce the impact on striking arc and decrease consumption of cutting torch parts | |
3 | Air pressure, hydraulic pressure sensor: Protect torch from being burnt efficiently | |
4 | Arc striking signal, arc pressure signal, air supply control and arc pressure output function , suitable for CNC and robot cutting | |
Model | Unit | LGK-63IGBT | LGK-100IGBT | LGK-120IGBT | LGK-160IGBT | LGK-200IGBT | LGK-300IGBT | LGK-400IGBT | ||||||
Input Power | V/Hz | 3~ 380V± 15% 50/60 Hz | ||||||||||||
Rated Input Capacity | KVA | 9.5 | 17.8 | 22.4 | 32.2 | 46.7 | 65.8 | 94.1 | ||||||
Rated Input Current | A | 14.5 | 27 | 34 | 49 | 71 | 100 | 143 | ||||||
Rated Open Circuit Voltage | V | 300 | 300 | 300 | 315 | 315 | 380 | 380 | ||||||
Rated Cutting Current | A | 63 | 100 | 120 | 160 | 200 | 300 | 400 | ||||||
Rated Cutting Voltage | V | 106 | 120 | 128 | 144 | 160 | 200 | 200 | ||||||
Current Adj Range | A | 30-63 | 30-100 | 30-120 | 40-160 | 40-200 | 60-300 | 60-400 | ||||||
Max Cut Thickness (Steel) | mm | 25 | 40 | 45 | 55 | 65 | 80 | 90 | ||||||
Quality Cutting Thickness (Steel, Machine) | mm | 0.3-6 | 0.3-13 | 0.3-15 | 0.3-17 | 1-30 | 1-35 | 1-40 | ||||||
Air Pressure | Mpa | 0.3~0.5 | 0.4-0.6 | 0.45-0.6 | ||||||||||
Output Signal of Arc Voltage | - | 1: 1 / 1: 20 1: 50 / 1: 100 Arc Voltage | 1: 1 / 1: 20 | |||||||||||
Cutting Torch Cooling Mode | - | Air Cooling | Air Cooling/ Water Cooling | |||||||||||
Rated Duty Cycle | % | 60/40° C | 100/40° C | |||||||||||
Insulation Grade | F | |||||||||||||
Protection Grade | IP21S | |||||||||||||
Dimensions (L* W*H) | mm | 585*280*485 | 695* 320*580 | 800*380*650 | 800*380*810 | 890*430*900 | 930*430*900 | |||||||
Power Source (N. W.) | kg | 26 | 45 | 46 | 65 | 82 | 124 | 144 | ||||||
Recommend Products
Contact
Exhibition & Feedback

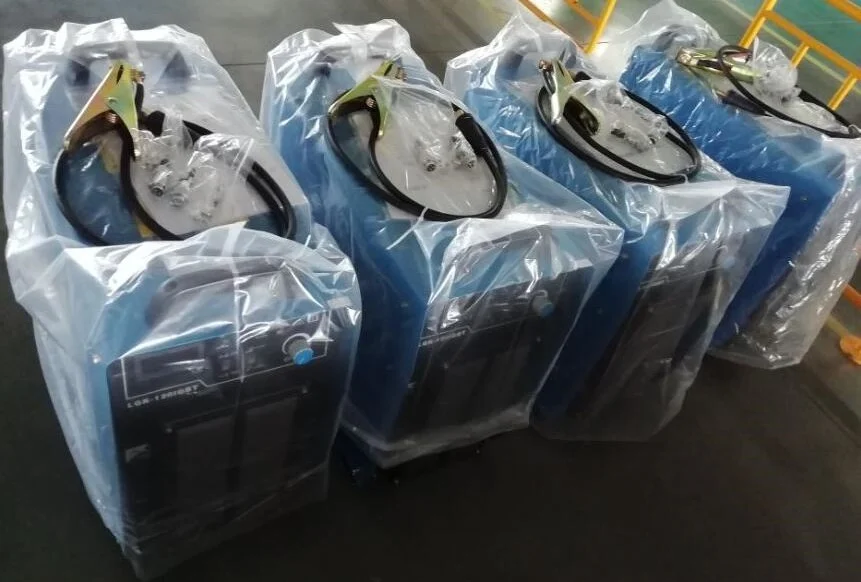

Packing & Delivery
Payment & Service
File Service
Instruction Manual
Installation Video
Video Teaching
Video Teaching
Visual Service
Remotely diagnose problems
Reducing downtime and cost to send a field technician
Reducing downtime and cost to send a field technician
Training
Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
Our Company
FAQ
Q1. How can I choose a suitable Plasma Cutter?
Just tell usthe material and its thickness.
Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.
Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.
Q4. What other things also need after we bought the machine?
You need an air compressor.
Q5. Can I change input voltage to my local voltage and frequency?
Yes, we can supply frequency and voltage according to your local standard. Such as 220V/380V/415V/440V/480V 3Phaase.
