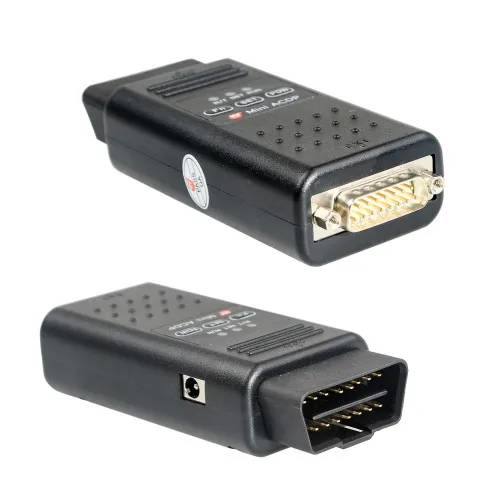

Yanhua Mini ACDP Programming Master Basic Configuration Work on PC/Android/IOS with Wifi

Yanhua Mini ACDP Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and

on adapter board programming (OBP), and parts of Freescale / NEC MCU in circuit programming (ICP).

This host is a necessary basic configuration for other modules.

B-M-W CAS-CAS3+ Key Programming by OBD (Module1):
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys Lost

without soldering/welding

FEM/BDC (Module2):
All keys lost without soldering/welding
Add keys without soldering/welding
Delete Keys without soldering/welding
Enable/Disable keys without soldering/welding
Read Key ID
Repair/Replace FEM Module without soldering/welding
Reset Mileage without soldering/welding

Read and Write ISN Code (Module3):
N20(mevd1724, mevd172P, mevd1729), N13(mevd1725, ), N55(mevd172, mevd1726, mevd172G, mevd172S, MEVD17, ), MSV80, MSD81, MSD85, MSD85HY, MSD87, MSV90, MEVD1728(s63), mev1722, med172, mevd1727, dde701_edc17c50, BMSX….

B-M-W 35080, 35160DO WT Read & Write (Module4)
Read and write B-M-W M35080, 35160DO WT etc EEPROM, erase 080DOWQ, 080DOWT, 160DOWQ, 160DOWT, M35128 models.

Fu-jitsu CPU MB91F Read & Write Module (Module5)
Supports Ho-nd-a FIT, Ve-z-el, Fif-th generation Hyu-nd-ai So-na-ta, K-ia K3/K5 etc Fuj-itsu CPU MB91F series read & write function.

MQB/MMC Instrument Module (Module6)
Support parts of VDO mileage adjustment of V-W MQB platform via OBD,and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.

Refresh B-M-W Keys Module (Module7)
Refresh B-M-W E chassis/F chassis key to make B-M-W keys can be used repeatedly.

BMW FRM Programming Module (Module8)
Read and write B-M-W FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.

Land Rover Key Programming on KVM 2014-2018 (Module9)
Yanhua Mini ACDP Module9 Lan-d Rov-er Key Programming Support KVM from 2014-2018 Add Key & All Key Lost

Yanhua Mini ACDP Module10 Porsche BCM Key Programming (Module10)
1. Free of disassembly, Solderless.
No need to remove components,
No need to cut the line, no risk of damage to the BCM computer board.
2. Set anti-theft data reading and writing, anti-theft data calculation, key programming in one.
3. The interface board replaces the welding wire, the pin connect with intelligent detection, and the data reading and writing is safe and reliable.
4. With the key refresh function, No longer afraid of loss caused by key be locked.

Yanhua Mini ACDP Highlights:

Test car NO longer needs engines
YANHUA car keys programming NO longer need soldering iron
Car locksmith NO longer needs soldering work.
The first in the world
Programming no need soldering

Yanhua Mini ACDP IMMO/Mileage Programming

No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin

Operating System:

IOS: iPhone/iPad/MAC
IOS System Requirement:
1. System Version: 9.0 or above
2. Cell Phone Models: iPhone 6 or above
3. Running Memory Ram: >2G
4. Storange Space rom: >1.5G

Android: Xiao-m-i, OP-P-O,Sa-ms-ung etc Qualcomm chipset mobile phones (DOESN'T support Huawei)

Android System Requirement:
1. System Version: 5.0 or Above
2. Running Memory Ram: >2G
3. Storage Space Rom: >1.5G

PC Version: PC Software Free Download

Solder-free programming Data safety

ICP: Memory and MCU programming In Circuits

MCU programming in Circuits

Yanhua Mini ACDP Functions

1. Memory programming:
Support 93/24/25/35/95 series EEPROM in circuit (ICP)and on board(OBP)programming

and parts of Freescale/ NEC MCU in circuit programming(ICP).

2. B-M-W module programming:
(1) Support cas1-cas4+and FEM/BDC IMMO key programming, mileage reset, program recovery.
(2)B-M-W engine ECU data reading and ISN code reading

3. V-W module programming. M-MC instrument
4. Instrument mileage and airbag ECU reset/maintenance is under development.
5. B-E-NZ. B-M-W A-u--di and various models are upgraded successively

A game changer for B-M-W Key Programming
1. CAS4/CAS4+ Key Programming Without Soldering or removing component.
2. FEM/BD.C Key Programming without Soldering/Welding
3. Read ISN Code from OBD Port directly(Partially)

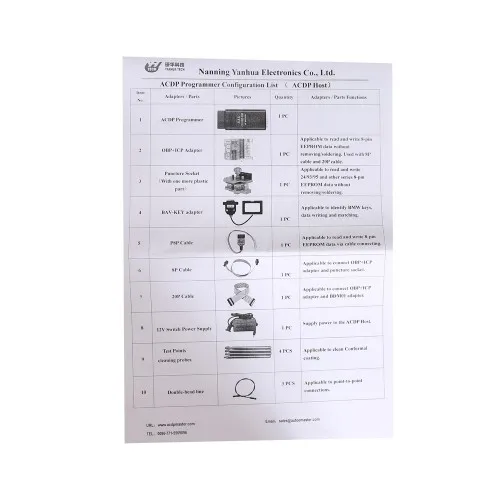

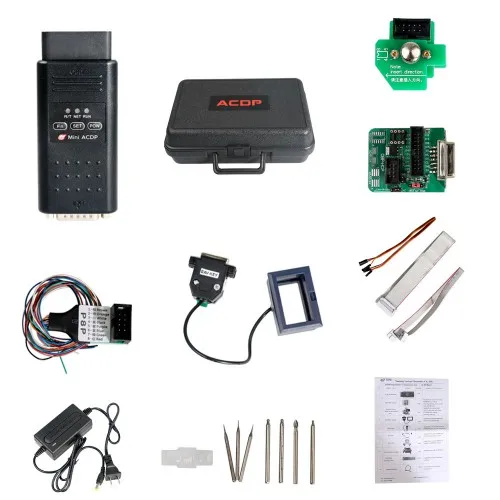

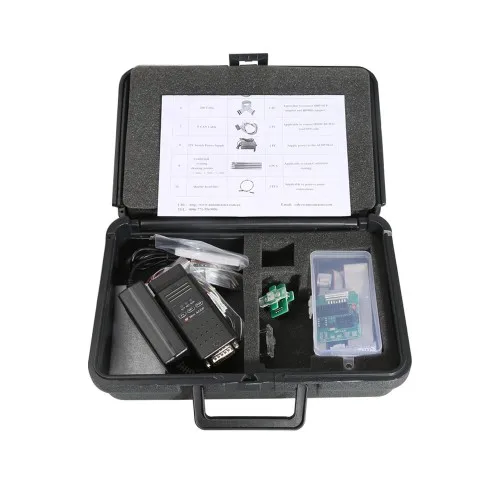

Package List:

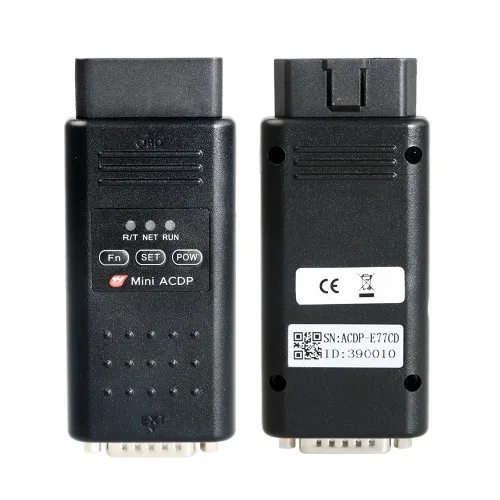

1pc x ACDP Programmer Master

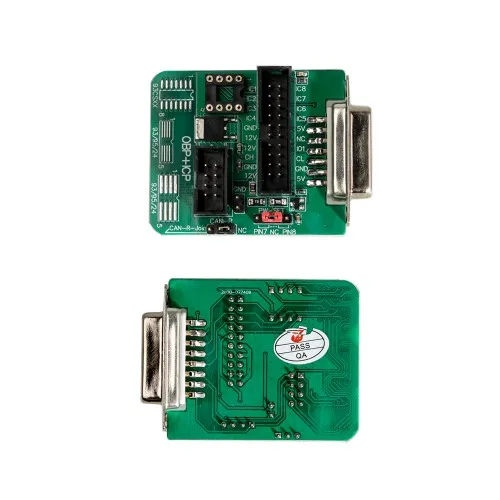

1pc x OBP+ICP adapter
1pc x Puncture socket
1pc x P8P ribbon cable
1pc x 8P cable
1pc x 20P cable
1pc x 12V power adapter
3pcs x paint surface cleaning needles (1.0mm,0.8mm,0.5mm)

1pc x BAV Key Adapter
