Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
3 дюймовый вытяжной оправки б/у гидравлическая трубогибочная машина локоть гибочная для
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.32 $* | 0.35 $* |
| Aug-19-2025 | 0.26 $* | 0.45 $* |
| Jul-19-2025 | 0.83 $* | 0.1 $* |
| Jun-19-2025 | 0.86 $* | 0.72 $* |
| May-19-2025 | 0.72 $* | 0.48 $* |
| Apr-19-2025 | 0.91 $* | 0.94 $* |
| Mar-19-2025 | 0.5 $* | 0.98 $* |
| Feb-19-2025 | 0.58 $* | 0.77 $* |
| Jan-19-2025 | 0.54 $* | 0.21 $* |
Характеристики
3 Inch Exhaust Mandrel Used Hydraulic Pipe Bender Elbow Bending Machine for Sale
Product Description
 |  |
The CNC platform pipe bending machine is one type of pipe bending machines and belongs to an important member of the pipe bending machine family. It is mainly divided into pipe angle bending machine and pipe radian bending machine . After replacing the driving wheel, the machine can bend the flat steel, square steel, square tube and rectangular tube .Our pipe bending machines are mainly used for the furniture manufacturing industry, fitness equipment industry, transportation pipeline industry, auto parts manufacturing industry, leisure and entertainment equipment industry and other parts processing. It has many advantages such as multi-function, reasonable structure, simple operation and so on.
Product Parameters
Model | YG-26 | YG-38 | YG-51 |
Application pipe diameter | 10-26mm | 16-38mm | 16-51mm |
Motor Power | 2.2kw | 3kw | 3kw |
Spindle speed | 20/min | 16/min | 8/min |
Voltage | 380V50Hz | 380V50Hz | 380V50Hz |
Bending angle number | 10 | 10 | 10 |
Application pipe wall thickness | ≤2mm | ≤3mm | ≤3mm |
Dimension | 800*650*900mm | 900*800*1000mm | 900*800*1000mm |
Weight | 180kg | 260kg | 300kg |
Features
1. Smart chip control
2. Configurable intelligent control system with fast response
3. Can be molded at one time, suitable for mass production
4. During the process of tube bending , the wheel mold rotates, and the hydraulic cylinder supports the roller to advance and retreat.
5. For pipes of different outer diameters, only need to change different abrasive tools.
6. It can bend the angle of 0-180 °, the angle can be controlled.
Bending effect

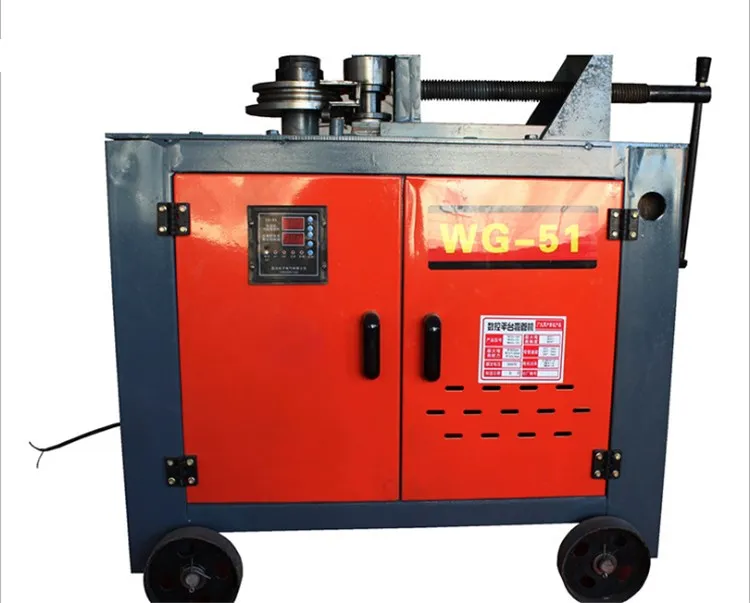

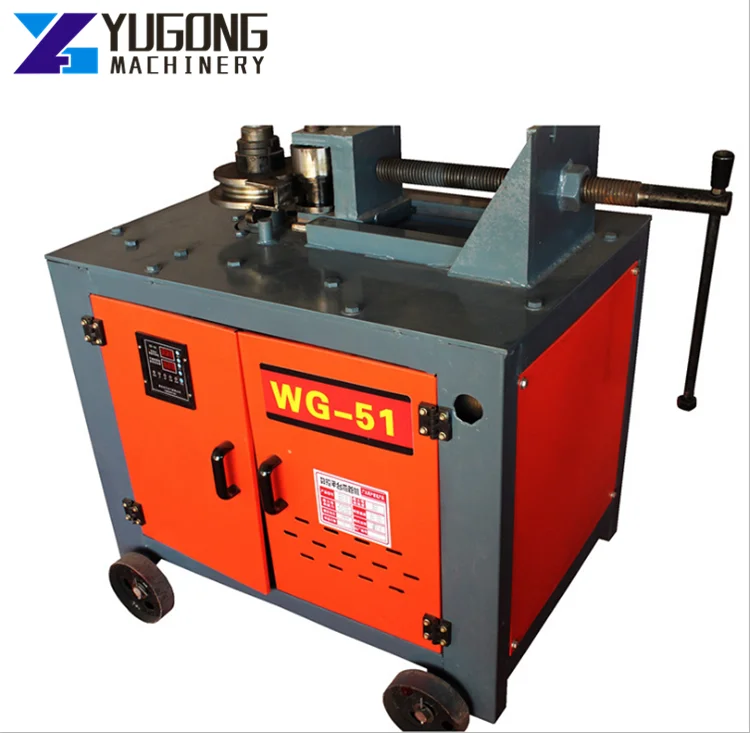

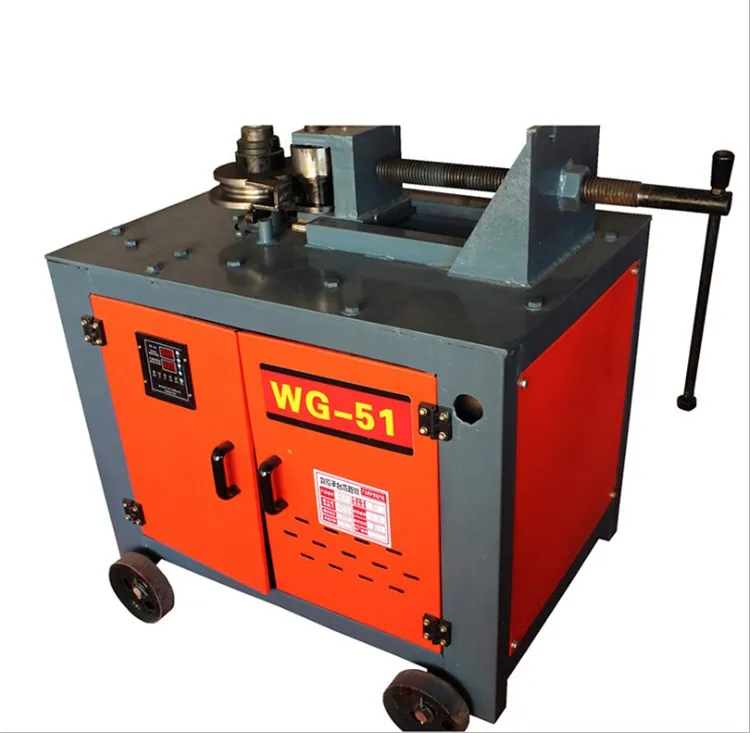

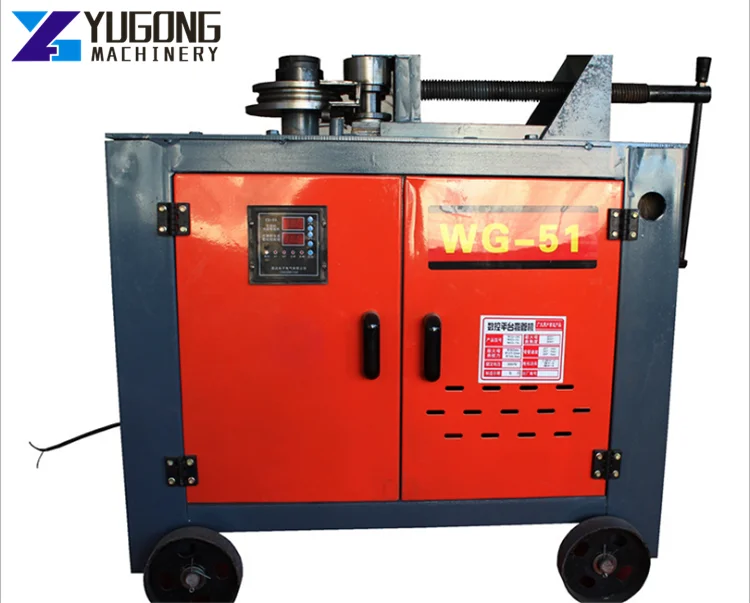

Product Show
1. Gear transmission , wear resistance
2. Pure copper motor, durable and powerful
3. Abrasives are made of steel for durability
4. The pressing device can be operated by one person, and the tube is pressed tightly, which is not easy to be deformed.
5. Intelligent numerical control chip, the angle input is digitized, and 9 sets of bending angles can be saved at the same time.
Company Information
Henan Yugong Machinery Co.,Ltd.is a collection of mining equipment, tunnel bridge construction equipment, road surface construction equipment etc. with research and development, production, sales as one of the largest engineering machinery manufacturing enterprises. Main products handled by our company is currently involved in highways, Bridges, tunnels, subway tunnels, high-speed rail, light rail transit mining resources exploitation, coal and non coal mine area.
We believe that good product can prove everything, including the quality, the attitude, the newest craftsmanship and the product concept to innovate a good product, every staff is trained and practiced professionally, so we can recommend you the most appropriate equipment. Every machine has to be strictly examined before delivery. Any question about the machine will be replied within 24 hours.
We are expecting your arrival and right here waiting for you all the time!
