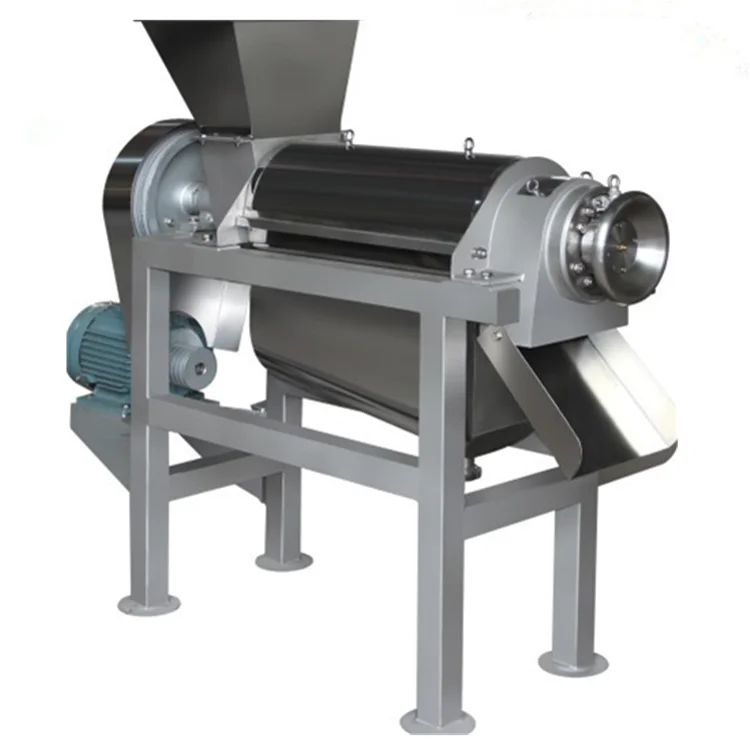

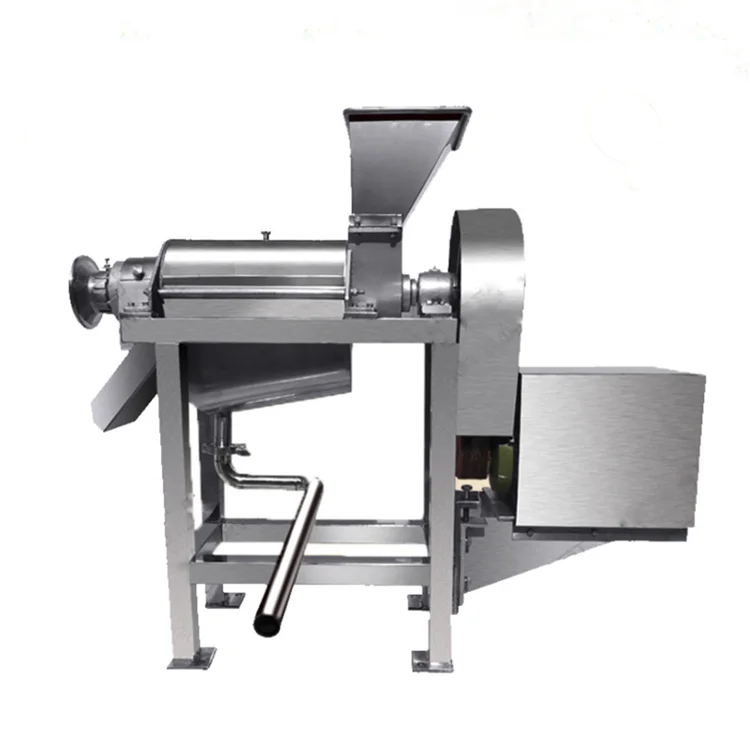

Commercial Manual Ginger Screw Juice Press Extractor Machine
Product Description
Descriptions
The main component of the device is that the spiral diameter gradually increases along the direction of the slag outlet and the pitch gradually decreases. When the material is spirally advanced, the material is pressed due to the reduction of the volume of the spiral cavity. The direction of rotation of the helical main shaft is viewed from the feed hopper toward the slag groove in a clockwise direction.
The raw material is added to the feed hopper, pressed under the advancement of the spiral, and the pressed juice flows through the filter into the bottom of the juicer, and the waste is discharged through the annular gap formed between the spiral and the tapered portion of the pressure regulation. The movement of the pressure regulating head in the axial direction can adjust the size of the gap.
Features
1. The whole body is made of stainless steel, which is used for a long time in acid juice.
2. Long spiral push press bar, juice yield, full yield
3. Select 0.6MM filter mesh pore size, fine juice without particle impurities

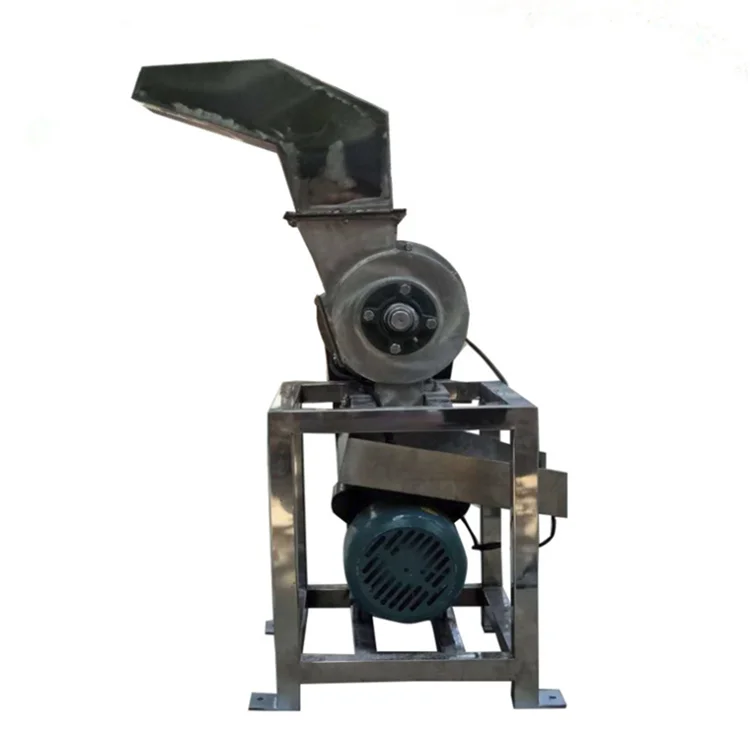

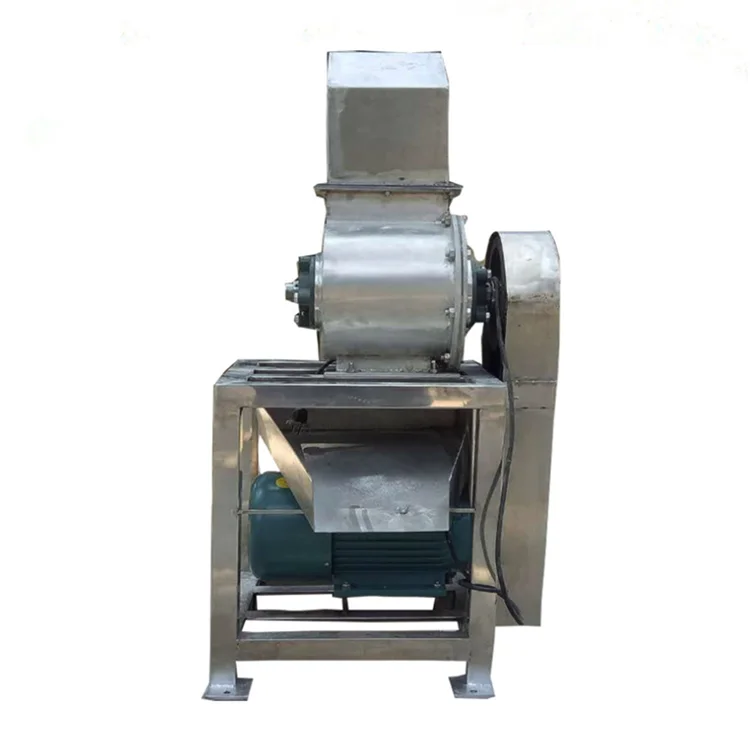

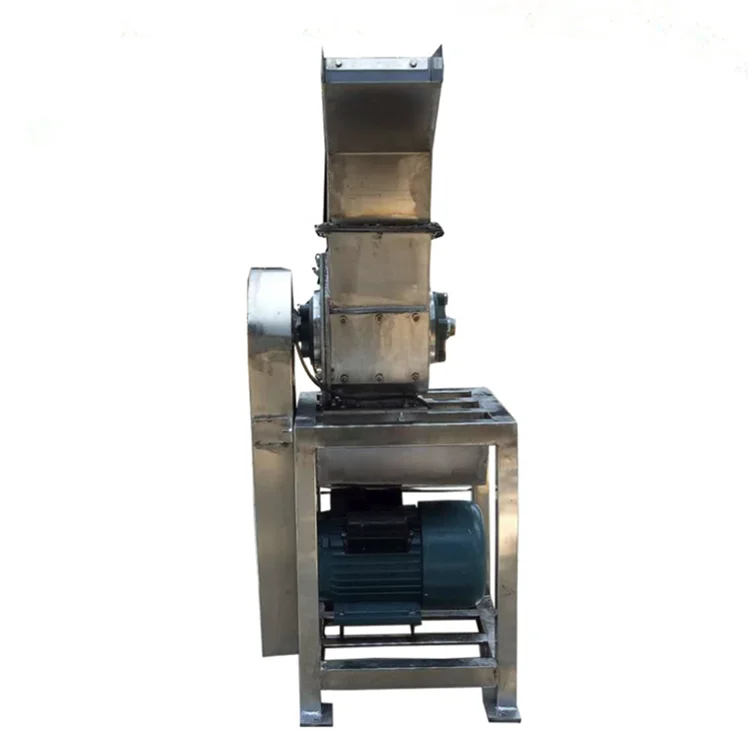

4. Customizable large matching crusher
Technical Parameters
Model No.
PH-5
PH-10
PH-15
Raw material throughput
500Kg/h
1500Kg/h
2500Kg/h
Spiral diameter
87.5mm
175mm
260mm
Spiral length
395mm
785mm
Filter aperture
0.6mm
0.6mm
0.6mm
Power
2.2Kw
5.5Kw
15Kw
Spindle speed
400rpm
Weight
100Kg
240Kg
400Kg
Size
1100×265×920mm
1560×450×1380mm
1560×620×1380mm
