SHINELOT is the TRUE and ORIGINAL MANUFACTURER of friction hinges. For the past, SHINELOT has always been a hidden hero behind numerous success. We are always here to serve our customers and fulfill their needs of OEM as the first priority. By superior quality of products, we cultivate a tight-knit partnership with our customers.
Why Choose Us
SHINELOT, the true innovator of these original hinge models, knows the best way to excel our opponents in competition is nonstop innovation and re-innovation. Producing hinges not only requires professional knowledge but also takes months and years of testing. We believe that only full devotion in creating, researching, and innovating can make us impeccable.

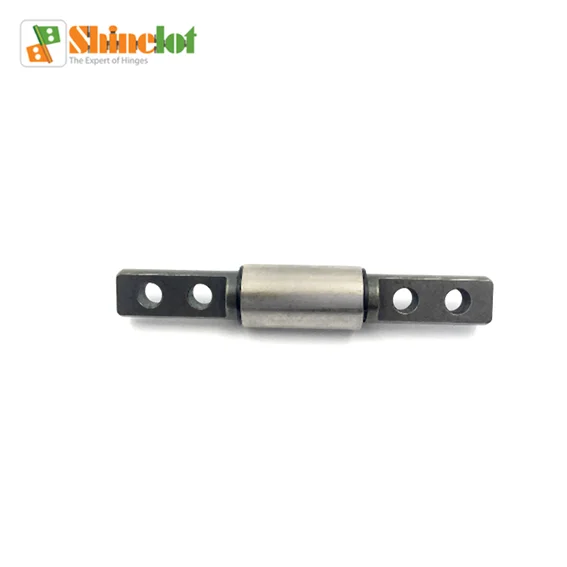

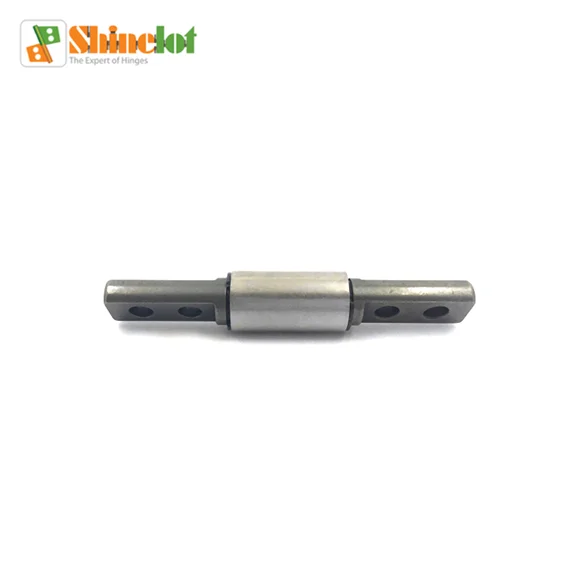

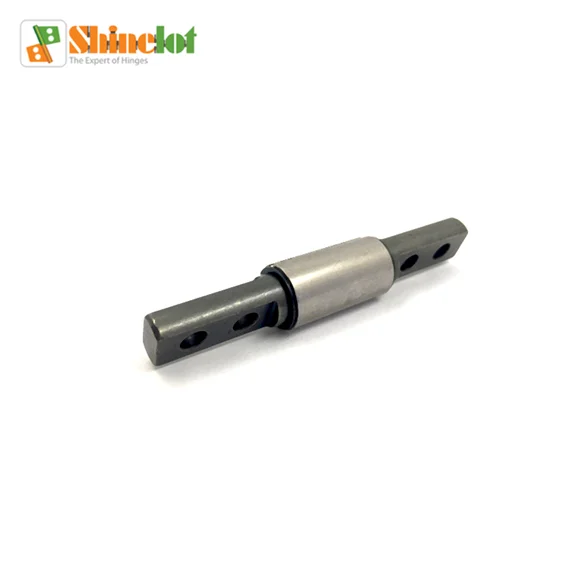

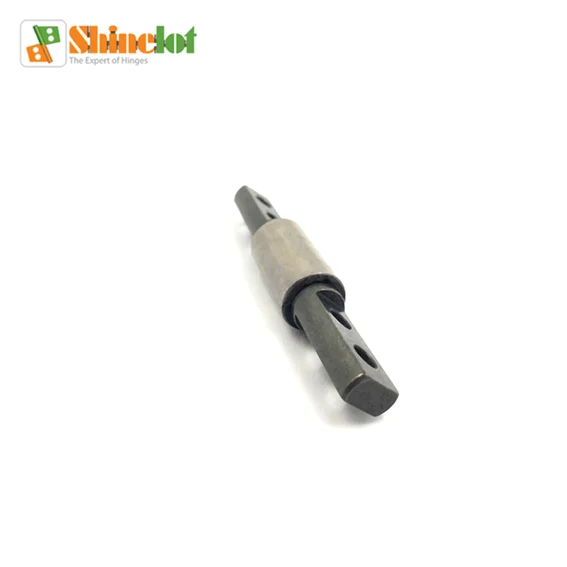

Product Description
Torque Range
Low: 12.0 in.lb
Med: 14.0 in.lb
High: 16.0 in.lb
1. It doesn't need any other parts as auxiliary to generate the required torque. 2. Tolerance of torque keeps within +/-15%. 3. Through 100% passing torque inspecting test before shipping. 4. Life cycles are more than 35,000 times. 5. The torque can hold over 0-360 degree angle. 6. Can custom the required standard.
Product Advantage
The rotating of the Shaft inserted into the band, it doesn't need any other parts as auxiliary to generate the required Torque. The precise control of the dimensions, lubrication and The Torque generated after our specific working process and after treatment is kept within a regular tolerance of +/-15%.
•The friction hinges are shipped only after 100% passing the inspect by a precise torque inspecting machine
• Life of the friction hinges is hold more than 35,000 cycles being tested by life cycle tester
• The torque of the friction hinges is hold constantly over the whole rotating angle. (0 - 360 degree)
OEM/ ODM Service
We offer a wide range of choices in friction hinges and customized services for many important OEM customers worldwide.
All the friction hinges manufactured by SHINELOT are for different purposes of various OEM’s application, including computer, flat panel, peripheral, automotive, medical, electronic, BBQ grill and marine fields.
Manufacturing
Prides itself in crafting fluent friction hinges with consistent torque in tolerance control while extending use to more than 30,000 cycles.
Emphasize in quality control of our products to comply with our customers’ demands. Our assembling lines are flexibly adjustable in compliance with the customers’ needs and able to produce more than 100,000 friction hinges each week.
♦ Check material before the production.
♦ 100% torque test during the production.
♦ Life cycle time 30,000 up.
♦ Any products are inspected strictly b4 packing.
QC System
Certificate and FAQ
1. What is friction hinge?
It's a hinge with constant torque to hold a device at any fixed position, like the laptop. But, it can also be used for the function of rotating the other stuff connected to generate the Torque through the friction between the Shaft and the Bands and to hold at any angle required.
2. Besides standard friction hinges, does Shinelot provide custom hinges?
Semi-custom: we can modify a standard friction hinge to meet your requirement True-custom: we can help you design the optimal hinges for your product.
3. Are corrosion resistant friction hinges available?
Yes, Shinelot provides corrosion resistant friction hinges for top class car, laptops, marine, medical products and outdoor application like BBQ, door of chimney, grill etc.
4. Does Shinelot provide detent friction hinges?
Shinelot does not offer this feature with standard friction hinges, only in a custom hinge application.
5. Does Shinelot provide a friction hinge with a stop?
Yes, stop is available, but only in a custom hinge application.
But, the rotation of the hinge run to 360 degree and can stop at any position.
6. Does Shinelot provide asymmetric torque friction hinges?
Both symmetric and asymmetric toque hinges are available.
7. How long does Shinelot standard friction hinges can maintain?
Life cycle time for Shinelot friction hinge is exceeding 35,000 cycles, it can last at least 10 years if you open/close 10 times a day.
