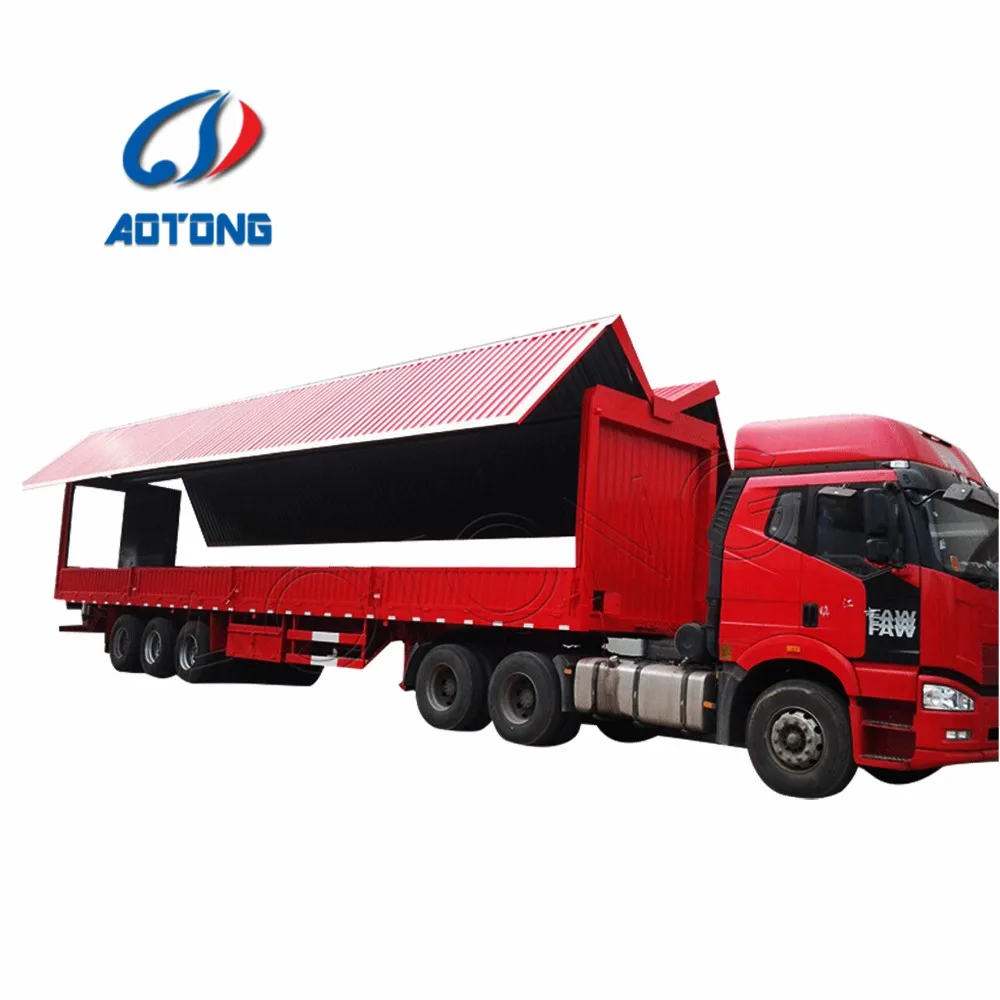

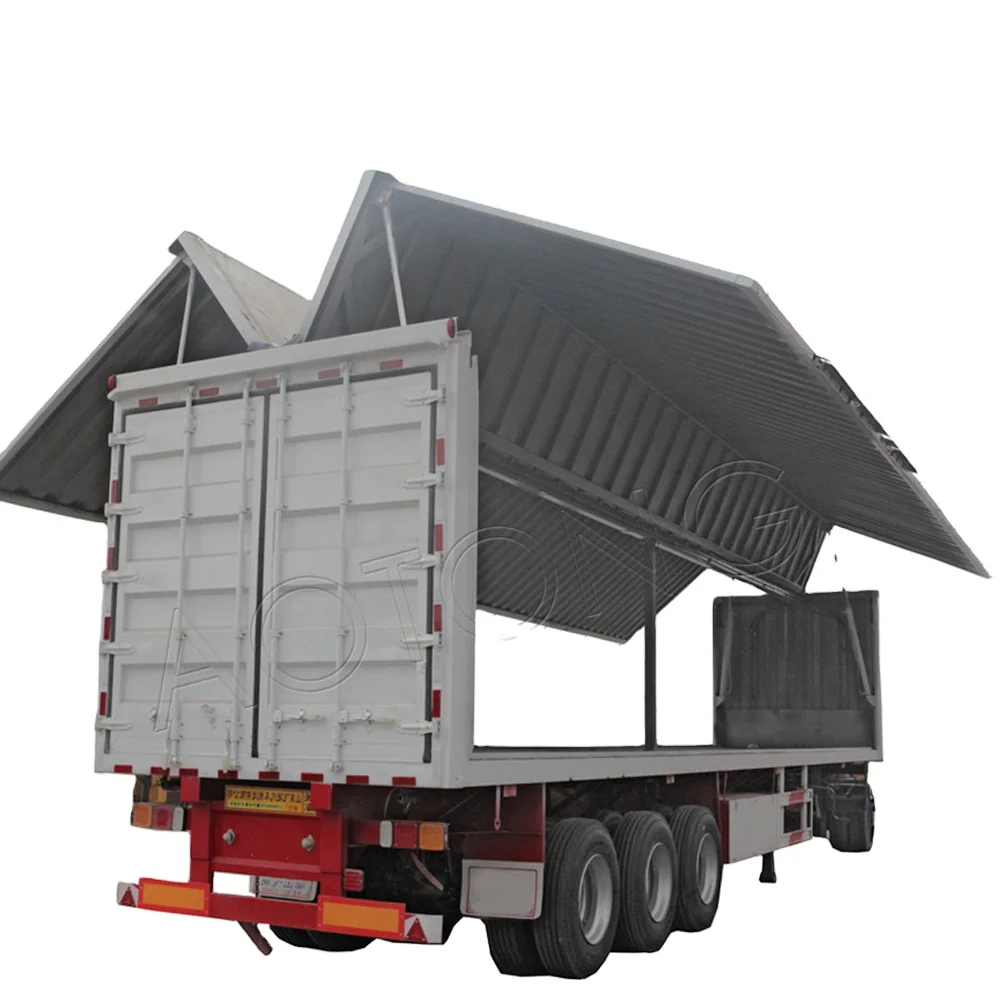

3 дюйма трехосевые 40 футов 53 фута закрытый ящик грузовик с сухим крылом полуприцеп на
- Категория: Другие прицепы >>>
- Поставщик: Qingdao,Juyuan,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1326738.27 $* | 1393075.4 $* |
| Aug-16-2025 | 1315589.76 $* | 1381368.13 $* |
| Jul-16-2025 | 1103757.34 $* | 1158945.36 $* |
| Jun-16-2025 | 1293291.74 $* | 1357956.18 $* |
| May-16-2025 | 1126055.10 $* | 1182358.26 $* |
| Apr-16-2025 | 1270993.12 $* | 1334543.28 $* |
| Mar-16-2025 | 1259844.87 $* | 1322836.3 $* |
| Feb-16-2025 | 1248695.8 $* | 1311130.78 $* |
| Jan-16-2025 | 1237546.6 $* | 1299423.7 $* |
Характеристики
Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you —AOTONG
![]()

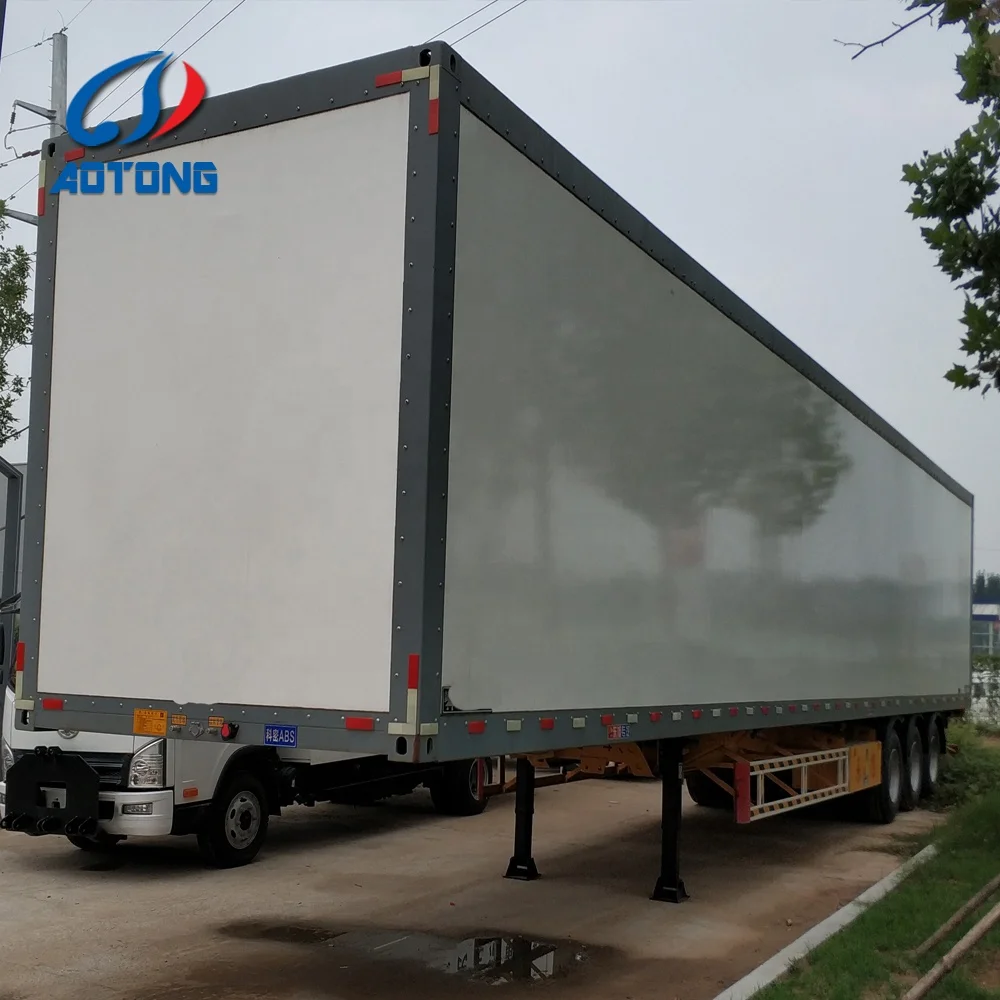

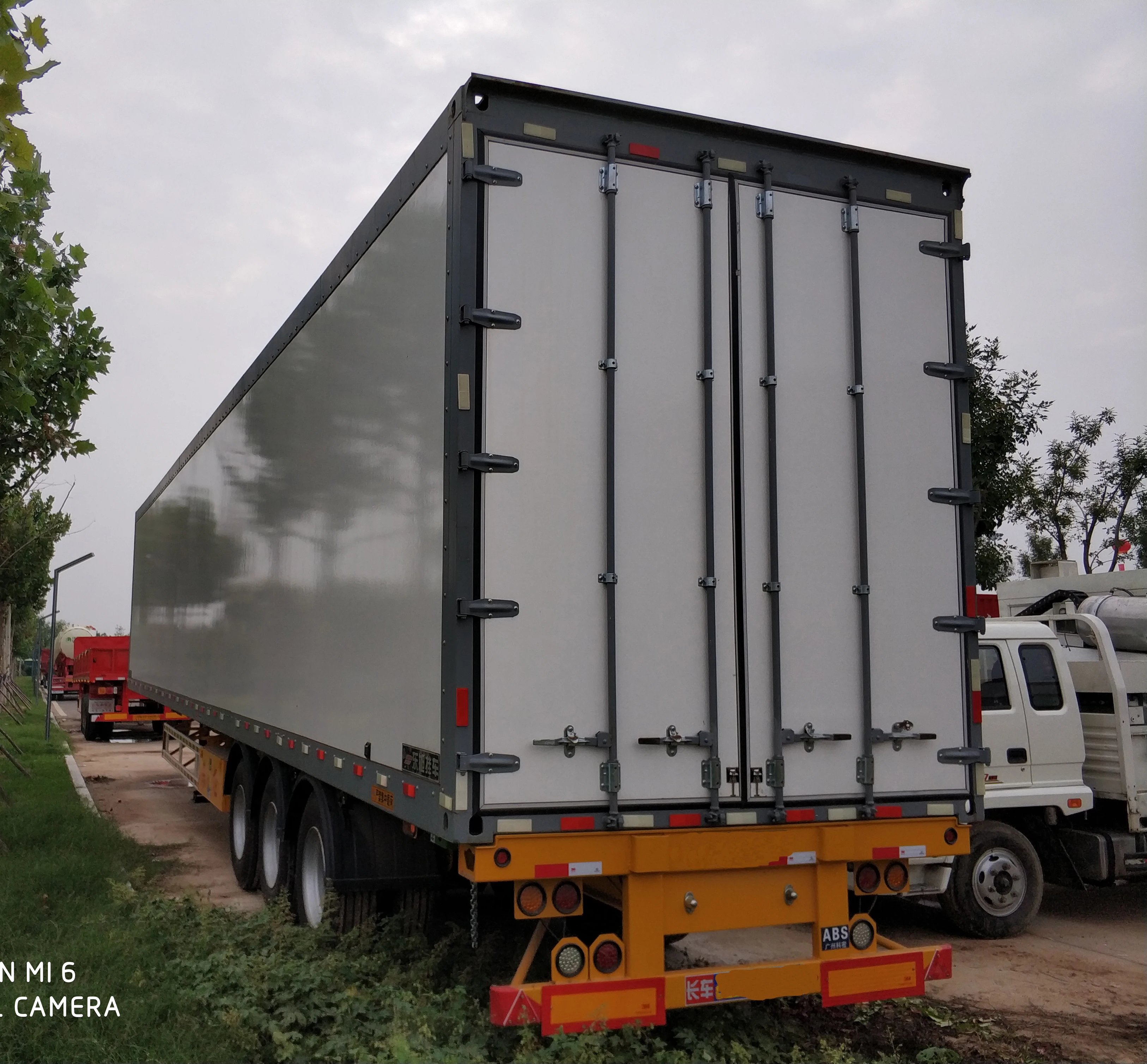

Type: | Van Semi Trailer/Trailer van/Box Semi Trailer |
Dimension: | 10000-13000*2550*3400 mm |
Payload: | 60,000 kgs |
Tare weight: | Approx. 9,500 kgs |
Main beam: | Material Q345. Fabricated “H” beam height 500mm, Top flange thickness 14mm, Middle web thickness 8mm, Bottom flange thickness 16mm |
Side beam: | 16# channel steel |
Platform: | 3mm thick checkered plate. |
Side walls: | 600-1800 mm height. |
Kingpin: | JOST 2” Kingpin, bolted in type |
Welding standard: | All welding are to be done by qualified welder per applicable national standard |
Painting: | Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive primer, twice coats of final paint |
Suspension: | Leaf spring or Air suspension |
Axle: | FUWA/BPW 13 tons axles |
Brake system: | Dual line pneumatic brake, with hose and connector |
Brake chamber: | 6 units T30/30 spring brake chambers |
Air tank: | 40L, 2 pcs, China |
Emergency relay valve: | WABCO/Shunanda relay valve |
Tire: | 12R22.5, 12 pcs. |
Landing gear: | Standard 28T two speed telescopic manual landing gear |
Electrical | Voltage:24V Receptacle: 7 ways (7 wire harness) A full set of LED lights installed on the trailer, front rear side turning etc. |
Spare wheel carrier | Two sets of spare wheel carrier |
Accessory | One tooling box with a set of standard trailer tool |
AOTONG van semi trailer can satisfy the concentrated force, the anti bump and the distortion resistance.
AOTONG make sure that van trailer can meet load requirements on different kind of roads and has a long service life.
AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.
![]()
![]()
Excellent design ability
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！
![]()
![]()
Click for your own design！
