4328840385 Beko биметаллический термостат для холодильника морозильной камеры KSD ELTH
- Категория: Refrigerator & Freezer Parts >>>
- Поставщик: Ningbo,Lingtong,Electric,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.78 $* | 0.4 $* |
| Aug-16-2025 | 0.73 $* | 0.23 $* |
| Jul-16-2025 | 0.62 $* | 0.30 $* |
| Jun-16-2025 | 0.77 $* | 0.72 $* |
| May-16-2025 | 0.82 $* | 0.29 $* |
| Apr-16-2025 | 0.31 $* | 0.29 $* |
| Mar-16-2025 | 0.15 $* | 0.20 $* |
| Feb-16-2025 | 0.10 $* | 0.88 $* |
| Jan-16-2025 | 0.41 $* | 0.78 $* |
Характеристики

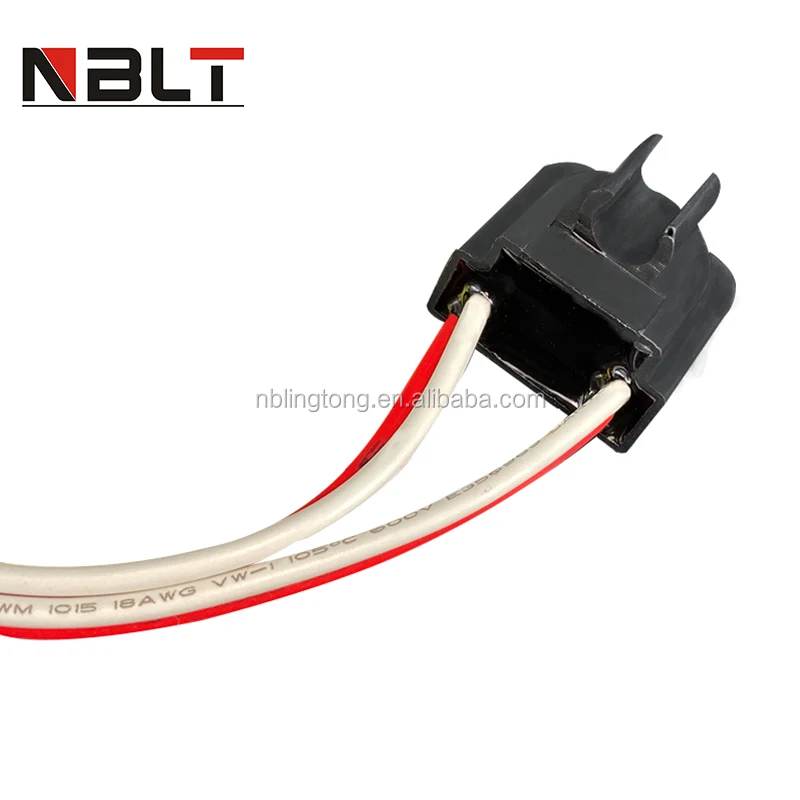

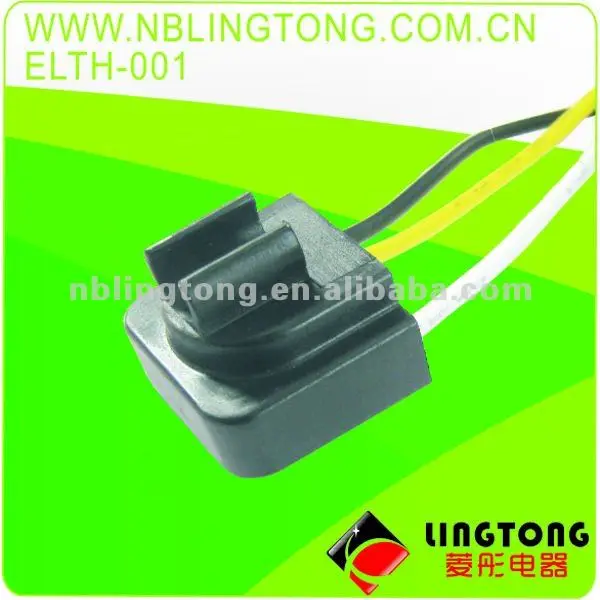

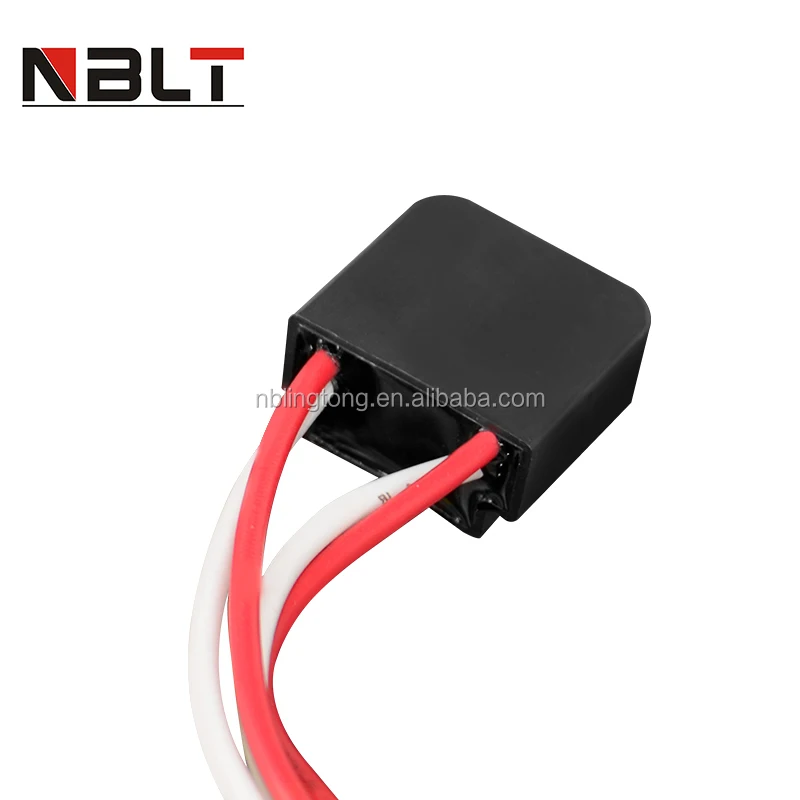

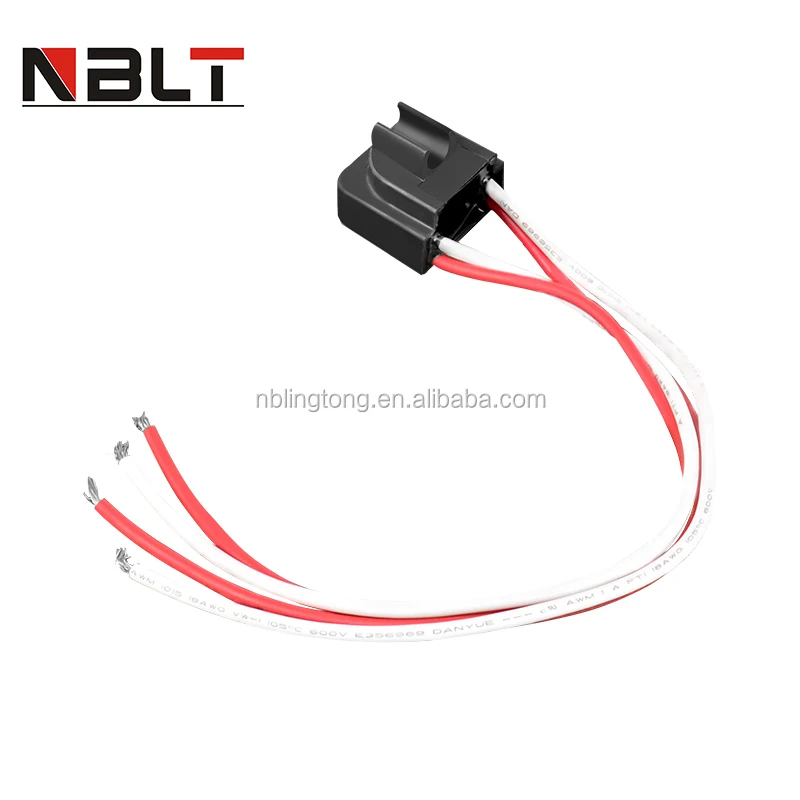

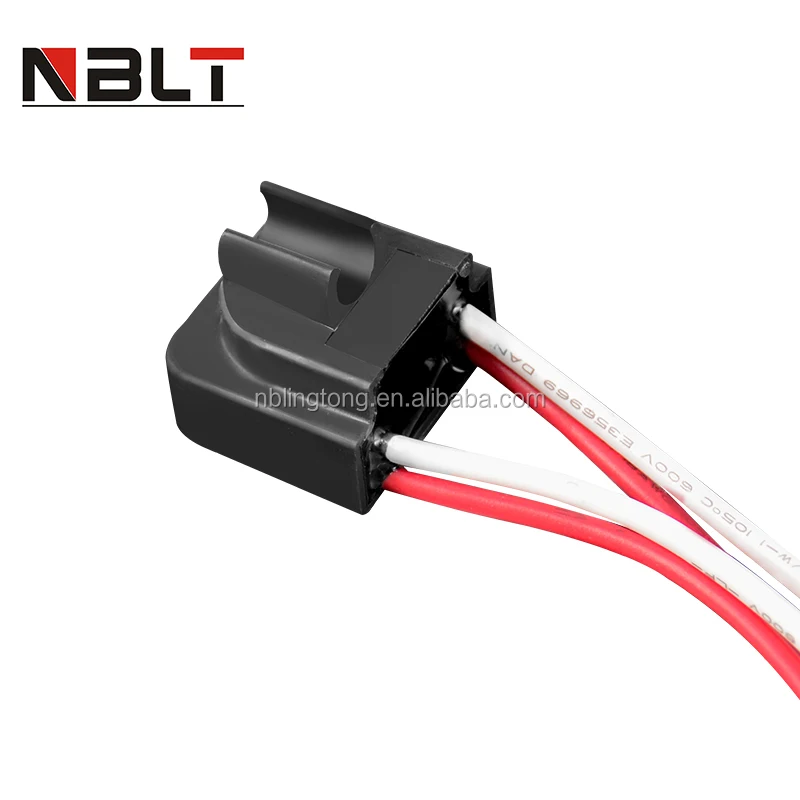

4328840385 Beko Fridge Freezer Bi-Metal Thermostat KSD ELTH -001
Specification
ltem NO | KSD ELTH -001 |
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators, freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rating | 250V 5A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Life cycle | 100,000 times |
OFF | 8°C |
ON | -4°C |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.8mm(1/2″) |
Line | Color: white/brown/yellow/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
