1. IP68 Junction Box, Connector
2. 15A current
3. Super strong frame
4. Current division
5. Salt spray, Ammonia and PID test
6. Strong Mechanical load capacity
7. Color Classification
Moduel
FSM300W
FSM320W
FSM330W
FSM340W
FSM350W
FSM360W
Rated Maximum
Power at STC
300W
320W
330W
340W
350W
360W
Open Circuit Voltage(Voc/V)
46V
46.1V
46.34V
46.5V
47.13V
47.13V
Maximum Power Voltage(Vmp/V)
38.7V
38.8V
37.57V
38.2V
39.3V
38.39V
Short Circuit Current(Isc/A)
9.53A
9.65A
9.75A
9.25A
9.35A
9.45A
Maximum Power Current(Imp/A)
9.04A
9.15A
8.78A
9.21A
9.25A
9.37A
Module Efficiency(%)
20.13%
20.39%
20.65%
20.91%
21.17%
21.43%
Power Tolerance
0 ~ +3%
Standard Test Condition(STC)
1000W/m2 irradiance, 25°C cell temperature, AM1.5
MECHANICAL SPECIFICATION
Cell Type
Mono Crystalline 156.75x156.75mm
Number Of Cells
72（6x12）

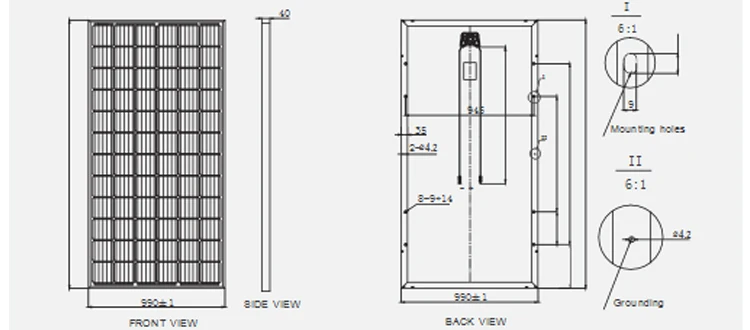

Dimensions(A*B*C)
1950x990x40mm
Weights
23KG
Front Glass
3.2mm Tempered Low Iron Glass
Frame
Clear Anodized Aluminum Alloy
Junction Box
IP68,with Bypass Diodes
Connector
Mc4 Compatible
Output Cables
TUV,±length 900mm,4.0mm²
Details
Production Process

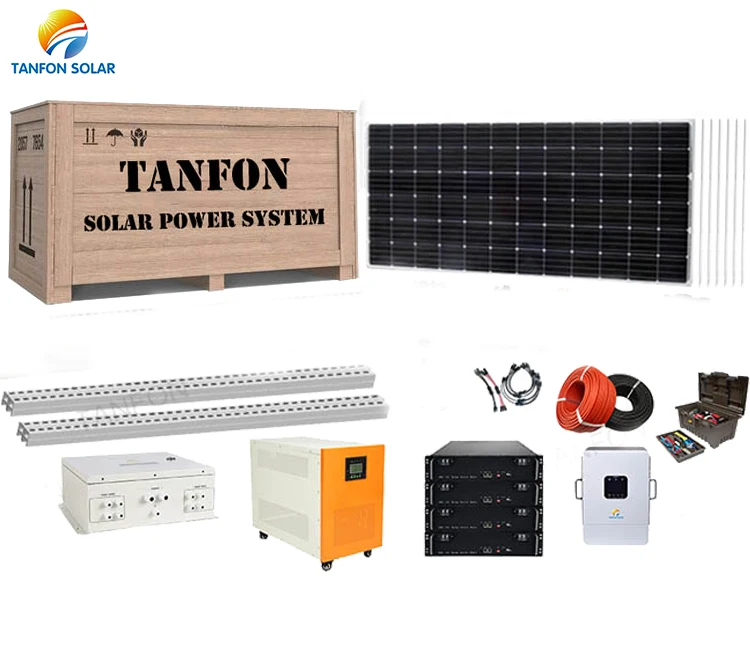

Packing & Delivery
PACKING CONFIGURATION
Container
20’GP
40’GP
Pieces Per Pallet
27
27
Pallets Per Container
10
24
Pieces Per Container
270
648
By Sea
Delivery from Foshan or Guangzhou seaport
By Express
DHL

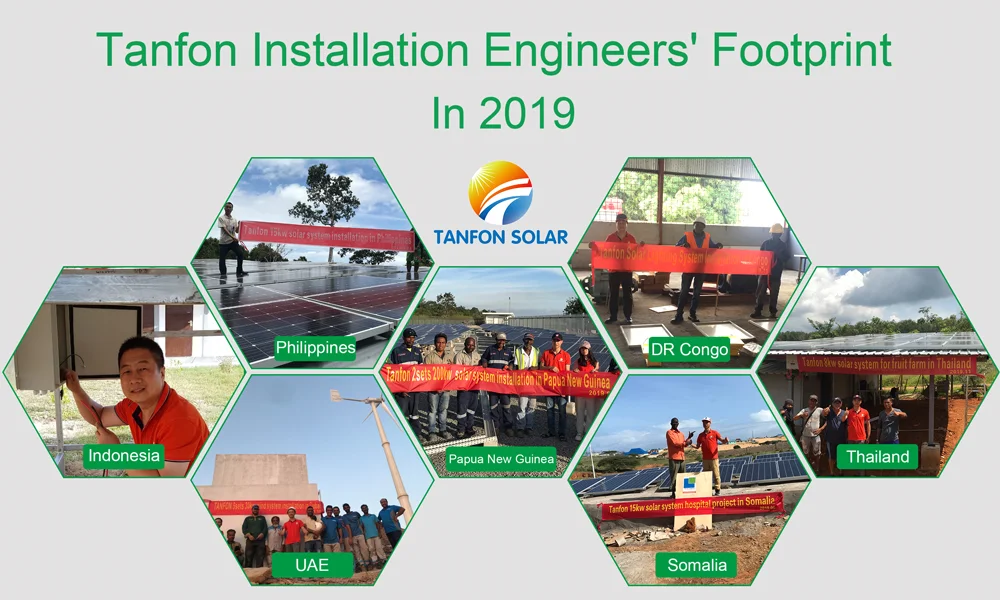

Solar Projects
Tanfon Solar Case
Products have been sold to more than 130 countries, Importantly, we have one professional installation team, has been to 32 countries and regions for installation service as well as win good feedback from the customers.
About Tanfon
Why Choose Tanfon
100% Order Safe
One-stop Service
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
For more information, please send an inquiry or contact us directly.
