Бетономешалка TOBEMAC с дизельным двигателем 500

Product Application

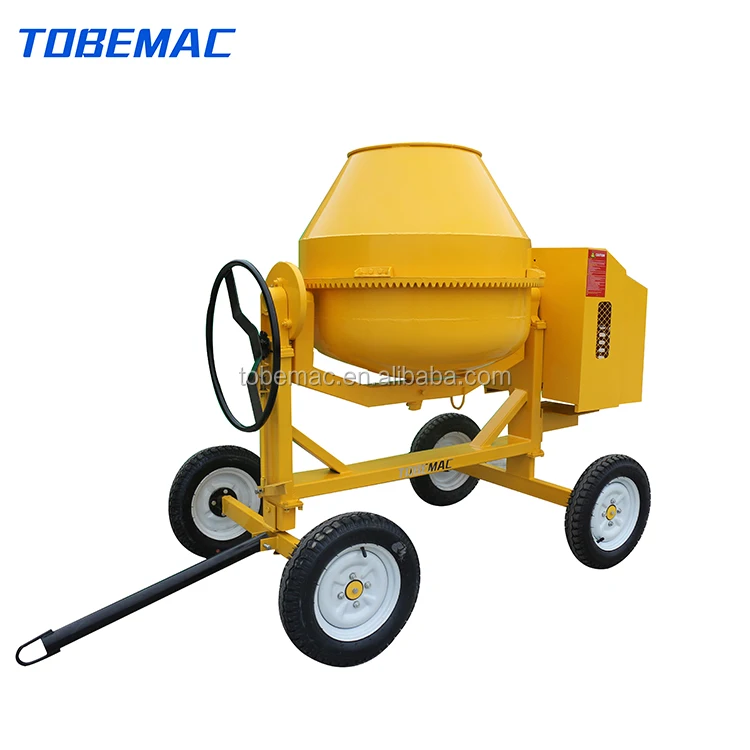

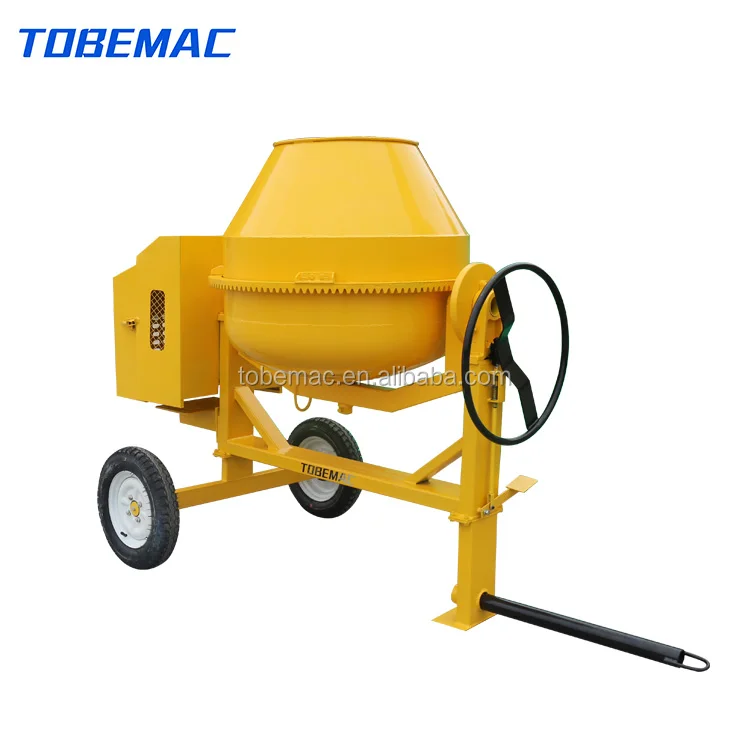

   CM500-2C  Tilting Drum Concrete Mixer with Diesel Engine Power  is a concrete mixer of Tilting drums which discharge concrete by Sterring wheel, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm.  Each time, the mixing drum can handle 0.32 cubic meters of concrete.
    The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, CM500-2C Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.

Main Features of TOBEMAC Brand 500L cement mixer concrete with diesel engine

1.All-steel construction, Mini Concrete Mixer has long life span.
2.Big wheels, It's easy to move the Mini Concrete Mixer to anywhere.

3.Diesel/gasoline/electric motor,optional as customers' requirement. Mini Concrete Mixer is powerful.
4. Cast iron gear for Mini Concrete Mixer steady and silent working.
5.Spray painted surface,colour as your request.
6.EPA certificated wheels,wheels size:520mm.
7.Guarantee time:ONE YEAR warranty
8.water supply mode:direct input
9.Discharging:semi-automatic

Mixing Drum

Material: Q235 Wear resistant Steel Plate

Details: The Drum Thickness is 3 mm,made by Q235 Wear resistant Steel Plate.  5 mm as Option.

Seamless steel tube for Chassis

The seamless Square tube is very  Strong and Durable.Easy to cope with the complex environments.

Two Square tube design available.

Cast iron Gear Ring

Each Gear Ring and Bevel Gear have been treatment by the strict lathe finishing.

It's good  for Mini Concrete Mixer steady and silent working.

Unbreakable Bow for Supportng the Mixing Drum

Name: Drum Supporting Bow
Details:Made by the Circular tube,Tube Diameter 90mm.

Single shot shaping technique.

No welding in the Corner.

Make sure the Bow doesn't break during use.

MUCH MORE STRONG AND BETTER THAN THE SQUARE TUBE WELDING BOW.

Portection Cover for Engine

Material: 1.5 mm Steel Plate
Features:Made by Steel Plate,which thickness is 1.5 mm, can protect the Engine from damaged . What's more,because of the Engine was setted in the cover, the Dust can not access the engine easily,and the engine could have a longer service life.

Option 1:Equip with Water-cooled Diesel Engine

Name: Water-cooled Diesel Engine
Brand: JIANGDONG Brand,China TOP brand.
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits. Single Cylinder, Horizontal ,4-stroke ,Water-cooled Diesel Engine

Other Brand Engine is as Option.

Option 2:Equip with Air-cooled Diesel Engine

Name: Air-cooled Diesel Engine
Brand: KAMA Brand,China TOP brand.
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits. Single Cylinder, Horizontal ,4-stroke ,Air-cooled Diesel Engine
Other Brand Engine is as Option.

Option 3 :Equip with Electric Motor(110V/220V/380V)

Name: Electric Motor
Original: China
Domestic famous Motor, strong driving force,high economic benefits.

220,60Hz,3-Phase

380V,50Hz,3-Phase

110V,60Hz,3-Phase

as option

Option 3 :Equip with Gasoline Engine

Brand:International Brand,HONDA, ROBIN,KOHLER as option

Chinese Brand available.

Bigger Tyre As Option

In order to meet the different requirement of the different ROAD condition.We provide a Update Service to our customer.Customer can choose the big tyres if necessery.

 Transmission system

Name: Power transmission by V-belt
Features: Rational Design,Power transmission by V-Belt. guarenteed the power transmission.Have a longer Service Life and Less Maintenance.

FAQ of TOBEMAC Brand 500L cement mixer concrete with diesel engine

Q: How about the quality of your products?

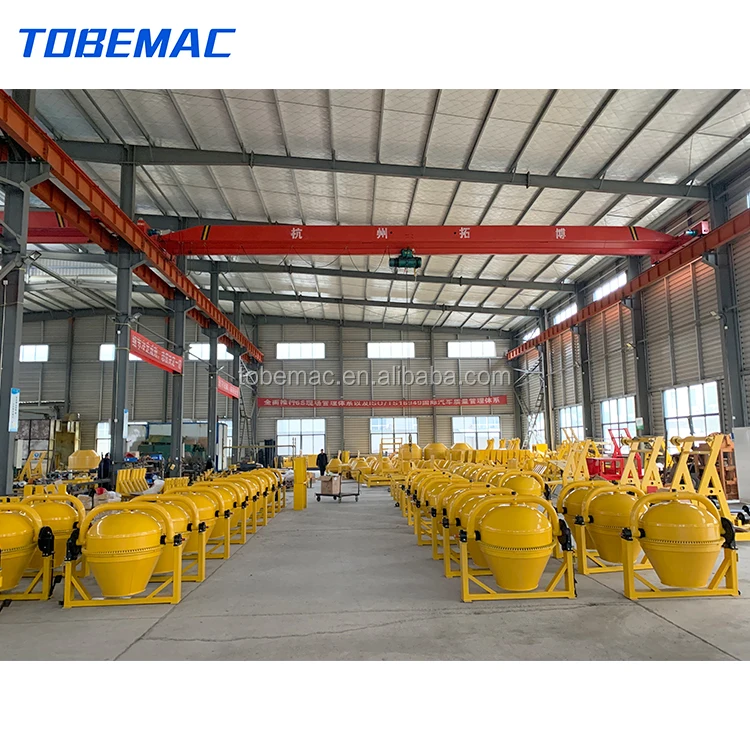

A: We are factory with more than 28years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
