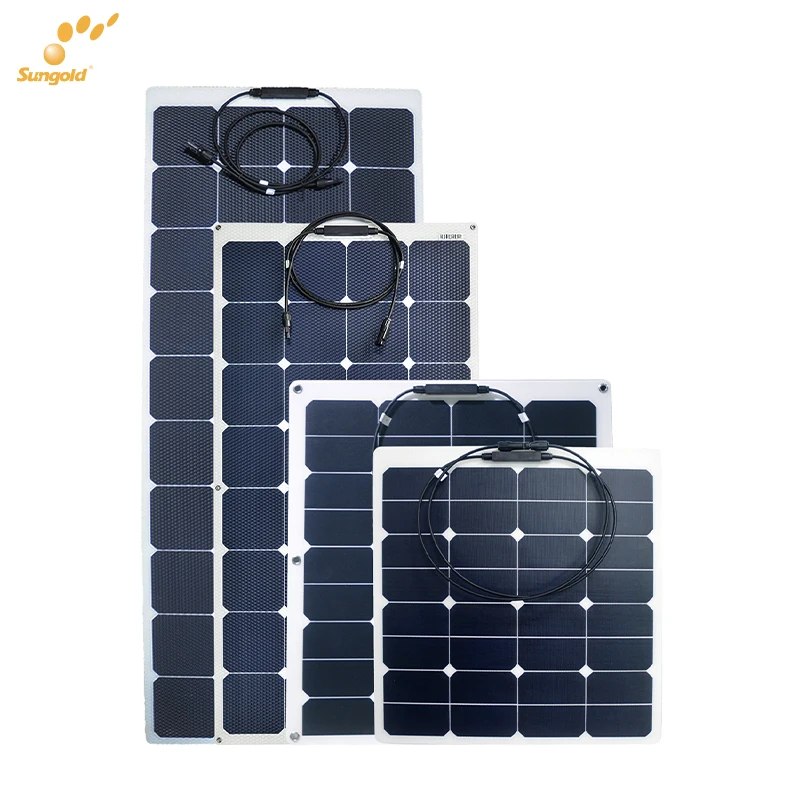

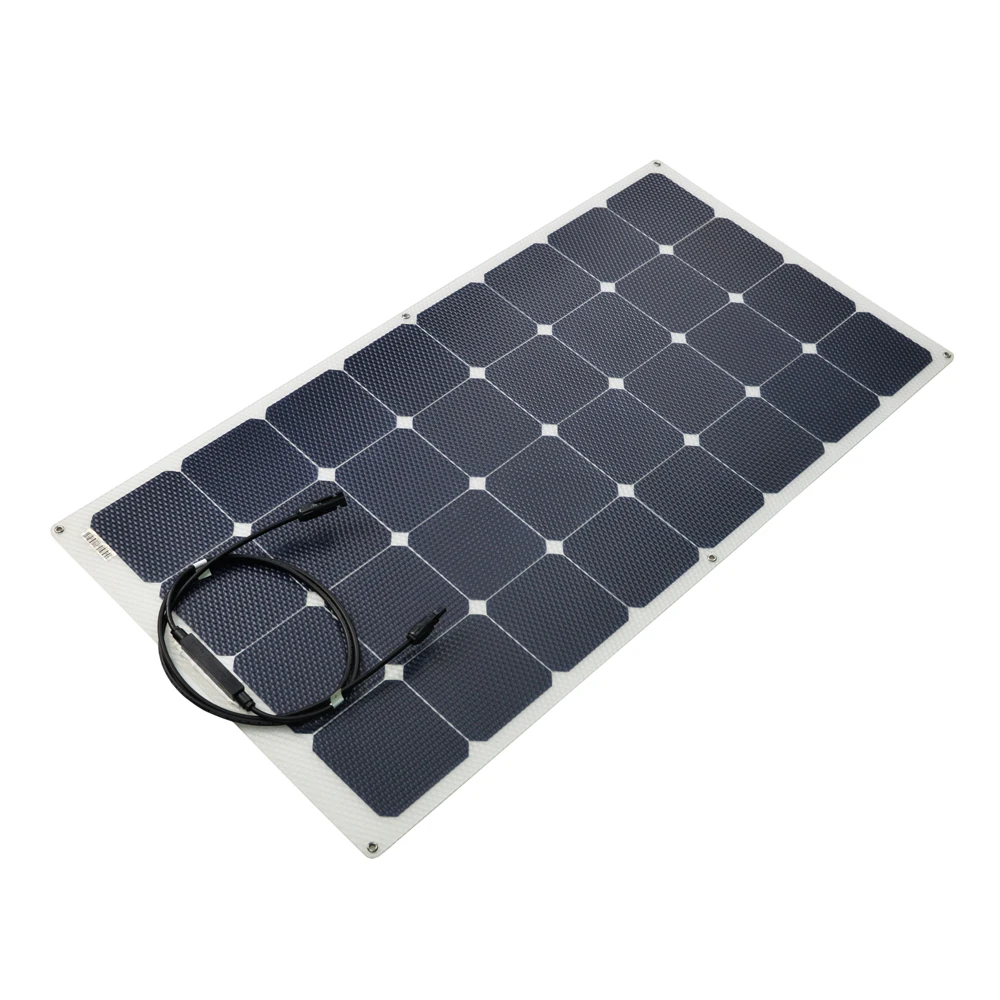

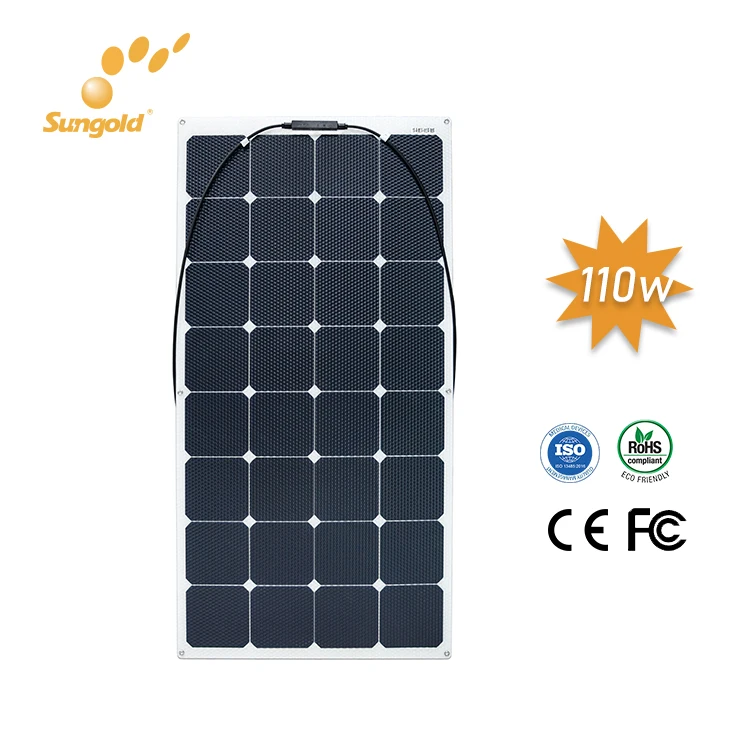

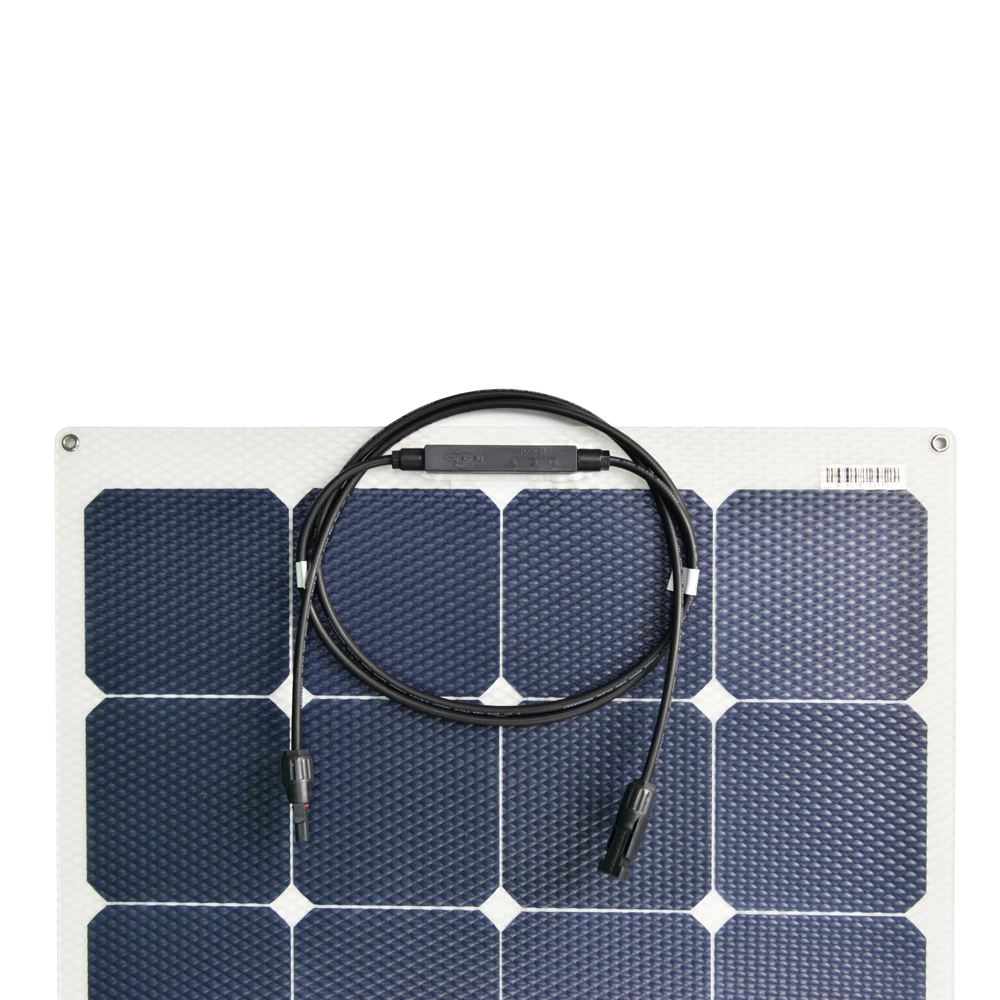

Высокая эффективность etfe Гибкая солнечная панель 200 Вт для
Высокая эффективность etfe Гибкая солнечная панель 200 Вт для
Высокая эффективность etfe Гибкая солнечная панель 200 Вт для
Высокая эффективность etfe Гибкая солнечная панель 200 Вт для
Высокая эффективность etfe Гибкая солнечная панель 200 Вт для
Высокая эффективность etfe Гибкая солнечная панель 200 Вт для
Высокая эффективность etfe Гибкая солнечная панель 200 Вт для

Высокая эффективность etfe Гибкая солнечная панель 200 Вт для


Поделиться:


Цена:0,80 $ - 0,87 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 0.92 $* 0.15 $*
Aug-20-2025 0.35 $* 0.83 $*
Jul-20-2025 0.65 $* 0.68 $*
Jun-20-2025 0.85 $* 0.47 $*
May-20-2025 0.21 $* 0.1 $*
Apr-20-2025 0.35 $* 0.93 $*
Mar-20-2025 0.75 $* 0.94 $*
Feb-20-2025 0.16 $* 0.72 $*
Jan-20-2025 0.58 $* 0.67 $*

Характеристики





product application






Product Paramenters


Specifications -SunPower series
Component Model
SP-110W
Solar cells
SunPower
Min power tolerance
±3%
Peak power(WP)
110W
Voltage at Pmax(Vmp)
18.6V
Current at Pmax(Imp)
5.97A
Open circuit voltage(Voc)
21.9V
Short circuit current(Isc)
6.32A
Max System Voltage(VDC)
45VDC
cell Efficiency
22.60%
Temperature Coefficient of Pmax
-0.32%/℃
Temperature Coefficient of Voc
-1.8mv/℃
Temperature Coefficient of ISC
-0.06%/℃
Nominal Operating Cell Temperature
45+/-2℃
Type of Connector
MC4 Connector
Weight
2.18KG
Dimension
1070*540*3mm
Operating Temperature
-10℃~60℃
Data under standard testing conditions(STC):1000W/M²; 1.5AM
Warranty:For 1 year and service life of 5 years.


Details Images








Products Description


SunPower Solar cells

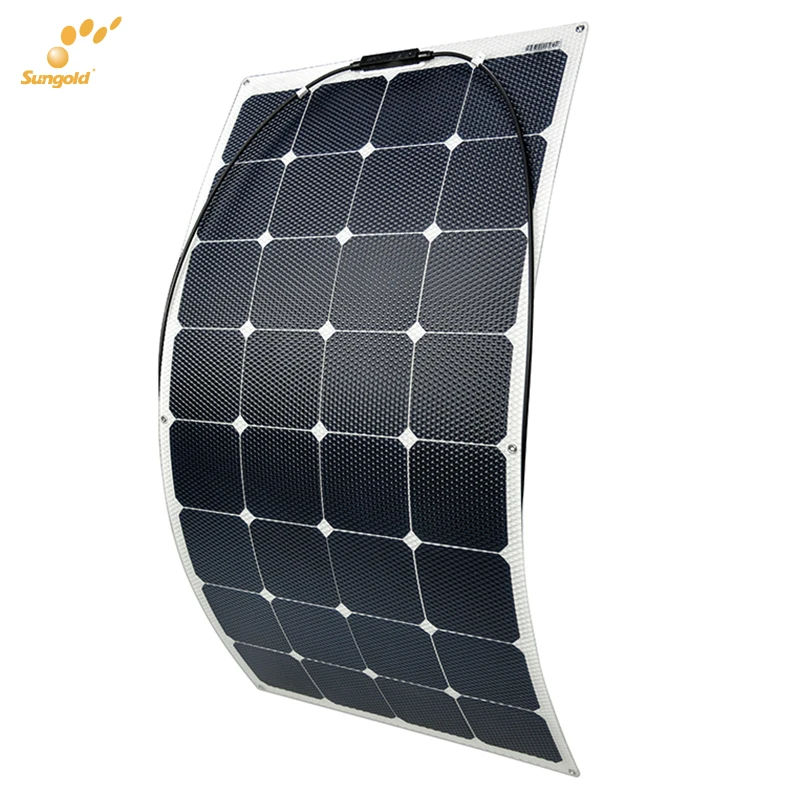

It can be mounted on many irregular surfaces.




product superiority






Collocation application
Semi flexible solar panel widely used in the field of Electric Golf Car,Patrol Car, Travel Tourism Car,Yacht,Roof Power generation, Tent ect




ETFE VS PET
MATERIAL
ETFE (Ethylene Tetrafluoroethylene)
PET (Polyethylene terephthalate )

COMBINATION
Ultra lightveight and durable the combination between ETFE and back sheet is much stronger than PET
ICombination of ETFE and back isheet cracks easily, is not durable.iand also not waterproof

THICKNESS
Includes a 0.025m thin, UV resistan ayer of protection. Total thickness less than 0.1mm
0.15mm thick. Solar cells break easily cue to low hardness.

LIGHT

95% transparency offers excellent efficiency in
90% to 93% transparent results in lower efficiency in
TRANSMISSION
Tems of light to electricity conversion
Terms of light to electricity conversion.

SURFACEADHESION
ETFE has non-adhesive surface roperties. Highly stain-resistant ang easily gets cleaned by the rain
Adhesive surface often gets covered with just or other debris, significantly affecting the output of solar panel.

LIFETIME

Lifetime of 10 years. Resists laging deteriorates slowly
Lifetime of at most 5 years. Easily iforms air pockets and peels off.

CORRODIBILITY
Lighly resistant to seawater corrosion.
Not acid and alkall resistant, making it.otally unsuitable for use in marine ienvironment

FLAMMABILITY
Highly fame retardant Suitable for use in . mperatures ranging from|65°C to +150°c Can be installed |safely in hot cimates.
Highly fame retardant Suitable for iuse in . mperatures ranging from65%℃ to +150°C Can be installed isafely in hot cimates.

APPLICATIVE EFFECTS
Absorbs sunlight. Does not refect it,
Reflects a large amount of sunlight.producing glare and creating itraffic risks to cars and airplanes


Our Advantages








Certifications




Exhibition




FAQ




1) Q:The price is too expensive, why?
We choose the best material to make it.such as flexible solar panel,we use SunPower A grade Cells,all of them are imported from the USA,we insist on the development of quality

2)Q:What is the payment term?
100% T/T in advance 30% T/T in advance balance before shipment when your order over 10000usd

3)Q:Why the delivery time is too long
It depend on your quality of order and product type: If you only need a sample,we can send you soon.

4)Q:What is mono and poly panels?
The panel use mono-crystalline and poly-crystalline

5)Q:What is the difficient of mono and poly
The cells conversion efficiency is different the mono cells is higher than the poly cells mono is 20.6%,poly is 18.3% so mono panel more expensive than poly panel

6)Q:What is the warranty of the panel
Mono panel and poly panel is 10-years warranty materials technology,90% 10-years and 80% 25-year power output guarantee.flexible panel is 1year,lifetime is 5 years May customers bought from 2012,still use it

7)Q:What is the package of the flexible panel?
1 pcs put in a bubble bag and one carton, 10pcs put in bigger carton,then wooden pallet

8)Q:How many workers about Sungold
Almost 300

9)Q:Do you have any certificate on the panels?
CE/ROHSISO

10)Q:Can you do OEM fro my panels
Yes,we support OEM and ODM
