2-ядерный витой желтый ROV кабель нулевой плавучести плавающий незаменимы для наружных осветительных
- Категория: Power Cables >>>
- Поставщик: Shanghai,Dingbai,Wire,&,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.30 $* |
| Aug-16-2025 | 0.75 $* | 0.7 $* |
| Jul-16-2025 | 0.16 $* | 0.62 $* |
| Jun-16-2025 | 0.37 $* | 0.82 $* |
| May-16-2025 | 0.53 $* | 0.19 $* |
| Apr-16-2025 | 0.9 $* | 0.23 $* |
| Mar-16-2025 | 0.74 $* | 0.72 $* |
| Feb-16-2025 | 0.94 $* | 0.77 $* |
| Jan-16-2025 | 0.17 $* | 0.37 $* |
Характеристики
The tether is a high performance tether specifically designed for remote submersibles and other subsea applications and is lightweight, high strength, and optimized for delivery. It has neutral buoyancy, 1550N of breaking strength, and is embedded with water blocking fibers to seal off any leaks. The tether has a diameter of 4.0 mm and is much thinner than most ROV tethers.

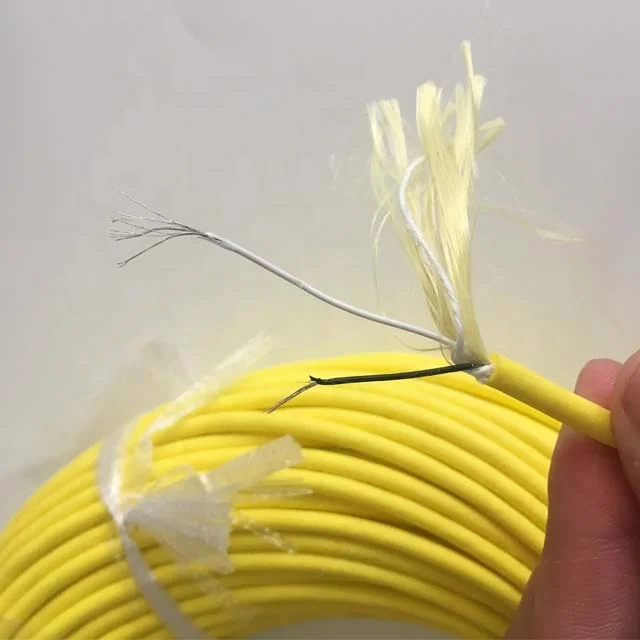

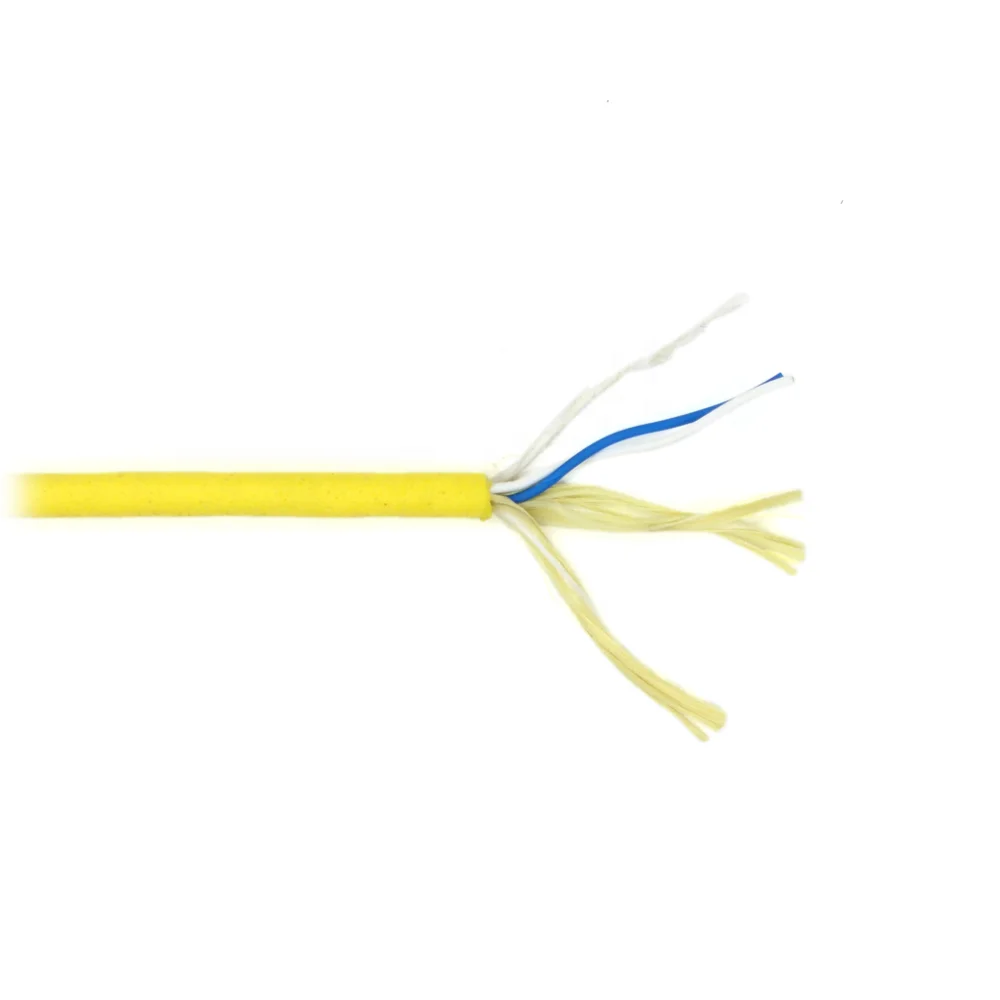

The tether has an unshielded twisted pair (UTP) with a 28 AWG wire. The core of the cable contains Kevlar lines for strength and polyester threads for space filling. Both fibers are impregnated with a water repellent compound to prevent any leakage caused by nicks or cracks in the cable. The high visibility yellow polyurethane foam jacket resists wear and provides neutral buoyancy.
Application:
It is suited for powering and controlling robotic cleaning
systems in swimming pools like Rov tether and aquarium
facilities as well as marine applications and submersible
environmental pumping systems.
Product parameters:
Name | ROV Tether | ||
N0 | DINGBAI10300 | ||
Specification | 2*28AWG | ||
Characteristic | Fresh water neutrally buoyant , waterproof, wear-resistant, tensile | ||
Certification | ROHS,CE | ||
Cable Construction | |||
Conductor | Material | Tinned copper wire | |
Structure | 11/0.1mm | ||
Insulation
| Material | PE | |
Structure | Double twist | ||
Core division | Black and White | ||
Filler | 10*Kevlar +2* cotton thread | ||
Around | Non-woven fabric | ||
Shielding layer | / | ||
Work strength | 350N | ||
Breaking strength | 1550N | ||
Jacket
| Material | Foaming TPU | |
colour | yellow | ||
Cable diameter | 4.0±0.1mm | ||
Voltage | 300/500V | ||
Job depth | 200M | ||
weight | 0.012kg/m | ||
Minimum bending radius | When the stroke is <10 meters, the bending radius is 8*D When the stroke is >10 meters, the bending radius is 10*D | ||
Related Products:
1.ROV CABLE 2*2*26AWG
2.ROV CABLE 4*2*26AWG
Customer Reviews:
Every order, we will do it with our heart.
