GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00

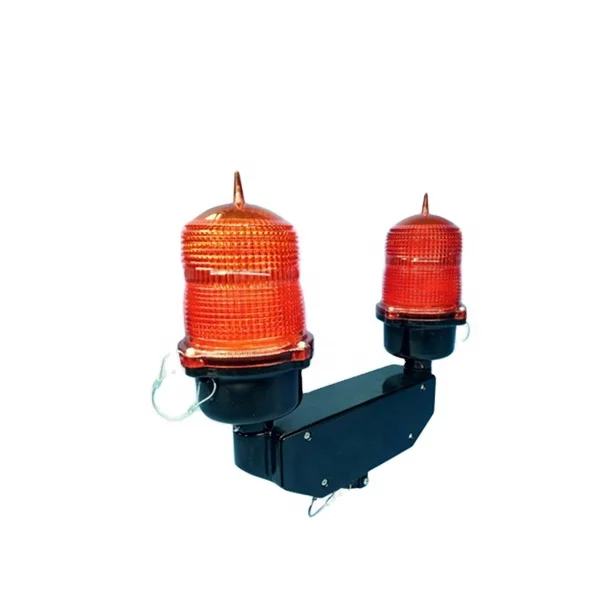

DL10D светодиодные низкоинтенсивные Двойные огни для защиты от авиации лампа летательных
- Категория: LED-огнеупоры предупреждения о препятствии для ЛА >>>
- Поставщик: Shanghai,Lansing,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.40 $* | 0.23 $* |
| Aug-16-2025 | 0.54 $* | 0.26 $* |
| Jul-16-2025 | 0.6 $* | 0.26 $* |
| Jun-16-2025 | 0.3 $* | 0.54 $* |
| May-16-2025 | 0.90 $* | 0.80 $* |
| Apr-16-2025 | 0.12 $* | 0.7 $* |
| Mar-16-2025 | 0.21 $* | 0.10 $* |
| Feb-16-2025 | 0.54 $* | 0.10 $* |
| Jan-16-2025 | 0.65 $* | 0.41 $* |
Характеристики
![VCULHAOJ[JQ24IO~{WB]}59.jpg](http://sc01.alicdn.com/kf/HTB1vbTMX._rK1Rjy0Fcq6zEvVXa9/225542675/HTB1vbTMX._rK1Rjy0Fcq6zEvVXa9.jpg)
![]WE[})YFL)(]90P[ER~][JR.jpg](http://sc02.alicdn.com/kf/HTB1pA6SX6zuK1RjSsppq6xz0XXa5/225542675/HTB1pA6SX6zuK1RjSsppq6xz0XXa5.jpg)
Specifications:
LIGHT OUT-PUT | DL10DST(Double) | DL10DSS(Double) |
Effective Intensity | 10 Candela | 10 Candela |
Vertical Divergence | 10 Degree | |
Horizontal out-put | 360 Degree | |
LED Color | Red | |
LED Lifespan | 100,000 Hours | |
OPERATION | ||
Flash Pattern | Steady burning or Flashing(20-60times/min) | |
POWER SUPPLY | ||
Input voltage | 85-265VAC;12VDC,20-60VDC | |
Frequency | 50Hz ~ 60Hz | |
MECHANICAL STRUCTURE | ||
Lens | Polycarbonate, UV Stabilize | |
Body | Die-casting Aluminum | |
Water-proof | IP65 | |
Weight | 3.5kg | 3.5KG |
Dimensions | 340mmx413mmx140mm | 340mmx413mmx140mm |
Mounting Size | Threaded 3/4'' bottom hub | |
Temperature Range | -40℃ ~ +55℃ | |
Relative humidity | 100% with condensation | |
Wind speed | Up to 150mph(240kph) | |
Warranty | 5 years | |
Optional | Available in flashing pattern(40FPM) | |
Order Codes
| Series | Double | AC/DC | Voltage | Flashing | Photosensor | Alarmrelay | Pattern(For double light only) |
DL10D | D | A | 12 | F | P | R | ST |
|
|
| 24 |
|
|
| SS |
|
|
| 48 |
|
|
|
|
|
|
| 110 |
|
|
|
|
|
|
| 220 |
|
|
|
|
