China Factory Fireproof Waterproof MGO Board Production Line
1.The MgO board is environmental friendly, high fireproof and waterproof, can be painted, laminated. nailed and sawn. It is widely used for ceiling, wall panel, decorating of indoor wall and lining board for furniture.
MgO board can replace three-ply board, five-ply board, flakeboard, MDF (Medium Density Fiberboard ) and Gypsum Board.
2.MgO Board performance: A. Oxygenic index%: >90 B. Level combustion: SO C. Vertical combustion: SO D. Water content rate: 10.9% E. Capacity: 1.15g/cm3 F. Static bending intensity: 169.46Mpa G. Density: T/ m3 1.13 H. Water resistance: Without chalking for 24 hours and there is no change on surface I. No “Three-wastes” (waste water, waste gas and waste residue), no pollution and environmental protection
Mgo board specifications:
thickness
3-20mm
length*width
2440*1220mm
2400*900mm
3000*1200mm
2750*1200mm
Detailed Images

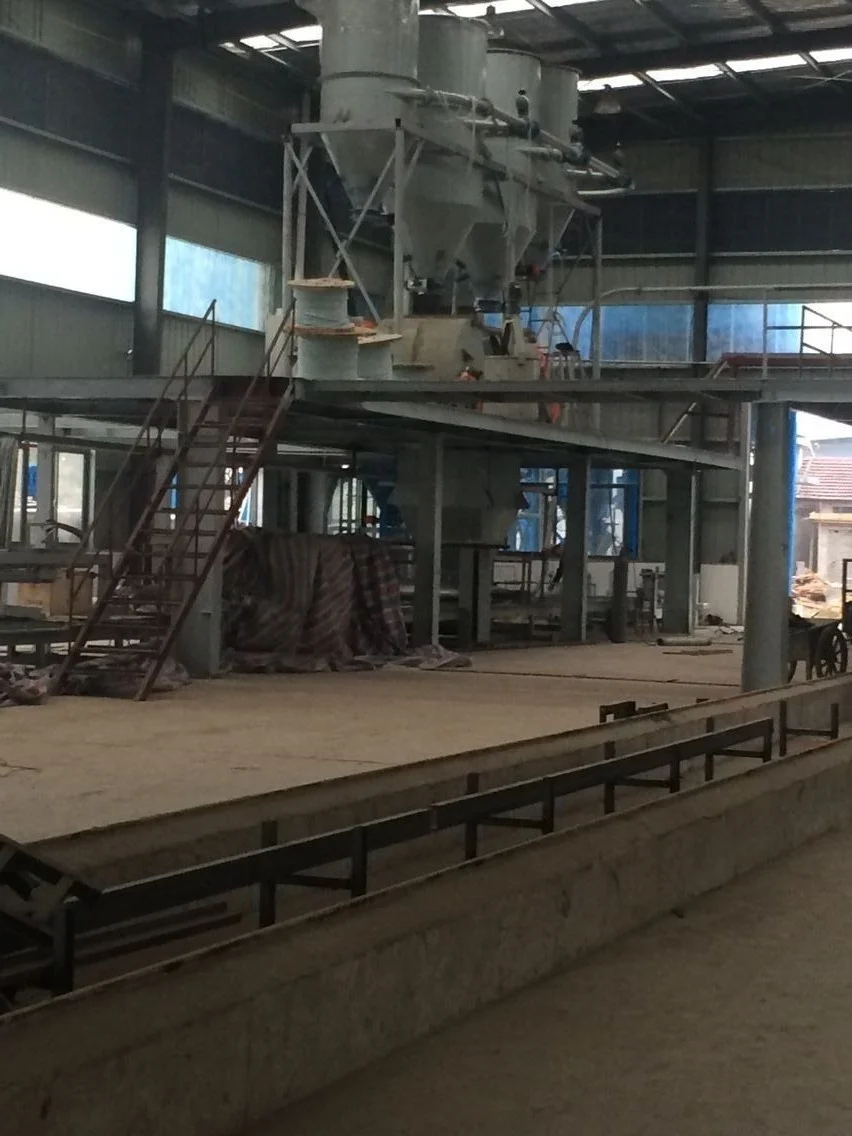

1.Batching system
The agitator mixes liquid and solid raw material. It feeds mixed slurry into forming system, providing slurry for forming system.

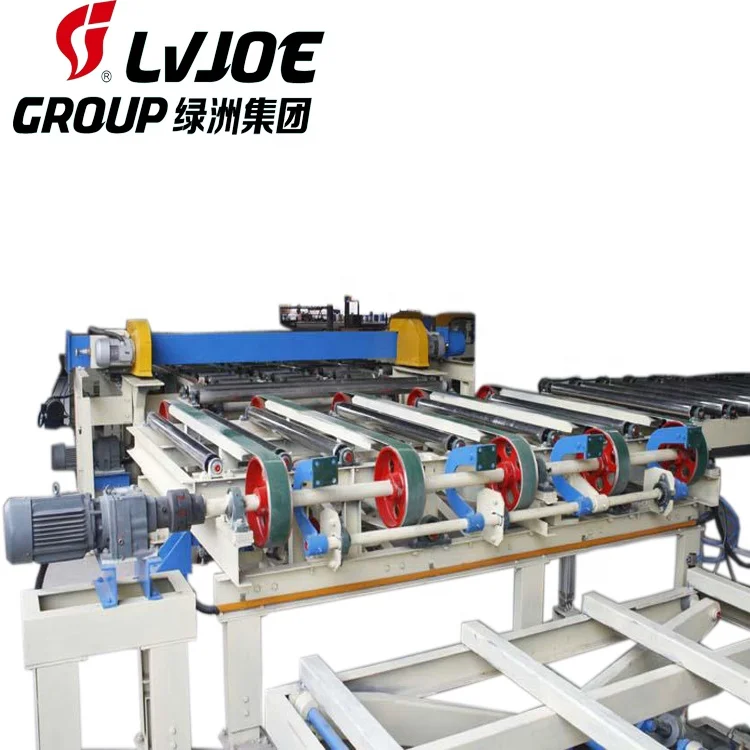

2.Forming line and batching platform
The forming line is the mainframe for the whole line. Mixed wet slurry is fed onto moulding board moving with constant speed, via a storage tank and feeder.

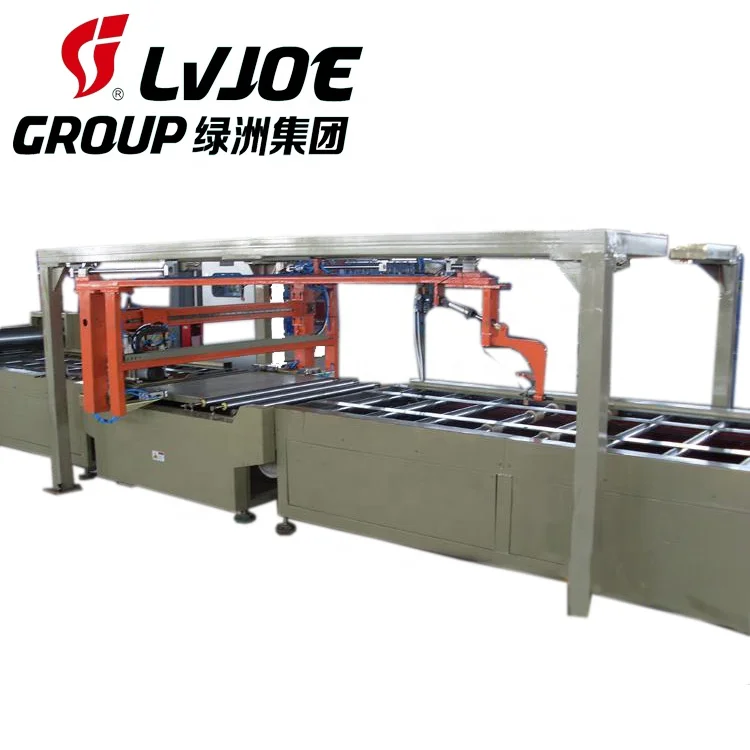

3.Demoulding machine
This demoulding machine separately absorbs MgO boards and mould board with a vacuum device. It puts MgO board and mould into respective stacking machine separately.
HOT

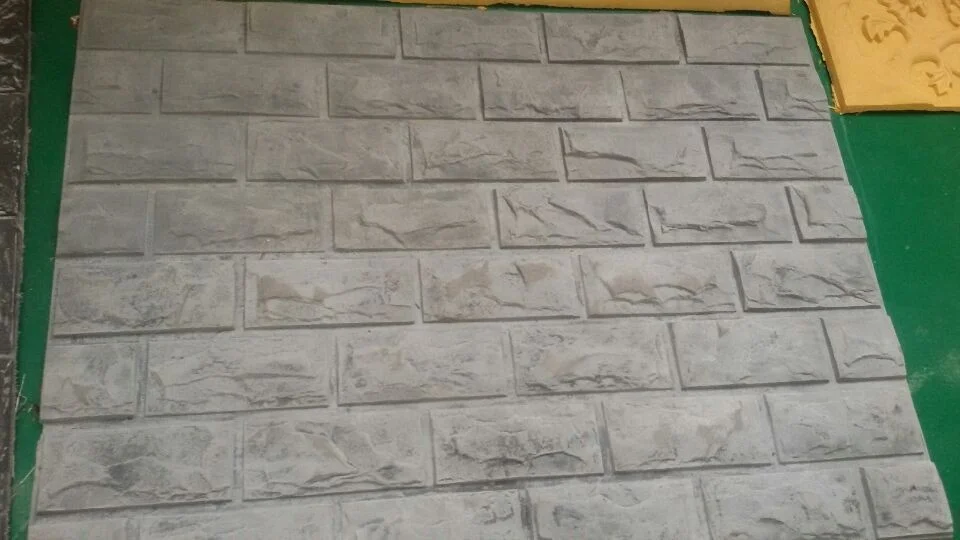

Finished MGO Board Pictures
MGO Board Application
Our Services
We can offer the services of design, producing, installation,training, as well as turnkey project for customers.
Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer dedicated in research, manufacturing, and trading of building material machinery. We are a company credited and honored by the HEBEI provincial government, with high-tech enterprise certificate issued by the state, national patent licenses, CE quality system certification issued by the EU, and ISO9001 quality system certification.
Our core products include paper faced gypsum board production lines, gypsum board laminating machines, MgO board production lines, and calcium silicate board production lines. Our products are exported to Southeast Asia, Europe, America, The Middle East, and Africa. LVJOE has 300 employees, including 6 professor level senior engineers and over 40 senior technical staff.
