Factory price Communication Cable low loss 50ohm 7 / 8 RF Feeder coaxial Flexible


Поделиться:


Цена:182,11 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 217.3 $* 228.2 $*
Aug-18-2025 215.35 $* 226.96 $*
Jul-18-2025 180.91 $* 189.33 $*
Jun-18-2025 211.80 $* 222.79 $*
May-18-2025 184.16 $* 193.95 $*
Apr-18-2025 207.18 $* 217.31 $*
Mar-18-2025 206.77 $* 216.13 $*
Feb-18-2025 204.22 $* 214.7 $*
Jan-18-2025 202.88 $* 212.20 $*

Характеристики

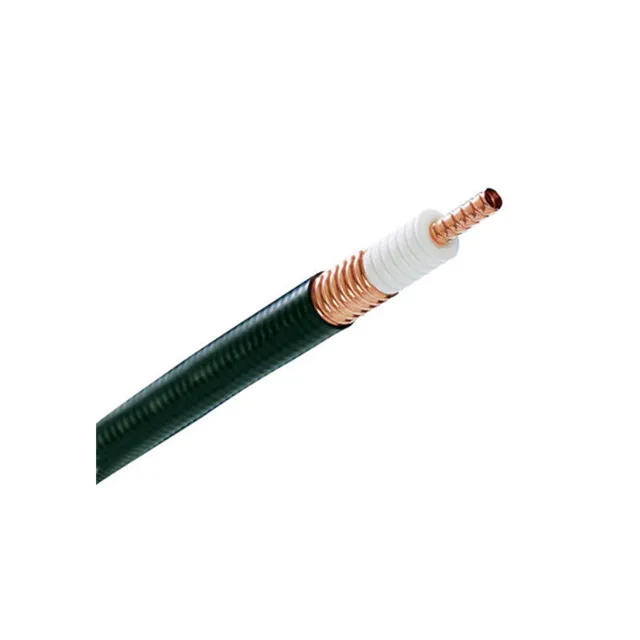

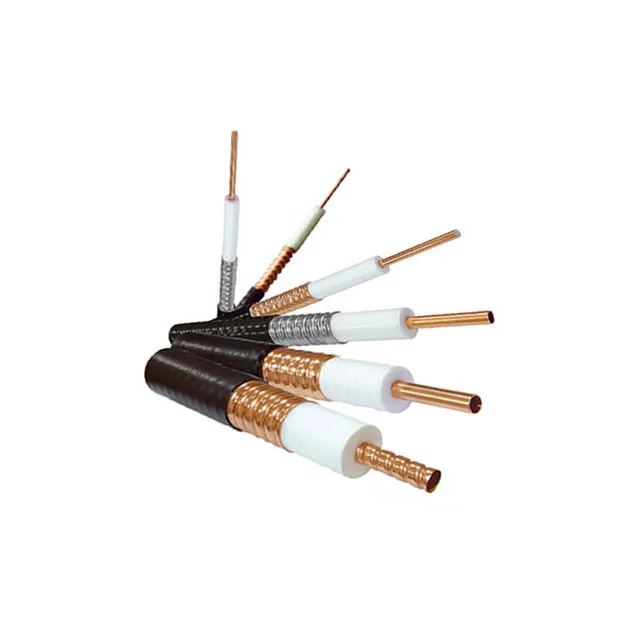

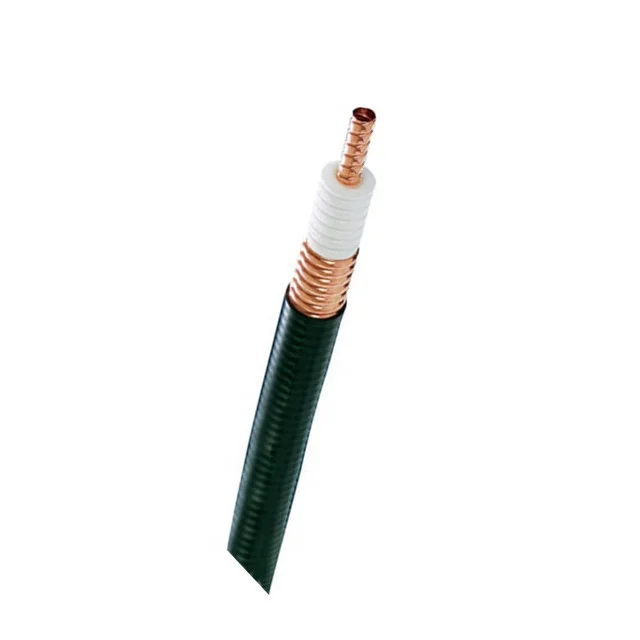

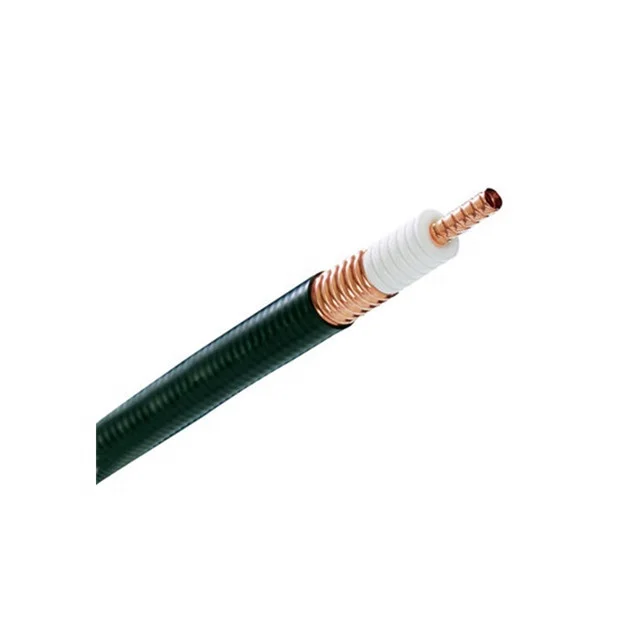

RF feeder cable

RF feeder cable is a type of coaxial cable that has an inner conductor surrounded by a tubular insulating layer,surrounded by a tubular conducting shield with an insulating outer sheath or jacket.RF feeder cable is low loss physical foamed insulated 50ohm corrugated copper tube series coaxial cable. RF feeder cable is used as a transmission feed line for radio frequency signals connectinB radio ffansmitters and receivers with their antennas. RF Coaxial.cable also provides protection of the signal from

Construction
Inner
 Conductor
Material
Smooth copper tube
Diameter(mm)
8.80±0.10

Insulation
Material
Physically foamed PE
Diameter(mm)
22.50±0.40
Outer
conductor
Material
Ring corrugated copper
Diameter(mm)
24.90±0.30

Jacket
Material
PE or fire retardant PE
Diameter(mm)
27.30±0.20
Attenuation and average power
      Frequency
    MHz
Nom. attenuation
@20℃,dB/100m
Power rate
@20℃,kW
10
0.37
24.6
100
1.19
7.56
450
2.65
3.41
690
3.35
2.85
800
3.63
2.48
900
3.88
2.33
1000
4.12
2.19
1800
5.75
1.57
2000
6.11
1.48
2200
6.45
1.41
2400
6.79
1.34
2500
6.95
1.30
2600
7.12
1.27
2700
7.28
1.25
3000
7.76
1.16
Detailed Images
Packing & Delivery
Related Products
Our Company

HeFei HTMICROWAVE Technology CO.,LTD is a new and high-tech enterprise which focus on Microwave Technology Research, RF Microwave Component and System Industry Development. We are a global and professional manufacturer and system integrator provider for Wireless Network Coverage and optimization solutions.

Our main products are Power Splitter, Directional Coupler, 3dB Hybrid Coupler, Hybrid Combiner, RF Coaxial Attenuator, Dummy Load, Cable Assembly, Connector and Adapter, RF Antenna, Filter, Duplexer and Triplexer. Customers' designs (OEM / ODM) are also available.

With years of export experience along with excellent quality, advanced service and competitive prices, our company has won numerous customers' trust and support. We welcome worldwide customers to contact us for further discussion and cooperation.


Certifications
FAQ

1.Can we get a free sample firstly?
Yes,free sample for approval is available to our customers.

2.Are you a trader or manufacturer?
We are manufacturer in the filed of RF components with over 28 years.

3.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.

4.OEM/ODM Service is available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service.

5. What's your company advantage?
We have our own R&D, production, sell and the rich experience technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.

6.Please let us know more details about Trade Terms, Payment Term and Leadtime.
Payment Terms: 100% TT in advance before shipment, Paypal and Western Union for the sample order
Trade Terms:FOB Shanghai/Ningbo/ShenZhen,CIF.
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,1-3 Business Days; Mass production, 7-15 Business Days after the deposit.

7.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintanence service, just charge components cost fee and labor fee.
