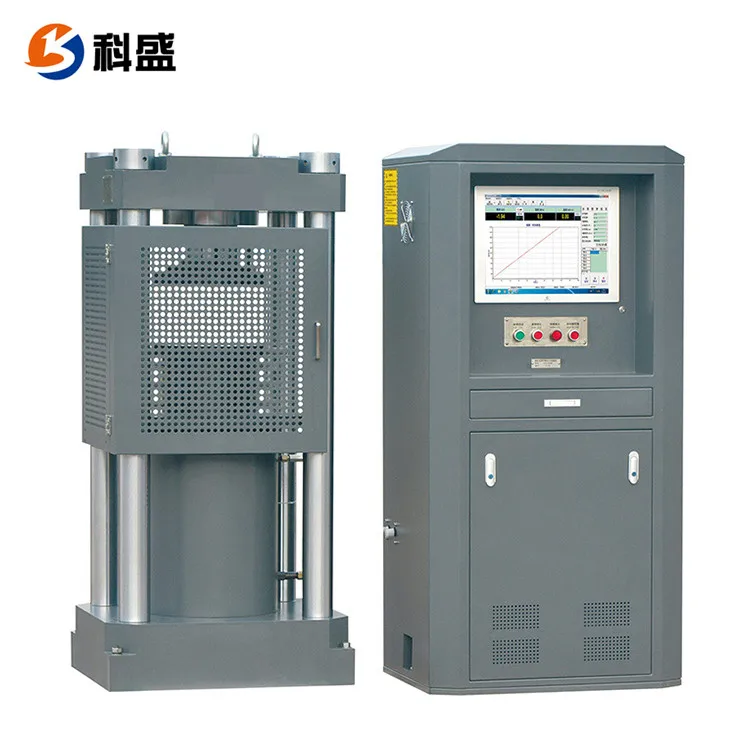

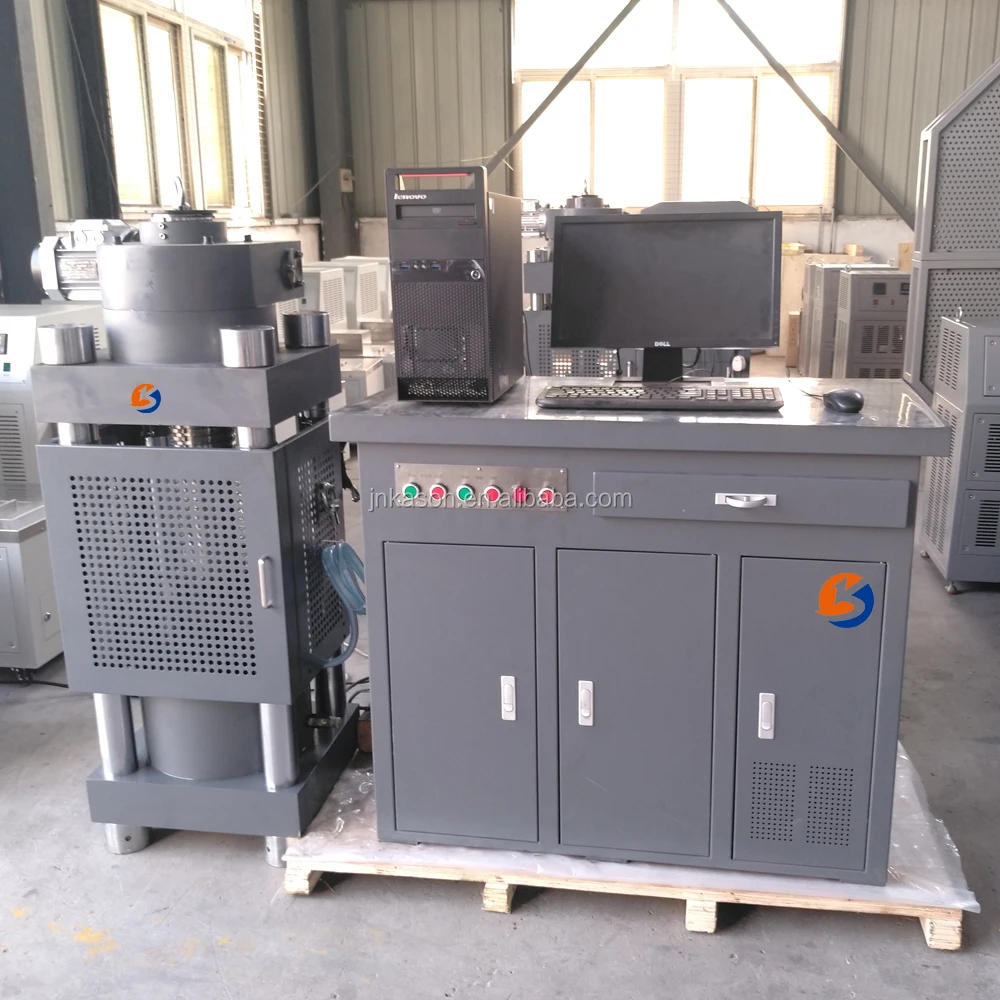

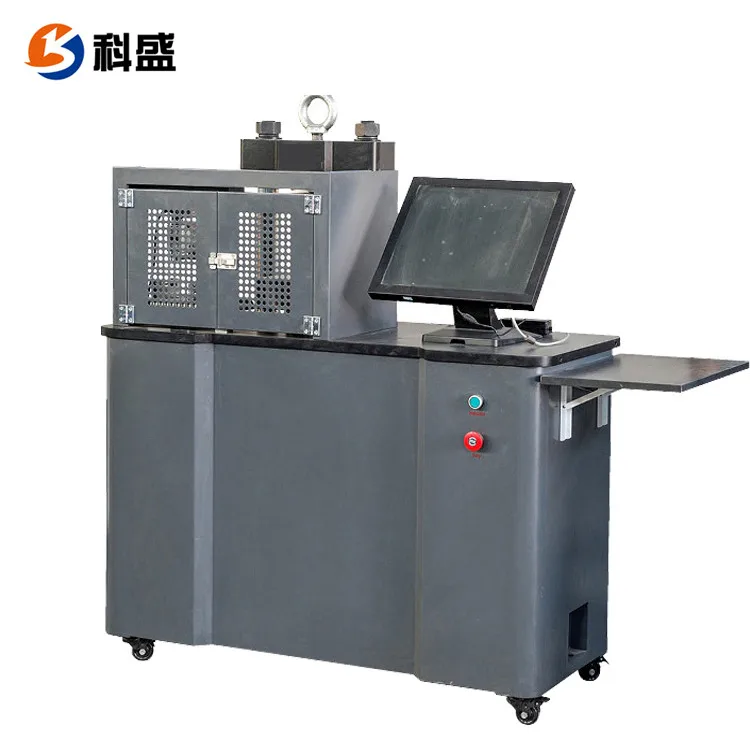

YAW-G Computerized Electronic Brick Cube Flexural Compressive Testing Machine, Concrete Cube Test Machine



1. Application:

This Series testing machine is mainly used for the the compressive strength and compressive properties test of brick, stone, cement, carbon, concrete oil proppant and other materials.

This machine is specially designed for the customers group who have high requirements for test process and continuous working time.

Widely used by water conservancy department, carbon materials research, oil exploration, colleges and universities and other institute.

2.Standard:

Meet standard GB/T2611-2007 General Requirements For Testing Machines

GB/T16491-2008 Electronic Universal Testing Machines

3. Feature:

3.1 High AC servo motor to drive the precise screw operation

3.2 Control system can realize constant stress, constant displacement, constant deformation and various models of automatic control and any programming control

3.3 Host underneath, clamping sample quickly

3.4 The machine all steel forging high strength, good resistance to fatigue

3.5 AC servo motor and precious screw complete accurate control; Load cell measures load precisely.

3.6 AC servo motor load without overheating, low noise

3.7 Peak value holding, automatic saving and printing

3.8 Automatically check all the related history record according to the test condition, test date and test data

3.9 Automatic overload protection stop When the load more than full range 2% to 5%



4. Technical parameter :

Model	YAW-100G	YAW-200G	YAW-300G
Max.Load	100KN	200KN	300KN
Test class	1class
Structure	Floor type
Control way	Constant stress and constant strain, constant displacement closed loop control mode
Load range	2%-100%FS
Load accuracy	Better than ≤±1%
Displacement value accuracy	Better than ±0.5%
Displacement value resolution	0.005mm
Displacement rate control adjusting range	0.005~25mm/min
Effective compression stroke	80mm
Max distance between upper and lower plate	220mm
Central distance between the two columns	350mm
Size of upper and lower platen	Dia 140mm
Power	220V, 1.5kW, 50Hz



5.Configuration:

5.1 High strength main unit -1 set

5.1.1High precision arc synchronous gear system--1set

5.1.2 High efficient speed reducer--1set

5.1.3High precision ball screw vice--1set

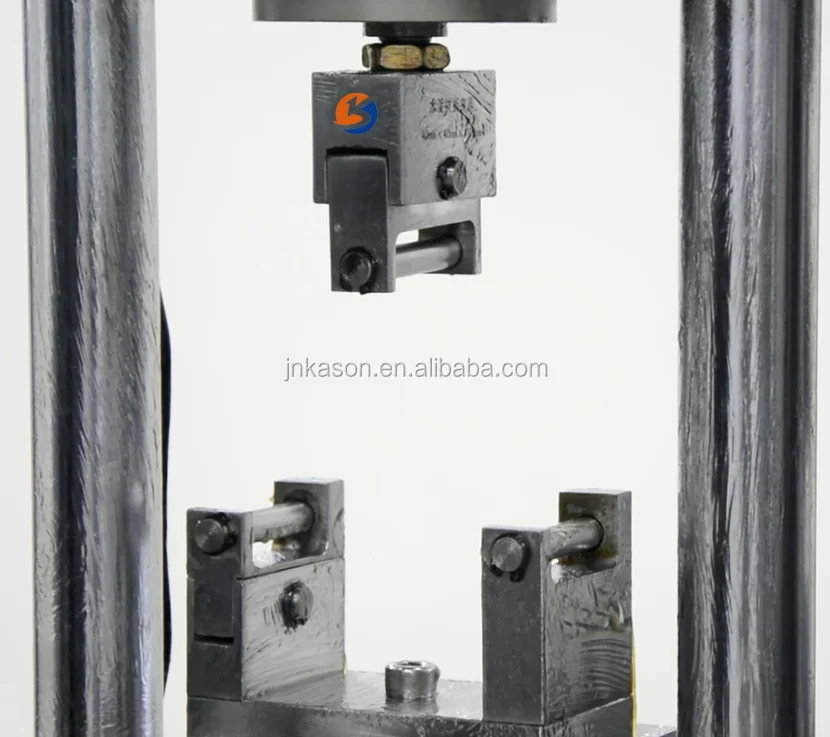

5.1.4 Special compression fixture-- 1set

5.15 Dustproof cover--1 set

5.2 measurement and control system--1set

5.2.1High-precision photoelectric encoder-1pc

5.2.2 AC servo control system--1 set

5.2.3AC servo adjusting speed motor--1set

5.2.4 High precision spoke type sensor--1pc

5.2.5 LENOVO computer--1set

5.2.6 HPA4 printer--1set

5.2.7Special measurement and control system--1set

5.2.8 Special software under Windows operating environment---1set
