SSUCPA205A все подшипники из нержавеющей стали с резьбовым
- Категория: Pillow Block Bearings >>>
- Поставщик: Shanghai,Chenghui,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10.14 $* | 11.22 $* |
| Aug-17-2025 | 9.2 $* | 9.58 $* |
| Jul-17-2025 | 8.83 $* | 8.28 $* |
| Jun-17-2025 | 9.60 $* | 9.11 $* |
| May-17-2025 | 8.44 $* | 8.15 $* |
| Apr-17-2025 | 9.59 $* | 9.77 $* |
| Mar-17-2025 | 9.6 $* | 9.22 $* |
| Feb-17-2025 | 9.85 $* | 9.24 $* |
| Jan-17-2025 | 9.31 $* | 9.1 $* |
Характеристики

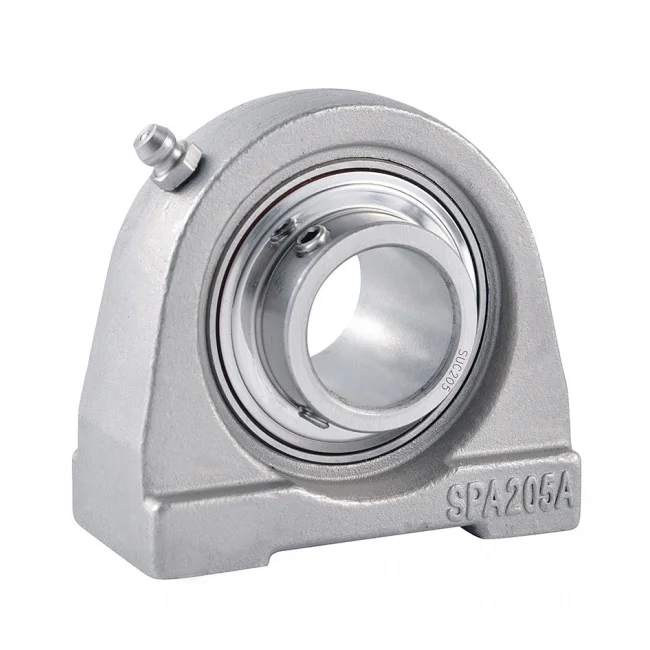

SSUCPA205A All Stainless Steel Tapped Base Pillow Block Bearings
304 Inch Based Housing, 420 Bearing Insert, Set Screw Locking
Features
- Housing: SUS304
- Bearing race and ball: SUS420
- Bearing retainer: SUS304
- Standard Seal: Nitrile Rubber
- Slinger, Grease Nipple, Set Screw: SUS304
- Grease : Chevron SRI-2
- Working Temperature range: -20°C to +90°C ( -4°F to + 248°F )
Specifications
d - bore | 25 mm |
| H | 36.5 mm |
| L | 76 mm |
| J | 50.8 mm |
| H0 | 71 mm |
| A | 38 mm |
| B | 34.1 mm |
| S | 14.3 mm |
| Bearing No | SUC205 |
| Housing No | SPA205 |
| Weight | 0.77 kg |
SSUCPA200A Stainless Steel Tapped Base Pillow Blocks
| Unit No. | Shaft | Dimensions(mm) | Bolt | Weight | ||||||||
| d | H | L | J | A | G | H1 | Ho | B | s | Size | kg | |
| SSUCPA204A | 20 | 33.3 | 73 | 50.8 | 38 | 13 | 12 | 65 | 31 | 12.7 | 3/8"-16 | 0.69 |
| SSUCPA205A | 25 | 36.5 | 76 | 50.8 | 38 | 13 | 12 | 71 | 34.1 | 14.3 | 3/8"-16 | 0.77 |
| SSUCPA206A | 30 | 42.9 | 102 | 76.2 | 38 | 16 | 12 | 86 | 38.1 | 15.9 | 7/16"-14 | 1.33 |
| SSUCPA207A | 35 | 47.6 | 108 | 82.6 | 48 | 19 | 13 | 95 | 42.9 | 17.5 | 1/2"-13 | 1.72 |
| SSUCPA208A | 40 | 49.2 | 117 | 88.9 | 48 | 19 | 13 | 100 | 49.2 | 19 | 1/2"-13 | 2.09 |
| SSUCPA209A | 45 | 54.2 | 127 | 95.3 | 51 | 19 | 13 | 108 | 49.2 | 19 | 1/2"-13 | 2.5 |
| SSUCPA210A | 50 | 57.2 | 140 | 101.6 | 51 | 22 | 14 | 117 | 51.6 | 19 | 5/8"-11 | 3.1 |
