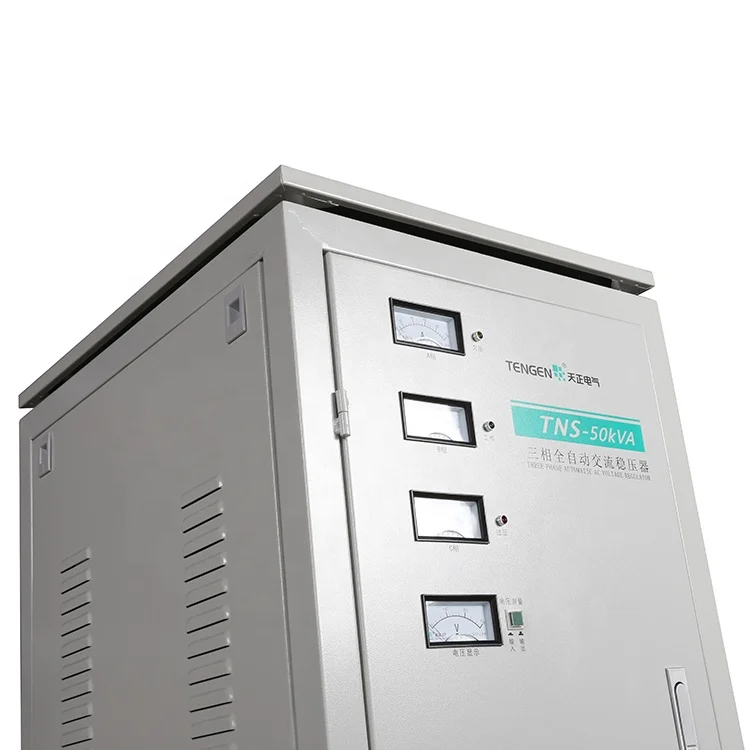

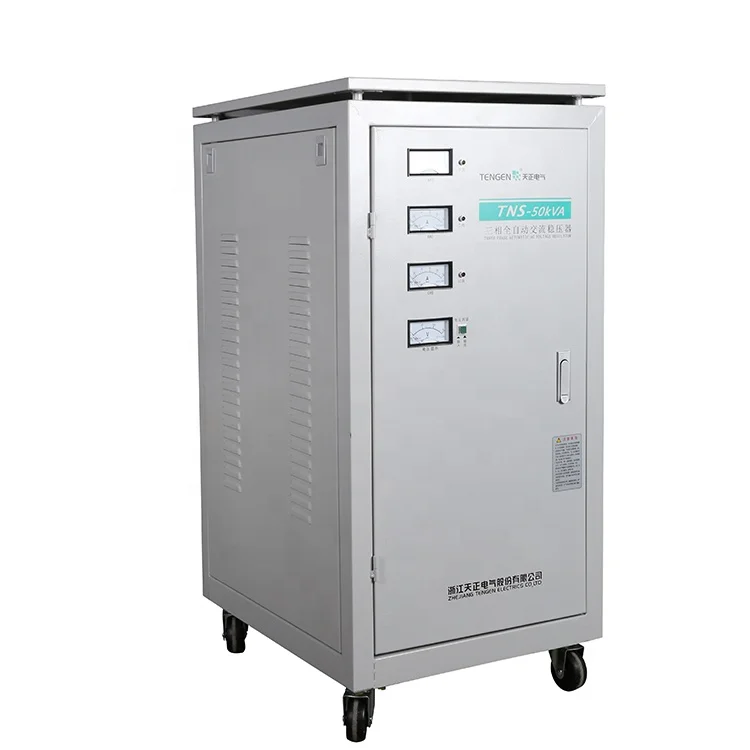

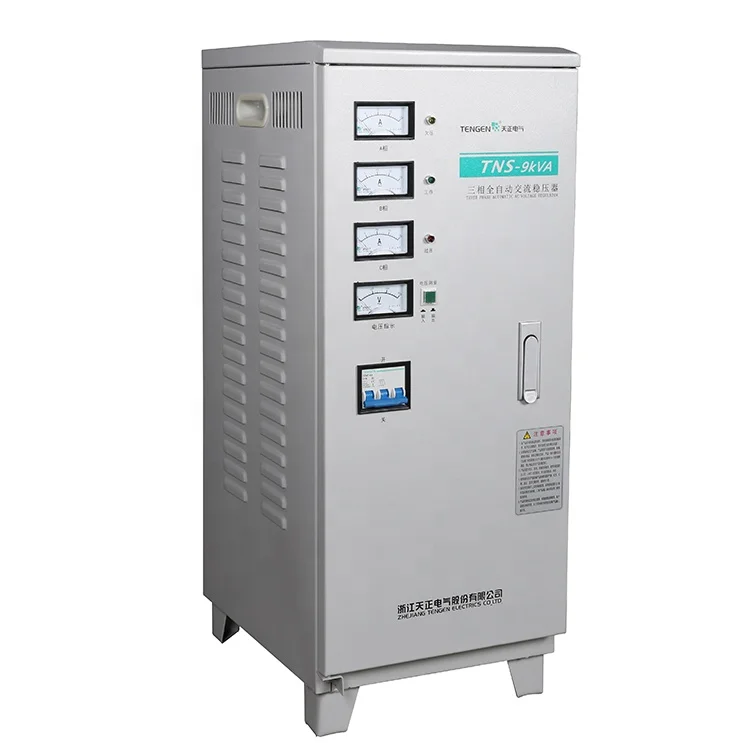

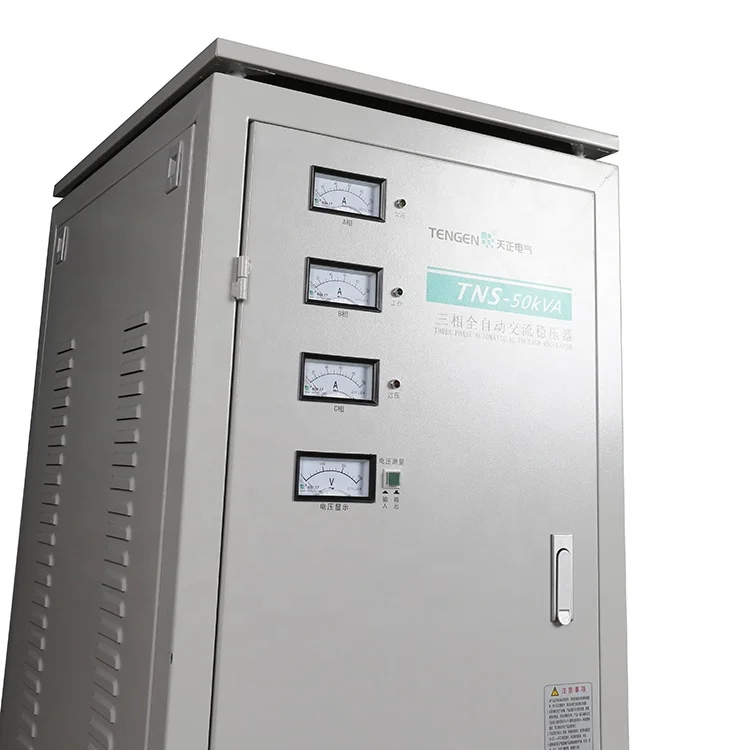

  Three phase relay type 15kva automatic whole house voltage stabilizer

Whole house voltage stabilizer

Introduction :

TNS Series automatic voltage regulator is combined with single phase TND Series automatic voltage regulators,t regulate the three phase voltage separately to ensure the voltage of every phase safe and stable,it is 3phase 4lines,star connection,the output can be 3phase 3lines or 3phase 4lines,there are 3 current meters indicating the current of each phase and a voltage meter with a switch indicating the voltage of each phase.



Technical Parameter :

Input Voltage	260-430V
Output Voltage	380V
Accuracy	±3%
Frequency	50Hz/60Hz
Efficiency	≥90%
Temperature	-10℃~+40℃
Relative Humidity	<90%
Waveform Distortion	No waveform Distortion
Protect Function	Over voltage,over current
Insulation Resistance	>5MΩ



Dimension/Package :

Model	Rated Power(KVA)	Net weight(Kg)	Size(Width*Depth*Height)cm
TND-1.5KVA	1.5	20	48.5*22.5*17
TND-3KVA	3	24	48.5*22.5*17
TND-4.5KVA	4.5	28	48.5*22.5*17
TND-6KVA	6	34	35.5*27.5*68
TND-9KVA	9	43	38.5*31.5*77.5
TND-15KVA	15	68	44*36*78
TND-20KVA	20	85	52*39.5*86
TND-30KVA	30	91	49*49*98.5
TND-40KVA	40	175	66.5*54*118.5
TND-50KVA	50	185	66.5*54*118.5
TND-60KVA	60	196	66.5*54*118.5
TND-80KV	80	233	75*63*132
TND-100KVA	100	257	75*63*132





Tengen Group Co., Ltd. is one of the largest scale enterprises of industrial equipment. Our general headquarters lies in "China Electric Appliance Capital", Liushi, Wenzhou. We have successively won honorary titles such as national large-scale enterprise, national level enterprise, China's electric top 100 enterprise, China mechanical top 100 enterprise, and China's top 100 manufacturer.The product quality of Tengen Group has been strictly controlled in each working procedure, and many kinds of internationalization standard quality guaranteed systems can be highly effective under our company's strict monitoring.

Q:What’s the payment terms?
A:We accept T.T, Paypal, Western Union, LC at sight.



Q:What’s the delivery time?
A:Usually it will take about three weeks for production.



Q:What’s the standard of package?
A:Export standard package or special package according to custome



Q:What kind of product quality your factory offer?
A:We offer most competitive prices with best quality.



Q:Which market do you already sell?
A:We already ship to North America, Europe, Middle East, Southeas.
