PV support frames for flat roofs Solar Panel Mounting Bracket Flat Roof

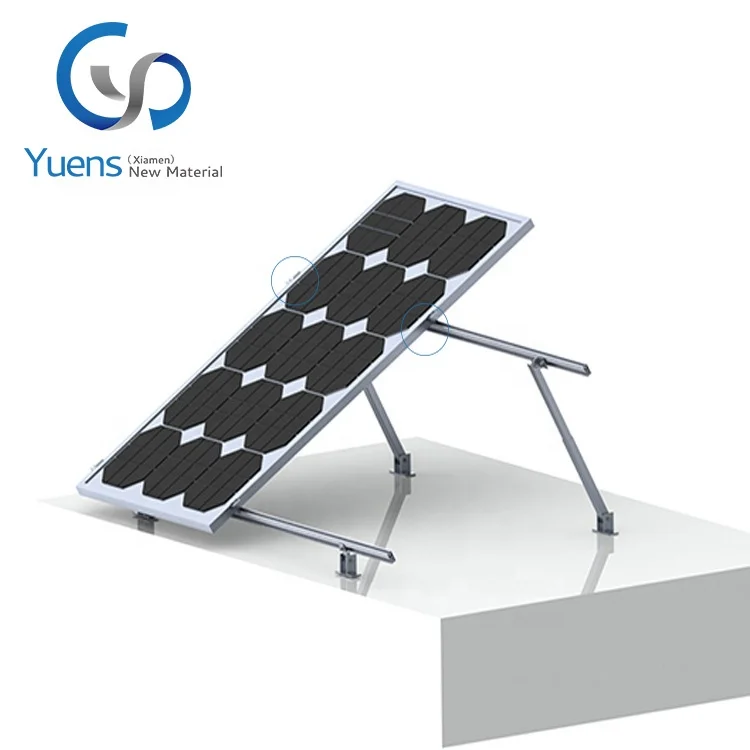

TP-4 (Adjustable) Triangle Mounting is suitable for both roof and ground. To increase the adoption of solar energy, adjusting the tilt angle as per customers' requirements can be customized if necessary.
Application Case
Technical Parameter
Install Site: | Flat & Open fild |
Max. Wind Speed: | 60m/s |
Snow Load: | 1.4kN/m2 |
Color: | Natural |
Adjustable Tilt Angle: | 10-15°, 15-30°, 30-45° |
Material: | AL 6005-T5 & Stainless Steel 304 |
Warranty: | 12 years warranty; 25 years service life |
Max. Roof Clearance: | Customized available |
Installation Steps
Contact us to get the detail installation manual :-D
1. Install the front and rear leg kit, adjust the tilt angle.
2. Connect two rails with rail splice if the rails are not long enough.

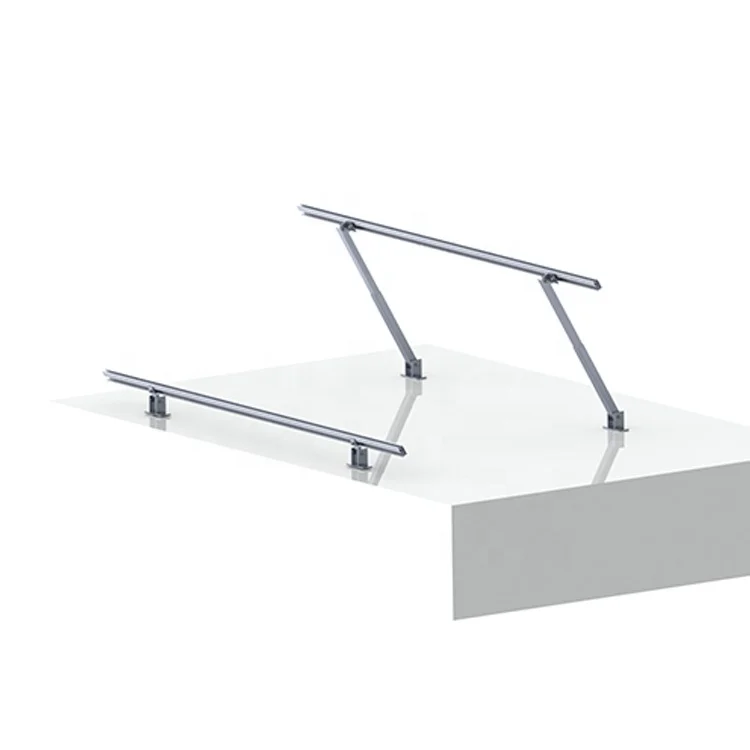

3. Install the rails.
7. Well done! You have installed the (adjustable) triangle mounting system successfully.
Bill of Material
BOM List for a project with 500W:
Item | Item No. | Spec. | Qty. |
Solar Panel | 1640x992x40mm | 2pcs. | |

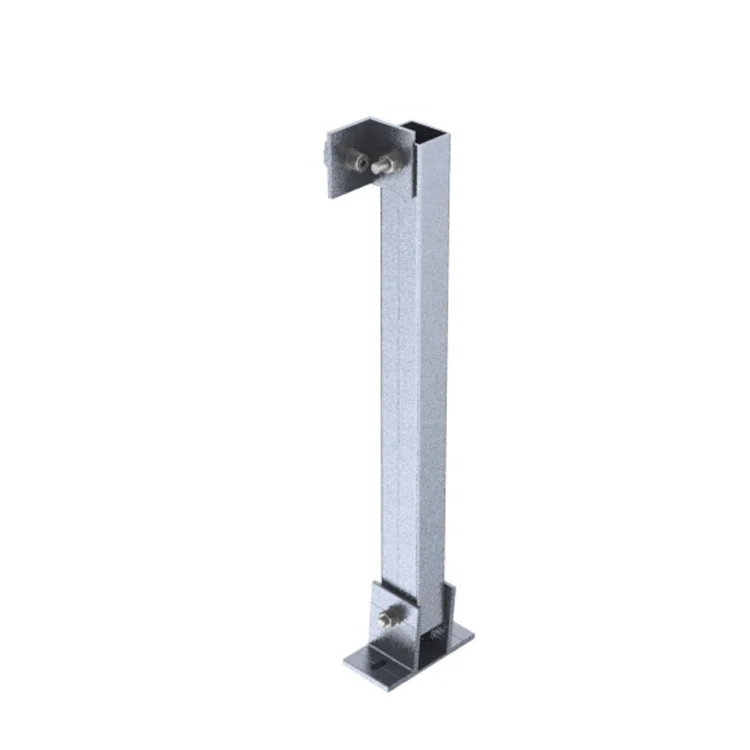

Front Leg Kit | YS-124-Z2 | 2pcs. | |
Rear Leg Kit | YS-124-Z1 | 2pcs. | |
Rail | YS-02 | L=2104mm | 2pcs. |

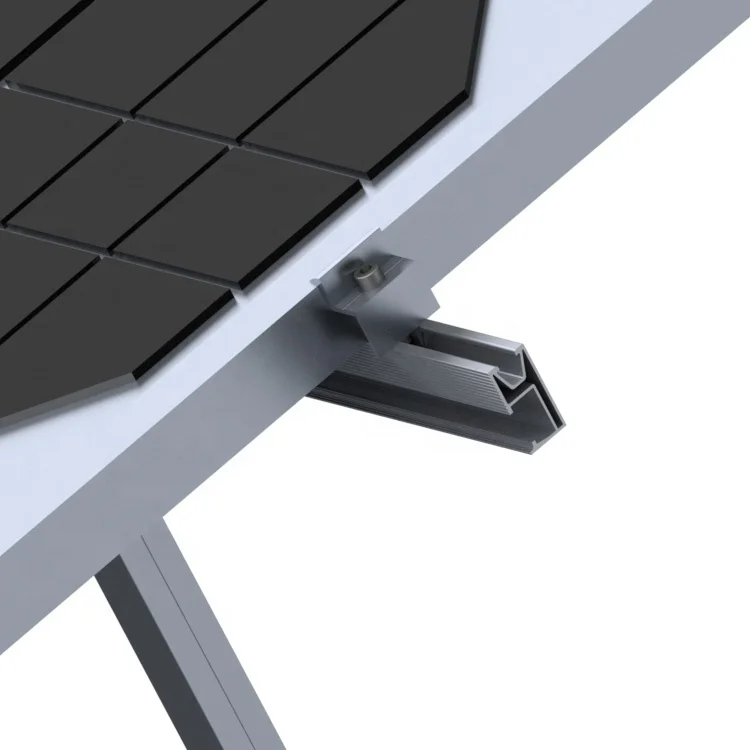

Mid Clamp | YS-21 | L=40mm | 2pcs. |
End Clamp | YS-04 | L=40mm | 4pcs. |
Grounding Washer | L=40mm | 2pcs. | |
Grounding Lug | L=16mm | 2pcs. |
