Машина для прокатки листового металла
US $10000
Полностью автоматическая металлическая сталь небольшие волны кровельный лист Профилирующая машина сделано
- Категория: Tile Making Machinery >>>
- Поставщик: Botou,Mingtai,Roll,Forming,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 10710.46 $* | 11246.43 $* |
| Aug-19-2025 | 10620.14 $* | 11151.61 $* |
| Jul-19-2025 | 8910.89 $* | 9356.10 $* |
| Jun-19-2025 | 10440.68 $* | 10962.13 $* |
| May-19-2025 | 9090.34 $* | 9545.76 $* |
| Apr-19-2025 | 10260.41 $* | 10773.19 $* |
| Mar-19-2025 | 10170.65 $* | 10679.74 $* |
| Feb-19-2025 | 10080.56 $* | 10584.11 $* |
| Jan-19-2025 | 9990.75 $* | 10490.24 $* |
Характеристики

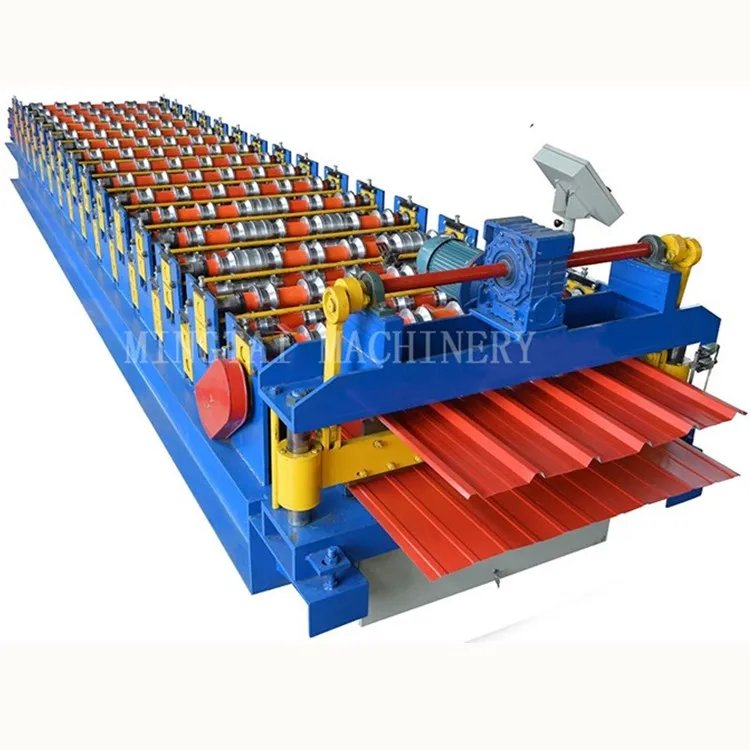

Fashionable Double Deck Roof Roll Forming Machine
Working Flow
Product Description
Fashionable Double Deck Roof Roll Forming Machine
A.General details
Suitable Material | HRB60 or equivalent(PPGI/PPGL/GI/GL) |
Materials thickness | 0.3mm-0.8mm |
Dimension | About 8.6*1.1*1.5mm(L*W*H) , as per the drawing |
Length of the Sheet | It can set the length according to your infact need. It is controlled by PLC, which can ensure the accuracy of ±1mm. |
Cutting | Automatically stop and cutting when it comes to the set length. |
B.Components Details
Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
Main Frame | 350H steel. More stable and no shaking. |
Middle Plate | 20mm. We use thicker plates to ensure stability of our products. |
Forming Steps | 11-20 steps, according to the drawing. |
Shaft Material | Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |
Cutting Blade Material | Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C.Electric Components
Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
Screen | 7 inch touch screen, easy to operate.Brand Delta or based on your need |
PLC | Delta Brand (Or Panasonic /Siemens ) Well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
Frequency Converter | Sanjing ; It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length Measurement Device | Omron, made in Japan. It features with high accuracy and stability. |

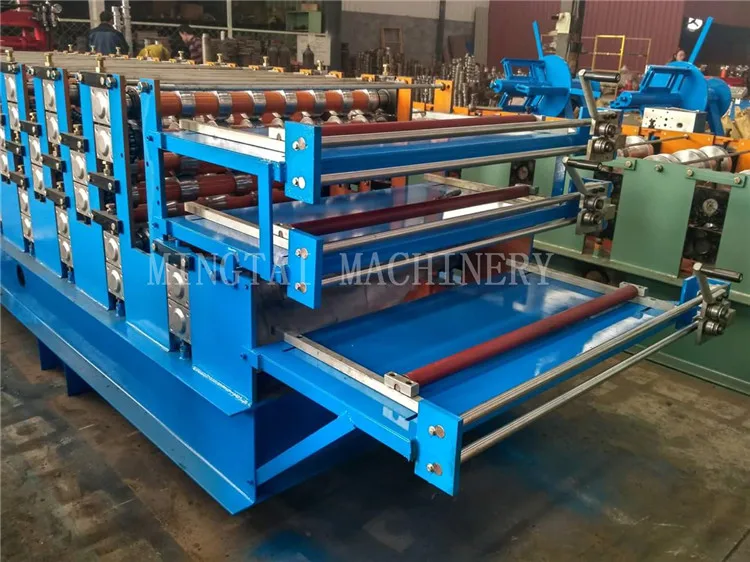

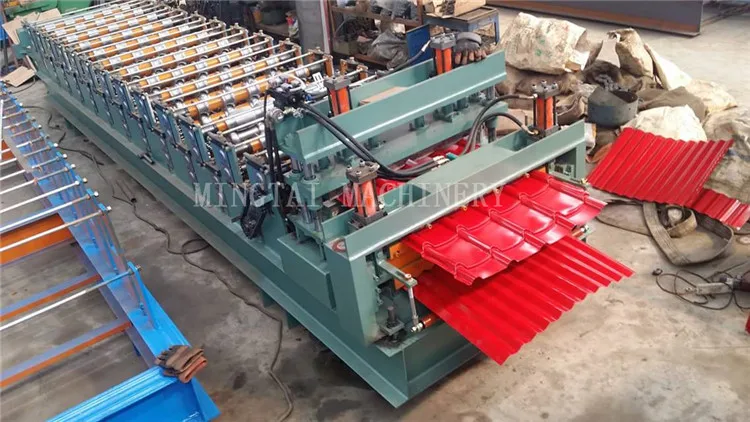

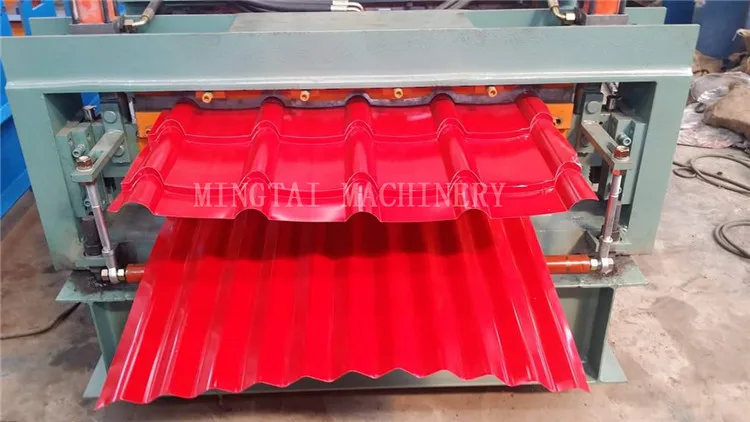

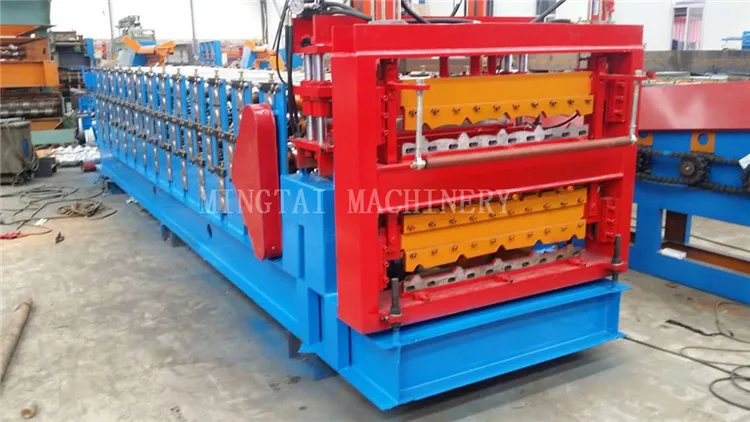

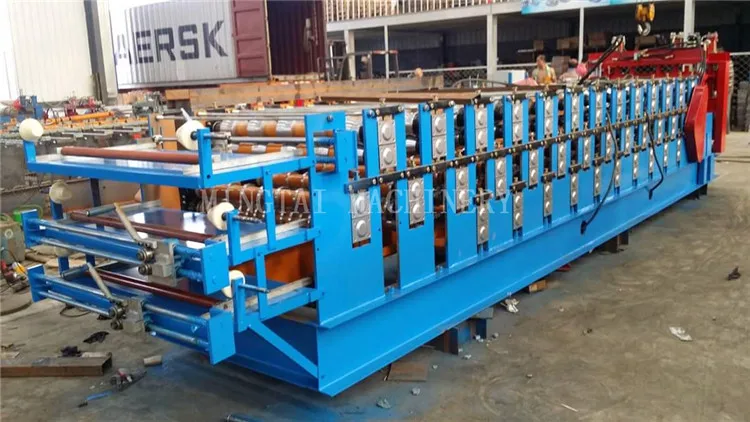

Machine Show
Fashionable Double Deck Roof Roll Forming Machine
Manufacture process
Company Information
Botou Mingtai Roll Forming Machinery Co.,Ltd is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.
Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
Packaging & Shipping
Packing
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Our Services
1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now
3). Service: We could send the technician to your country to fix the machine if you need.
4). Warranty: 12 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer for more than ten years.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
