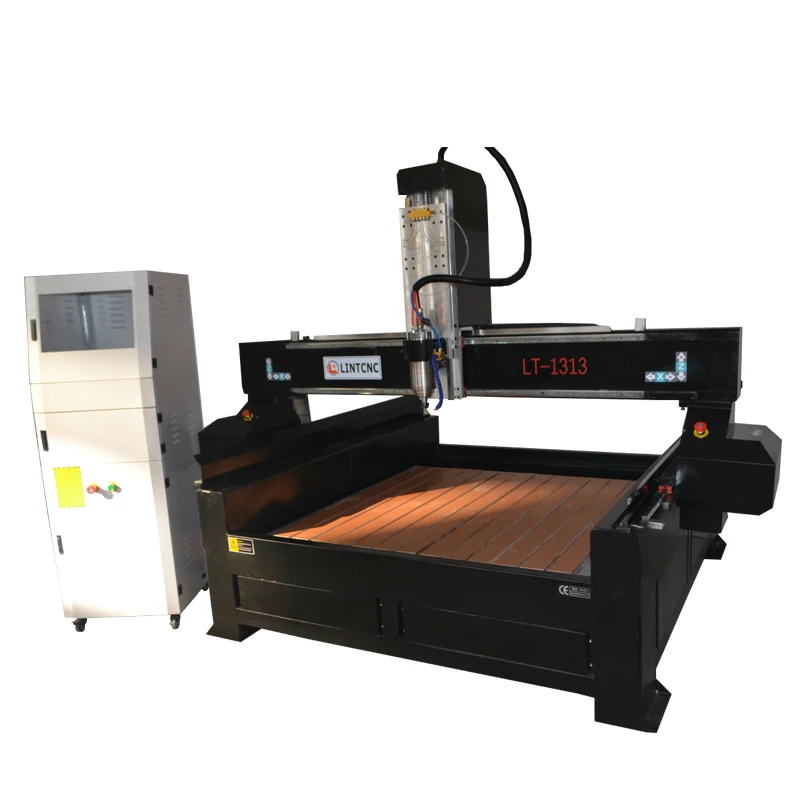

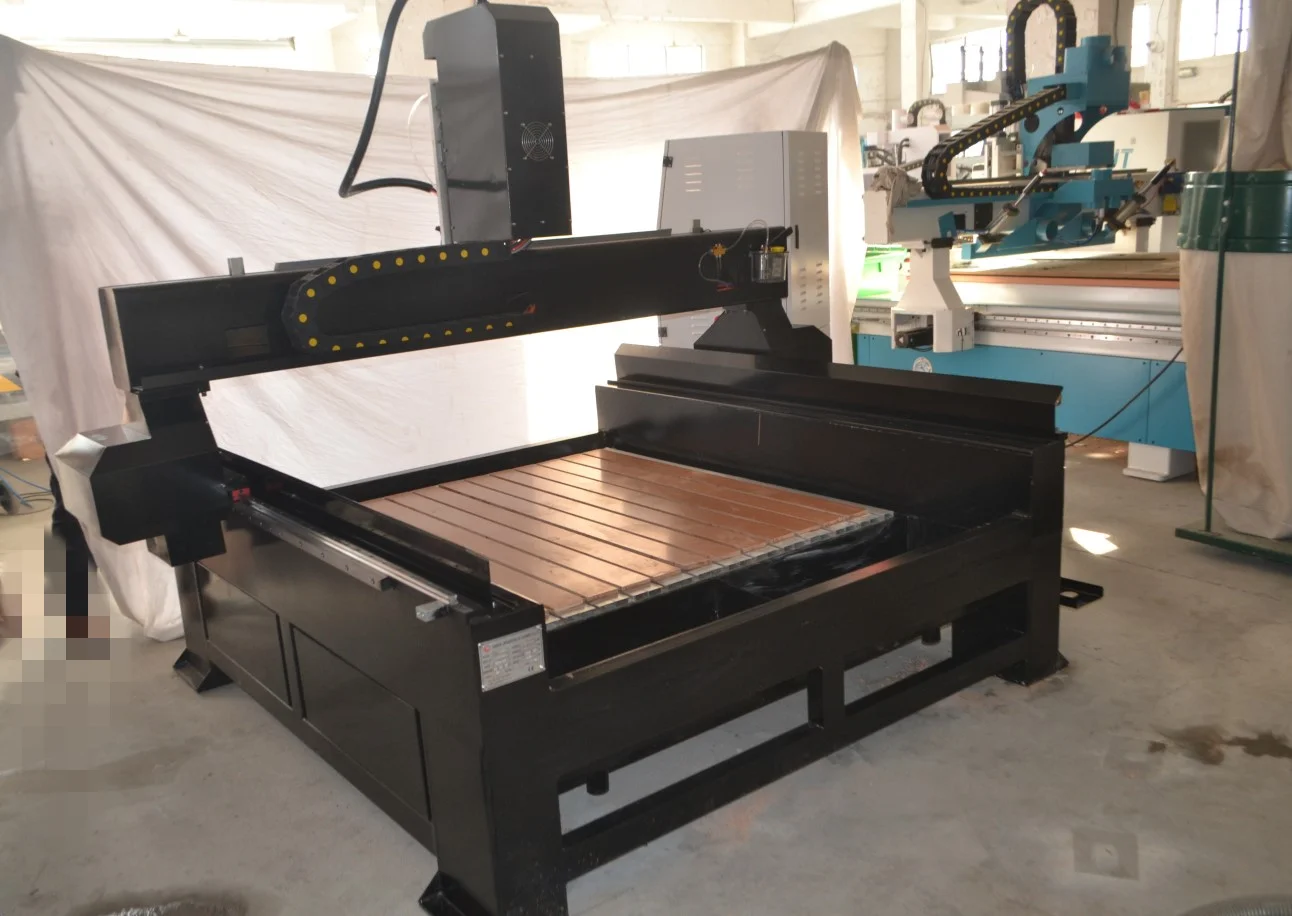

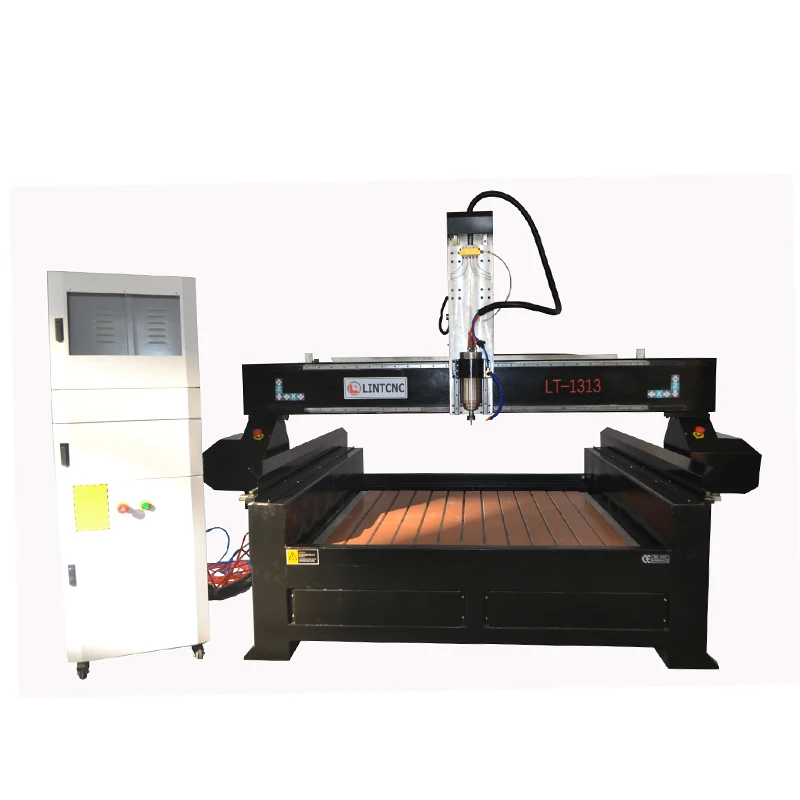

3D Камня CNC Router1325 1212 станок для резьбы по дереву мрамор гранит гравировальный с 5.5kw
- Категория: Отрезной станок >>>
- Поставщик: Shandong,Lintianzhiyuan,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.61 $* | 0.32 $* |
| Aug-19-2025 | 0.8 $* | 0.74 $* |
| Jul-19-2025 | 0.36 $* | 0.87 $* |
| Jun-19-2025 | 0.40 $* | 0.22 $* |
| May-19-2025 | 0.58 $* | 0.70 $* |
| Apr-19-2025 | 0.72 $* | 0.23 $* |
| Mar-19-2025 | 0.41 $* | 0.25 $* |
| Feb-19-2025 | 0.58 $* | 0.62 $* |
| Jan-19-2025 | 0.21 $* | 0.45 $* |
Характеристики
Product Description
Features
1. Steel tube lathe bed, low center of gravity,strong bearing capacity, not easy to deformation, stable and reliable operation.
2. Adopt NCstudio control system, through computer operation,easy and simple to operate. DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.

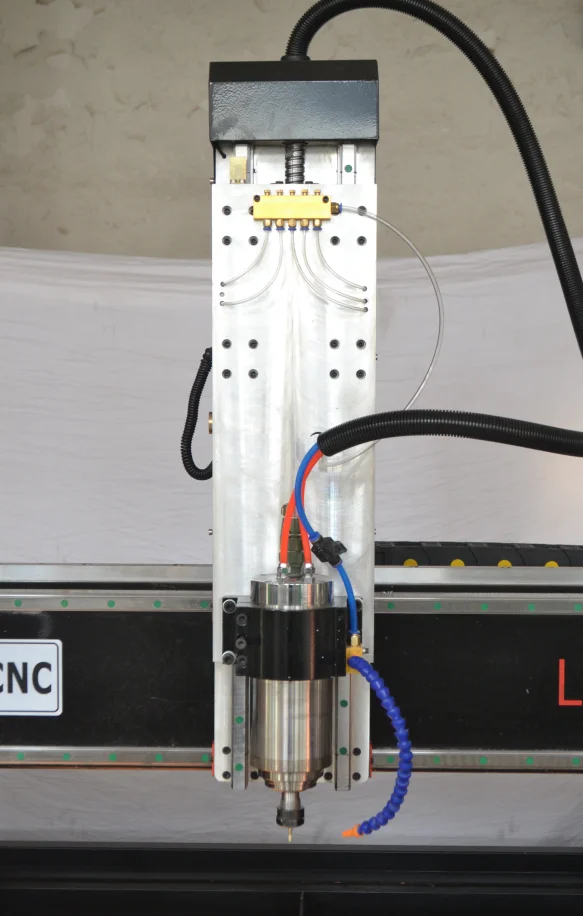

4.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
2. Adopt NCstudio control system, through computer operation,easy and simple to operate. DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
4.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
Machine details
Effective working area | (X=1300mm)*(Y=2500mm) |
Max Feeding Height | 300mm |
Machine Body | 8mm thickness welded steel tube, cast iron vertical shafts and steel gantry |
Working table | Aluminum T-slot table with PVC |
Guide rail | Hiwin linear square guide rail |
Driving method | Taiwan Gears Rack drive for X Y-axis,lead screw drive for z-axis |
Motor and driver | Stepper motor and Leadshine driver |
Spindle Motor | 5.5KW water cooling spindle |
Inverter | Fuling inverter |
Spindle speed | 0-24000rpm/min |
Spindle collect type | ER25 |
Voltage | AC220V, 1 phase/AC380V, 3phase, 50-60Hz |
Working speed | 0-12000mm/min |
Machine Accuracy | <0.05/300mm |
Control system | NC studio control system |
Compatible software | Type3/Castmate/Coreldraw/AutoCADand other CAM/CAD software |
Instruction formate | G code *.u00 *.mmg *.plt |
Working Environment temerature | 0-45℃ |
Working Environment Humidty | 30%-75% No coagulate water |
Control Cabinet | Independent |
Other | Water tank & water mist cooling system |
Samples
3D relief ,linear engraving and cutting Of natural marble, bowlder, granite, artifical stone, tombstone, milestone, tiles, glass etc. Two-dimensional chamfering and drilling.
Packing & Delivery
Company Profile
Jinan LintianzhiyuanCNC Equipment Co., Ltd. is famous in CNC equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and
high-quality products to build the world brand.Our main products: largescale (automatic tool change) CNC
woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter product.
high-quality products to build the world brand.Our main products: largescale (automatic tool change) CNC
woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter product.
“ We provide one-stop service, including the design, installation, training, commissioning, maintenance and consulting. Your satisfaction is always what we pursue.”
FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine, if there is still
any question, we can talk through phone or Skype.
Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you
professional guidance.
2. If the machine has problem, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone.
our after-sales staff can come to your workshop if the problem still cannot be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your
work piece,our techniciant will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
4) MOQ ?
Our MOQ is 1 set machine.We could send machine to your country port directly,please tell us your port name.There will be best shipping freight and machine price send to you.
User-friendly English manual and operation video will be sent together with the machine, if there is still
any question, we can talk through phone or Skype.
Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you
professional guidance.
2. If the machine has problem, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone.
our after-sales staff can come to your workshop if the problem still cannot be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your
work piece,our techniciant will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
4) MOQ ?
Our MOQ is 1 set machine.We could send machine to your country port directly,please tell us your port name.There will be best shipping freight and machine price send to you.
