Коаксиальный кабель RG59 с кабелем питания
- Категория: Коммуникационные кабели >>>
- Поставщик: HANGZHOU,JIANYE,CABLE,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.24 $* | 0.24 $* |
| Aug-19-2025 | 0.87 $* | 0.49 $* |
| Jul-19-2025 | 0.68 $* | 0.33 $* |
| Jun-19-2025 | 0.49 $* | 0.93 $* |
| May-19-2025 | 0.60 $* | 0.90 $* |
| Apr-19-2025 | 0.19 $* | 0.99 $* |
| Mar-19-2025 | 0.3 $* | 0.10 $* |
| Feb-19-2025 | 0.35 $* | 0.14 $* |
| Jan-19-2025 | 0.33 $* | 0.22 $* |
Характеристики
Product Description

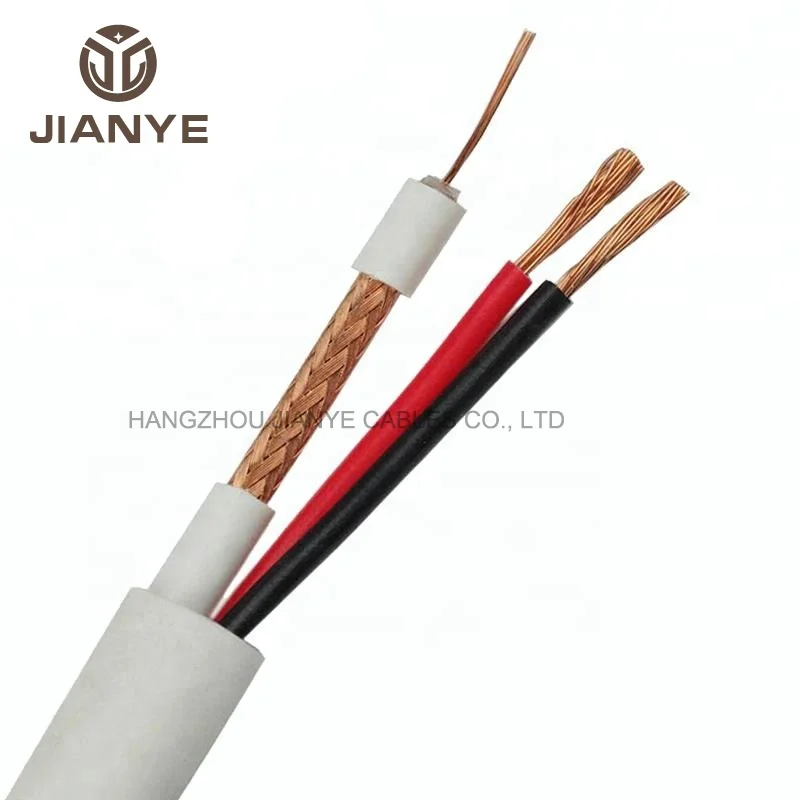

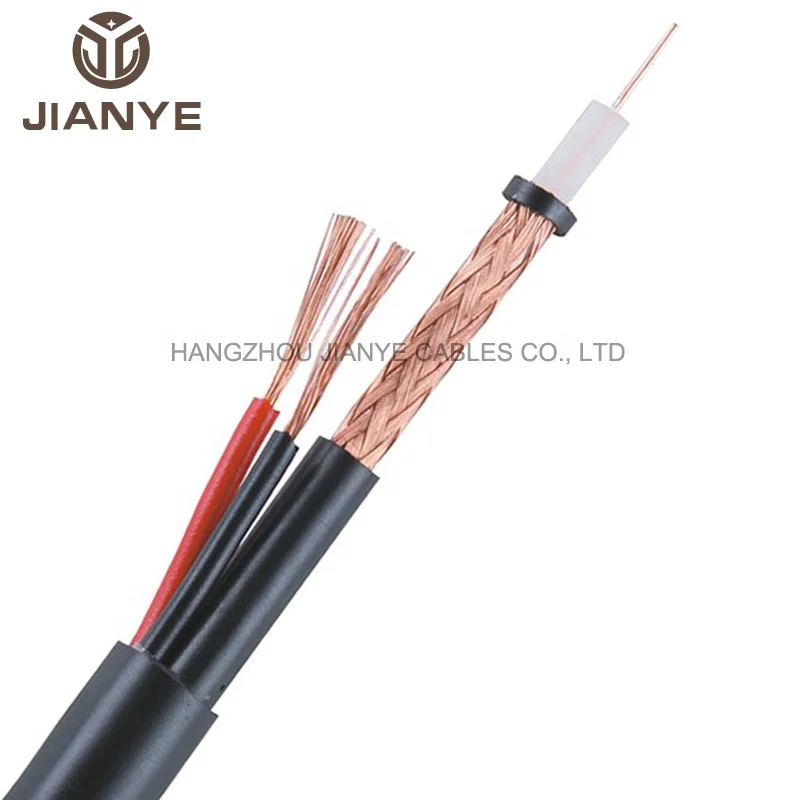

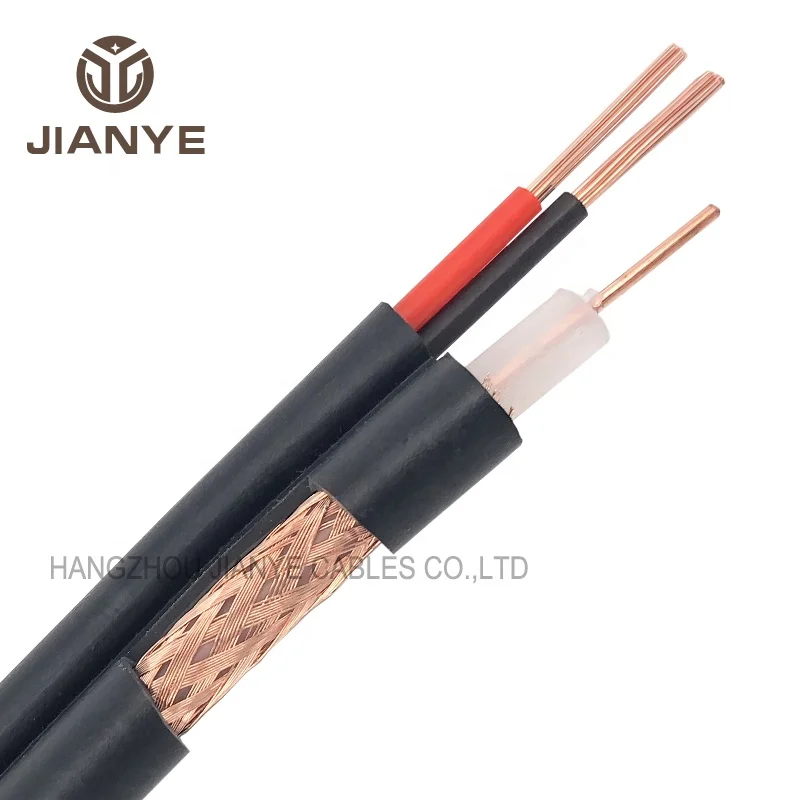

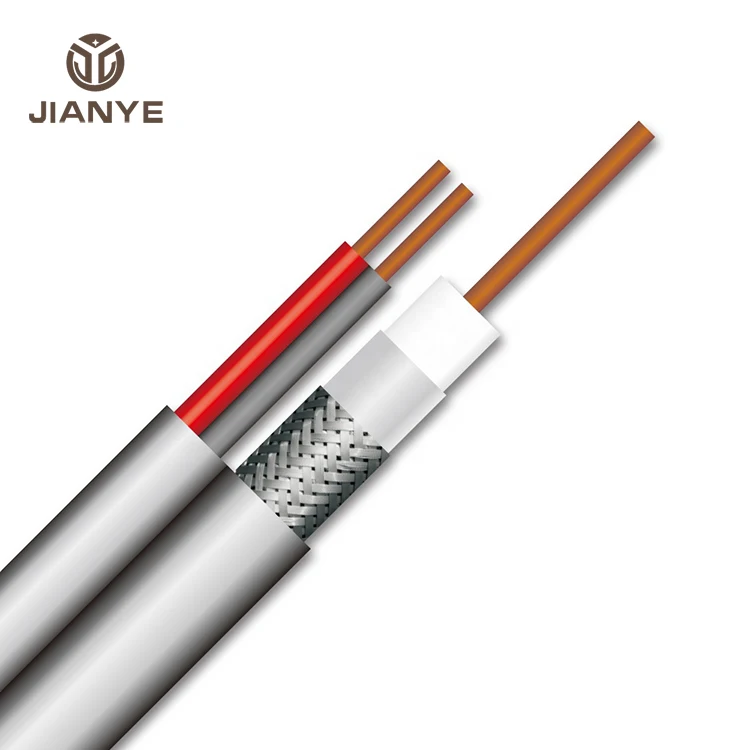

COAXIAL CABLE WITH POWER
* Duble shield
* 60%-90% Braid
RG59 cable is the most cost efficient and reliable way of connecting your CCTV video surveillance system. Our RG 59 cable comes
with dual shielding, including a 90% braid, to give you great signal quality by protecting your signal from electromagnetic
interference (EMI).
RG 59 cable now includes the highest percentage braid on the market (90%). Putting that together with a bonded foil shield ensures
that this product will outperform quad shielded RG 59 cable.
* Rated for 75 ohms
* BC or CCS Center Conductor
Best Used For
* CCTV Video Surveillance Systems
* 60%-90% Braid
RG59 cable is the most cost efficient and reliable way of connecting your CCTV video surveillance system. Our RG 59 cable comes
with dual shielding, including a 90% braid, to give you great signal quality by protecting your signal from electromagnetic
interference (EMI).
RG 59 cable now includes the highest percentage braid on the market (90%). Putting that together with a bonded foil shield ensures
that this product will outperform quad shielded RG 59 cable.
* Rated for 75 ohms
* BC or CCS Center Conductor
Best Used For
* CCTV Video Surveillance Systems
Structure | Material | RG59 DUAL | RG59 TRI | RG59 QUAD | ||
Conductor | BC/CCS | 0。81mm | ||||
Dielectric | FPE | 3.66mm | ||||
1st Shield | Al Foil | 100%, Overlap>2mm | ||||
2nd Shield | BC or Al Braiding | 30%-95% | 60% | |||
3rd Shield | Al Foil | - | 100%, Overlap>2mm | |||
4th Shield | BC or Al Braiding | - | - | 40% | ||
Jacket PVC/PE | Outer Diameter | 6.1mm | 6.926.32mm | 7.62mm | ||
Nominal Thickness | 0.76mm(0.030'') | 0.76mm(0.030'') | 0.86mm(0.034'') | |||
Messenger | Steel | 1.30mm or 1.83mm | ||||
Dielectric Adhesion | >20N/5cm | ||
Breaking Strength of Messenger | 1.30mm 82kgf;1.83mm 166kgf | ||
Impendence | 75±3 Ohm | ||
Capacitance | 50±3.0 nf/KM | ||
Return Loss (100% swept) | 1~470MHz | ≥22dB | |
470~1000MHz | ≥20dB | ||
1000~2200MHz | ≥18dB | ||
