2 Когти ремень Трубы Тянущее Устройство машина
- Категория: Пластиковые выкатные машины >>>
- Поставщик: Zhangjiagang,Beierman,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.11 $* | 0.41 $* |
| Aug-19-2025 | 0.51 $* | 0.89 $* |
| Jul-19-2025 | 0.22 $* | 0.61 $* |
| Jun-19-2025 | 0.61 $* | 0.87 $* |
| May-19-2025 | 0.2 $* | 0.19 $* |
| Apr-19-2025 | 0.90 $* | 0.7 $* |
| Mar-19-2025 | 0.65 $* | 0.79 $* |
| Feb-19-2025 | 0.41 $* | 0.62 $* |
| Jan-19-2025 | 0.90 $* | 0.21 $* |
Характеристики
CE plastic pipe haul off machine, is usually equipped in PVC pipe production line ,PVC profile production line,or PE/HDPE/PPR/PE-RT pipe produciton line,
This machine is after forming tank, and before cutting machine, or before pipe winder.
There are many different types of haul off machine, such as rubber belt haul off machine, this is used for small diameter pipe,usually is 2 caterpillars, or two cavity pipe, or 4 cavity pipe haul off machine.
such as rubber bricks haul off machine,is used for larger diameter pipe, usually is 2 caterpillars,3caterpillars,4caterpillars,6caterpillars,8caterpillars.
Main technical parameter
| Model | QY-1 | QY-2 | QY-3 | QY-4 | QY-6 | QY-8 |
| Motor Power(KW) | 1.5 | 2.2 | 1.1×3 | 1.5×4 | 1.1×6 | 1.1*8 |
| Qty of Caterpillars | 2 | 2 | 3 | 5 | 6 | 8 |
| Effective Length(mm) | 800 | 1200 | 1600 | 2000 | 2800 | 3000 |

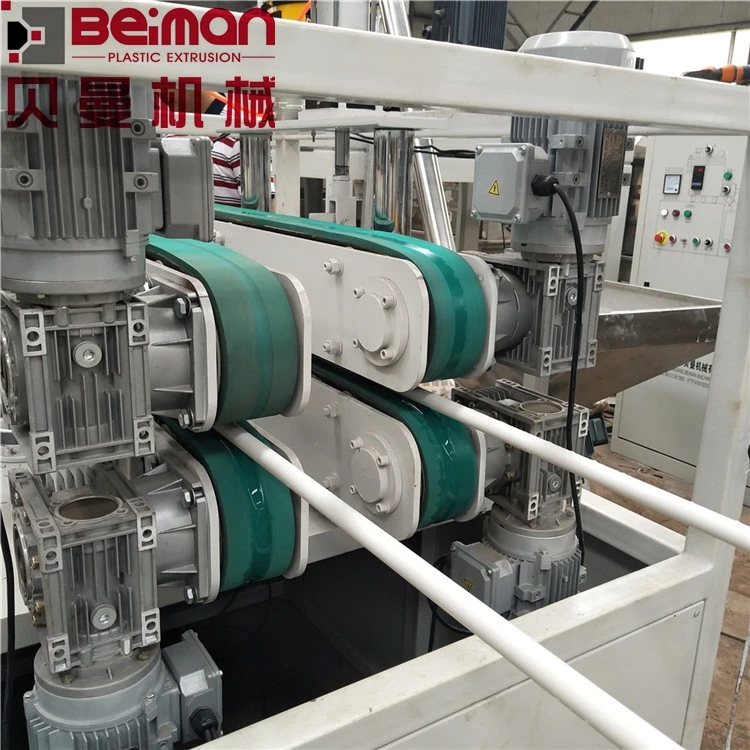

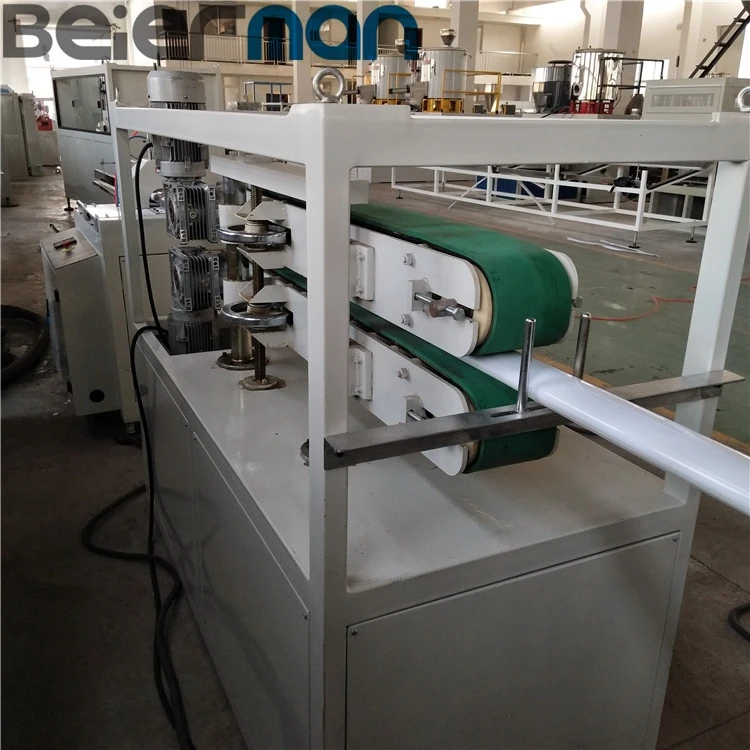

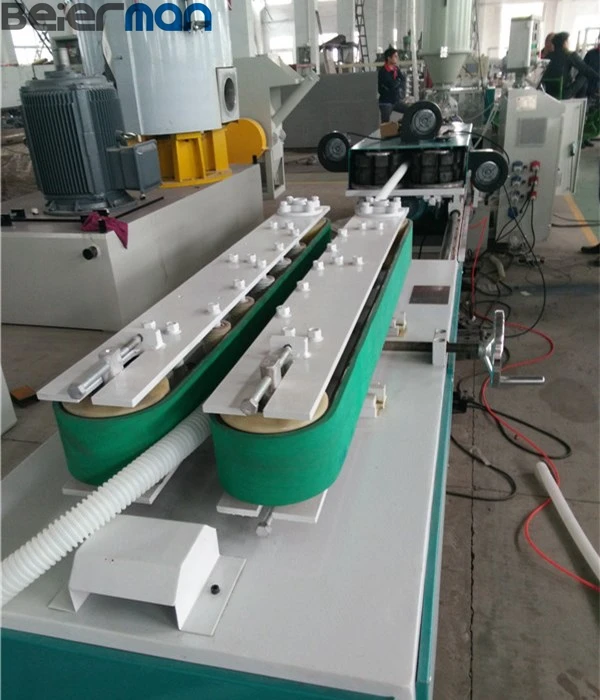

Here I only offer one of our 2 caterpillars haul off machine for your reference.
there are belt or rubber bricks type.
driving motor can be installed one for whole machine;
and motors also can be installed one by one for each caterpillar,then machine running is more stable.
- Packaging: poly-wooden cases for Plastic pipe haul off machine QY-I, no need fumigate; bubble films packaging
- We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- Shipping: By Sea or Train
- pre-sales services: we will take customers to visit our factory and check the machines quality from airport/bus station/train stations
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method
- after sales services: we will offer electric diagram, installation diagram, usage manual
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.
- we will offer customers spare parts at cost prices all life long of the machines.
- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.
- we have already get CE and ISO9001 corticated for our machines and factory, which ensured the high quality level of all machines we are producing
- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.
- there will be 1-2 new produced machines will be showed to the customers every year.
- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.
