Конденсационная Паровая турбина 10 кВт

Конденсационная Паровая турбина 10 кВт

Категория: >>>
Поставщик: Dongturbo,Electric,Company,Ltd.

Цена:24 180,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	28774.85 $*	30213.44 $*
Aug-18-2025	28532.34 $*	29959.48 $*
Jul-18-2025	23938.73 $*	25135.50 $*
Jun-18-2025	28049.81 $*	29451.57 $*
May-18-2025	24422.64 $*	25643.6 $*
Apr-18-2025	27565.69 $*	28943.91 $*
Mar-18-2025	27323.5 $*	28689.30 $*
Feb-18-2025	27082.36 $*	28436.56 $*
Jan-18-2025	26840.32 $*	28182.14 $*

Характеристики

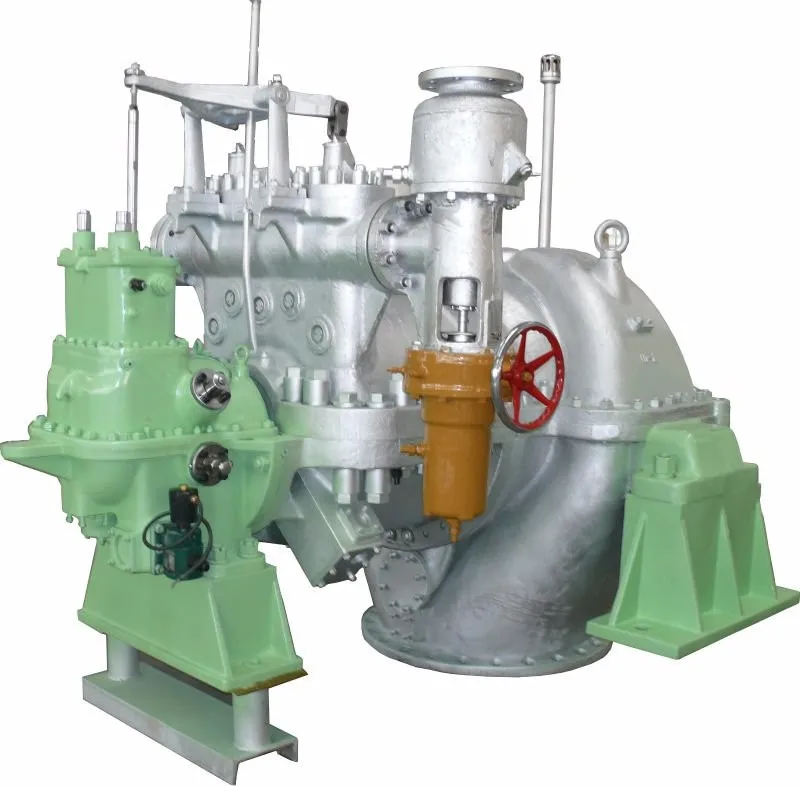

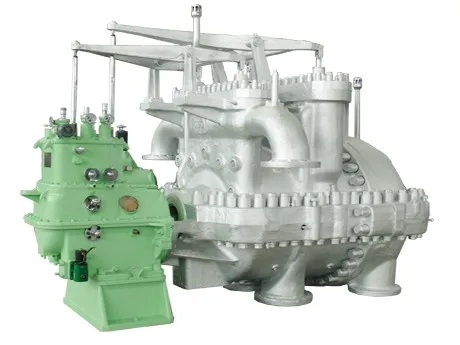

Product display

Type 1: condensing steam turbine
S/N	Small condensing steam turbine (KW)	Specification	Weight / Steam rate
1	10	N10(KW) -0.98/180℃	0.4/40
2	10	N10(KW) -0.98/300℃	0.5/35
3	20	N20(KW) -0.98/180℃	0.5/25
4	30	N30(KW) -0.98/300℃	0.8/14.3
5	50	N50(KW) -0.98/180℃	1.0/20
6	100	N0.1-1.27/190℃	1.8/16.5
7	200	N0.2-1.6/201℃	2.0/14.5
8	300	N0.3-1.6/330℃	2.2/12.2
9	500	N0.5-2.35/390℃	3.2/9.6
10	1000	N1.0-2.35/390℃	8/5.8

Type 2: back pressure steam turbine
S/N	Small condensing steam turbine (KW)	Specification	Weight / Steam rate
1	5	B5(KW) -1.25/0.1	0.4/68
2	10	B10(KW) -1.25/0.1	0.4/65
3	20	B20(KW) -1.27/0.1	0.4/65
4	30	B30(KW) -1.6/0.1	0.5/60
5	50	B0.05-0.8 (280℃)/0.2	1.1/41.5
6	100	B0.1-1.6/0.2	1.8/38
7	200	B0.2-1.6/0.49	2.0/35
8	300	B0.3-2.35/0.49	2.2/31
9	500	B0.5-2.35/0.49	3.2/29
10	750	B0.75-2.35/0.49	5/25
11	1000	b1.0-2.35/0.49	7/22

External equipment for above turbines
Equipment name	Description	Allocation
Inlet manual valve	Manual inlet valve switch	Optional allocation or self-allocation
Inlet electronic vlave	Electronic inlet valve switch	Optional allocation
Control valve	Applied with governor	Governor required
Electronic governor	Adjust turbine speed to stable operation, and maintain it constantly	Optional allocation
Imported mechnical governor	Adjust turbine speed to stable operation, and maintain it constantly	Optional allocation
Generator	Power generation	Allocated or slef-allocation
Generator control cabinet	Power output	Allocated or slef-allocation

Related products

Company Profile

Package delivery

FAQ

1. Why choose us?
14+ years experience - Dongturbo works as a complete power generation solution supplier more than 14 years
23 countries - We serve customers in more than 23 countries
400+ Units - We have provided more than 400 units to customers in China and around the world

2. How to get the quote?
Please inform us the following information:
* Capacity of steam turbine
* Only supply power or supply heat and power?
* Parameters of steam: inlet pressure, inlet temperature and steam flow. If you need extra steam, please inform us the pressure, temperature and flow of steam
* Please inform the speed, frequency and voltage you required.
It is very important that buyer provide the information as much as they can to get the best quotation.

3.What about the product quality?
We have ISO9001 certificate and CE certificate, we have also quantity department to ensure our product meet the national or international standard.
Our products need to go through more than 3 tests before leaving the factory, and notify customers of the test results

4.What about the price?
We only offer a reasonable price instead of high price. Different quality and at a different price. Payment through TT and L/C are accepted.

5. How about the shipment?
Shipment by sea and by air are accepted, it depends on the volume of the order.

6. What about after sales services?
We will respond within 24 hours after the customer raises the question

7. How about packaging?
Standard export wooden case, iron frame and another seaworthy packaging.

8. How long is it the delivery time?
We ship our goods to China's export coast. We can't decide the time needed for other transportation, but the manufacturing time can be discussed, and it directly depends on the order volume and necessity like urgent or normal.
